Assa Abloy - SW300 Pull , BK

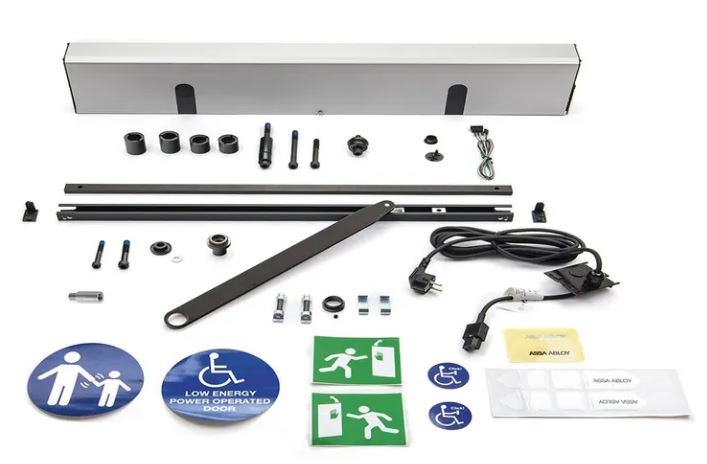

ASSA ABLOY SW300 Automatic Swing Door Operator – Pull Arm Configuration with Black Endcaps and Arm

The ASSA ABLOY SW300 Pull Arm Operator is a high-performance, heavy-duty automatic swing door system, designed for demanding commercial and public environments. This version is supplied with a pull arm and black endcaps and arm assembly, offering both robust function and a clean, modern finish.

Capable of operating doors up to 450 kg, the SW300 delivers smooth and quiet motion while supporting full compliance with safety and accessibility standards, including EN16005. It is suitable for fire-rated, escape route, and high-trafficinstallations where reliability, performance, and aesthetics are equally important.

Key Features & Benefits

Heavy-Duty Door Automation – Up to 450 kg
Engineered to control large and heavy swing doors with ease, including wide leaf doors with high inertia values.

Pull Arm Configuration with Black Finish
Configured for pull-side mounting, typically installed on the opposite side to the door hinges. Supplied with a black arm and matching black endcaps for a sleek, architectural appearance.

Fire Door Compatible
Approved for use with certified fire doors when installed with compatible accessories. Supports mechanical coordinators for double door sets.

Low-Energy and Fully Automatic Modes
Configurable to operate in either low-energy (assisted) or fully automatic modes, making it suitable for DDA-compliant entrances and general access control.

Advanced Safety Features
Built-in obstacle detection and safety reversal ensure compliance with EN16005 and BS7036 for automatic pedestrian doors.

Quiet, Reliable Operation
Electro-mechanical drive system delivers smooth and near-silent performance, ideal for offices, healthcare, care homes, and internal corridors.

Fully Adjustable Settings
Opening and closing speeds, hold-open times, push-and-go functionality, and other parameters are easily configurable via internal controls or external selectors.

Technical Summary

• Power Input: 100–240 V AC, 50/60 Hz

• Drive Type: Electro-mechanical, 24 V DC

• Max Door Weight: Up to 450 kg

• Max Door Width: Up to 1600 mm (depending on door and arm type)

• Max Door Inertia:
    • Pull Arm: 80 kg·m²

• Mounting Configuration: Surface-mounted, pull side

• Finish: Black endcaps and pull arm

• Operating Temp Range: –20 °C to +45 °C

• Ingress Protection: IP20

• Standards Compliance: EN16005, EN1634, EN1158, DIN 18263-4

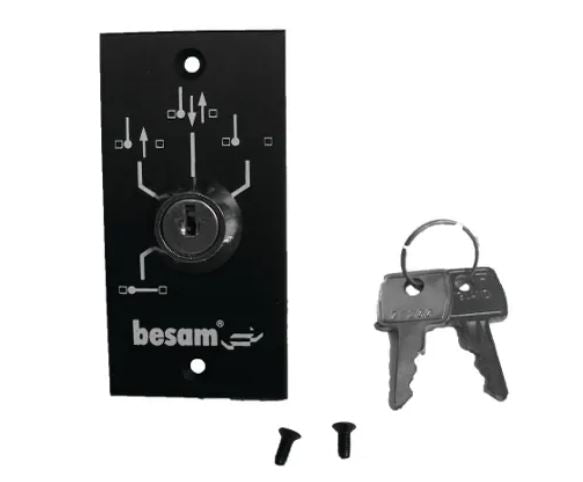

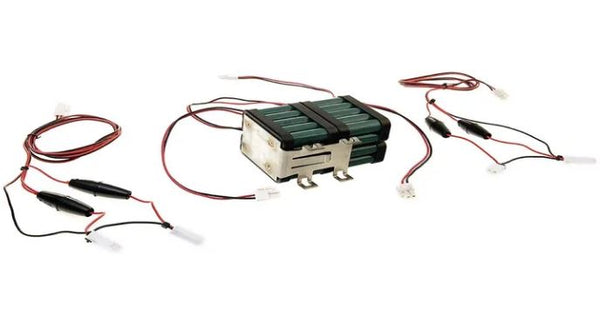

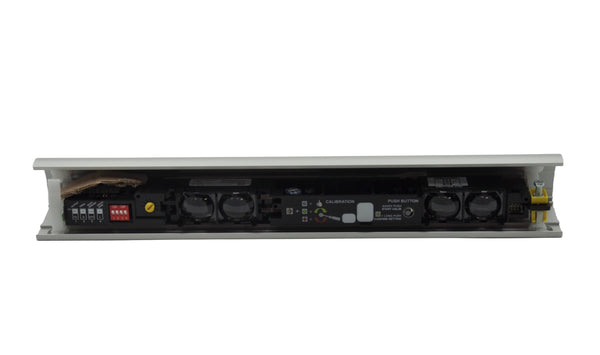

• Compatible Accessories: Battery backup, safety sensors, key switches, programme selectors, fire alarm inputs

Applications

• Inward-opening swing doors

• Fire-rated access points

• Escape routes

• Hospitals, schools, and commercial entrances

• Doors requiring DDA/Equality Act compliance

The ASSA ABLOY SW300 Pull Arm Operator is a market-leading choice for automating heavy swing doors where performance, safety, and a clean visual finish are critical. Ideal for modern buildings, healthcare environments, and high-traffic public areas.
