Price Per Meter - Please use notes section for required cut length sizes.
Guide Channel for Single Skin Roller Shutters – 3.0mm Galvanised Steel
Our Single Skin Roller Shutter Guide Channels are precision-manufactured to serve as durable runners for the smooth and secure operation of roller shutter doors. Designed to support the vertical movement of single or insulated lath, these side channels are an essential component in forming a robust and reliable door frame system.
Key Features & Benefits:
-
Strong Galvanised Steel Construction:
Made from high-quality 3.0mm galvanised steel, compliant with DX51 Z2 275g EN10346:2009 for exceptional corrosion resistance and long-term durability. -
Reliable Lath Guidance:
Functions as a side track to guide roller shutter lath smoothly during opening and closing operations, reducing wear and ensuring consistent performance. -

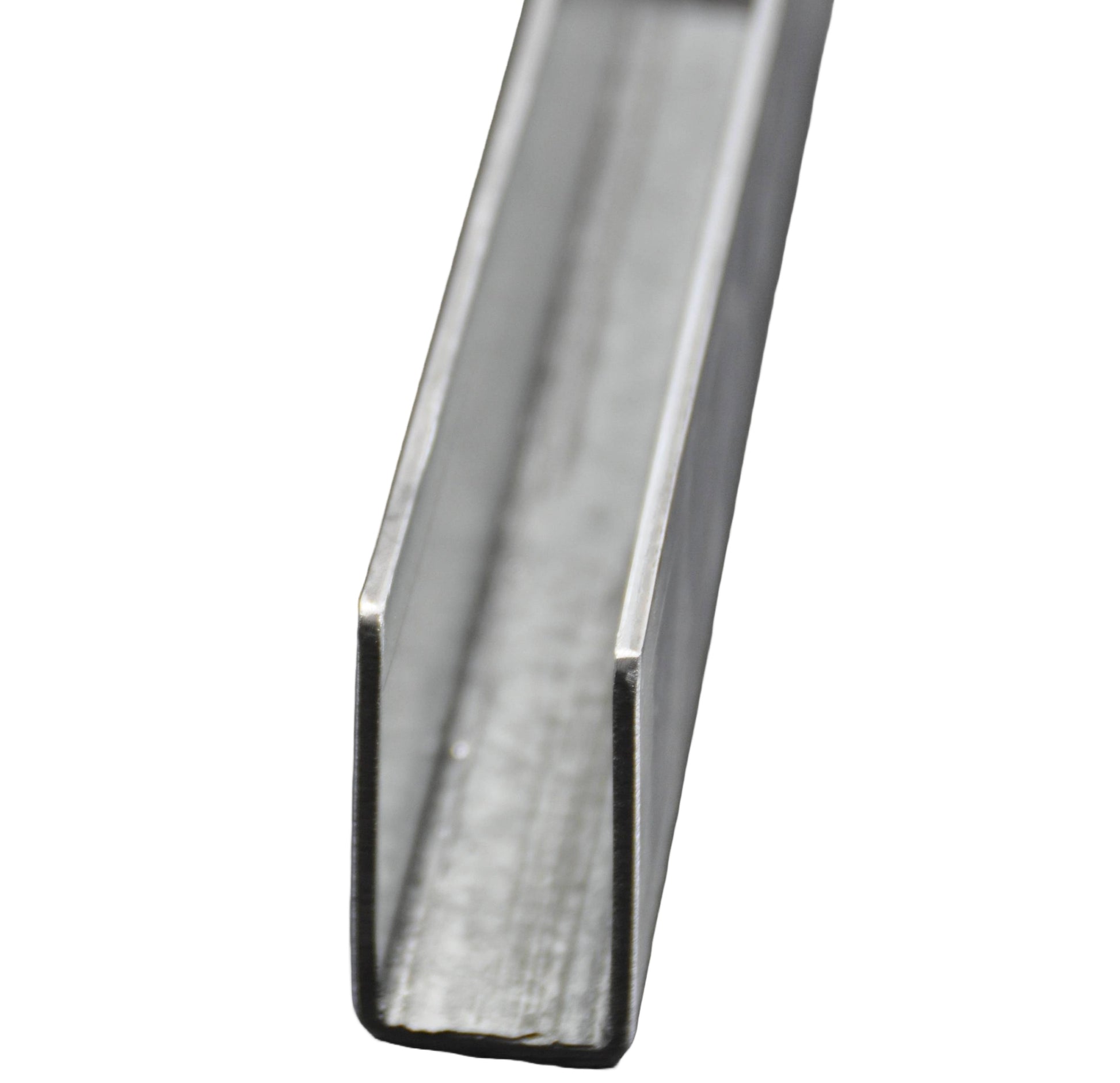

Standard ‘U’ Channel Design:
Features a 65mm leg size ideal for most standard installations. A straight channel profile makes it suitable for a wide range of single skin shutter systems. -
Versatile Use Cases:
Can be used across industrial, commercial, and domestic roller shutter door frames, including garages, warehouses, and security shutters. -
Ready for Installation:
Supplied in standard lengths and easily cut to size on-site to meet specific installation needs.
Technical Specifications:
| Feature | Detail |
|---|---|
| Material | Galvanised Steel |
| Thickness | 3.0mm |
| Specification Standard | DX51 Z2 275g (EN10346:2009) |
| Channel Type | Standard U-Channel (Straight) |
| Leg Size | 65mm |
| Application | Side guide for roller shutters |
| Usage | Commercial, Industrial, Domestic |
Manufacturer Part Number
