Assa Abloy - Battery backup - SW150 -SW300

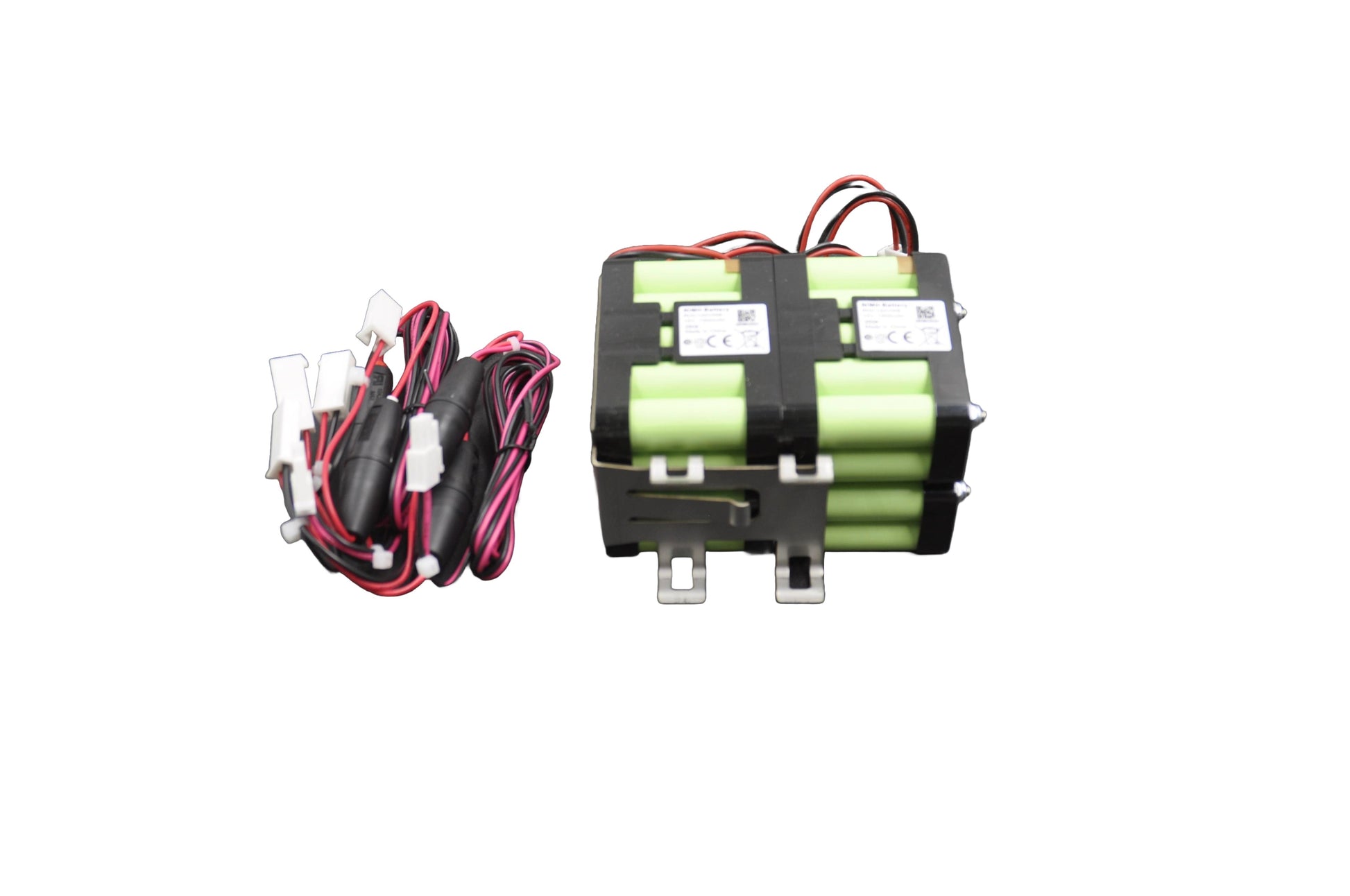

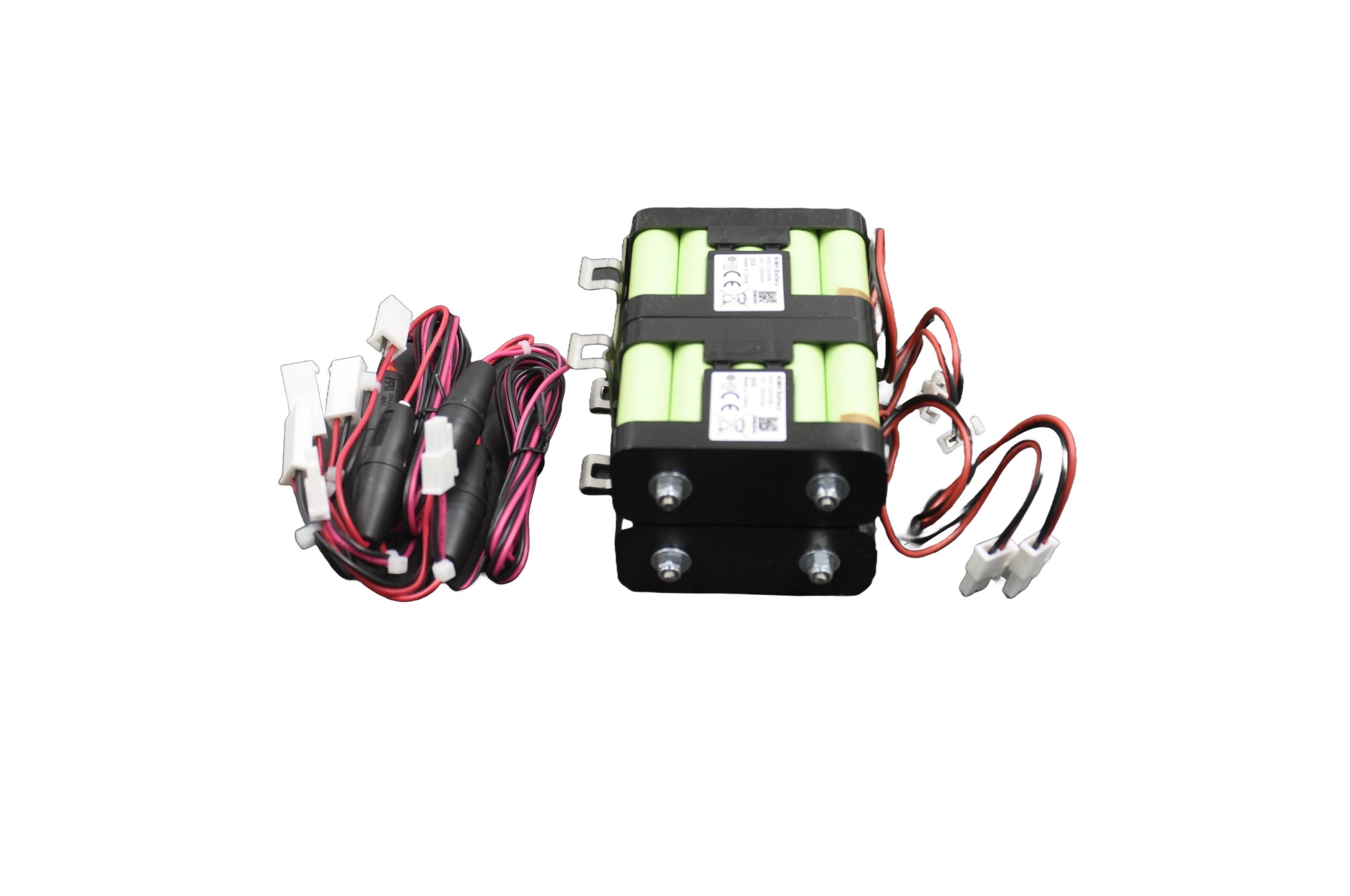

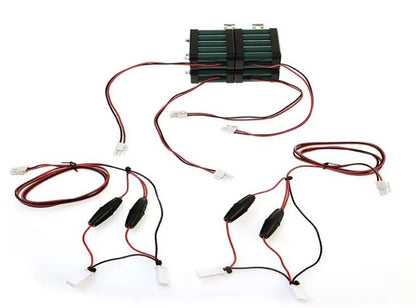

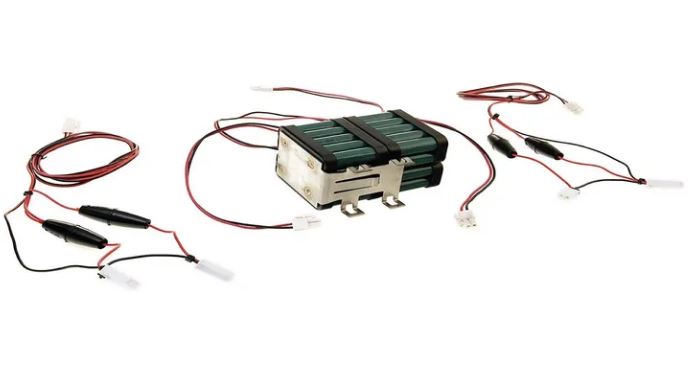

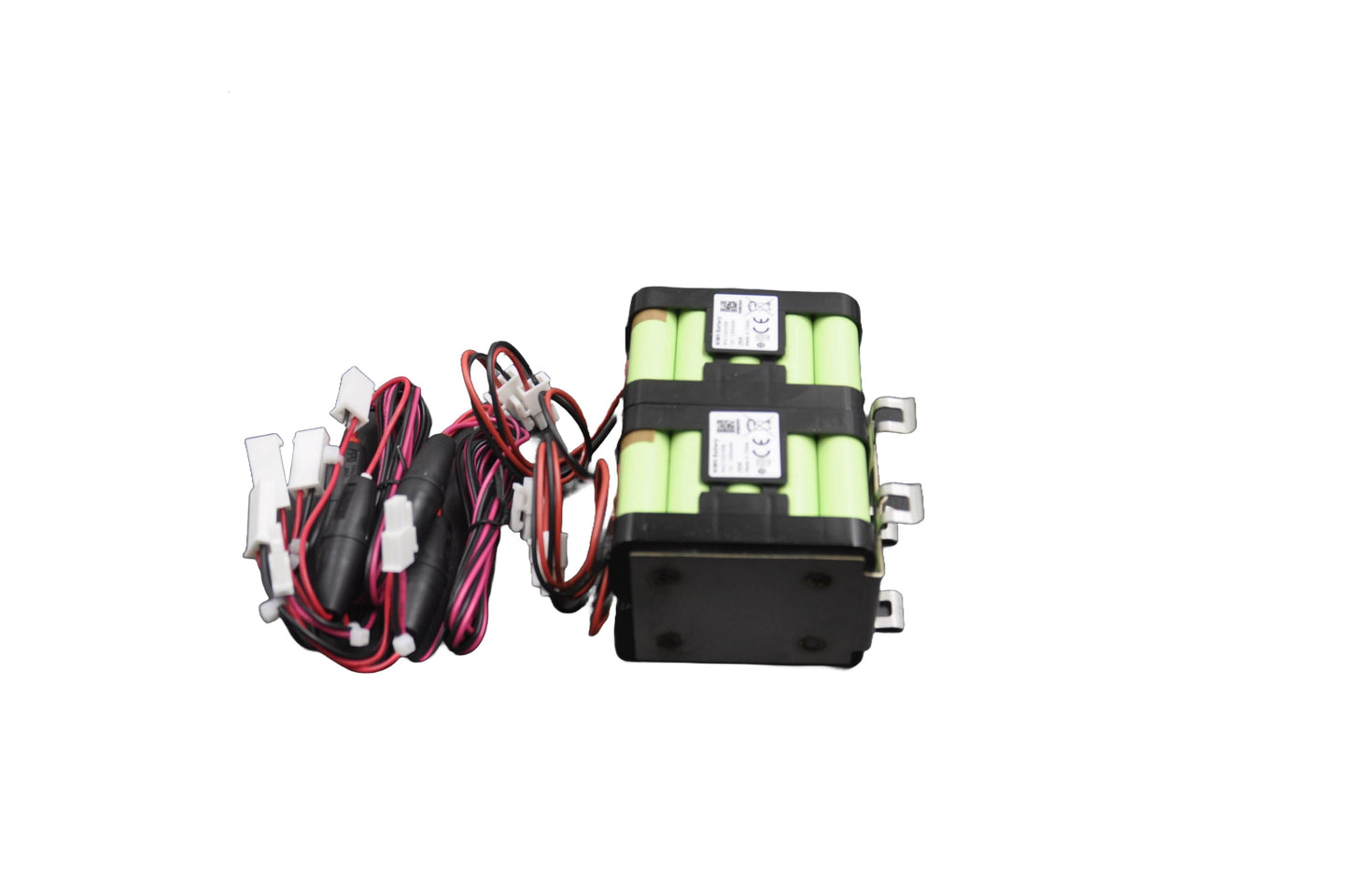

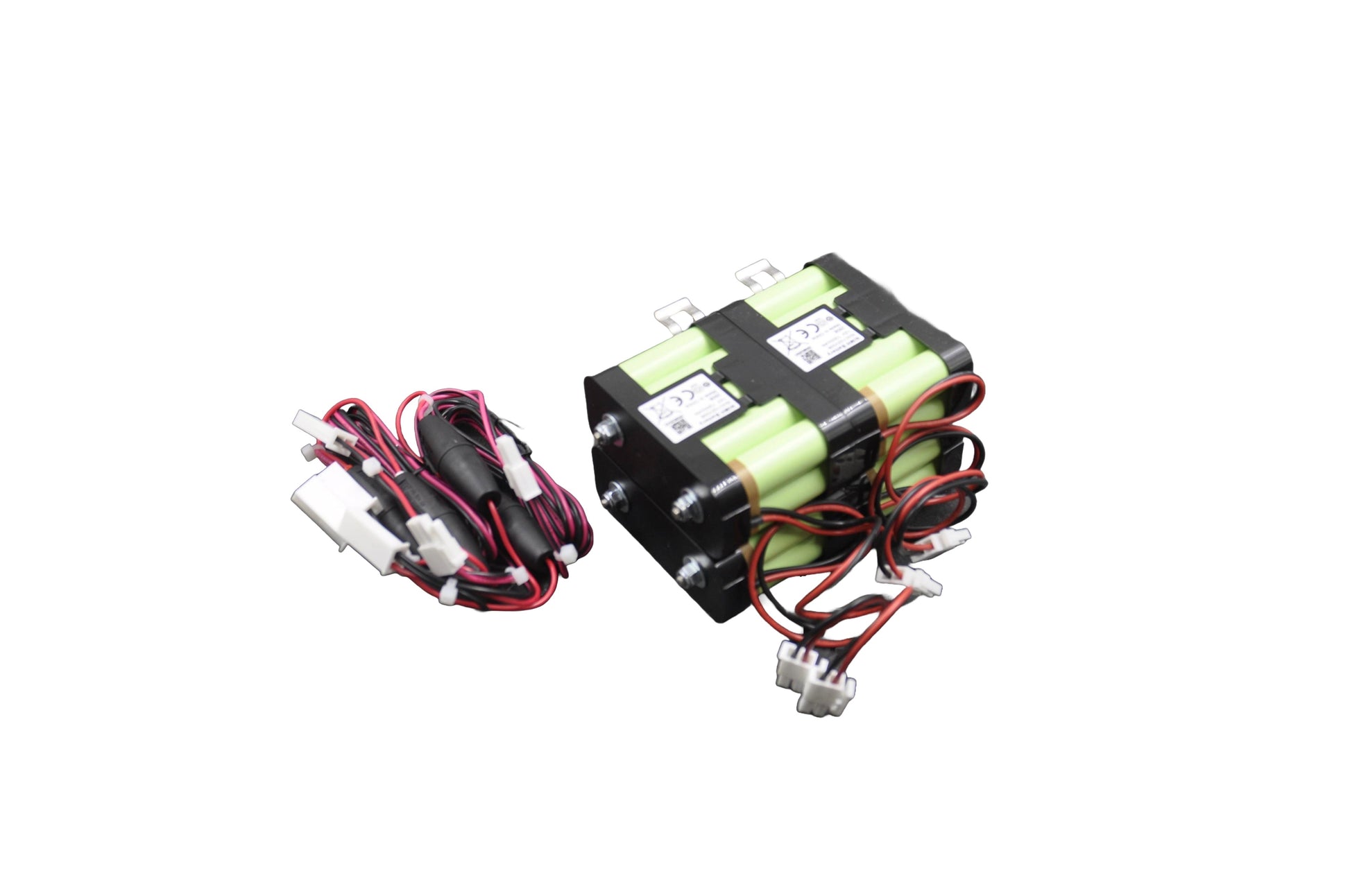

Assa Abloy Battery Backup – For SW300 Swing Door Operator

The Assa Abloy Battery Backup for the SW300 provides essential emergency power to maintain door functionality during mains power failure. Specifically designed for the SW300 automatic swing door operator, this backup system ensures continued operation for safety, accessibility, and building regulation compliance in commercial and public environments.

Key Features & Benefits

Purpose-Built for the SW300 Operator
Designed for seamless integration with the Assa Abloy SW300 heavy-duty swing door operator, ensuring reliable performance and full compatibility.

Uninterrupted Door Operation
In the event of a power failure, the battery backup activates automatically, allowing the door to open and close safely for a number of cycles or remain in a fail-safe position, depending on settings.

Compliant & Secure
Supports compliance with EN16005 and BS 7036 safety standards by maintaining access or egress routes during emergencies or evacuations.

Sealed, Maintenance-Free Design
The VRLA (Valve Regulated Lead Acid) battery is fully sealed and maintenance-free, offering long life and dependable service in high-traffic installations.

Automatic Charging
Continuously trickle-charged by the SW300 controller, so the battery remains ready for operation at all times without manual intervention.

Compact Internal Mounting
Discreetly housed within the operator header or in an external enclosure depending on the installation, with plug-and-play connectors for quick replacement.

Technical Specifications

• Voltage: 24V DC

• Battery Type: Sealed Lead Acid (VRLA)

• Capacity: Typically 2 x 12V (1.2Ah–1.3Ah each) connected in series

• Rechargeable: Yes – automatic charging via SW300 controller

• Installation: Internal or optional external mounting, model dependent

• Functionality: Maintains safe door operation during power loss

• Compliance: Supports BS EN16005 and DDA (Equality Act) requirements

Ensure safe, uninterrupted access during power outages with the Assa Abloy SW300 Battery Backup — a vital component for any compliant and resilient door automation system.
