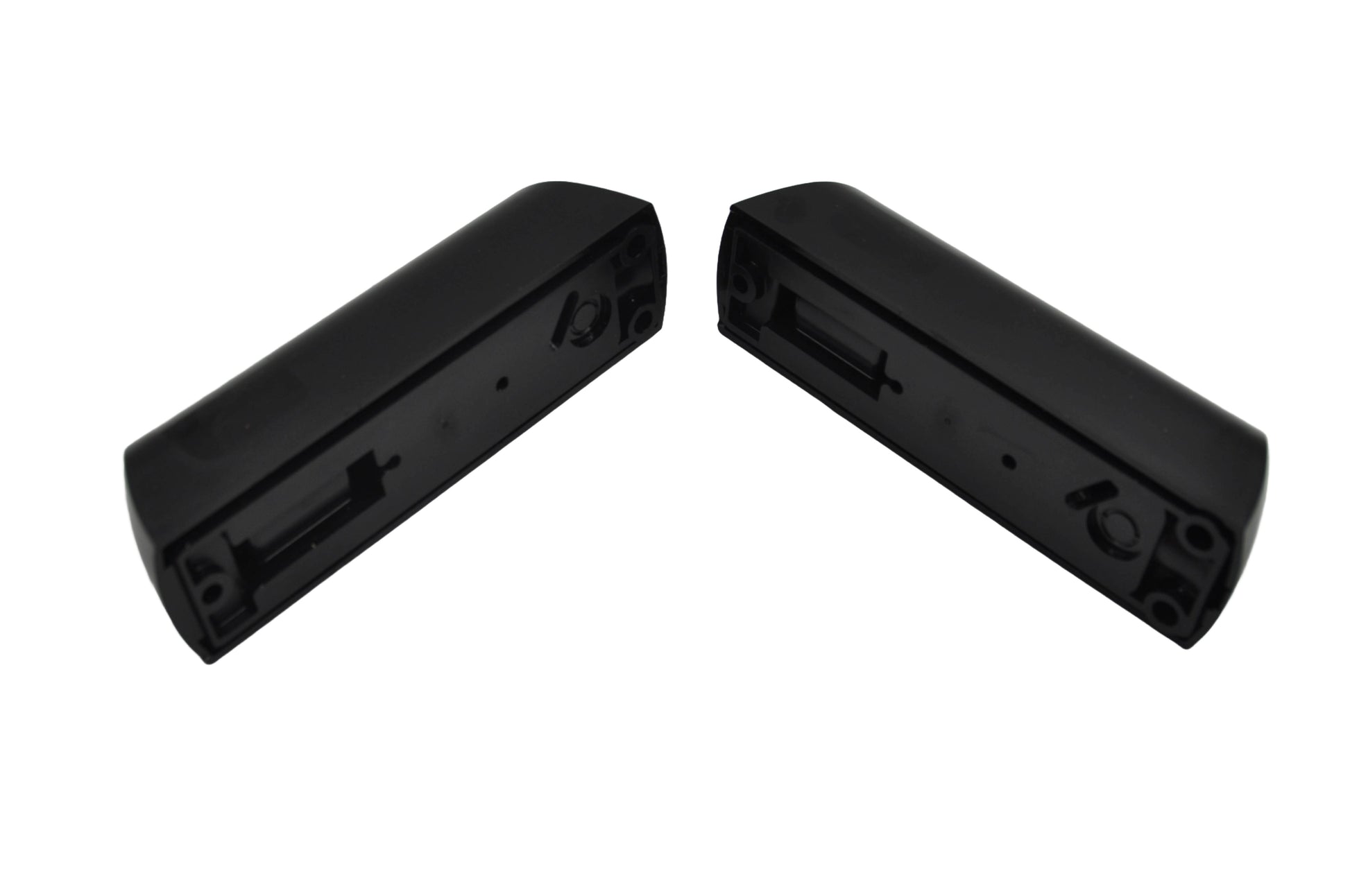

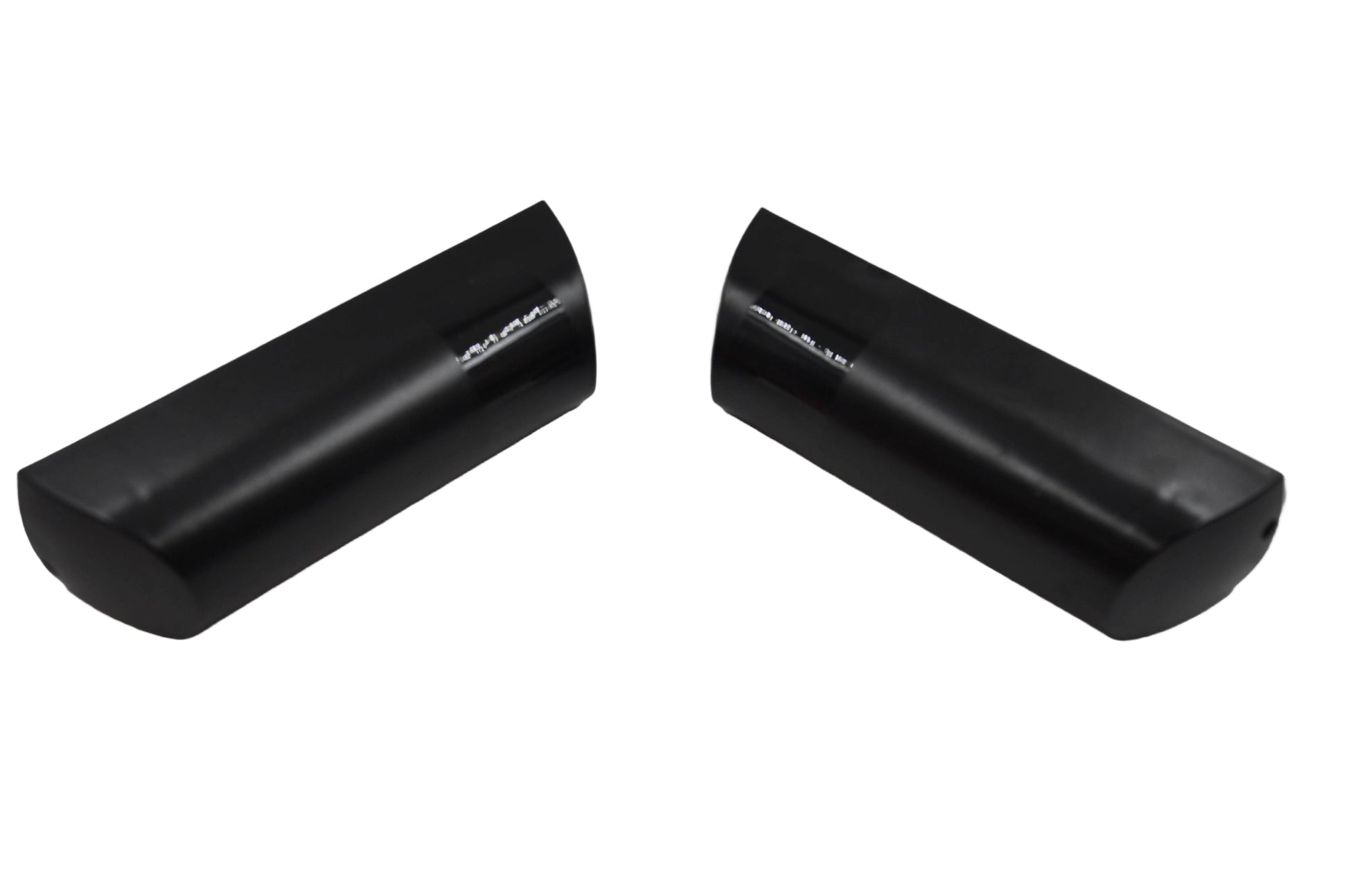

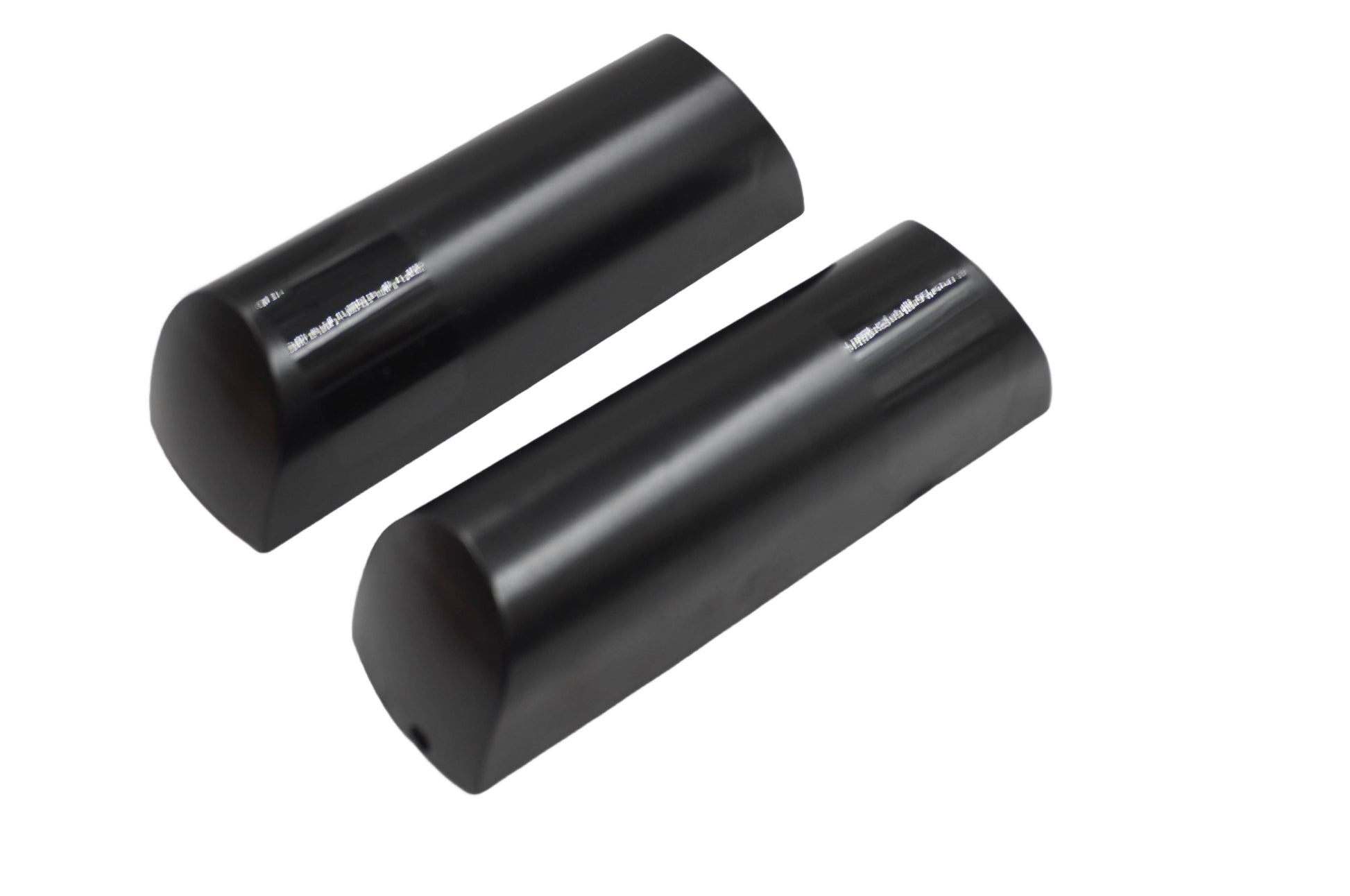

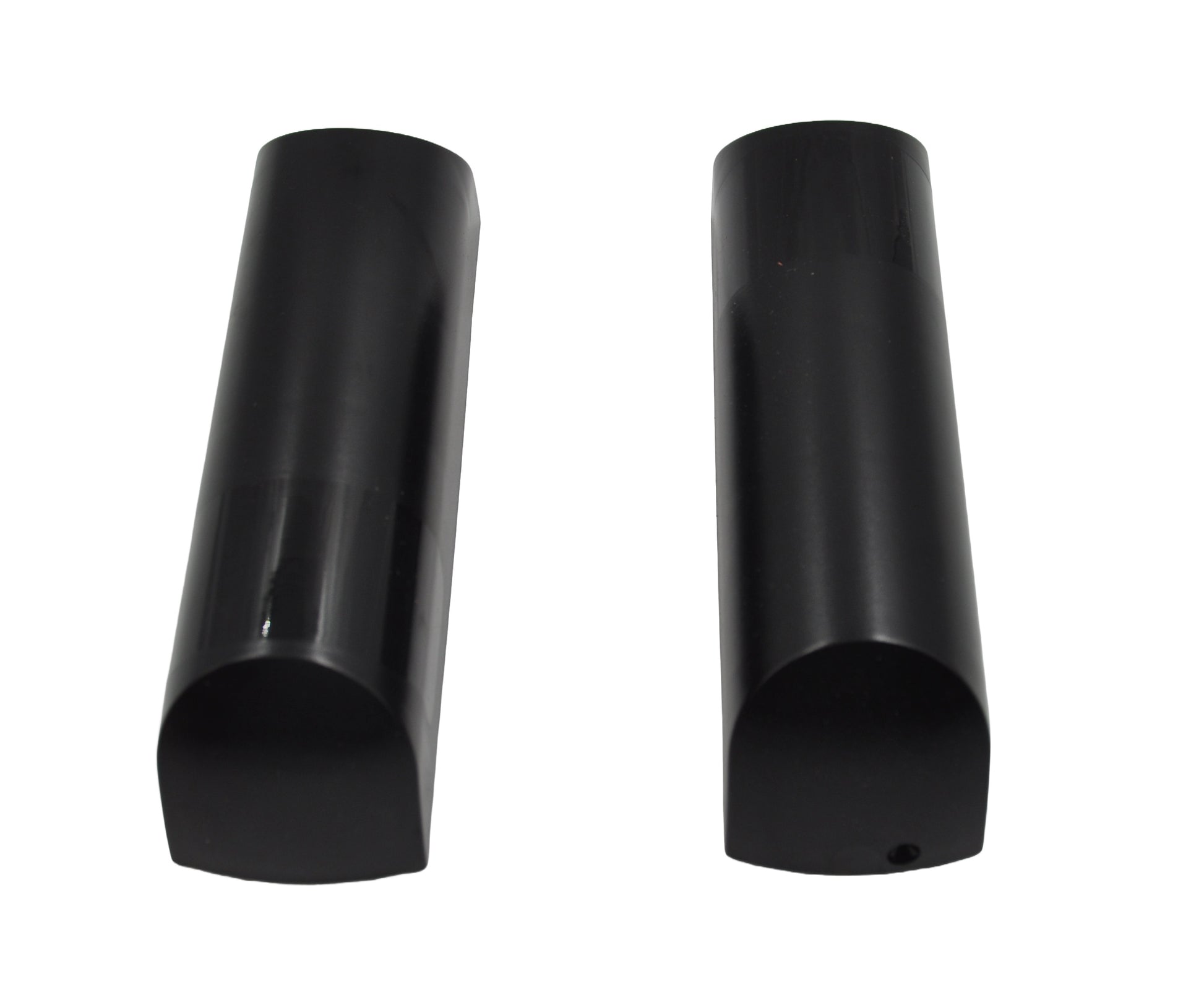

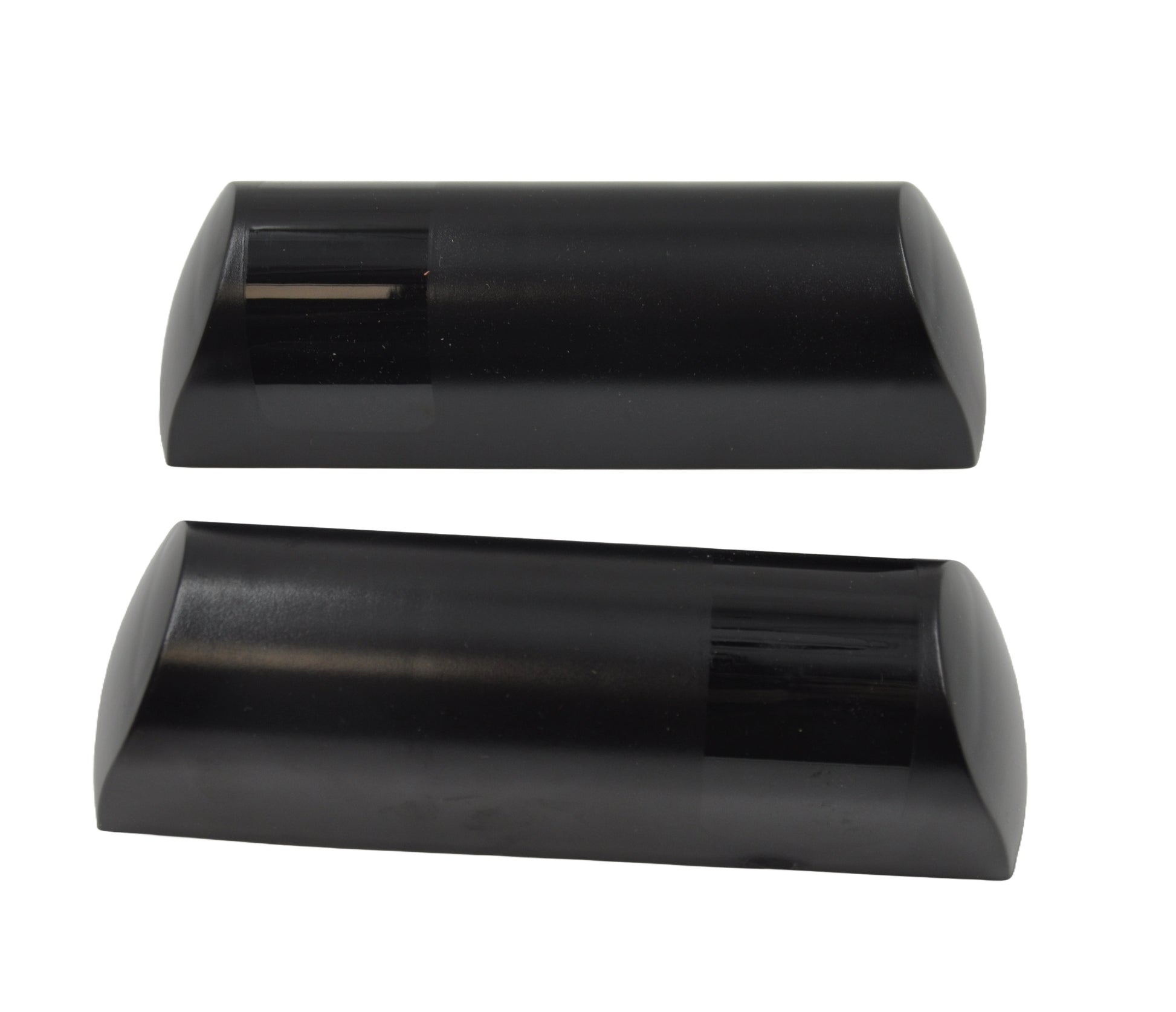

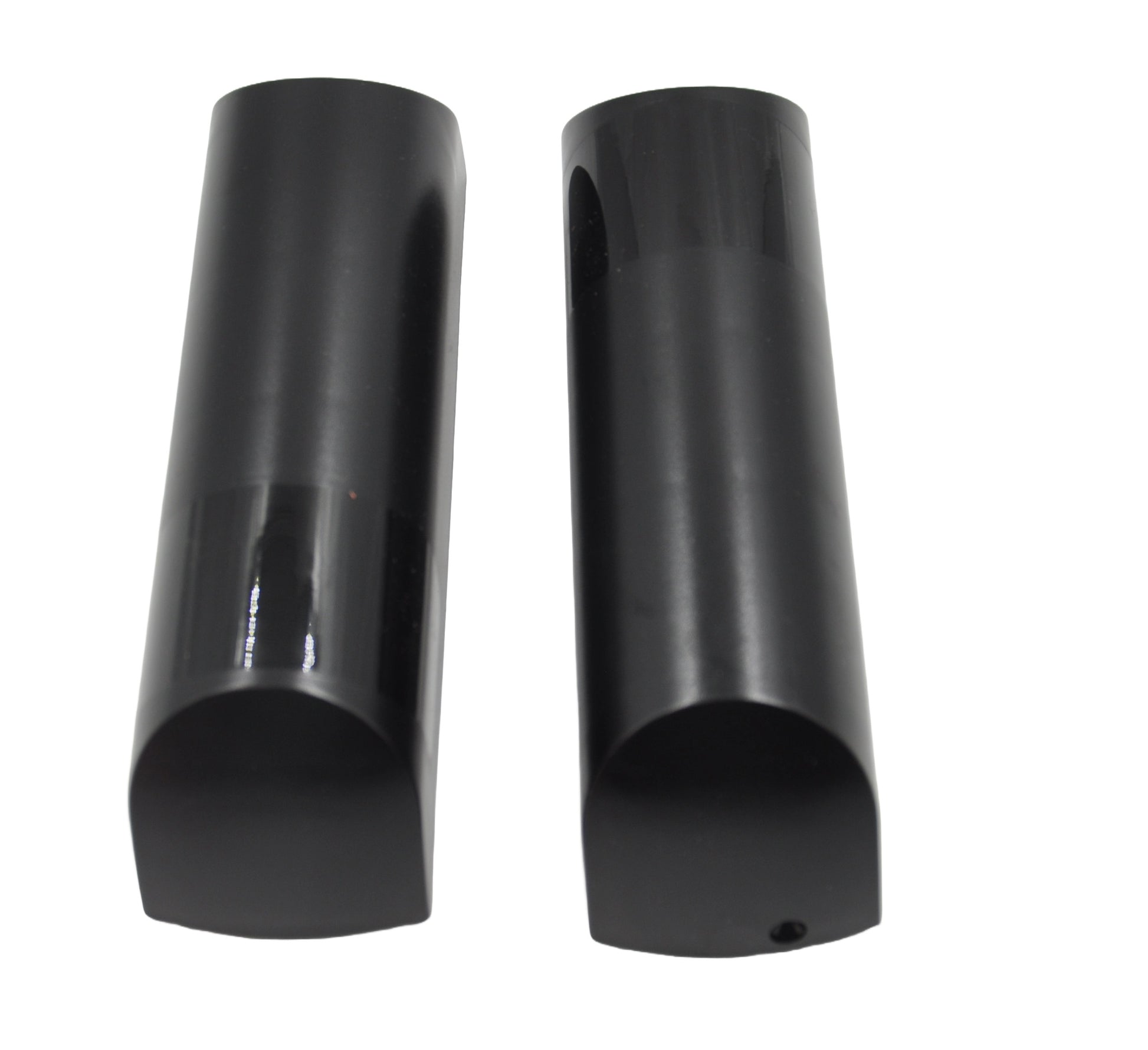

Wireless Photocell Kit (Transmitter & Receiver battery operated)

Wireless Photocell Kit (Transmitter & Receiver battery operated)

Net: £135.00
Incl. VAT: £162.00
Taxes included.

PD180 Battery-Powered Infrared Sensor – Long-Range Photoelectric Beam with Easy Alignment

The PD180 Sensor is a long-range infrared photoelectric sensor designed for reliable detection and safety in access control and door automation applications. Thanks to its battery-powered emitter, the PD180 simplifies installation by eliminating the need for cabling on one side. Ideal for industrial and commercial use, this sensor provides precise and stable performance over distances up to 30 meters (100 feet).

Key Features & Benefits:

  • Battery-Powered Emitter for Easy Installation:
    No wiring required to the emitter side, making setup faster and more flexible, especially across wide entrances.

  • Flexible Lens Adjustment:
    Emitter and receiver lenses can be adjusted 200° horizontally and ±30° vertically for easy and precise mechanical alignment.

  • Advanced Optical Design:
    Features a modern aspherical lens, improving detection stability and eliminating issues caused by corrosion or dust build-up—common in older parabolic designs.

  • Wide Detection Range:
    Adjustable for distances up to 30 meters (100 feet), suitable for a variety of applications including sliding gates, roller shutters, and commercial doorways.

  • Reliable Output:
    Equipped with SPDT relay outputs (1A resistive load) for dependable detection signal transmission.

Technical Specifications:

Feature Description
Optical Sensing Angle ±5°
Power Supply (Receiver) 12–24V AC/DC
Power Supply (Emitter) 2 x 3.6V DC Lithium Batteries
Battery Life Up to 2.5 years (15m), 1.5 years (30m)
Relay Output SPDT relay, 1A resistive load
Lens Adjustment 200° Horizontal, ±30° Vertical
Detection Range Adjustable up to 30 meters (100 feet)
Lens Type Aspherical (non-corrosive, dust-resistant design)
View full details

FAQ's

What maximum detection range is stated for the PD180 wireless photocell kit?

The listing states an adjustable detection range of up to 30 metres (100 feet).

How is the transmitter powered?

The emitter is battery powered using two 3.6V DC lithium batteries, so no cable is required on the transmitter side.

What supply does the receiver require?

The receiver is specified for a 12–24V AC/DC power supply.

How can the photocell lenses be aligned?

The emitter and receiver lenses can be adjusted through 200° horizontally and ±30° vertically for mechanical alignment.

What relay output is provided?

The listing specifies an SPDT relay output rated at 1A resistive load.
