Weatherproof Triple Pole Break Glass

Weatherproof Triple Pole Break Glass

Net: £99.76
Incl. VAT: £119.71
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

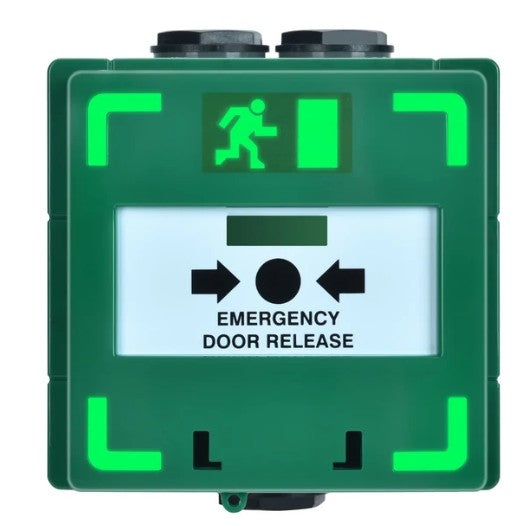

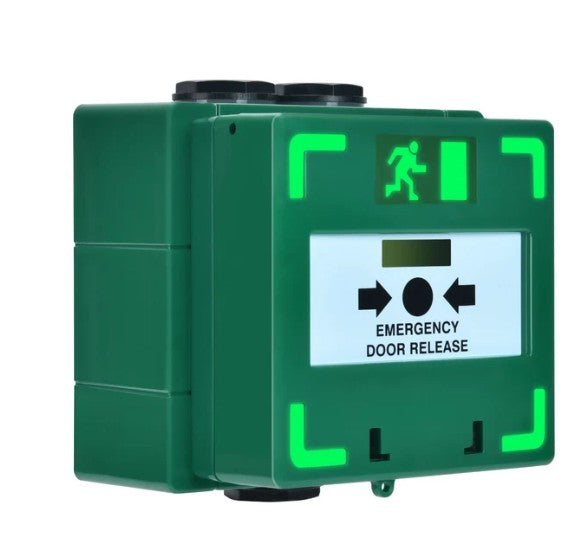

STP IP67 Weatherproof Triple Pole Resettable Break Glass – LED & Sounder

The STP Weatherproof Triple Pole Break Glass (STP-CP3-LSRC-WP) is a resettable emergency door release call point designed for external and demanding access control installations. Its IP67 sealed enclosure protects against water and dust, making it suitable for locations where a standard indoor emergency release unit would be unsuitable.

Operating on 12–24V DC, this three-pole emergency release has three independent changeover contact sets, dual-colour red/green LED indication and an integrated audible buzzer. The resettable activation element eliminates the need to replace broken glass after operation, while the supplied protective cover and test key support routine use and maintenance.

Key Features & Benefits

IP67 Weatherproof Enclosure
Sealed construction offers dust and water protection for appropriate outdoor installations.

Triple Pole Emergency Switching
Three separate COM / NO / NC contact sets allow the unit to be wired into suitable electronic locking and monitoring circuits.

Resettable Break-Glass Function
The activation element can be reset using the supplied key, without fitting replacement glass.

Dual-Colour LED Indication
Red and green indicators provide visual feedback of the unit's operating state.

Built-In Audible Buzzer
Selectable sounder modes include silent, intermittent and continuous operation.

12–24V DC Power
Supports common low-voltage access control supplies for the illuminated and audible functions.

Protective Cover and Anti-Tamper Facility
A clear cover helps prevent accidental operation, while an anti-tamper feature supports controlled installation.

Technical Specifications

Product Type: Weatherproof resettable emergency door release call point

Brand: STP – Security Trade Products

Manufacturer Part Number: STP-CP3-LSRC-WP

Application: Emergency electronic door lock release

IP Rating: IP67

Power Supply: 12–24V DC

Switching: Triple pole; three COM / NO / NC contact sets

Indication: Red and green LEDs

Sounder: Integrated configurable buzzer

Reset: Key-resettable element

Dimensions: 94.5 × 98.8 × 79.1mm

Housing Material: PC / ABS

Accessories: Protective clear cover and test key

The STP-CP3-LSRC-WP Weatherproof Emergency Break Glass provides a resettable and clearly indicated manual emergency door release point for compatible external access control systems, combining IP67 protection with triple-pole switching.

View full details

Manufacturer Part Number

STP-CP3-LSRC-WP

FAQ's

Can this break-glass call point be used outside?

Yes. The unit is IP67 rated for protection against dust and water, making it suitable for appropriate outdoor installations when fitted correctly.

Does the glass need replacing after activation?

No. It uses a resettable element rather than traditional breakable glass and is reset using the supplied key.

What does triple pole mean?

It provides three separate changeover switch circuits, each with common (COM), normally open (NO) and normally closed (NC) contacts.

Does this emergency release have an alarm or indicator?

Yes. It has red/green LED indications and a built-in buzzer with selectable sounder operation.

Will it release an electromagnetic lock in an emergency?

It can be wired to interrupt the supply to a compatible fail-safe electronic lock when activated. The installer must check the lock wiring, emergency-release function and suitability of the complete door system.
