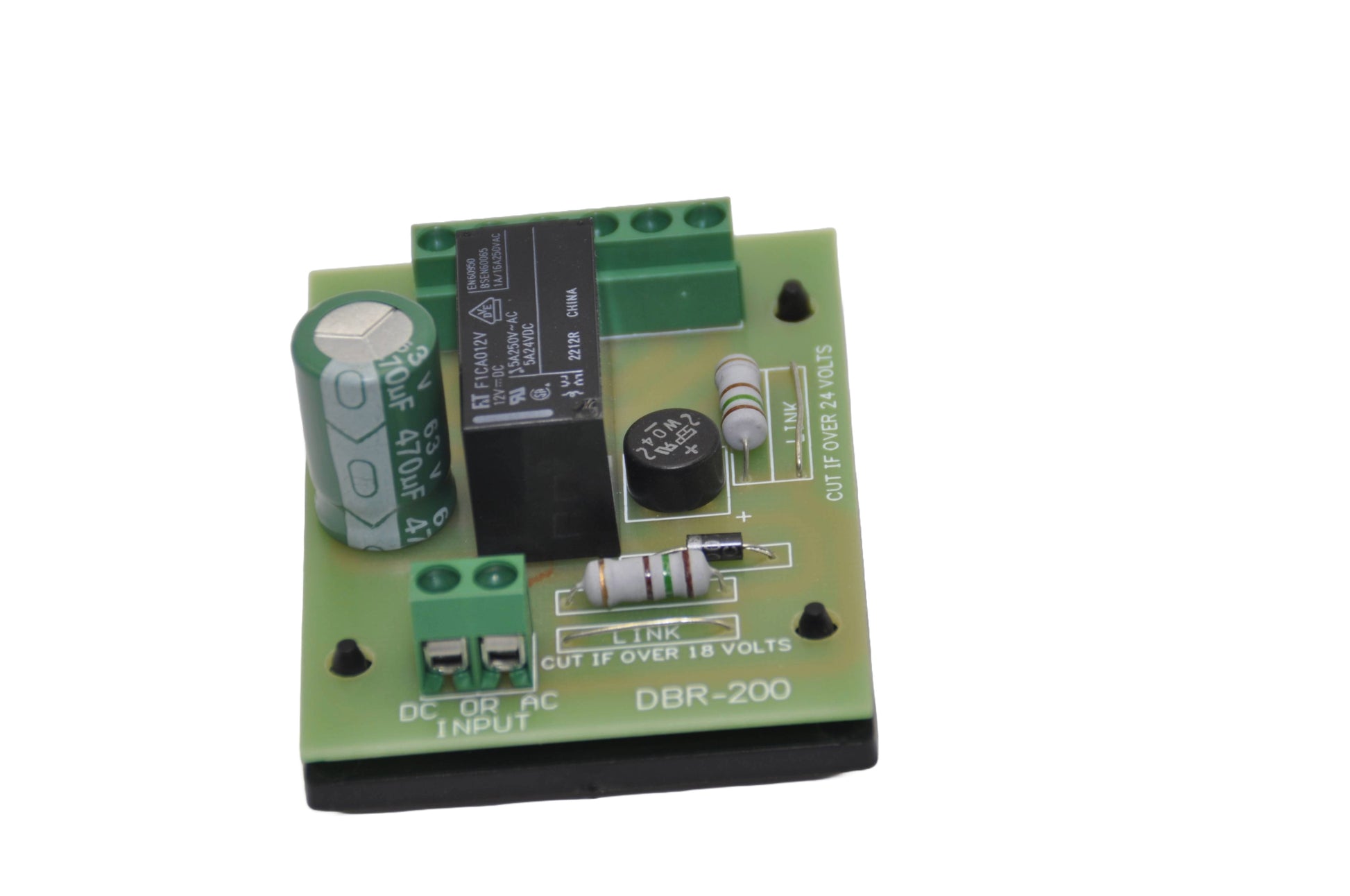

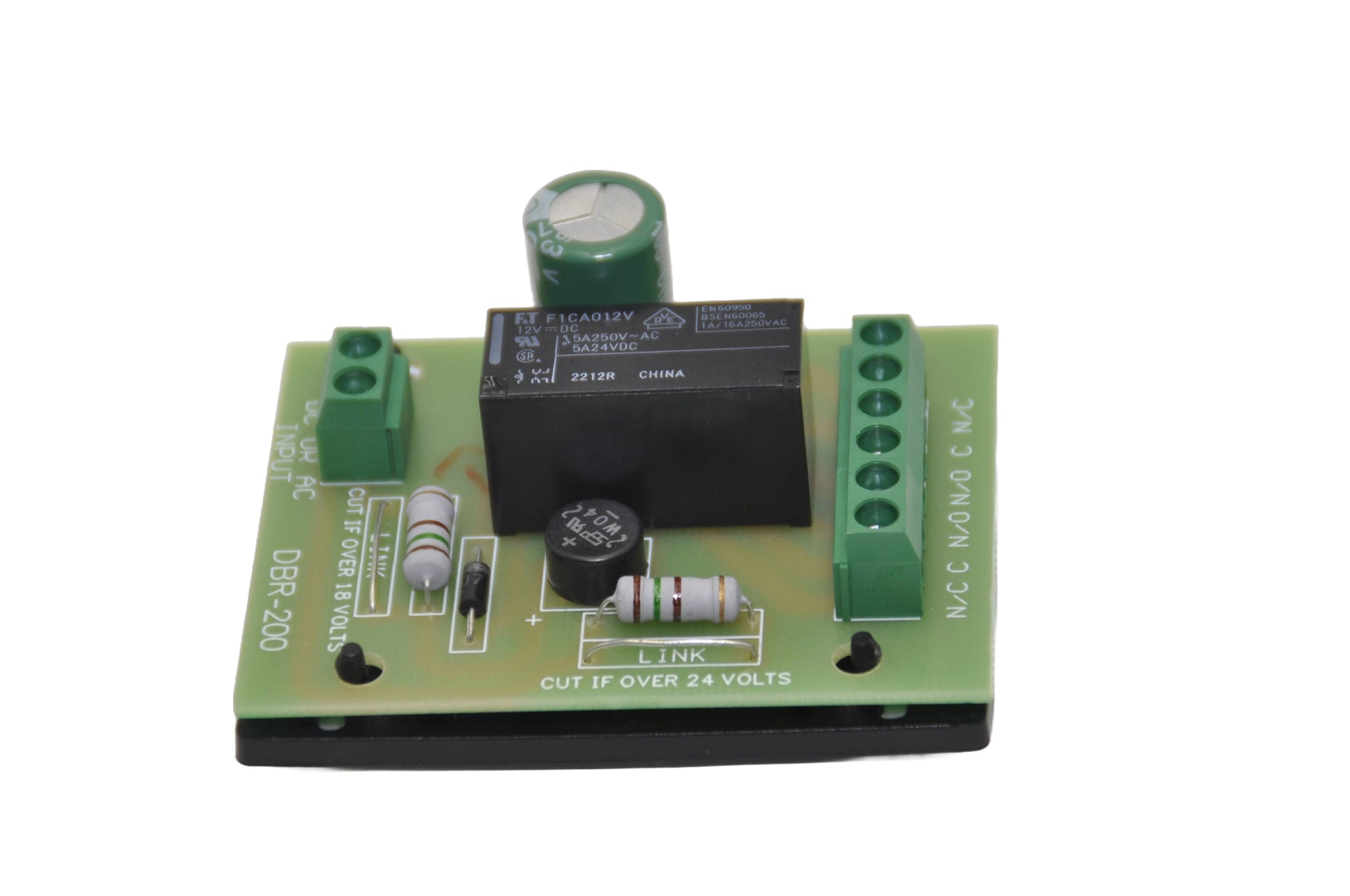

Very Handy Little Relay (VHLR) – Double Pole/Double Throw PCB Relay Module

The Very Handy Little Relay (VHLR) is a compact, easy-to-use relay board designed for conveniently switching two independent circuits via a controlled input voltage. Featuring double-pole-double-throw (DPDT) dry contacts, this versatile relay module simplifies circuit control across various electrical applications.

Key Features & Benefits:

  • DPDT Contacts:
    Double-pole-double-throw relay contacts allow versatile switching options, providing two independent circuit controls within a single unit.

  • Convenient Installation:
    Supplied with a self-adhesive pad for quick and easy mounting, or alternatively, PCB posts can be used for secure placement (posts not included).

  • Wide Voltage Range:
    Compatible with input voltages from 12-28Vac/dc, offering flexibility in different electrical installations.

  • Compact & Durable:
    Robust design and compact dimensions (68mm x 50mm x 33mm) ensure reliable performance even in limited spaces.

Technical Specifications:

  • Control Input Voltage: 12–28Vac/dc

  • Relay Contacts: 2 sets of NO (normally open), NC (normally closed), and COM (common)

  • Contact Rating: 5A @ 24Vdc

  • Dimensions: 68mm (L) x 50mm (W) x 33mm (D)

  • Mounting Options: Self-adhesive pad (included), PCB posts (not included)

View full details

FAQ's

What type of relay is the VHLR module?

It is a compact double-pole, double-throw PCB relay module for switching two independent circuits.

What control input voltage range does the VHLR accept?

The listing specifies a 12–28V AC/DC control input range.

What relay contacts are available on the VHLR?

It provides two sets of normally open, normally closed and common relay contacts.

What contact rating is stated for the VHLR?

The relay contacts are specified at 5A at 24V DC.

What mounting hardware is supplied with the VHLR?

A self-adhesive mounting pad is included. PCB mounting posts are listed as an alternative but are not included.
