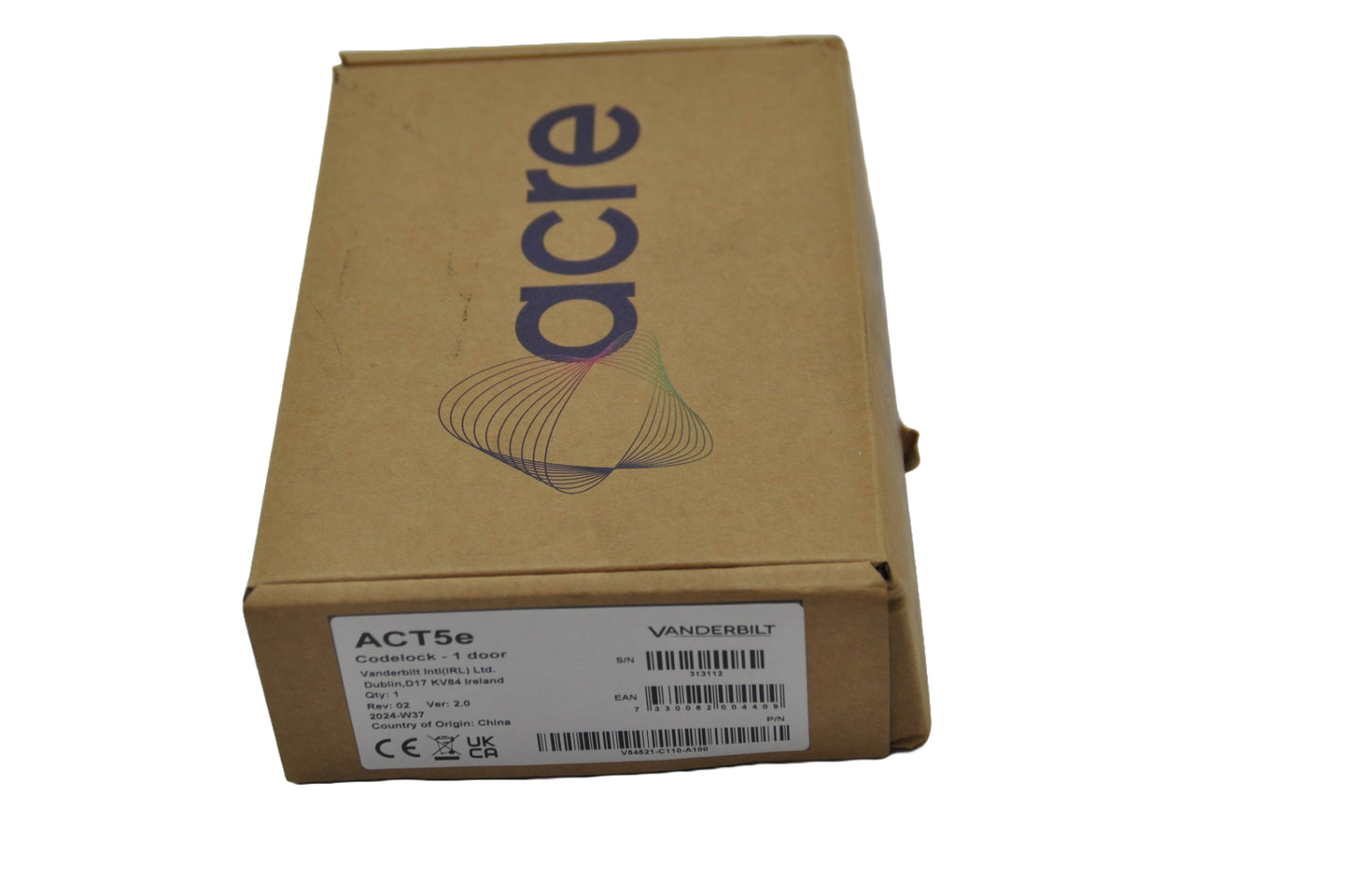

Vanderbilt ACT 5 Digital Keypad

Vanderbilt ACT 5 Digital Keypad – Secure Access Control Solution

The Vanderbilt ACT 5 Digital Keypad is a robust, easy-to-use access control device designed for secure entry management. Ideal for single-door applications, the ACT 5 keypad features durable polycarbonate housing, stainless steel keys, and backlit keys for visibility in low-light or outdoor environments. Its compact, versatile design makes it perfect for new installations or retrofit projects.

Key Features & Benefits:

• Easy User Operation:
  Supports up to 10 unique four-digit user PIN codes, providing straightforward yet secure access management.

• Robust Construction:
  Polycarbonate housing and stainless steel keys ensure durability in high-usage, indoor or outdoor settings.

• Backlit Keypad:
  Illuminated keys provide clear visibility and easy use during nighttime or in poor lighting conditions, eliminating the need for separate illumination.

• Flexible Installation:
  Flush-mountable onto standard single-gang electrical boxes or surface-mounted, simplifying installation and retrofitting.

• Enhanced Security Features:
  Incorrect code lockout prevents unauthorized access attempts, ensuring enhanced security and reliability.

Technical Specifications:

• IP Rating: IP55 (Weather-resistant)

• Operating Voltage: 12-24V AC/DC

• Relay Contact Rating: 5A, 250Vac

• Door Relay Timer: Adjustable 5–255 seconds

• Operating Temperature: -40°C to +70°C

• Current Consumption: 30mA (nominal), 120mA (maximum)

• Dimensions: 94mm x 130mm x 25mm

• Housing: Polycarbonate with stainless steel keys

• Installation: Flush or surface mount, indoor or outdoor use
