TC8800-14 Standard End-Load Bottom Pivot Set – 70mm Pivot Point

TC8800-14 Standard End-Load Bottom Pivot Set – 70mm Pivot Point

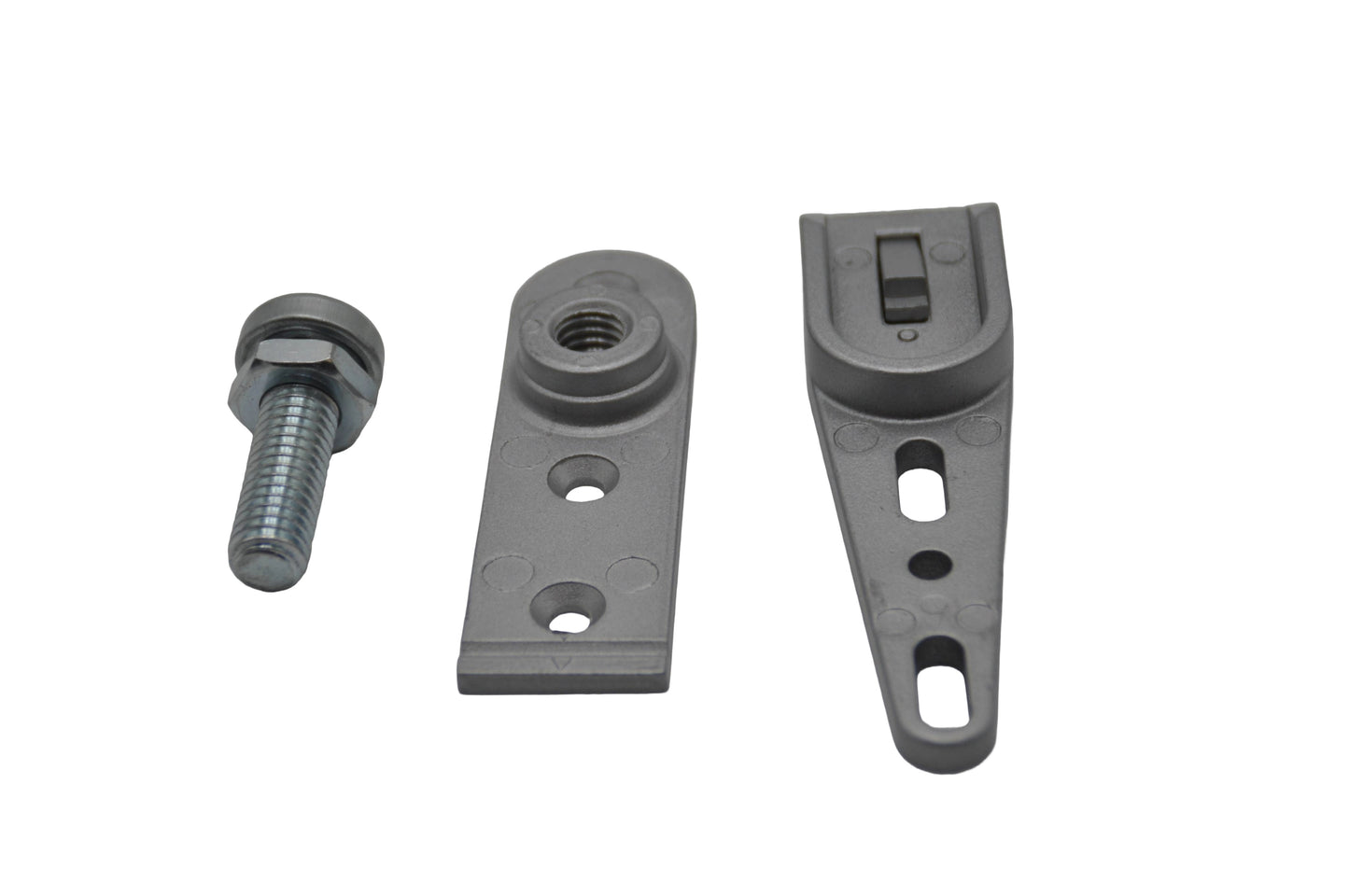

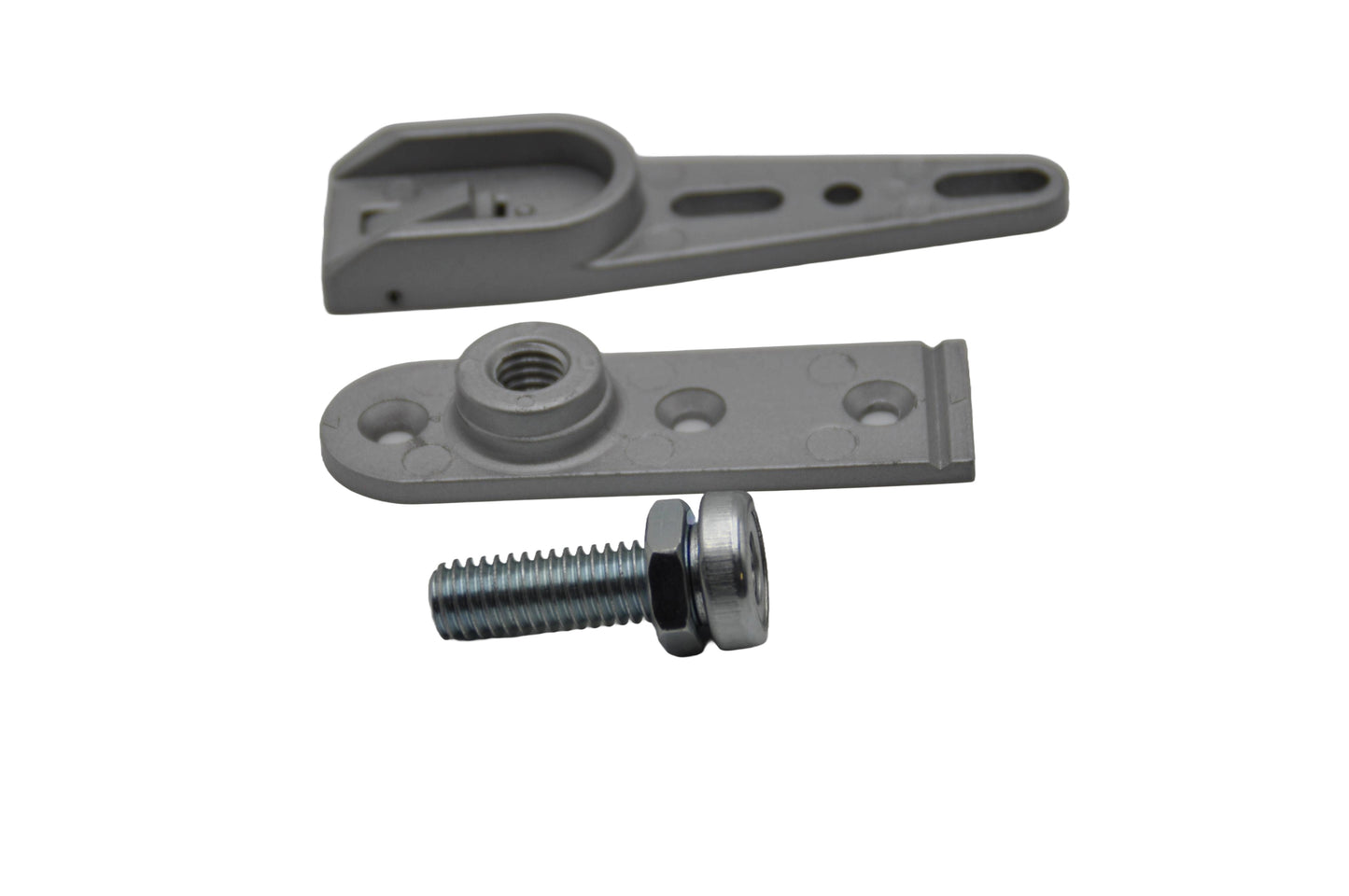

The TC8800-14 Bottom Pivot Set is a robust, adjustable pivot mechanism designed for reliable end-load support on commercial doors. Featuring a standard 70mm pivot point (65mm for glass doors, adjustable via a 5mm groove), automatic stainless steel spring catch, and height adjustment capability from 31.5mm to 58.5mm, this pivot set provides precise, secure, and smooth operation for doors up to 100kg.

Key Features & Benefits:

• Robust Construction:
  Engineered to support doors up to 100kg, ideal for commercial, retail, or high-traffic environments.

• Adjustable Height:
  Provides flexible installation, adjustable from 31.5mm to 58.5mm, ensuring accurate door alignment and smooth operation.

• Versatile Pivot Points:
  Standard 70mm pivot point for general use, with optional 65mm pivot for glass doors, customisable using a 5mm groove line.

• Automatic Spring Catch:
  Includes a durable stainless steel spring for automatic locking, improving security and ease of use.

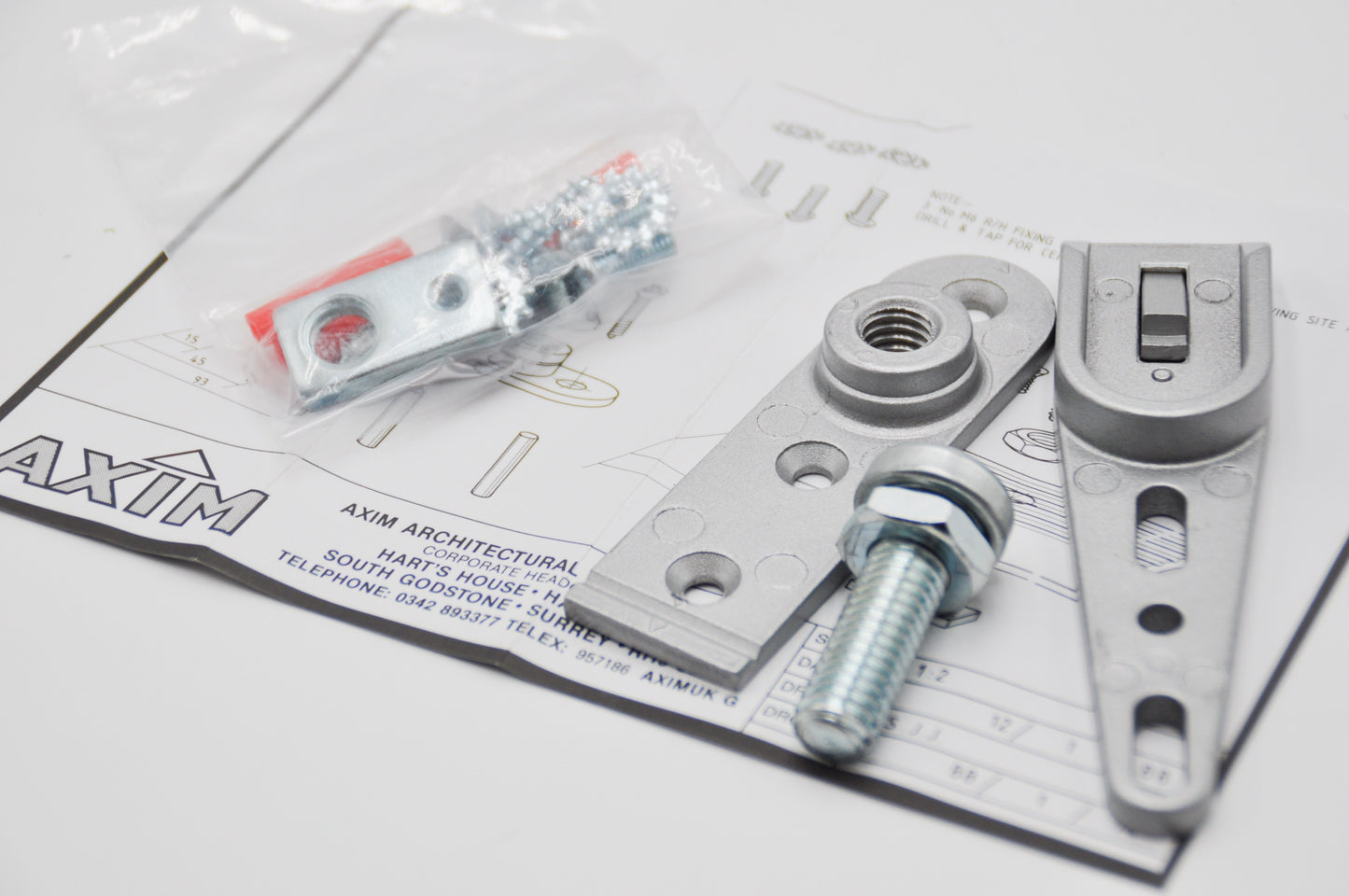

• Complete Installation Kit:
  Supplied with fittings suitable for floor or threshold mounting, offering versatility for various door installations.

Technical Specifications:

• Pivot Point: 70mm standard (65mm adjustable for glass doors)

• Height Adjustment: 31.5mm – 58.5mm

• Maximum Load: 100kg

• Materials: Durable metal components, stainless steel spring

• Installation Options: Suitable for floor or threshold fixing

• Applications: Commercial, glass, and high-traffic doors
