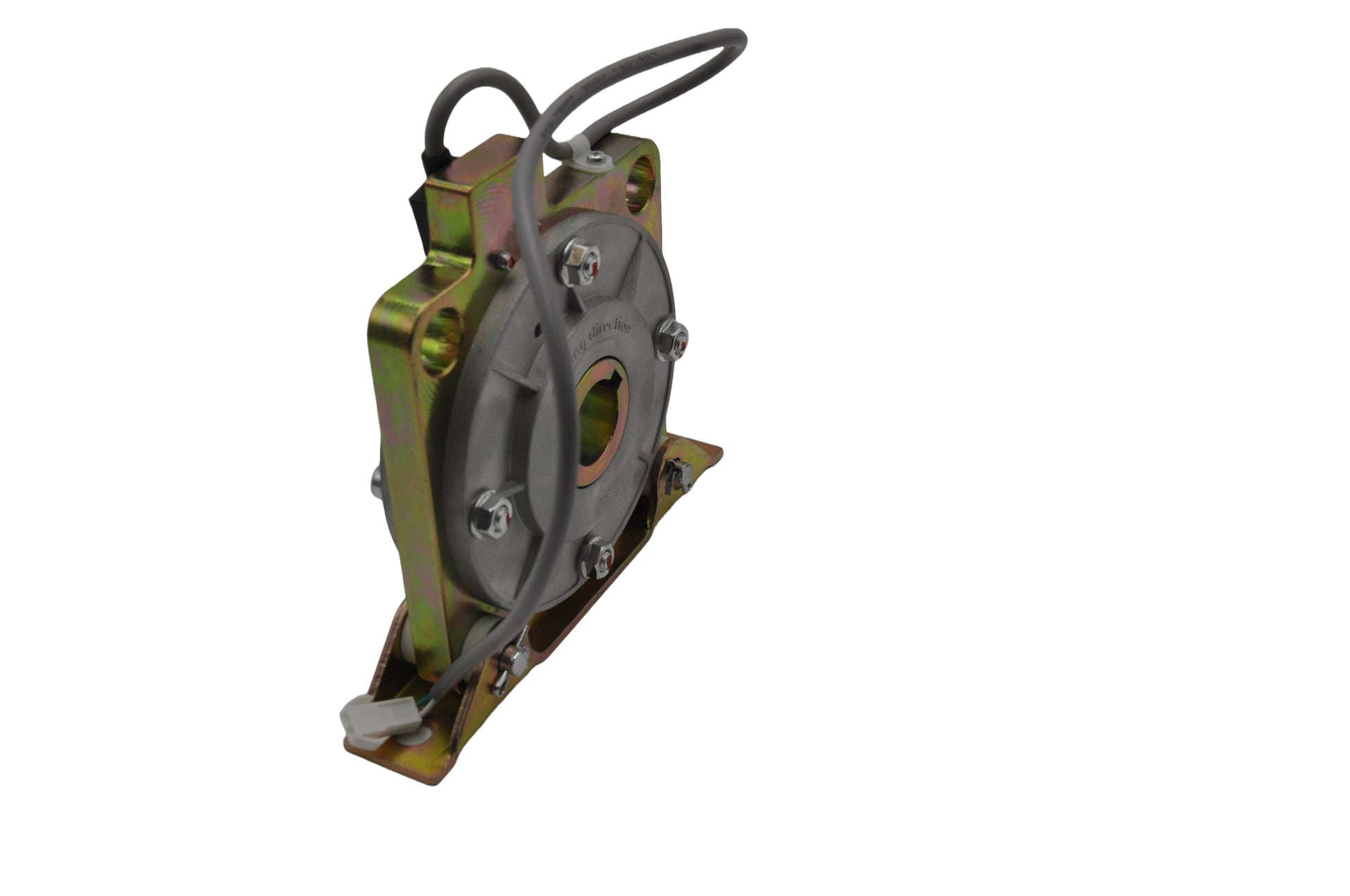

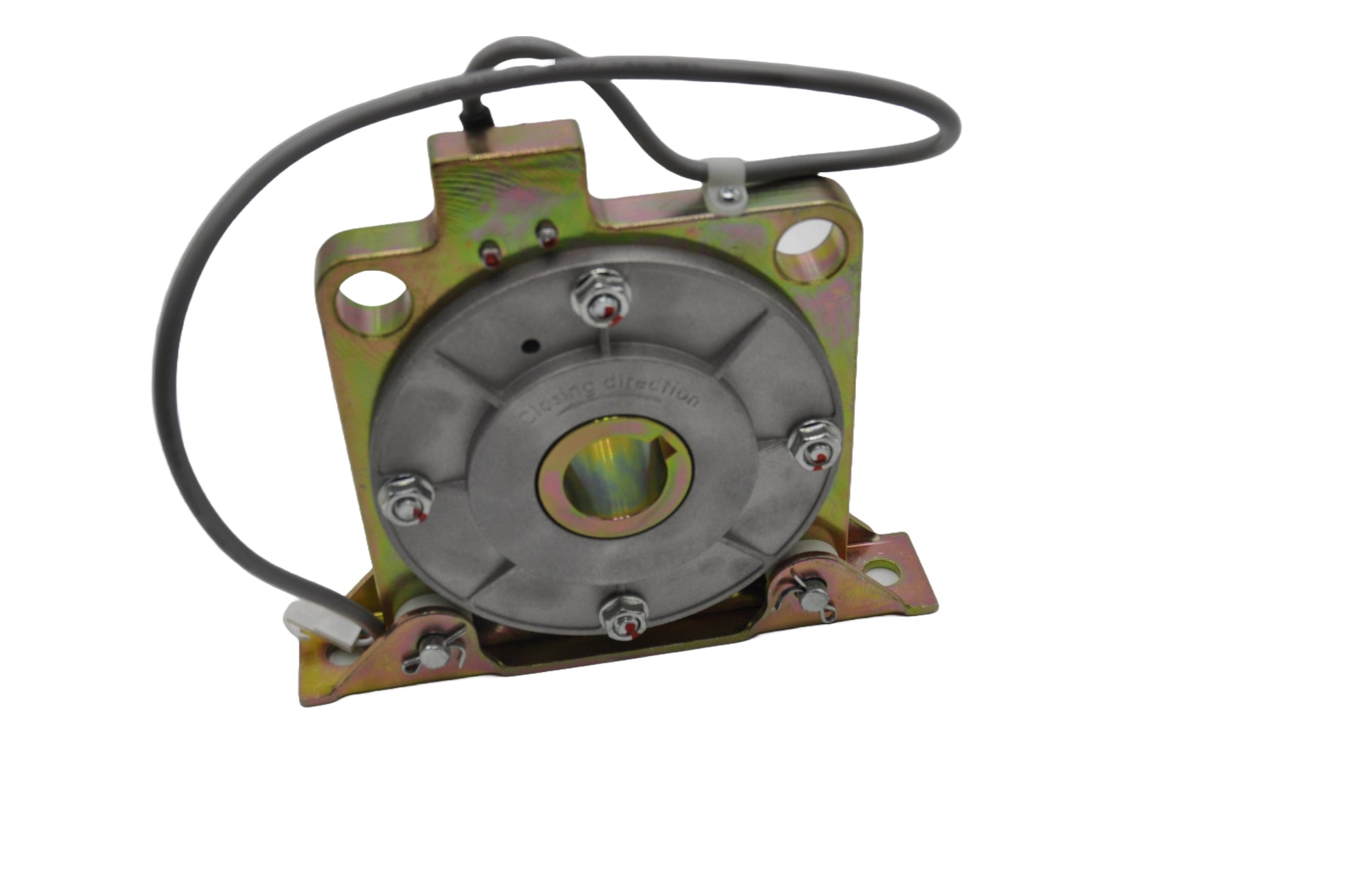

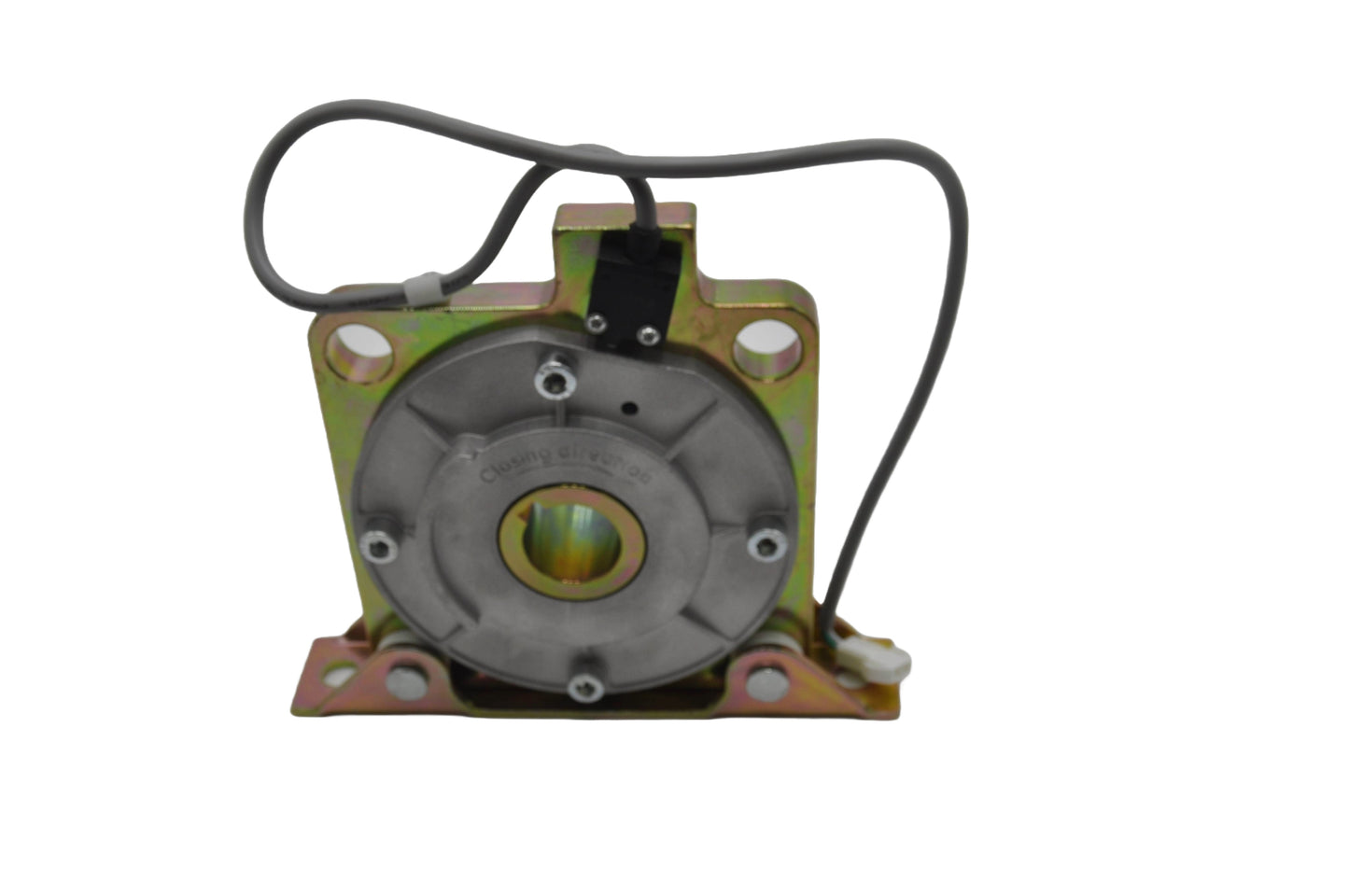

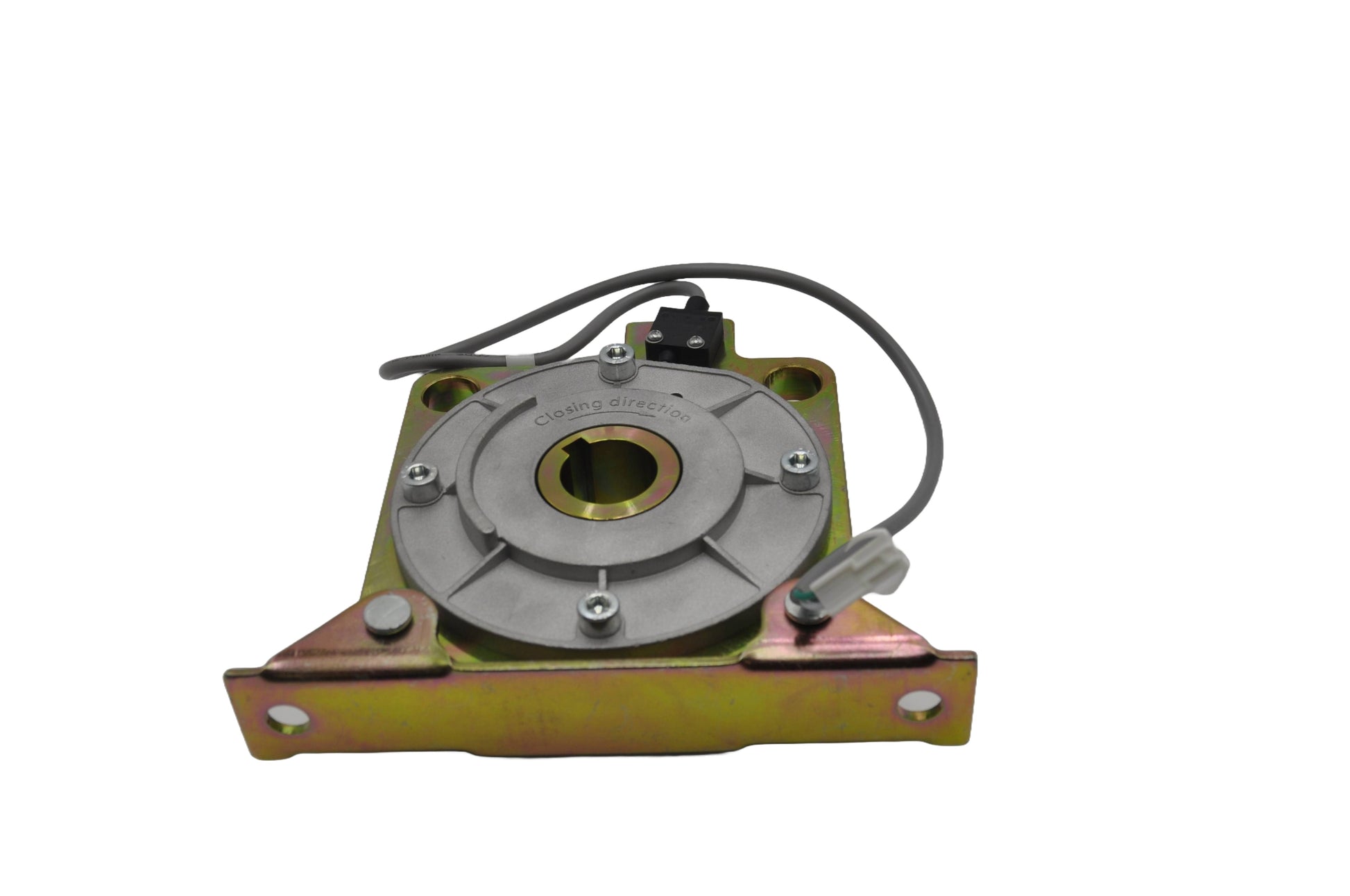

Roller Shutter Door Safety Brake – Inertia Brake for 30mm Shaft

Roller Shutter Door Safety Brake – Inertia Brake for 30mm Shaft (EN 13241-1 Compliant)

The Roller Shutter Door Safety Brake is a TÜV-approved inertia device designed specifically to prevent accidental dropping or uncontrolled movement of roller shutters, gates, and industrial doors. Featuring a unique resettable mechanism following activation, this brake is suitable for heavy-duty applications, accommodating doors weighing up to 500kg and fitted with a 30mm round shaft.

Key Features & Benefits:

• Reliable Fall-Back Protection:
  Protects roller shutters and doors from uncontrolled descent or fall-back in the event of drive-train failure, ensuring operator safety.

• Unique Resettable Design:
  Original  safety brakes can be conveniently reset in situ following activation, eliminating downtime and simplifying maintenance.

• Heavy-Duty Application:
  Suitable for large or industrial roller shutter doors, robustly designed for loads up to 500kg.

• Certified Safety:
  Fully tested and approved by TÜV, compliant with EN 13241-1 standards for safety in use.

• Complete Installation Kit:
  Supplied with clear fitting instructions for straightforward installation.

Technical Specifications:

• Run Torque: 368Nm

• Instant Max Torque: 1444Nm

• Maximum Operating Speed: 22rpm

• Shaft Size: 30mm (Round)

• Load Capacity: Up to 500kg

• Certification: TÜV approved, EN 13241-1 compliant

• Usage: Heavy-duty industrial roller shutters and gates
