Record – Control unit BDE-M

Record – Control unit BDE-M

Net: £220.00
Incl. VAT: £264.00
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

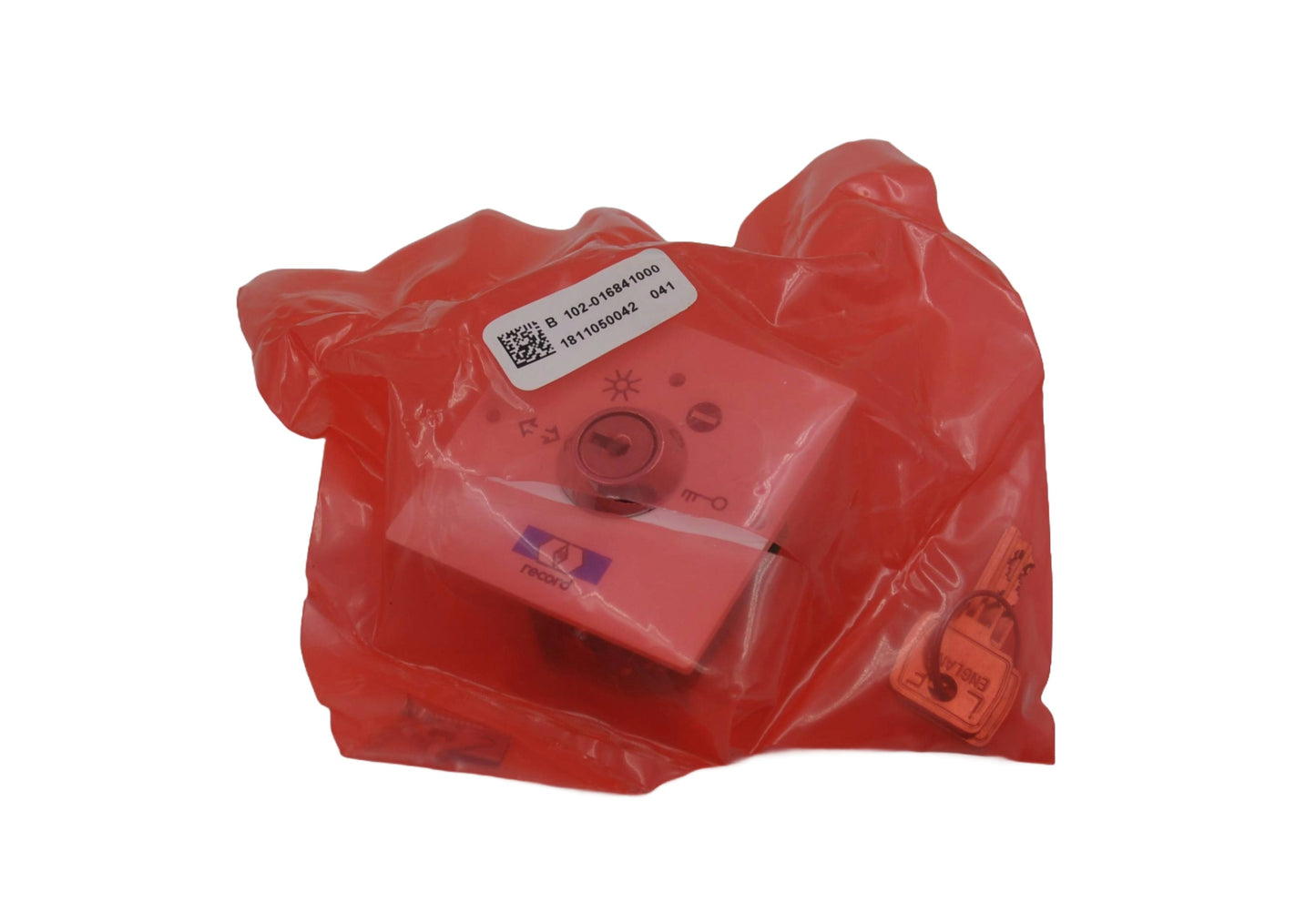

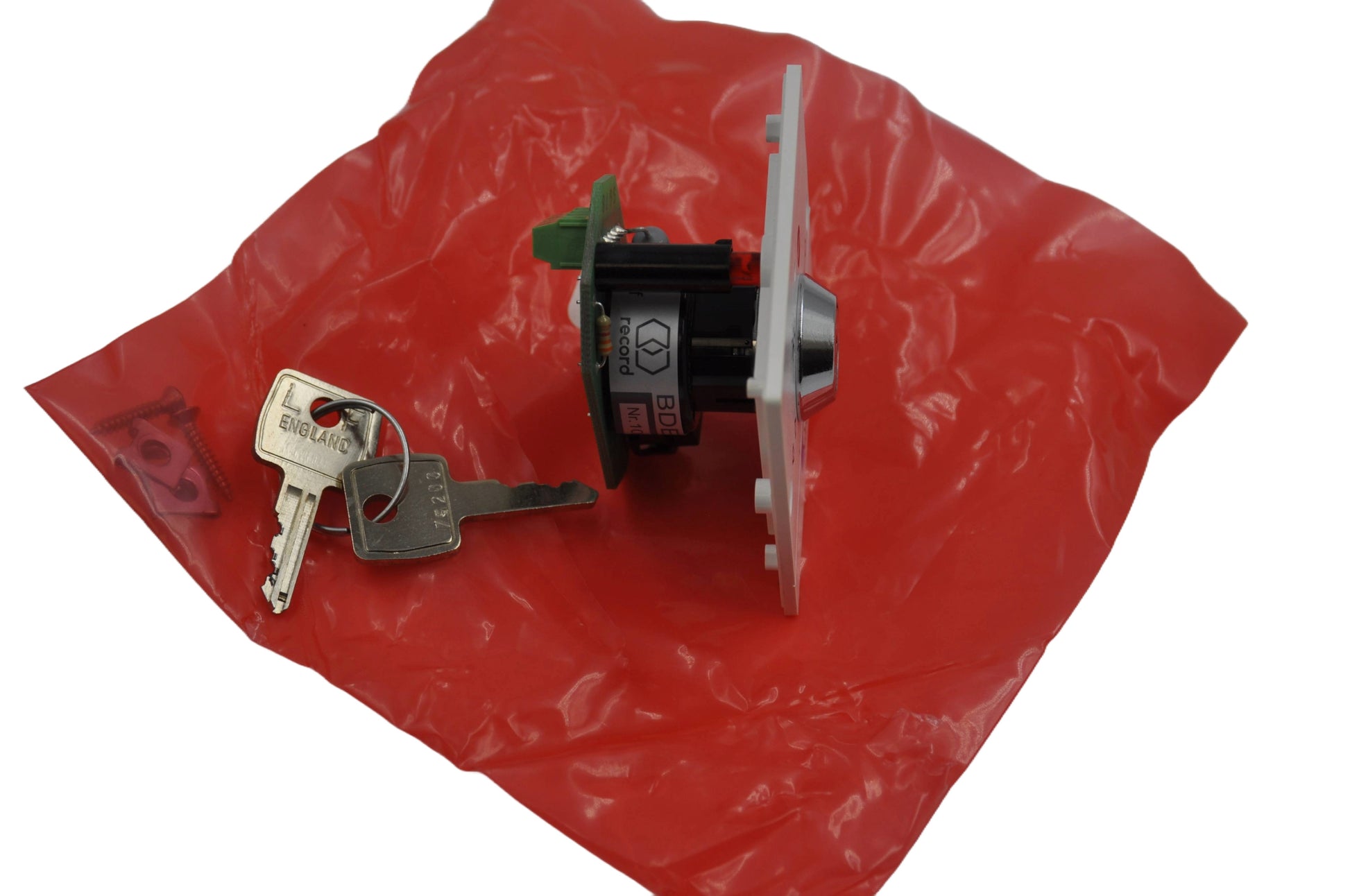

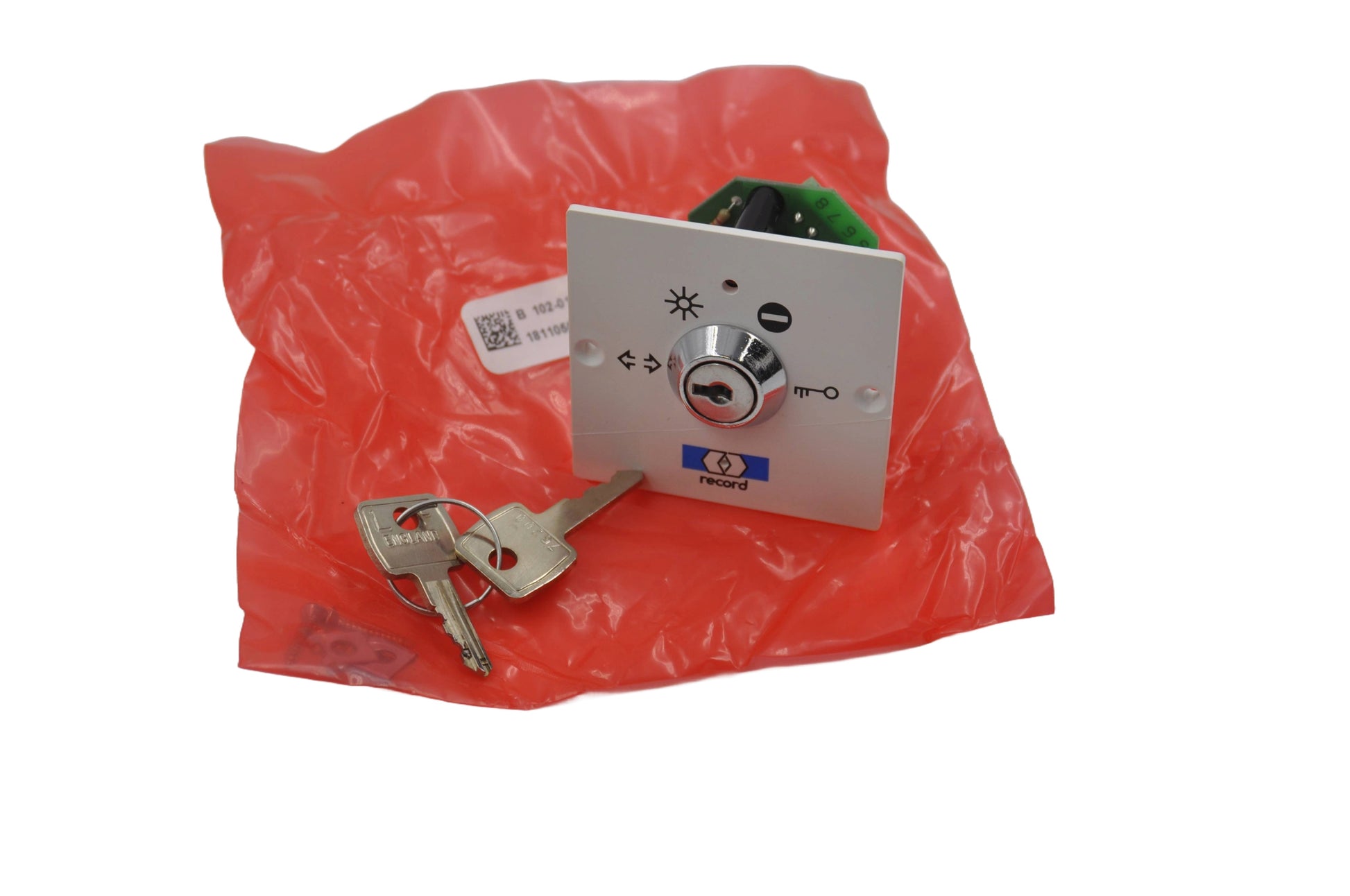

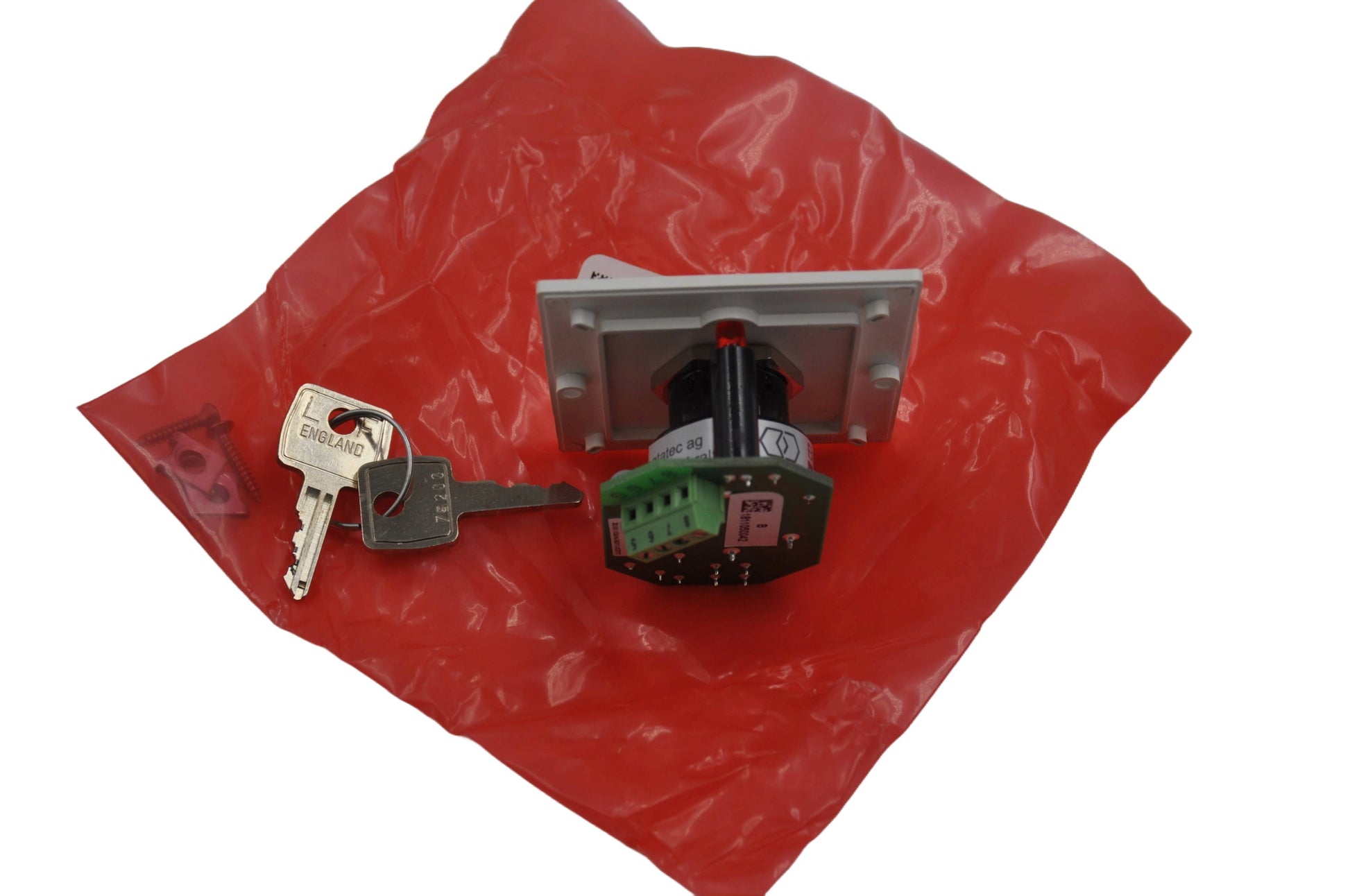

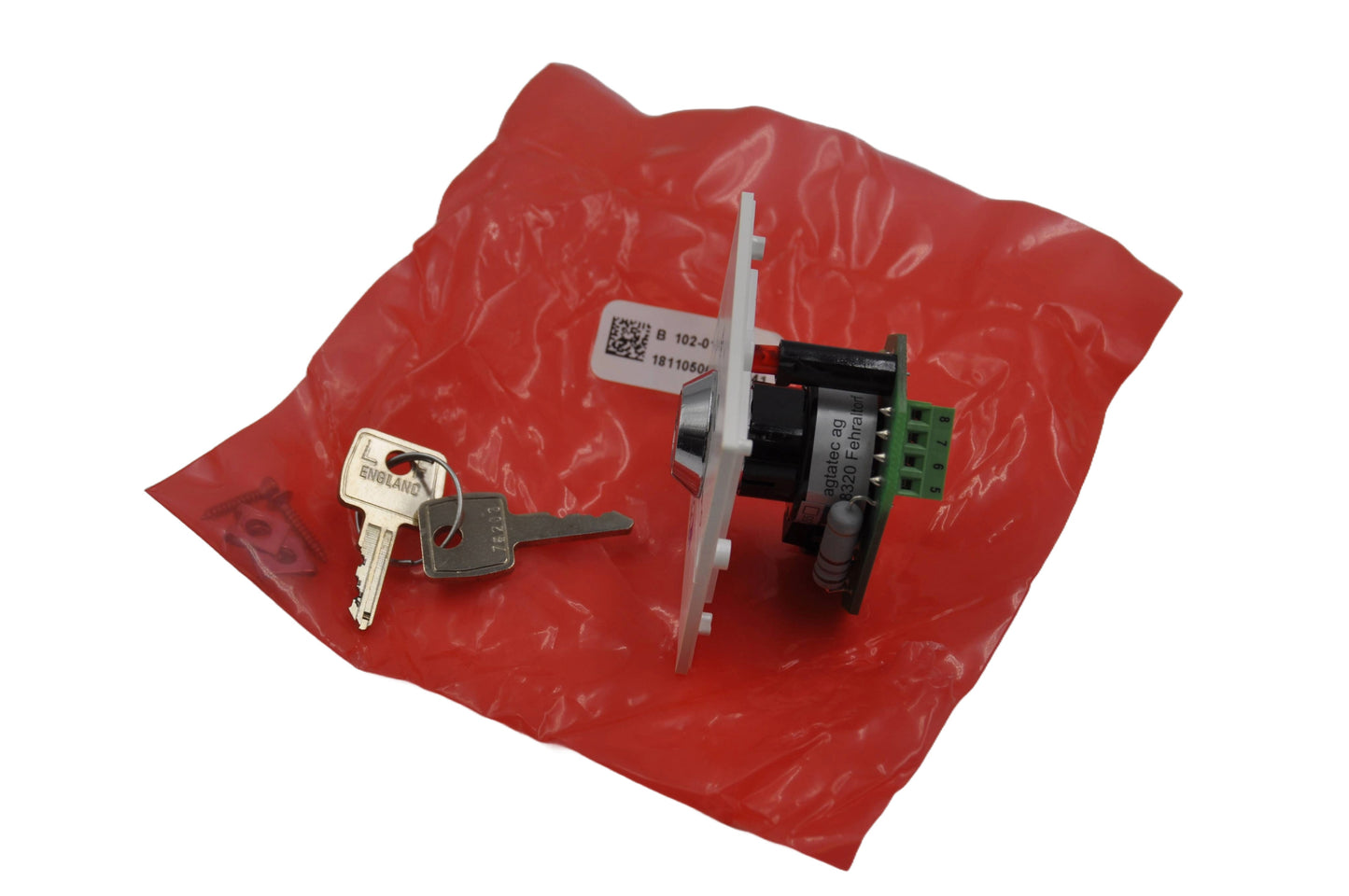

Record BDE-M Mechanical Key Switch – Door Control Unit

The Record BDE-M Mechanical Operating Unit is a robust, user-friendly control key switch designed specifically for easy management of Record automatic door operators. With four clearly defined operational modes, it allows users to swiftly select the desired door functionality using a secure, removable key switch.

Key Features & Benefits:

  • Versatile Operation:
    Four distinct operating modes ensure optimal door functionality:

    • Automatic: Door fully opens automatically as users approach.

    • Continuously Open/Manual Mode: Door remains open or operates manually, allowing flexibility in high-traffic scenarios.

    • One-Way: Door allows passage in one direction only, improving security and traffic control.

    • Locking: Securely locks the door in the closed position.

  • Secure Key Operation:
    Removable key switch enhances security, allowing key removal in any position, preventing unauthorized adjustment.

  • Wide Compatibility:
    Compatible with Record STA16, STA17, STA19 sliding door operators, and FTA16 bi-fold door operators, ensuring seamless integration into existing systems.

  • Easy Installation:
    Available with or without a feller (back-box) to simplify mounting, providing flexibility for both surface and flush installations.

Technical Specifications:

Specification Details
Model Record BDE-M Mechanical Door Control Switch
Operational Modes Automatic, Continuously Open/Manual, One-way, Locking
Key Operation Removable key in any switch position
Compatibility Record STA16, STA17, STA19, FTA16 operators
Installation Options Available with or without a feller (back-box)
View full details

FAQ's

Which Record operators is the BDE-M control unit compatible with?

The listing states compatibility with Record STA16, STA17 and STA19 sliding door operators and the FTA16 bi-fold operator.

What operating modes does the BDE-M provide?

The four listed modes are Automatic, Continuously Open/Manual, One-Way and Locking.

Can the key be removed in every switch position?

Yes. The listing states that the key can be removed in any operating position.

Is the BDE-M a mechanical or electronic selector?

It is listed as a mechanical key-operated door control unit.

Is a back box available?

Yes. The BDE-M is available with or without a Feller back box to suit the mounting arrangement.
