Record BDI-M Adaptor - Allows fitting of key switch.

Record BDI-M Adaptor - Allows fitting of key switch.

Net: £71.01
Incl. VAT: £85.21
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

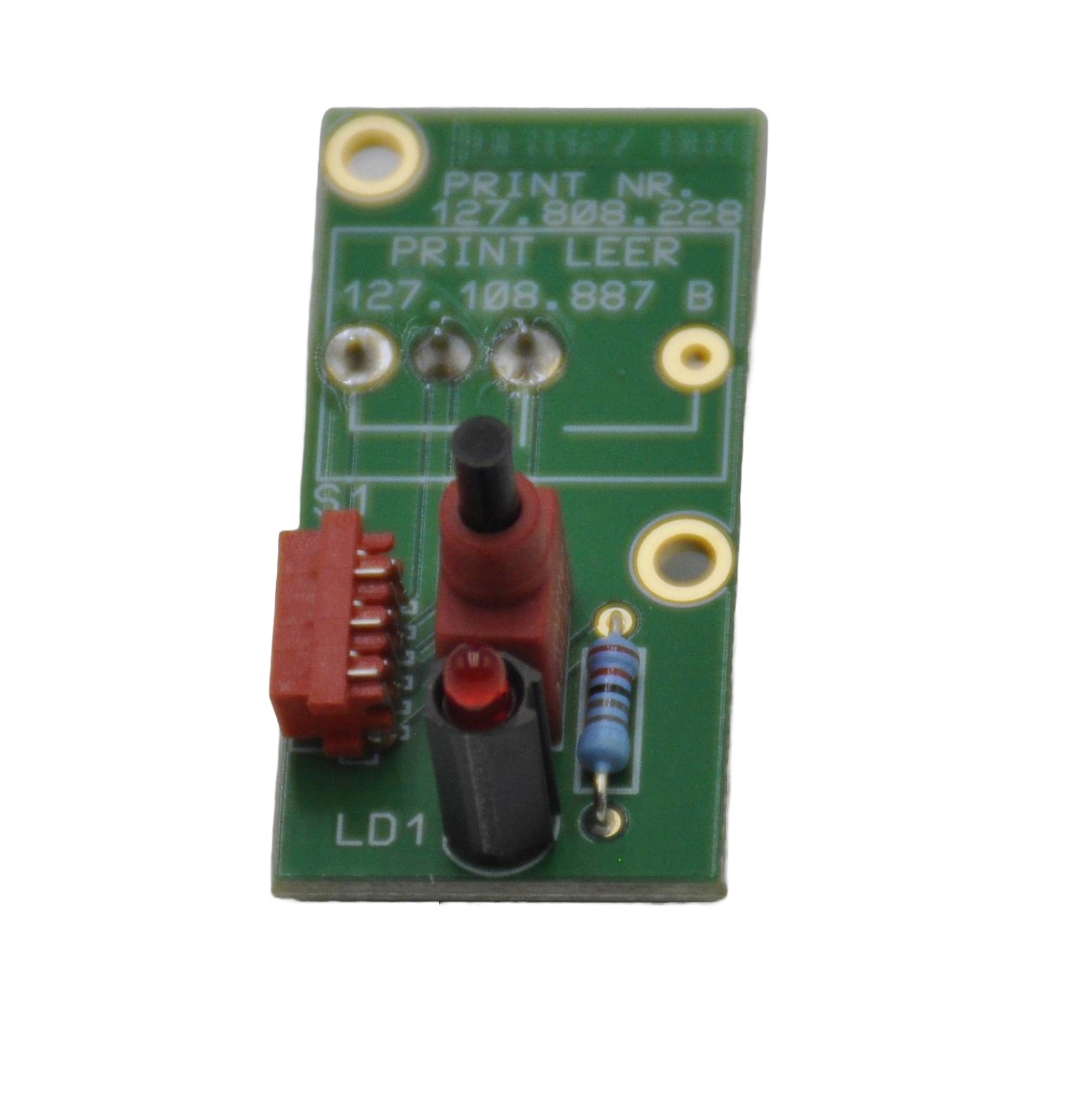

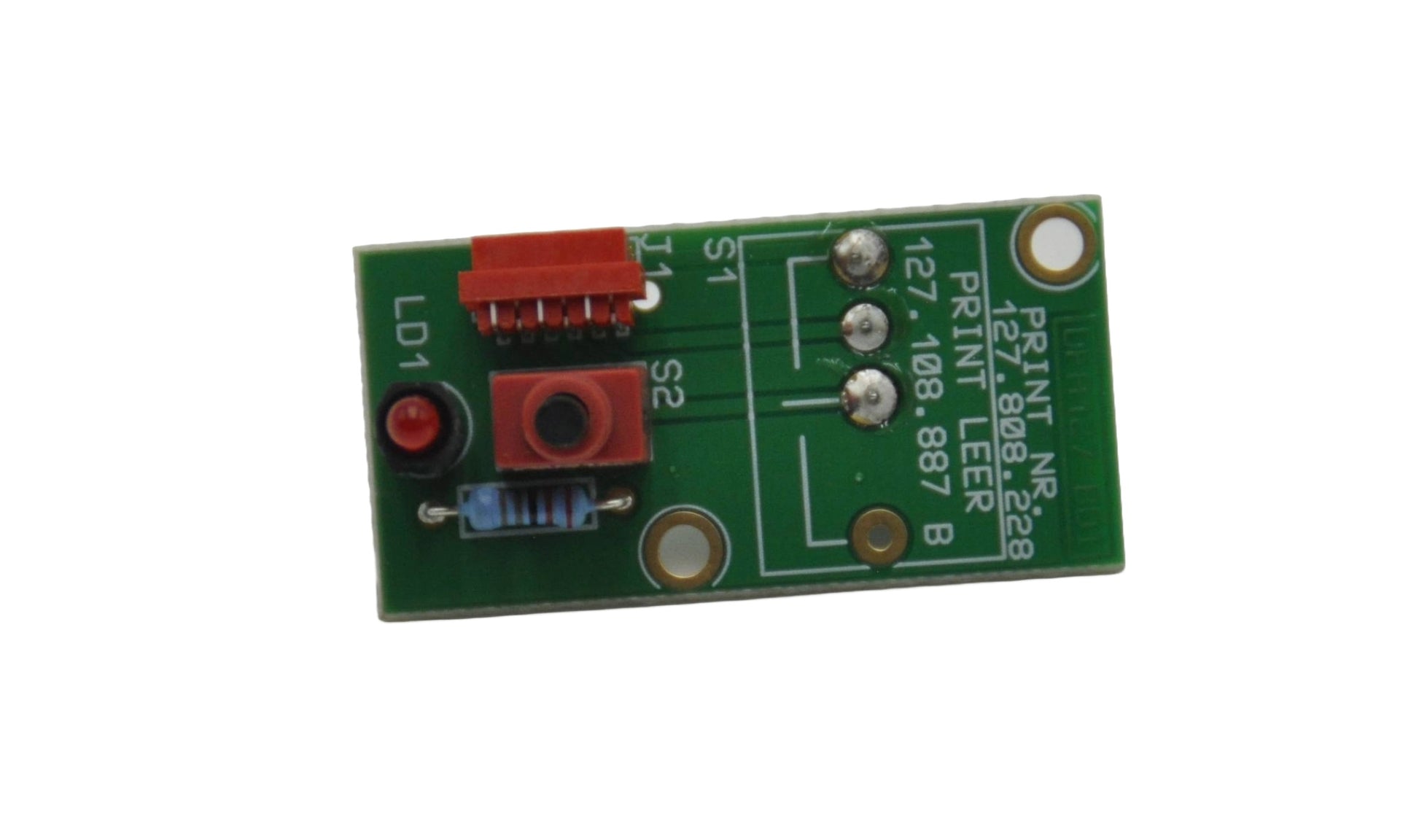

Record DFA127 BDI-M Circuit Board – Connect External Key Switches to DFA127 Operators

The Record DFA127 BDI-M Circuit Board is an essential upgrade allowing users to easily connect external key switches, 3 or 4-position switches, or the Record BDE-M controller to the DFA127 swing door operator. It replaces the standard three-position end-cap rocker switch, offering enhanced flexibility, security, and customisation of operational modes.

Product Overview:

This additional circuit board is specifically designed for the Record DFA127 swing door operator. It enables external key switches or alternative mode selectors to interface directly with the operator, providing simplified mode control and improved door management. Ideal for installations requiring additional security or controlled access via external switches.

Key Features & Benefits:

Flexible External Switch Integration:

Allows quick and straightforward connection of external 3-position, 4-position, or Record BDE-M switches, improving control and security management.

Enhanced Door Operation Modes:

Facilitates four distinct operational settings—locked, continuously open, manual, or automatic—managed conveniently via external switch control.

Simple Installation:

Direct replacement for the existing rocker switch board; easy installation without extensive modifications.

Improved Security & Access Control:

Ideal for premises where secure, restricted, or easy external control of door modes is necessary, such as retail, commercial, and healthcare environments.

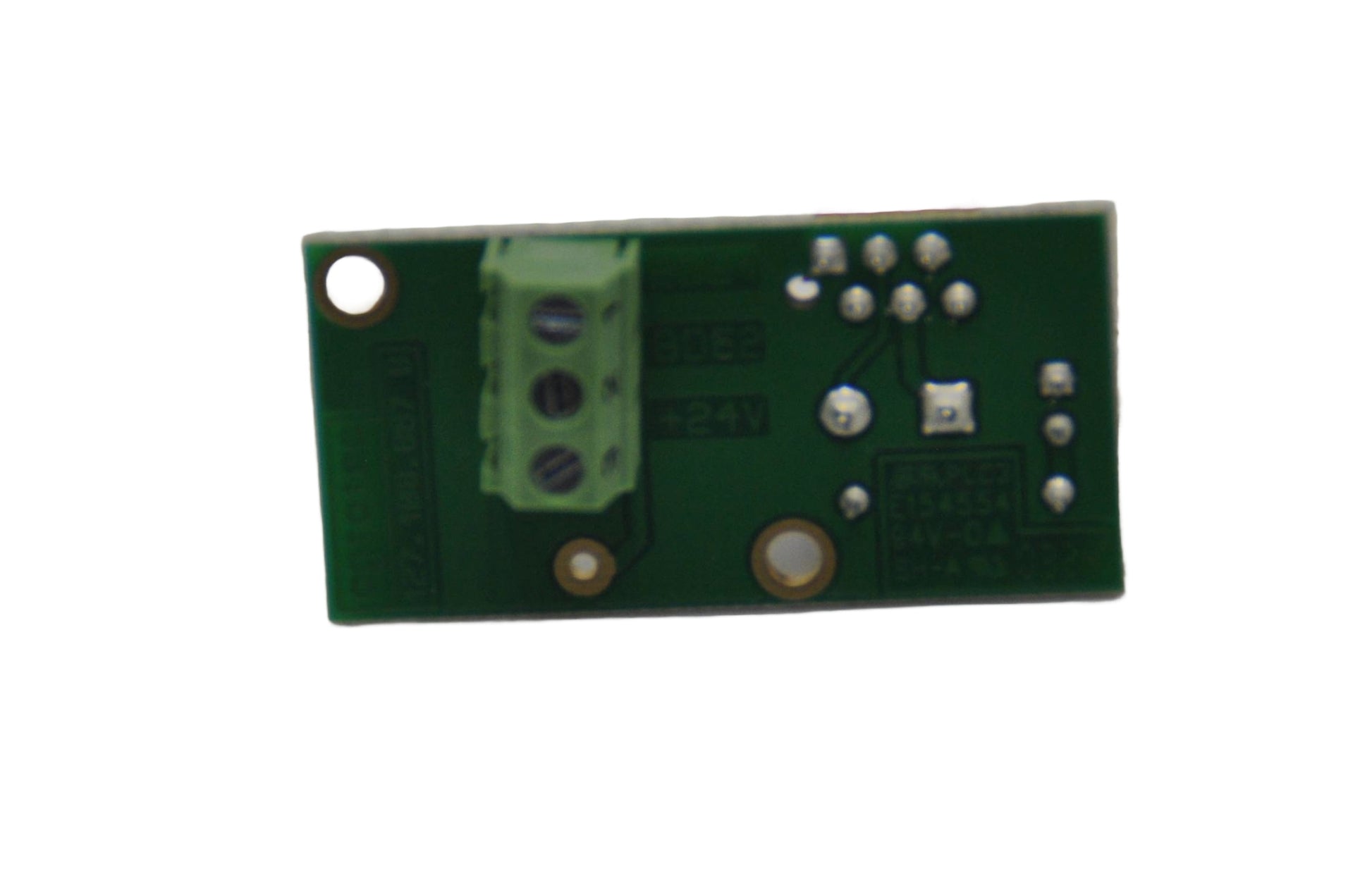

Terminal Connections on BDI-M:

Input/Output on STG DFA127 Clamps on STG DFA127 Clamp Marking on BDI-M
BDE 1 J7/1 1
BDE 2 J7/2 2
+24 V J7/3 3

Operational Mode Functionality:

BDE2 (Clamp 2) BDE1 (Clamp 1) Door Operation Mode
L (0 V or open) L (0 V or open) Locked
L (0 V or open) H (+24 V) Continuously Open
H (+24 V) H (+24 V) Manual
H (+24 V) L (0 V or open) Automatic

(L = no voltage/open circuit, H = +24 V)

Technical Information:

  • Manufacturer’s Reference: 127.808.232

  • Compatibility: Record DFA127 Swing Door Operator

  • Note: Installing this BDI-M board disables the original side-cover rocker switch, leaving only the RESET button and Status indicator operational.

View full details

FAQ's

What is the Record BDI-M adaptor used for?

It is an additional circuit board for the Record DFA127 that allows compatible external key switches, 3- or 4-position switches or a Record BDE-M controller to select door operating modes.

Which operator is the BDI-M board compatible with?

The listing specifically states compatibility with the Record DFA127 automatic swing door operator.

Which operating modes can be selected through the BDI-M?

The product information lists locked, continuously open, manual and automatic operating modes.

What is the Record reference for the BDI-M board?

The manufacturer's reference shown in the listing is 127.808.232.

What happens to the original side-cover rocker switch after the BDI-M is installed?

The listing states that installing the BDI-M disables the original side-cover rocker switch, leaving the RESET button and status indicator operational.
