Record BDE-D Square Electronic Control Switch – Square

Record BDE-D Square Electronic Control Switch – Square, White Finish (Unbranded)

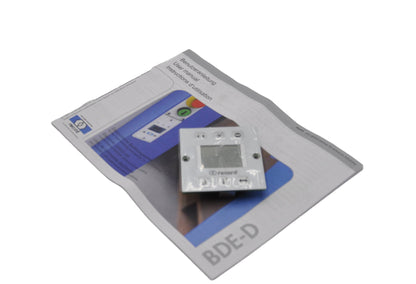

The Record BDE-D Square Electronic Control Switch is a compact, square-shaped controller designed for seamless integration with Record automatic door systems, including DFA127 swing doors, STA20 and STA21 sliding doors, and FTA20 bi-fold doors. Featuring an intuitive push-button interface, a backlit LCD display, and a clean, unbranded white finish, this stylish control unit ensures effortless door operation in modern commercial settings.

Key Features & Benefits:

• Intuitive Push-Button Controls:
  Easy-to-use buttons allow straightforward adjustment and navigation of door settings.

• Clear LCD Display:
  Backlit screen provides instant feedback on door status with intuitive symbols and text.

• Broad Compatibility:
  Suitable for Record DFA127 swing doors, STA20 & STA21 sliding doors, and FTA20 bi-fold systems.

• Compact & Stylish Square Design:
  A sleek, square form factor with an unobtrusive, clean white finish ideal for discreet installation.

• Easy Installation:

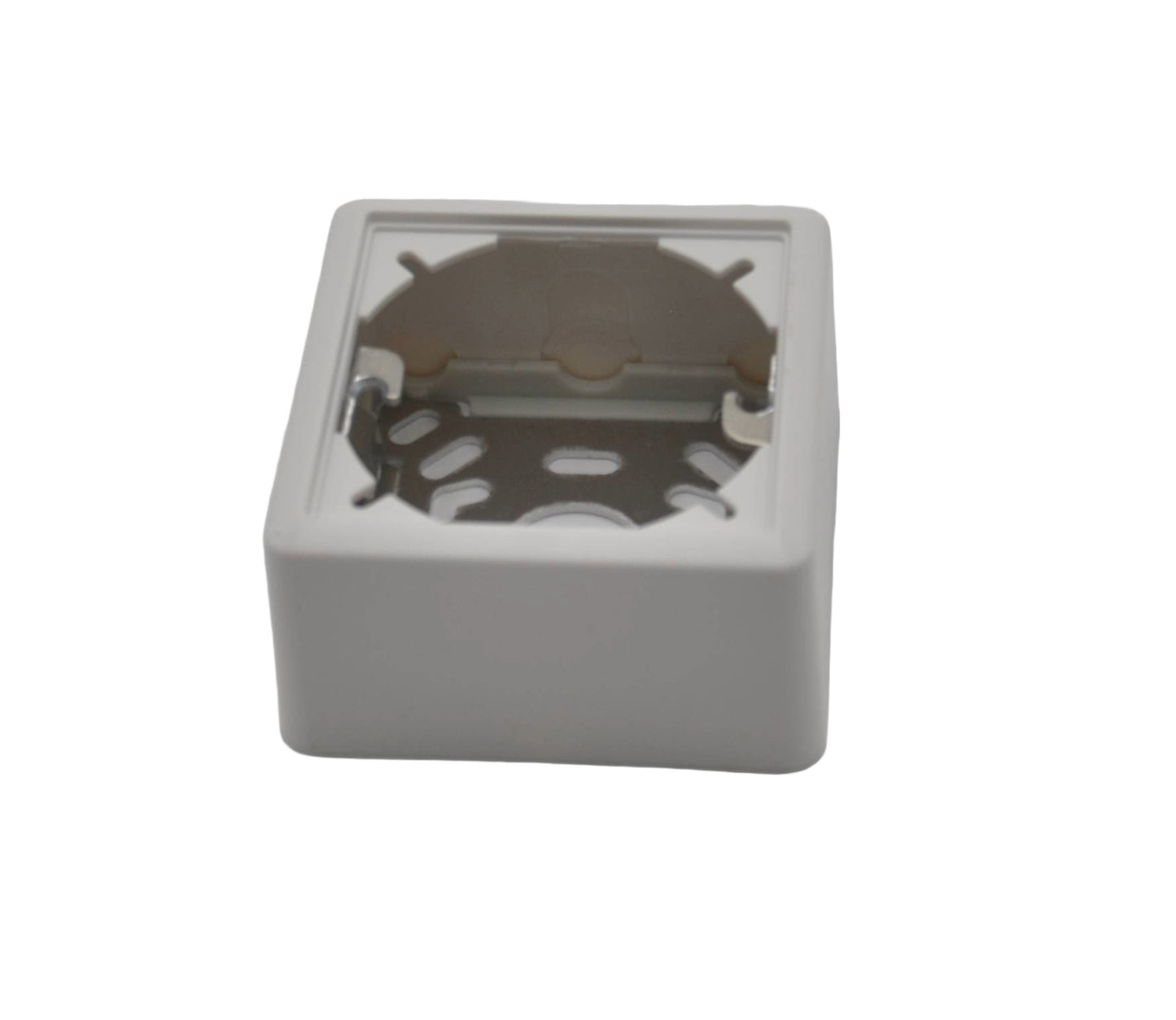

  Includes a surface-mounted back box for fast, simple fitting and a neat finish.

Technical Specifications:

• Supply Voltage: 24 VDC (via CAN bus)

• Power Consumption: <2 W

• Front Panel Dimensions: 60mm x 60mm (compatible with Feller or Jung systems)

• Built-in Dimensions: 92mm x 44mm

• Operating Temperature: -20°C to +50°C

• LCD Display Resolution: 112 x 64 pixels, with backlighting

• Finish: White (unbranded), supplied with surface-mounted back box
