Record BDE-D Slim Electronic Control switch

Record BDE-D Slim Electronic Control switch

Net: £223.43
Incl. VAT: £268.12
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Instruction Manual

View Manual

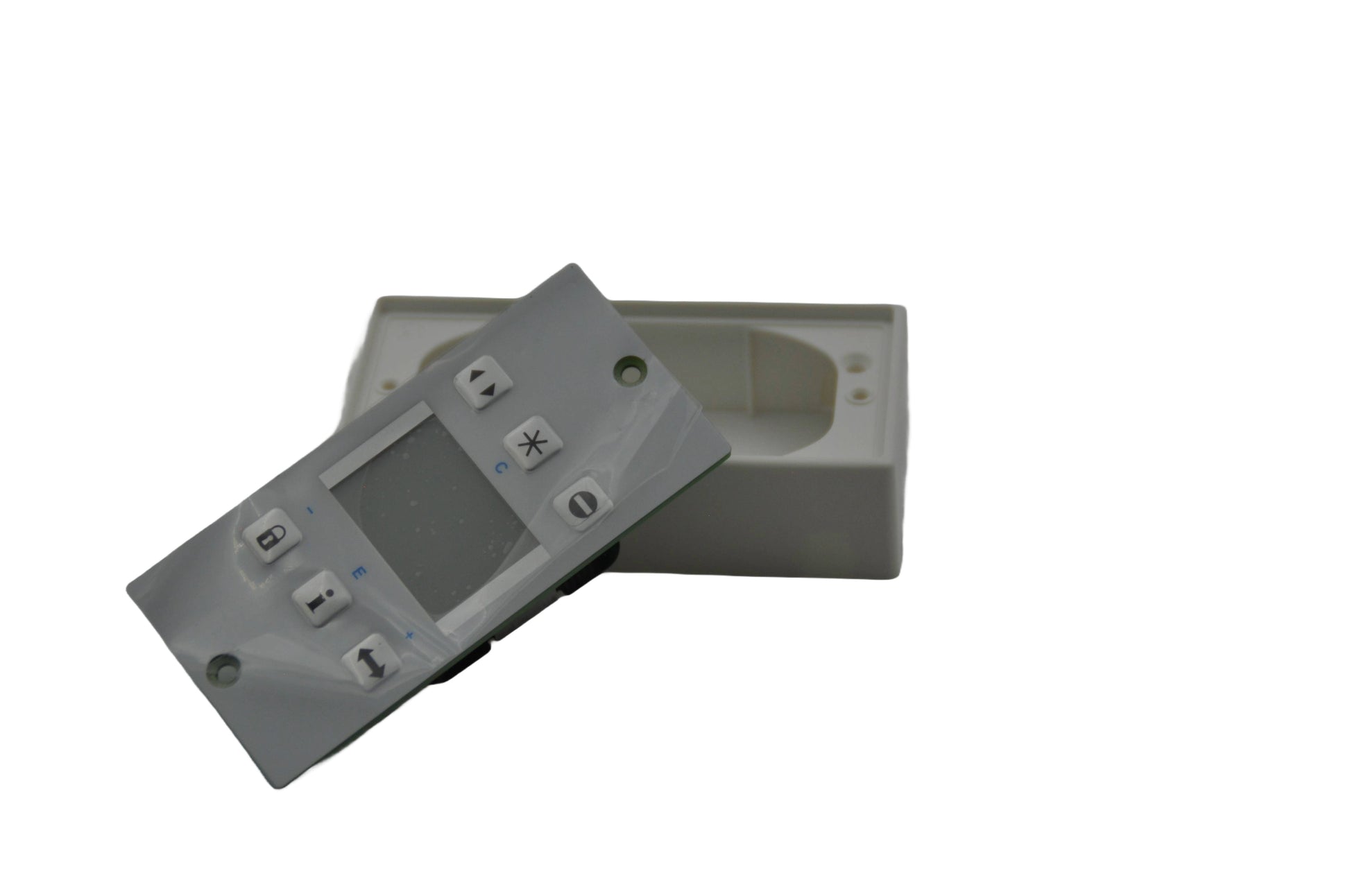

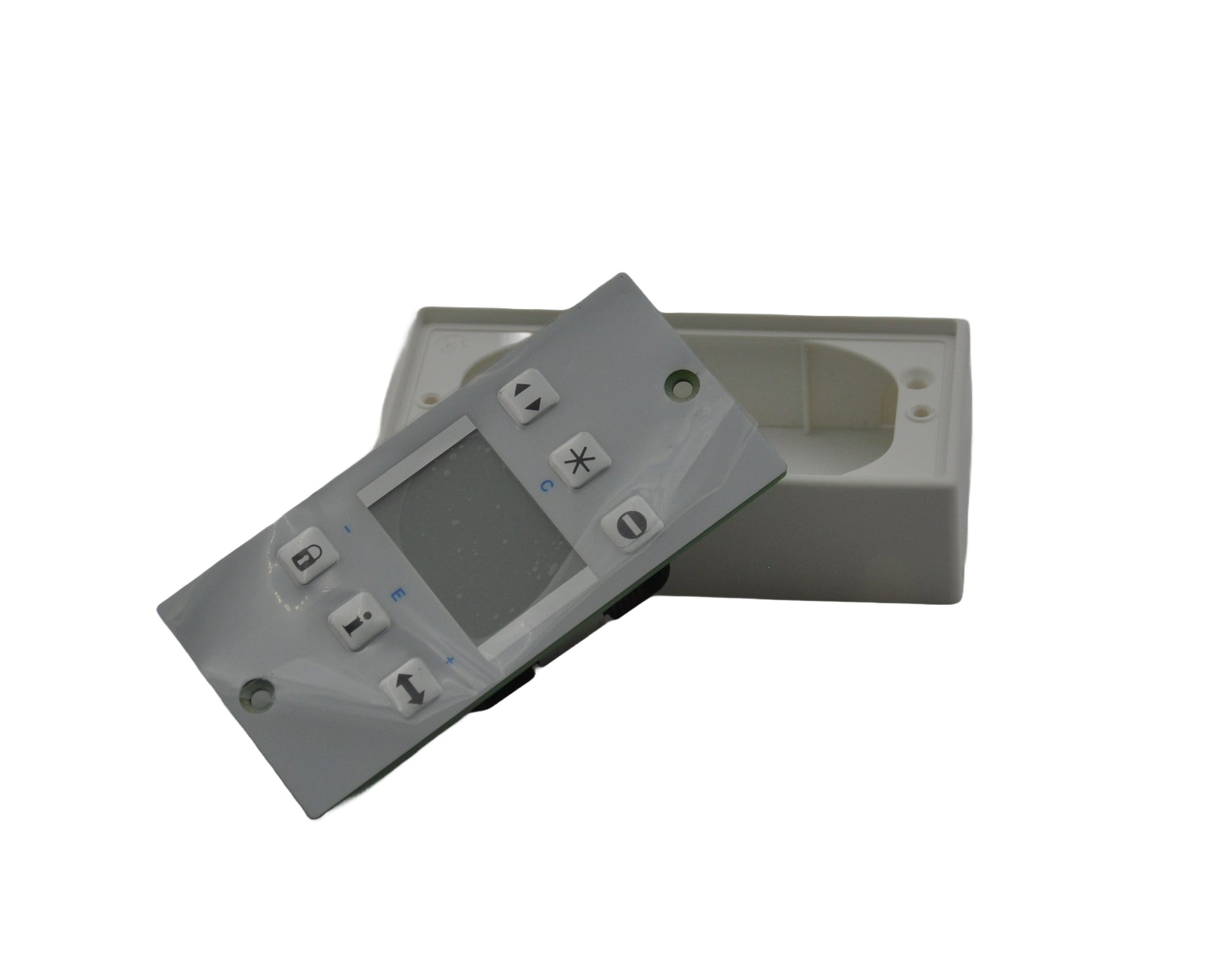

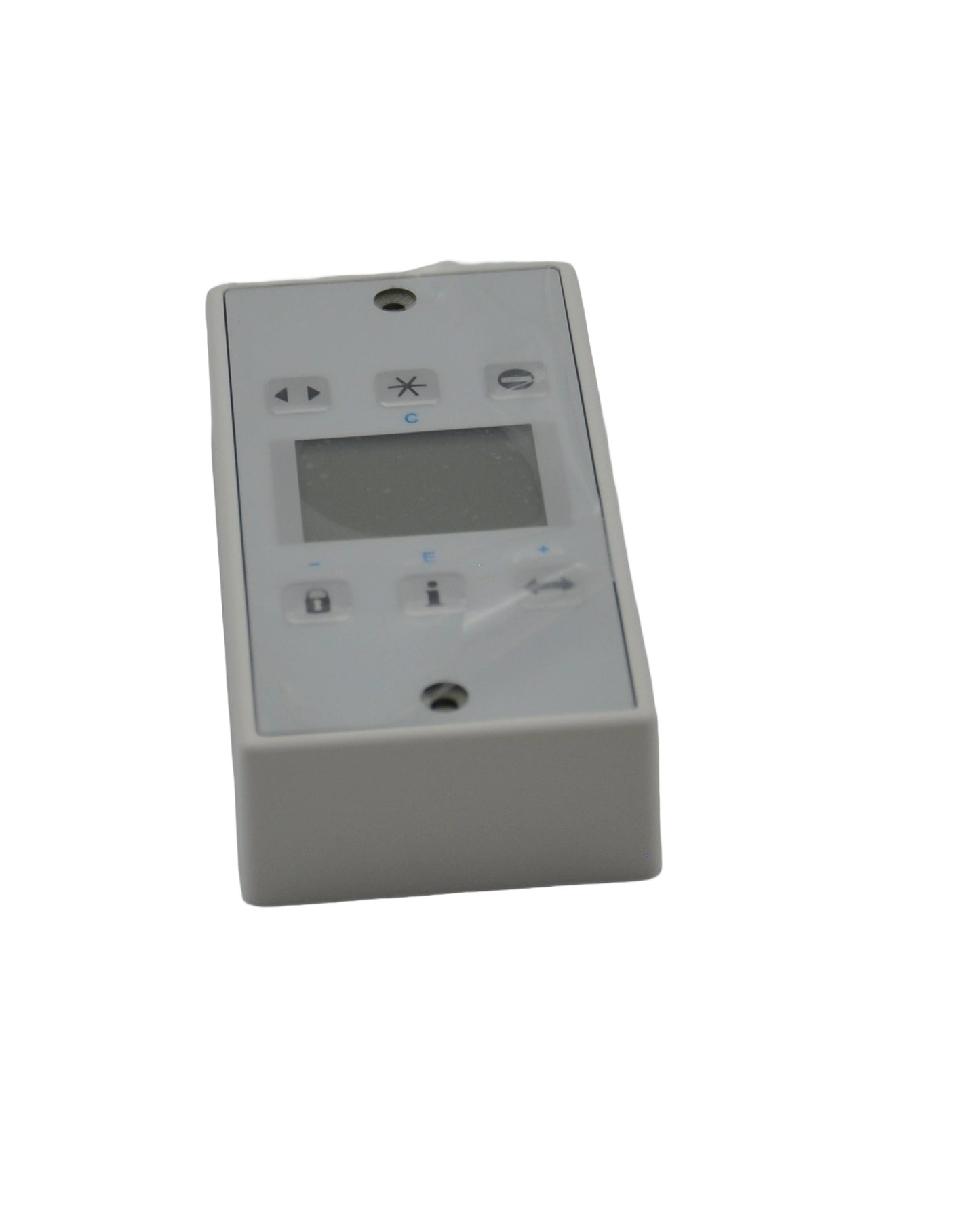

Record BDE-D Slim Electronic Control switch– White Finish (Unbranded)

The Record BDE-D Slim Electronic Control Unit is a versatile, user-friendly controller suitable for a wide range of Record automatic door operators, including DFA127 swing doors, STA20 and STA21 sliding doors, and FTA20 bi-fold door systems. Featuring an intuitive, easy-to-navigate interface and an unbranded white finish, this slim control unit blends seamlessly into modern commercial interiors.

Key Features & Benefits:

  • Intuitive Interface:
    Clearly arranged push-buttons enable straightforward navigation and adjustment of door settings.

  • Backlit LCD Display:
    Offers clear visual feedback and status information through symbols and text, ensuring easy monitoring and operation.

  • Versatile Compatibility:
    Suitable for use with Record DFA127 swing doors, STA20 & STA21 sliding doors, and FTA20 bi-fold door operators.

  • Slim & Stylish Design:
    Compact, sleek, and unbranded design with a clean white finish, ideal for discreet installation in commercial or public environments.

  • Simple Installation:
    Complete with surface-mounted back box for easy and neat installation.

Technical Specifications:

  • Supply Voltage: 24 VDC (via CAN bus)

  • Power Consumption: <2 W

  • Front Panel Dimensions: 60mm x 60mm (compatible with Feller or Jung systems)

  • Built-in Dimensions: 92mm x 44mm

  • Operating Temperature: -20°C to +50°C

  • LCD Display Resolution: 112 x 64 pixels, with background lighting

  • Finish: White, unbranded, includes surface-mounted back box

View full details

FAQ's

Which Record operators is the BDE-D Slim control switch compatible with?

The listing states compatibility with Record DFA127 swing doors, STA20 and STA21 sliding doors, and FTA20 bi-fold door operators.

What supply voltage does the BDE-D Slim use?

The product specification states 24V DC supplied via the Record CAN bus.

Does the BDE-D Slim have an LCD display?

Yes. It has a backlit LCD display for operating modes, status information and menu navigation.

Is a surface-mounted back box included?

Yes. The listing states that the white unbranded control switch includes a surface-mounted back box.

Should operator compatibility be confirmed before fitting the BDE-D Slim?

Yes. Confirm the compatible Record operator and CAN-bus control arrangement before installation.
