Push Button Station (Latching Stop)

Push Button Station (Latching Stop)

Net: £45.00
Incl. VAT: £54.00
Taxes included.

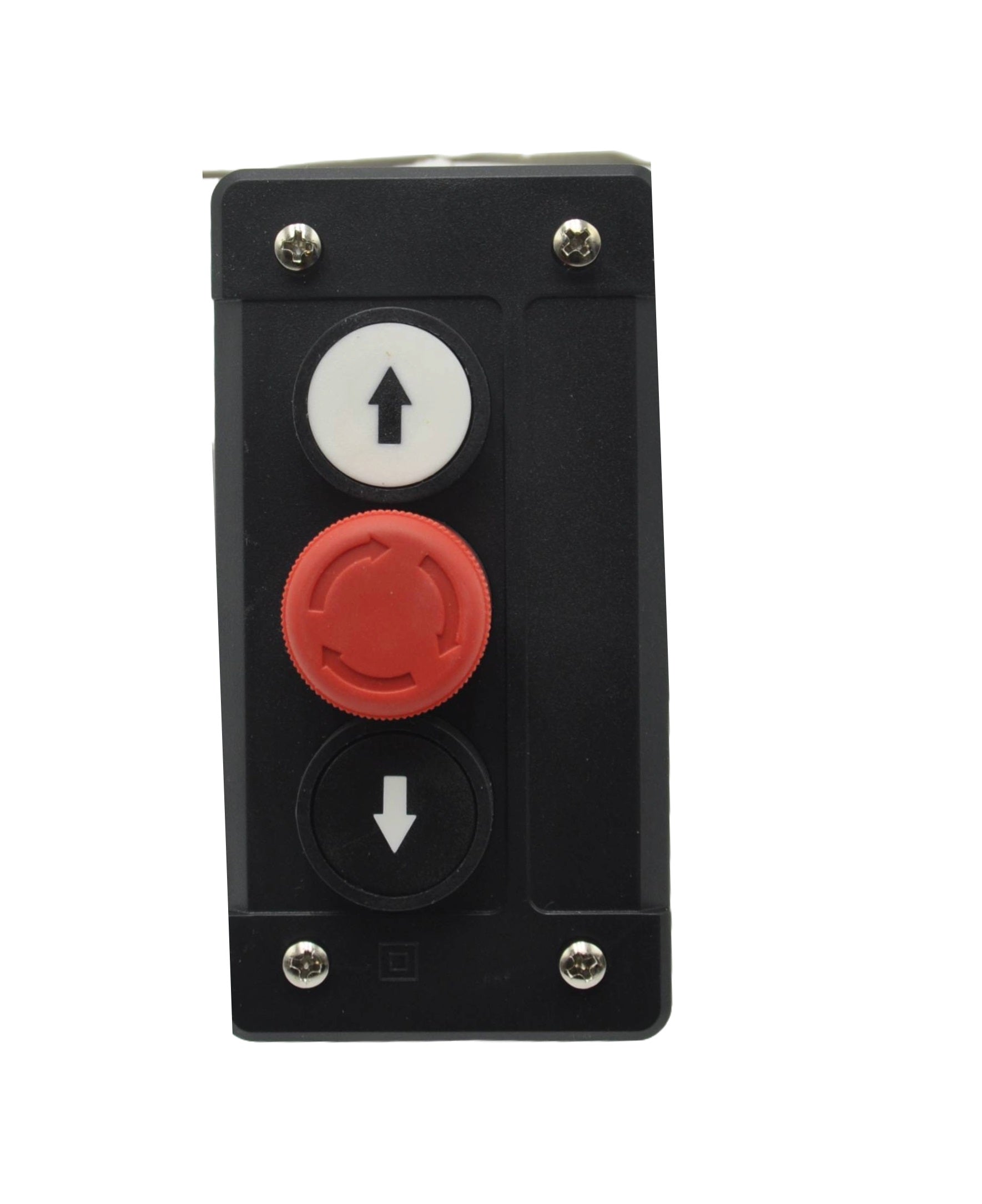

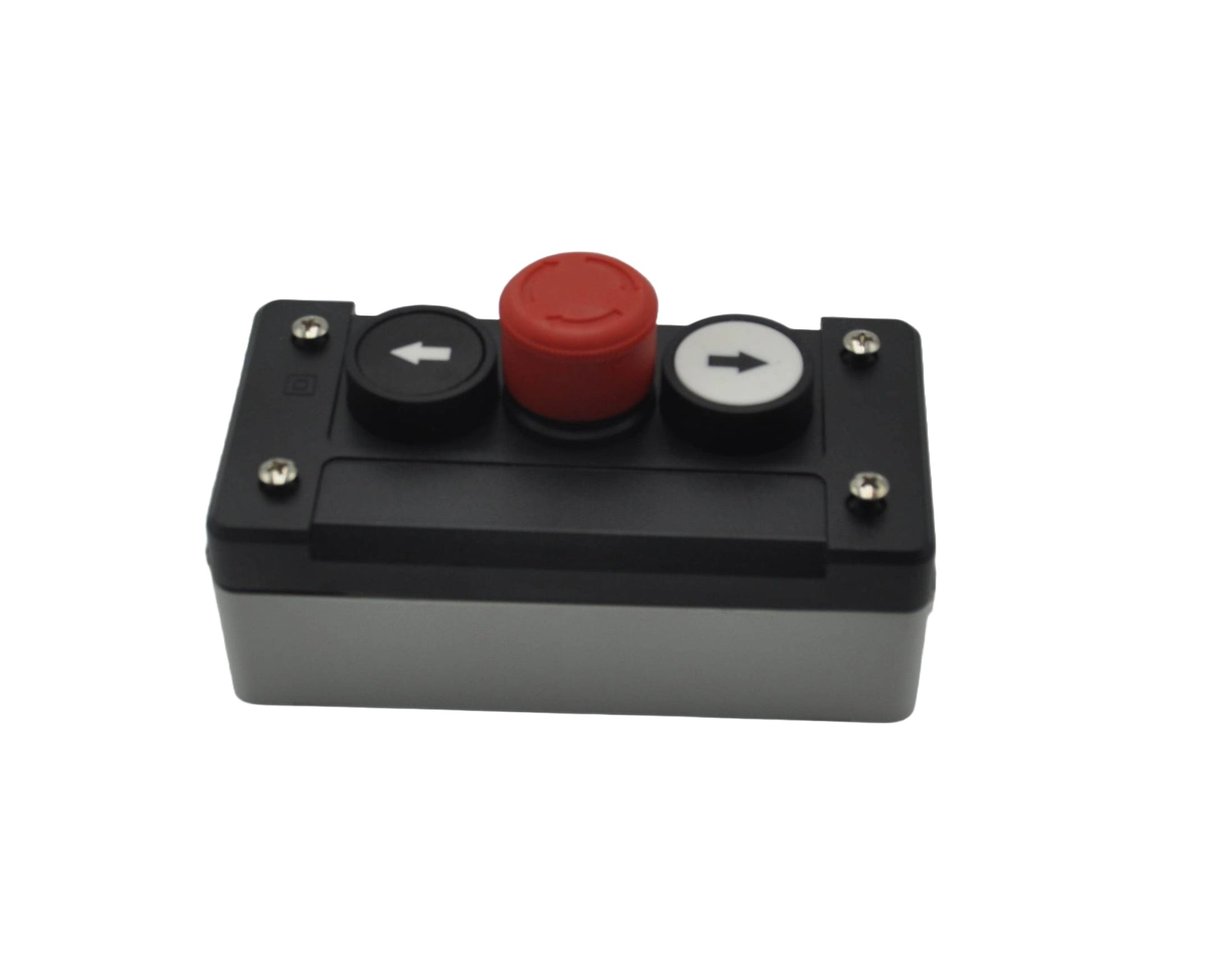

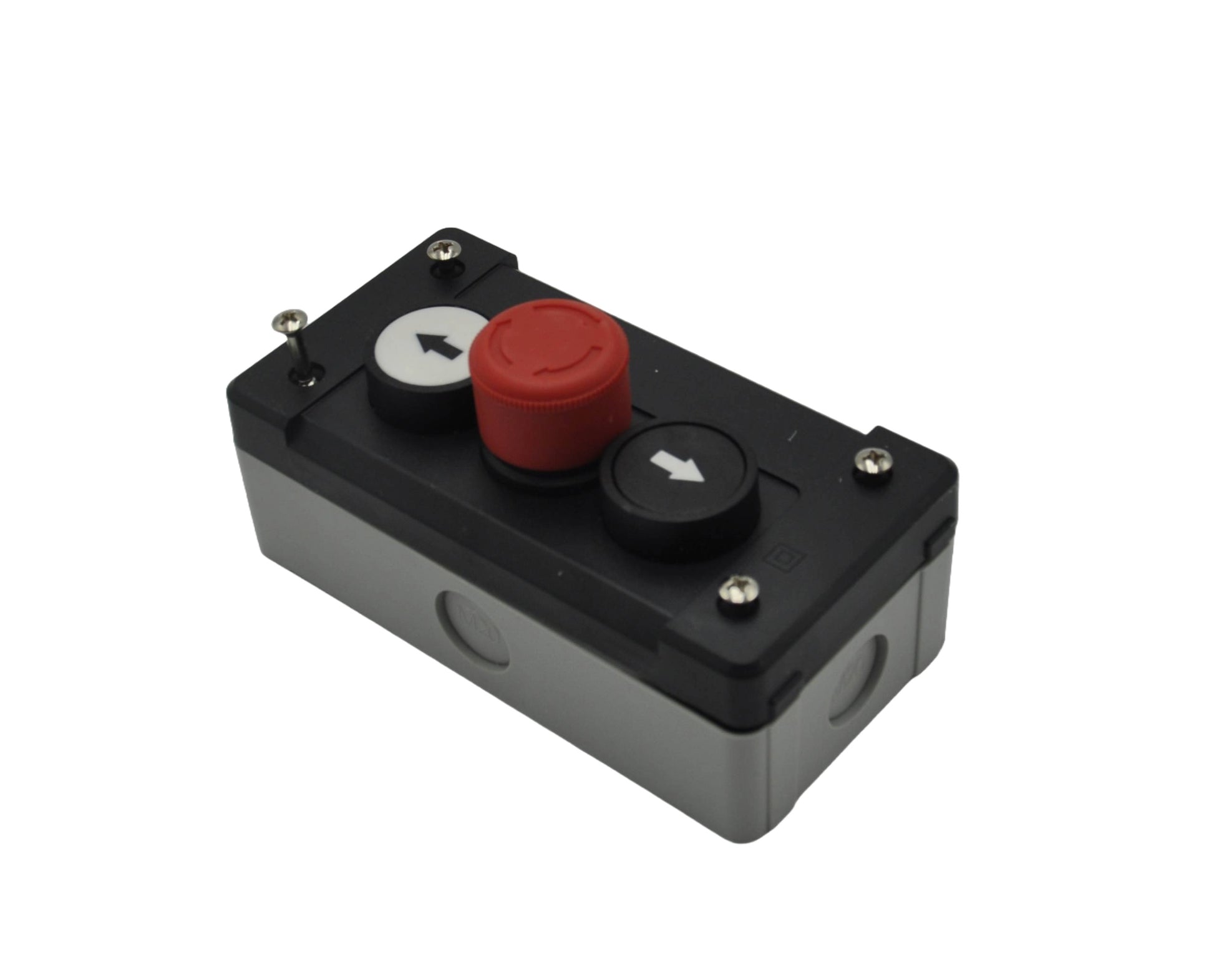

3-Way Roller Shutter Control Station – Up, Down & Latching Emergency Stop

This robust and reliable 3-Way Roller Door Control Button Station is specifically designed to offer safe, efficient control of industrial doors, roller shutters, and sectional doors. Equipped with clearly marked UP, DOWN, and a Latching Emergency STOP button, it provides user-friendly operation and enhanced safety for commercial or industrial premises.

Product Overview:

Featuring a durable, double-insulated housing, this push-button station provides excellent reliability and ease of use. The emergency stop is latching for added safety, ensuring the door remains stopped until reset manually, making it ideal for high-traffic and industrial environments.

Key Features & Benefits:

  • Three-Way Operation: Clearly labelled Up Arrow, Down Arrow, and Latching Emergency Stop buttons.

  • Enhanced Safety: Latching stop button immediately halts operation and remains engaged until manually reset.

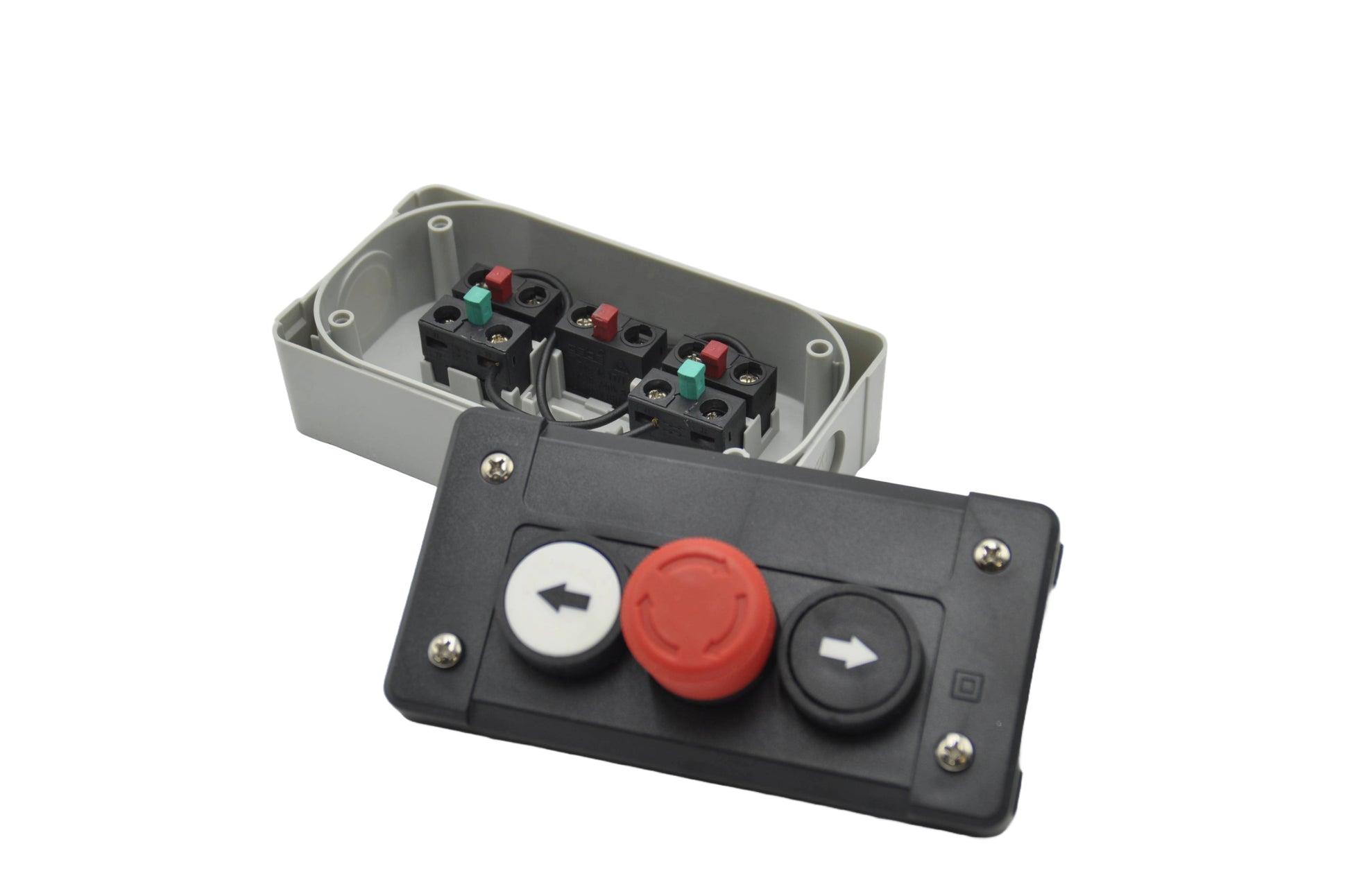

  • High-Quality Contacts: Supplied with 2 Normally Open (N/O) and 1 Normally Closed (N/C) contact.

  • Double Insulation: Protects users from electrical hazards, enhancing operational safety.

  • Weatherproof Design: Rated IP54, suitable for internal and external use in industrial environments.

  • Versatile Applications: Ideal for controlling roller shutters, sectional doors, and other electrically operated industrial doors.

Technical Specifications:

  • Control Buttons: Up, Down & Latching Emergency Stop

  • Contact Configuration: 2 x N/O, 1 x N/C contacts pre-fitted

  • Housing: Double insulated

  • Ingress Protection: IP54 rating (dust and water-resistant)

  • Operation Type: Momentary Up/Down, Latching Stop

  • Applications: Roller shutters, sectional doors, industrial doors

Applications:

Perfectly suited for:

  • Warehouses and factories

  • Loading bays

  • Commercial roller shutter installations

  • Industrial sectional doors

This 3-Way Roller Door Control Station offers a secure and user-friendly solution to manage roller doors safely and efficiently in demanding environments.

View full details

FAQ's

What controls are provided on the roller shutter push-button station?

The station provides clearly marked Up, Down and latching Emergency Stop controls.

How does the emergency stop operate?

The stop button latches when pressed and remains engaged until it is manually reset.

What contact configuration is supplied?

The listing states that two normally open contacts and one normally closed contact are pre-fitted.

What IP rating is specified for the control station?

The housing is listed as IP54 rated.

Which door types are listed as applications?

The product information lists roller shutters, sectional doors and other electrically operated industrial doors.
