PSU - 2 Amp - 12V DC Switch Mode PSU (13.8V)

12V DC Switch Mode PSU (13.8V) – 2 Amp Output + 0.5A Battery Charging

This 12V DC Switch Mode Power Supply (PSU) provides efficient, reliable power delivery with a closely regulated 13.8V DC output. Offering a robust 2 Amp load capability alongside an additional 0.5 Amp battery charging circuit, this PSU is perfect for security systems, access control, and other electronic installations requiring stable power and battery backup capability.

Key Features & Benefits:

• Efficient Switch Mode Technology:
  Provides energy-efficient and stable power, ensuring reliable and consistent performance.

• Dual Functionality:
  Delivers 2 Amps of continuous output with an additional 0.5 Amp dedicated to battery charging, allowing seamless battery backup operation.

• Universal Voltage Input:
  Compatible with a wide mains input range (90V–264Vac), suitable for global applications and varying power conditions.

• Comprehensive Protection:
  Built-in electronic overload and mains transient protection safeguard connected equipment from electrical surges or overload conditions.

• LED Status Indicators:
  Multi-LED indicators clearly display mains status, facilitating quick diagnostics and maintenance.

• Convenient Installation:

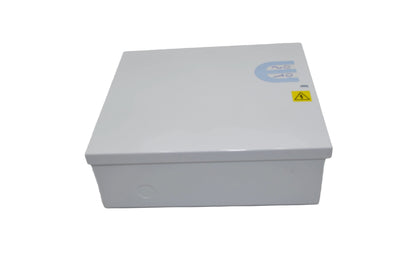

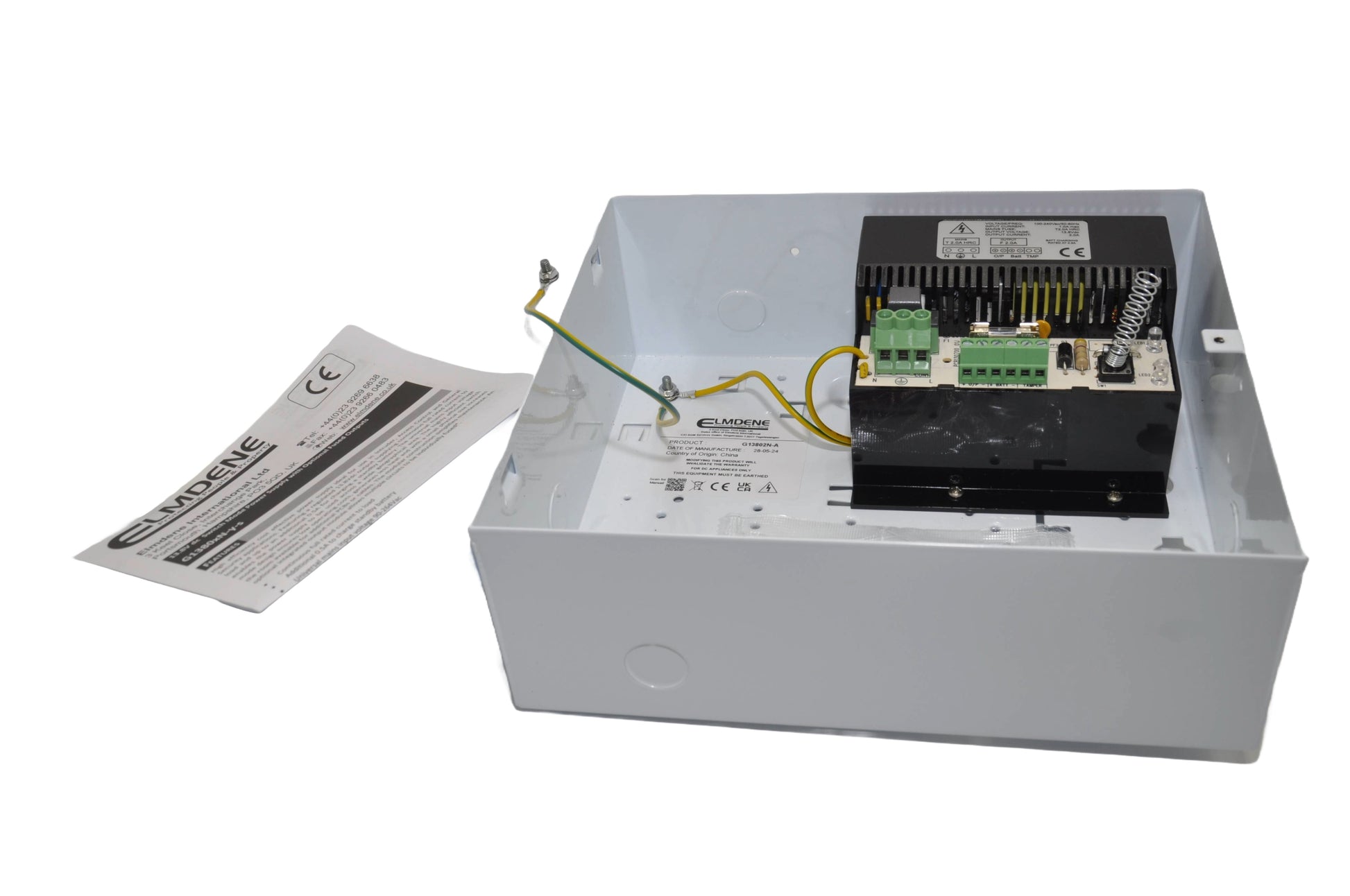

  Supplied in a robust 'B' box enclosure (330h x 355w x 80d) with a clam lid, accommodating up to a 17Ah battery and offering front tamper protection.

Technical Specifications:

• Output Voltage: Closely regulated 13.8V DC

• Load Current: 2 Amps (continuous), 0.5 Amp battery charging

• Input Voltage: Universal 90V–264Vac mains

• Battery Capacity: Supports up to a 17Ah battery

• Protection Features: Electronic overload, transient, and front tamper protection

• Dimensions (Boxed Model): 330mm (H) x 355mm (W) x 80mm (D)

• Mounting Options: Boxed and Unboxed models available, DIN Rail mountable options (1A, 2A, 3A)
