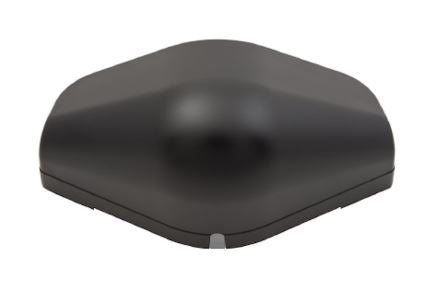

Optex OM106 Microwave Sensor - Uni or Bi

Optex OM106 Microwave Sensor - Uni or Bi

Net: £95.26
Incl. VAT: £114.31
Taxes included.

Optex OM-106C Microwave Activation Sensor – For Automatic Doors
The Optex OM-106C is a versatile microwave activation sensor designed for use on all types of automatic doors. Compact, reliable, and easy to install, it delivers fast and accurate detection for high-speed entries in retail, healthcare, transport, and commercial environments.

 Key Features & Benefits

  • Wide or Narrow Detection Area:
    Adjustable detection zone with quick configuration – simply clip on the narrow lens and fine-tune using tilt and rotation, no external setup device required.

  • Swing Door Activation Mode:
    When mounted above the pivot, the OM-106C ignores the door leaf movement, making it an ideal activation sensor for swing doors.

  • Auto-Caution Safety Mode:
    Sensor switches from uni-directional to multi-directional detection if someone lingers in the detection zone, preventing premature door closure.

  • Uni- or Bi-Directional Detection:
    Selectable via dipswitch:

    • Uni-directional – detects approaching traffic only, enabling faster closing and reducing energy loss.

    • Bi-directional – detects all movement for maximum coverage.

  • Energy Saving:
    By reducing unnecessary open times, the OM-106C helps cut building energy losses by enabling doors to close quickly after use.

  • Fast & Easy Installation:
    Compact design with header or ceiling mounting options. Supplied with cable, template, mounting screws, and narrow lens.

Technical Specifications

Feature Detail
Model OM-106C
Detection Method Microwave Doppler, 24.125GHz
Mounting Height 2.0m – 3.5m
Adjustments Vertical: +10º to +70º (header) / +20º to +80º (ceiling)
Horizontal: ±30º
Detection Speed ≥ 5 cm/sec
Power Supply 12–24VAC (±10%) / 12–30VDC (±10%)
Power Consumption < 1.5W (< 2VA at AC)
Relay Output Form C, 50V 0.3A max. (resistive load)
Output Hold Time 0.5s / 2.0s selectable
Response Time < 0.3 seconds
Indicators Green standby / Red detection / Green blink (setup)
Operating Temp -20ºC to +55ºC
IP Rating IP54
Dimensions 131 × 61 × 55mm
Weight 140g

Accessories Supplied: 3m cable, operation manual, 2 mounting screws, template, and narrow lens.

View full details

FAQ's

What is the Optex OM106 Microwave Sensor - Uni or Bi and what is it used for?

Optex OM-106C Microwave Activation Sensor – For Automatic Doors The Optex OM-106C is a versatile microwave activation sensor designed for use on all types of automatic doors.

Does the Optex OM106 Microwave Sensor - Uni or Bi provide optex om-106c microwave activation sensor – for automatic doors?

Optex OM-106C Microwave Activation Sensor – For Automatic Doors The Optex OM-106C is a versatile microwave activation sensor designed for use on all types of automatic doors. Compact, reliable, and easy to install, it delivers fast and accurate detection for high-speed entries in retail, healthcare, transport, and commercial environments.

Does the Optex OM106 Microwave Sensor - Uni or Bi provide wide or narrow detection area?

Adjustable detection zone with quick configuration – simply clip on the narrow lens and fine-tune using tilt and rotation, no external setup device required.

Does the Optex OM106 Microwave Sensor - Uni or Bi provide swing door activation mode?

When mounted above the pivot, the OM-106C ignores the door leaf movement, making it an ideal activation sensor for swing doors .

Does the Optex OM106 Microwave Sensor - Uni or Bi provide auto-caution safety mode?

Sensor switches from uni-directional to multi-directional detection if someone lingers in the detection zone, preventing premature door closure.
