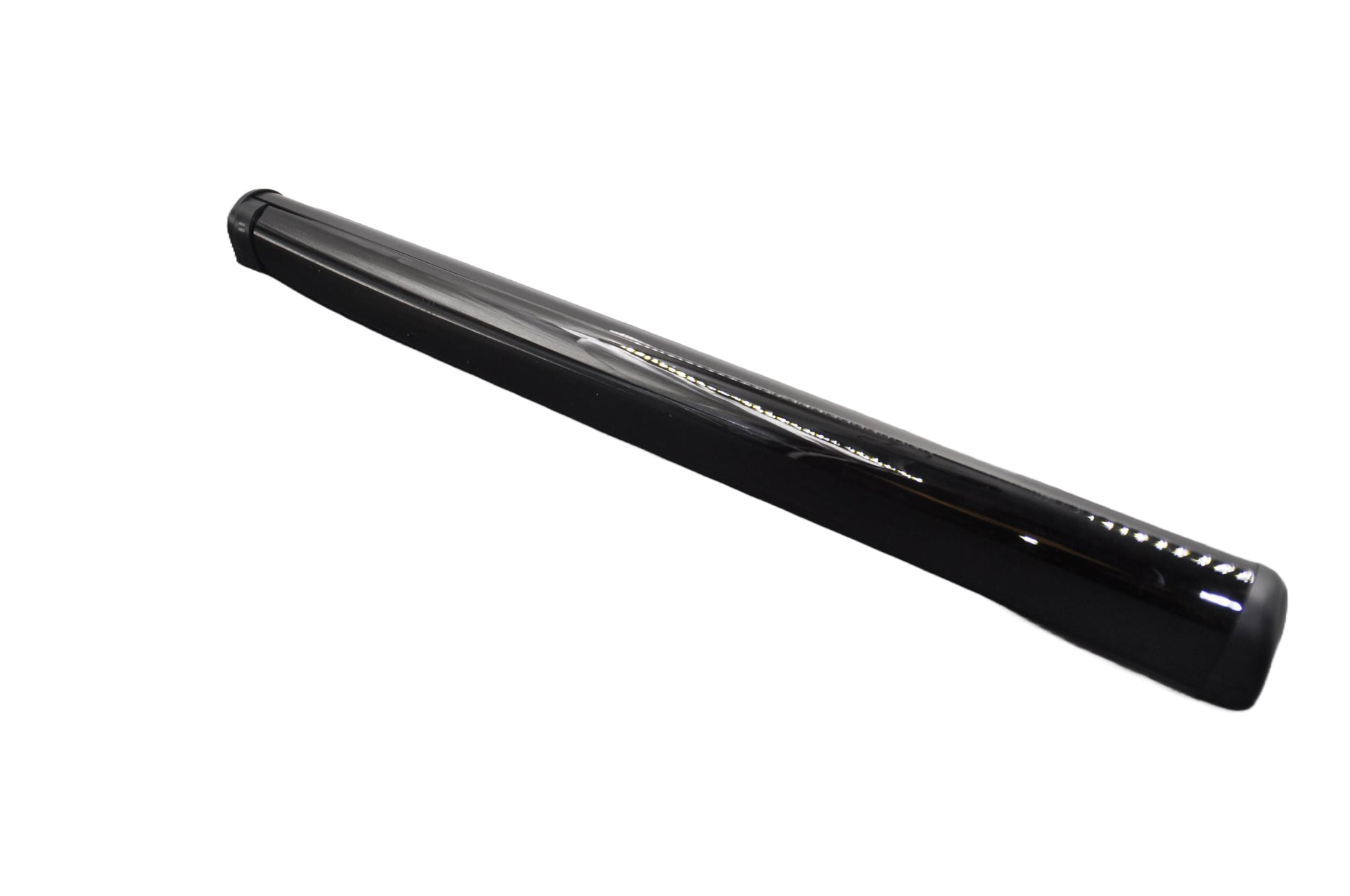

OPTEX OA-EDGE T – Active Infrared Triangulation Safety Sensor for Automatic Swing Doors
The OPTEX OA-EDGE T is a high-performance safety sensor engineered specifically for automatic swing doors. Based on OPTEX’s Active Infrared Triangulation technology, this sensor is designed to prevent collisions by detecting pedestrians or objects near the door leaf. With EN 16005 compliance and TÜV certification, the OA-EDGE T ensures reliable protection and comfort in both public and commercial buildings.
Key Features & Benefits:
EN 16005 Compliant & TÜV Certified: Fully meets European safety standards for automatic swing doors, ensuring a safe environment for users.
Active Infrared Triangulation Technology: Delivers precise, contact-free detection across a wide area around the swing path, improving pedestrian safety.
Modular Design for Scalable Safety: One master module is required per door, with the option to connect up to three secondary modules to match larger door widths and safety requirements.
Slim, Discreet Profile: Designed to fit unobtrusively on a wide range of door profiles; available in silver or black with a black lens for a sleek appearance.
Fast, Tool-Free Installation: Click-together modules and connector cables allow for quick and flexible installation. Optional power supply connector simplifies wiring.
Quick Setup with Dip Switches & Auto-Initialization: Adjustments can be made easily using dipswitches and a levelling screw. A simple push-button activates the learning cycle, with status indicated via onboard LED.
Available in Multiple Lengths: Choose from 340mm, 700mm, 900mm, or 1200mm to suit your door size and application.
Durable and Reliable: Backed by a 3-year full replacement warranty, ensuring long-term performance and peace of mind.
