Optex OA-Axis T Monitored Infrared Sensor for Automatic Sliding Door Activation & Safety – EN16005 Compliant
The Optex OA-Axis T is a dual-function active infrared (AIR) sensor designed specifically for automatic sliding doors, providing both reliable door activation and essential threshold safety. Compliant with EN16005 standards, this sensor uses advanced infrared reflection technology to accurately detect motion and presence, ensuring safe and efficient door operation.
Key Features & Benefits:
Dual-Function Infrared Sensor: Combines activation and threshold safety, featuring 5 rows of active infrared detection, providing comprehensive pedestrian protection.
EN16005 Compliance: Monitored safety system meeting Category 2, Performance Level D requirements, ensuring the highest standard of safety for pedestrians.
Flexible Detection Area: Offers a maximum detection field of 2.7m (W) x 2.2m (D) at a mounting height of 2.2m, adjustable detection angles (-6°/+6° for rows 1-3 and -23°/+23° for rows 4-5), enabling precise area coverage.

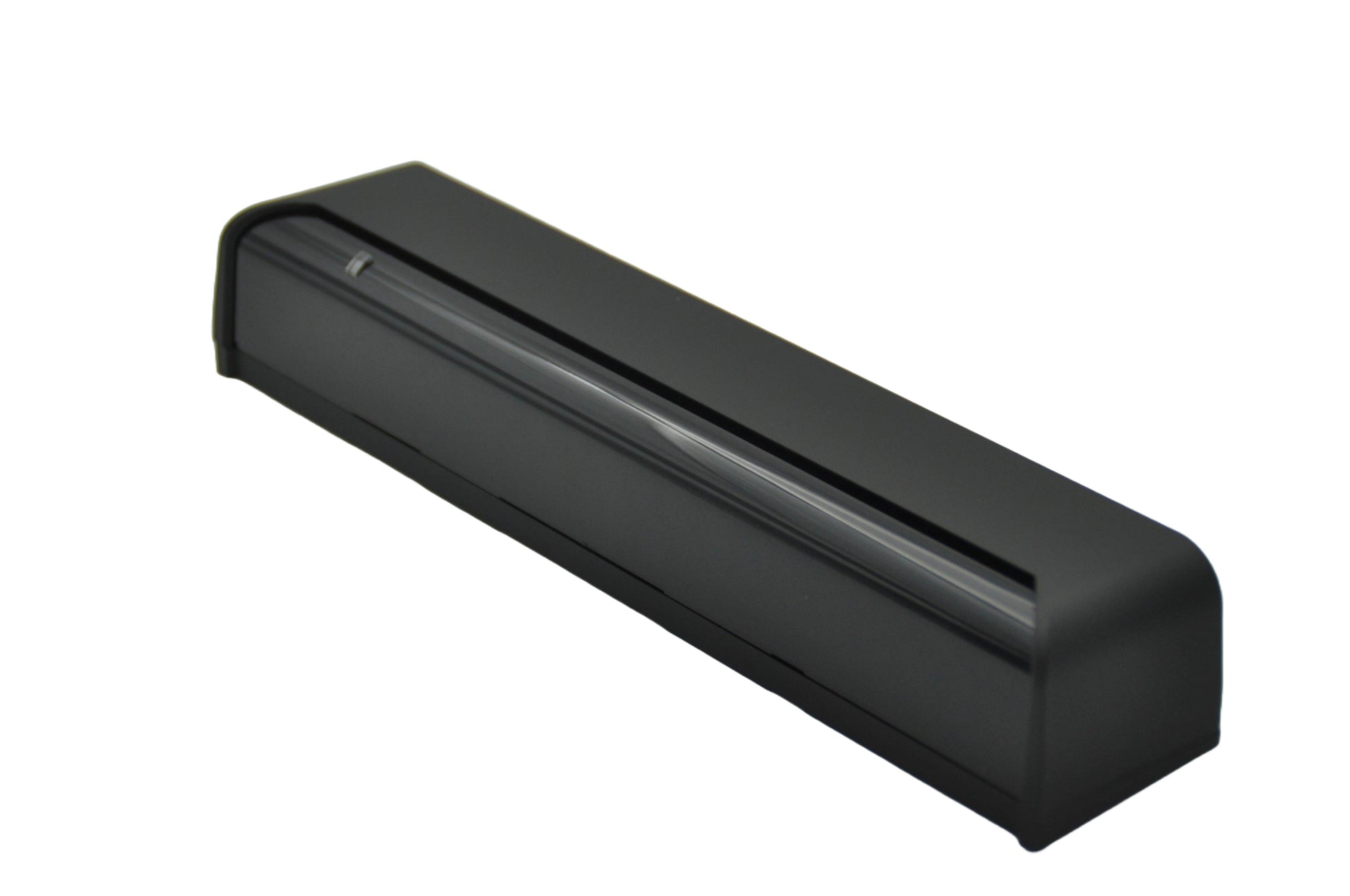

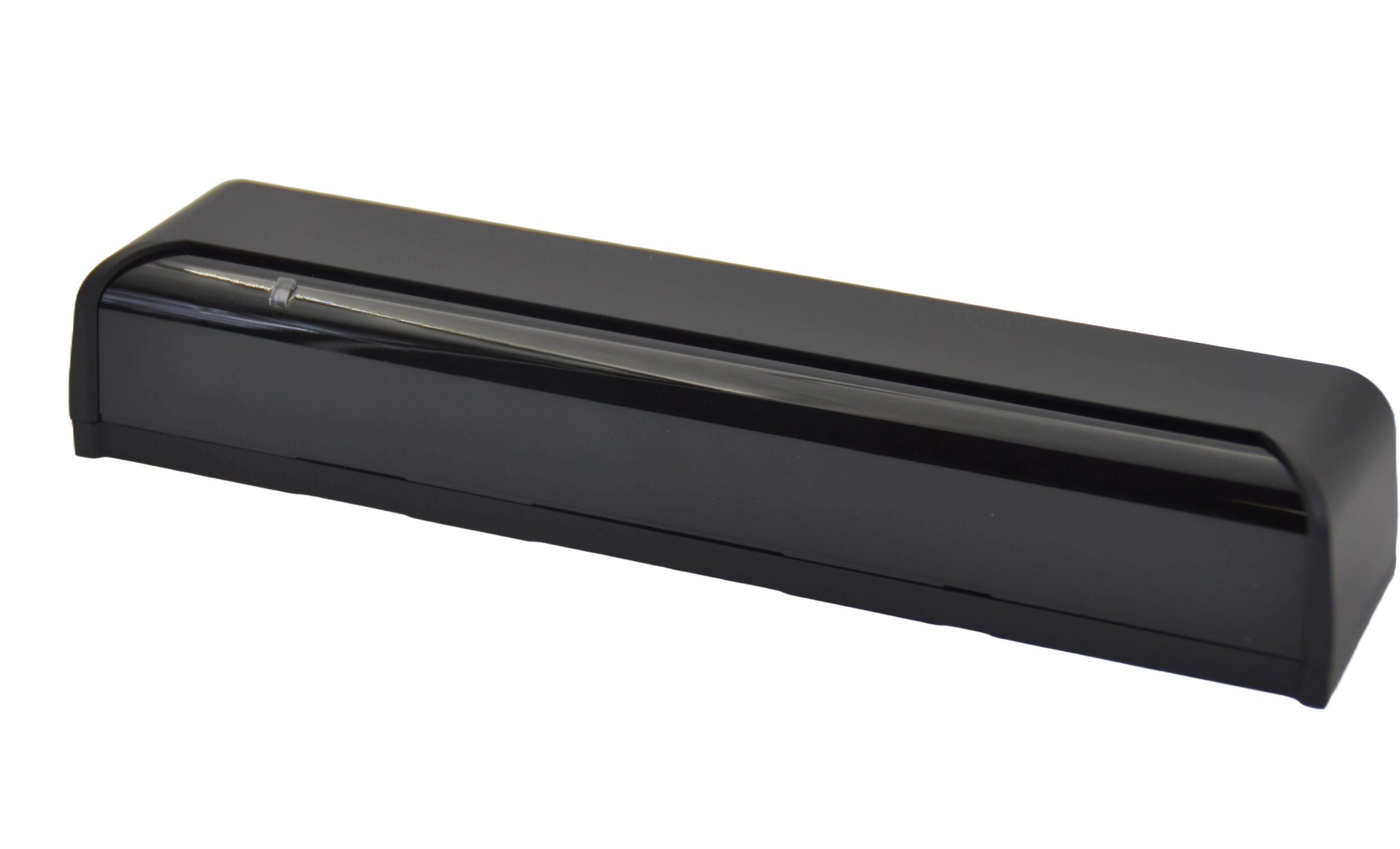

Robust & Sleek Design: Compact black housing (266mm W x 60mm H x 40mm D) seamlessly integrates with various door systems and building aesthetics.
Quick Response & Reliable Output: Features rapid detection response time (<0.3s), with Form C relay output suitable for various installations, ensuring consistent door performance.
Technical Specifications:
Detection Method: Active Infrared (AIR) Reflection
Mounting Height: Up to 3.5 metres
Detection Angles:
Rows 1-3: -6° to +6°
Rows 4-5: -23° to +23°
Power Supply: 12-24V AC (50/60Hz), 12-30V DC
Output Relay: Form C, 50V, 0.3A maximum
Output Hold Time: Approximately 0.5 seconds
Response Time: <0.3 seconds
Housing Dimensions: 266mm (W) x 60mm (H) x 40mm (D)
Colour: Black
Standards Compliance: EN16005 Category 2 Performance Level D
