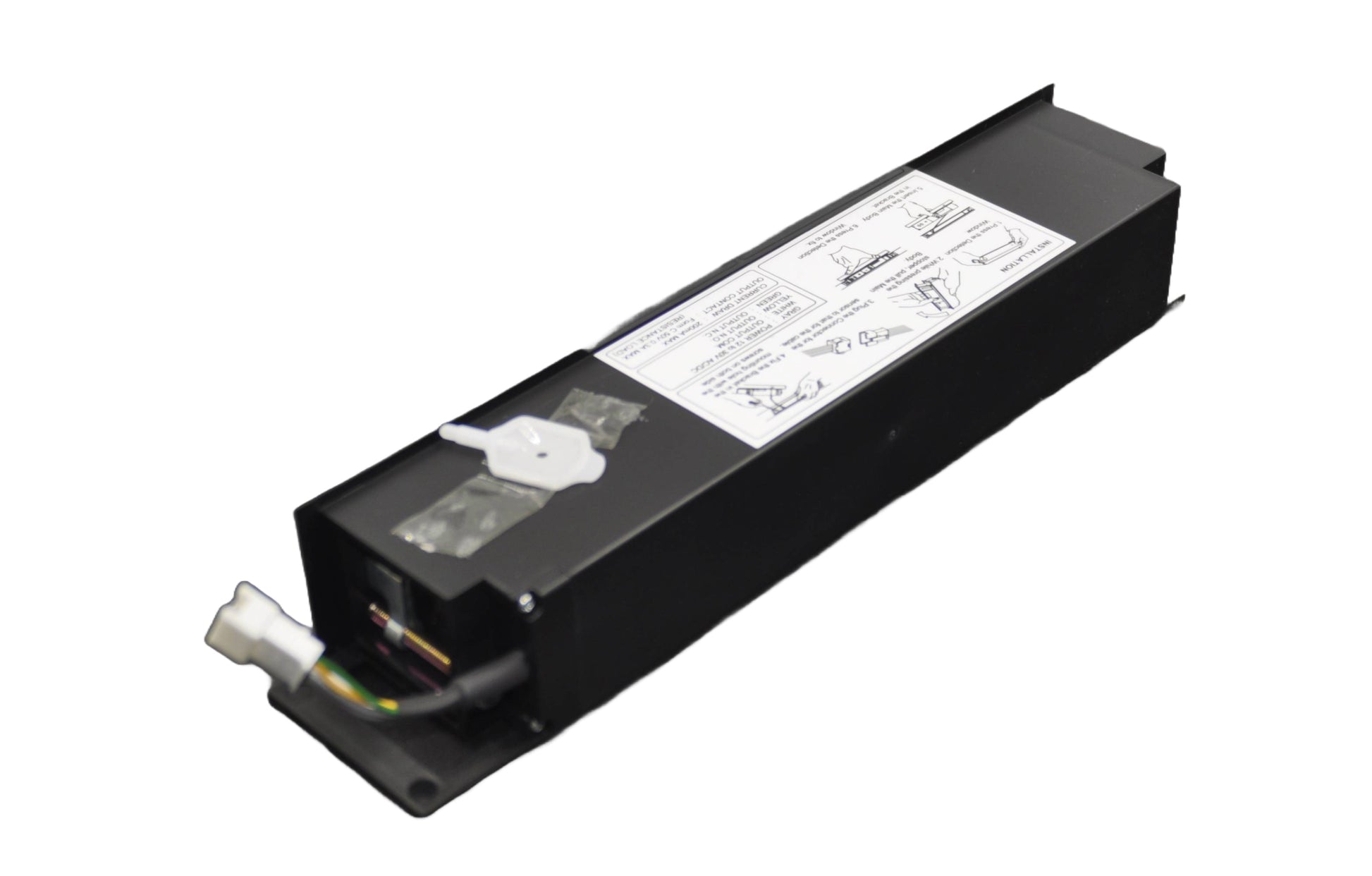

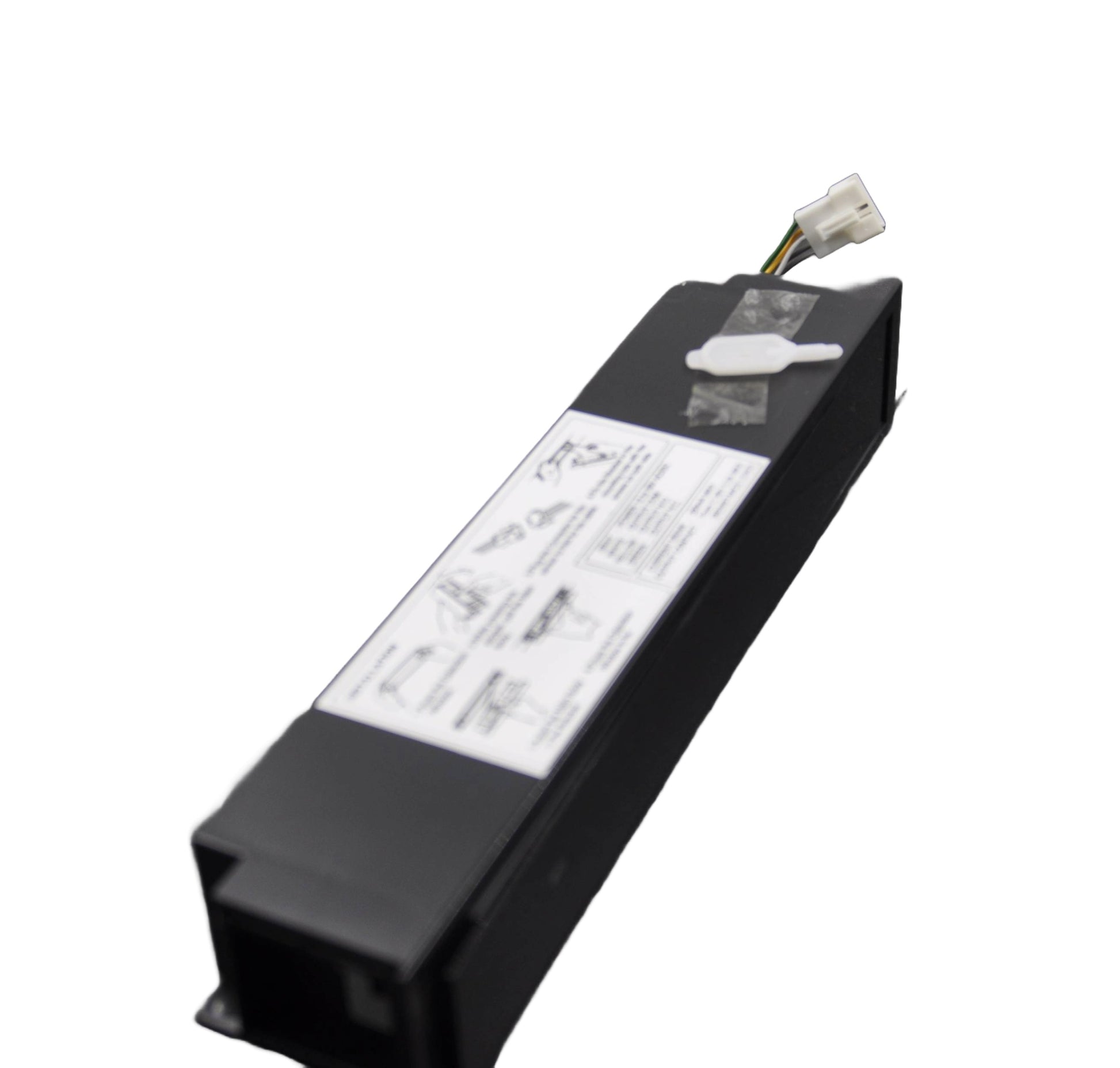

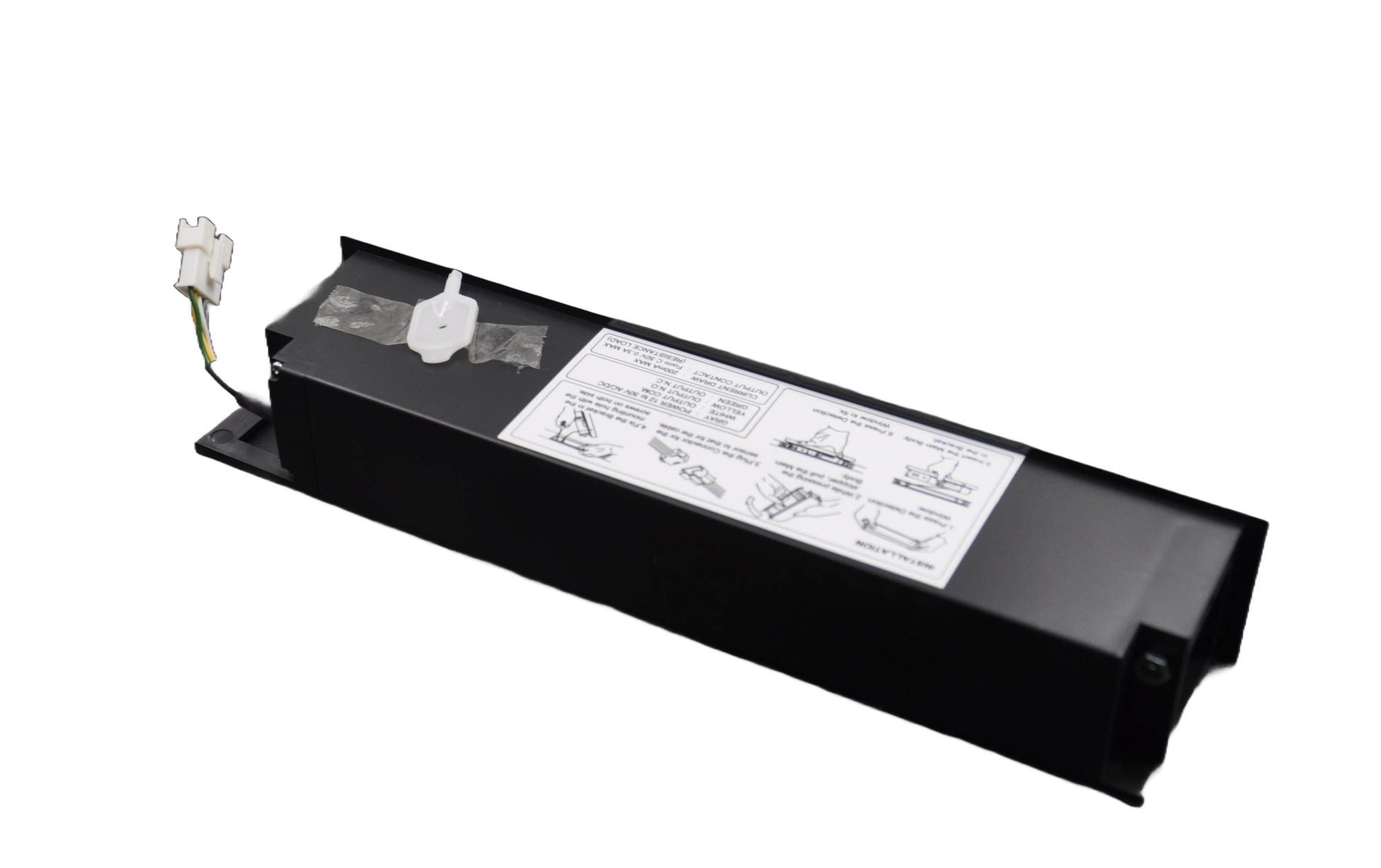

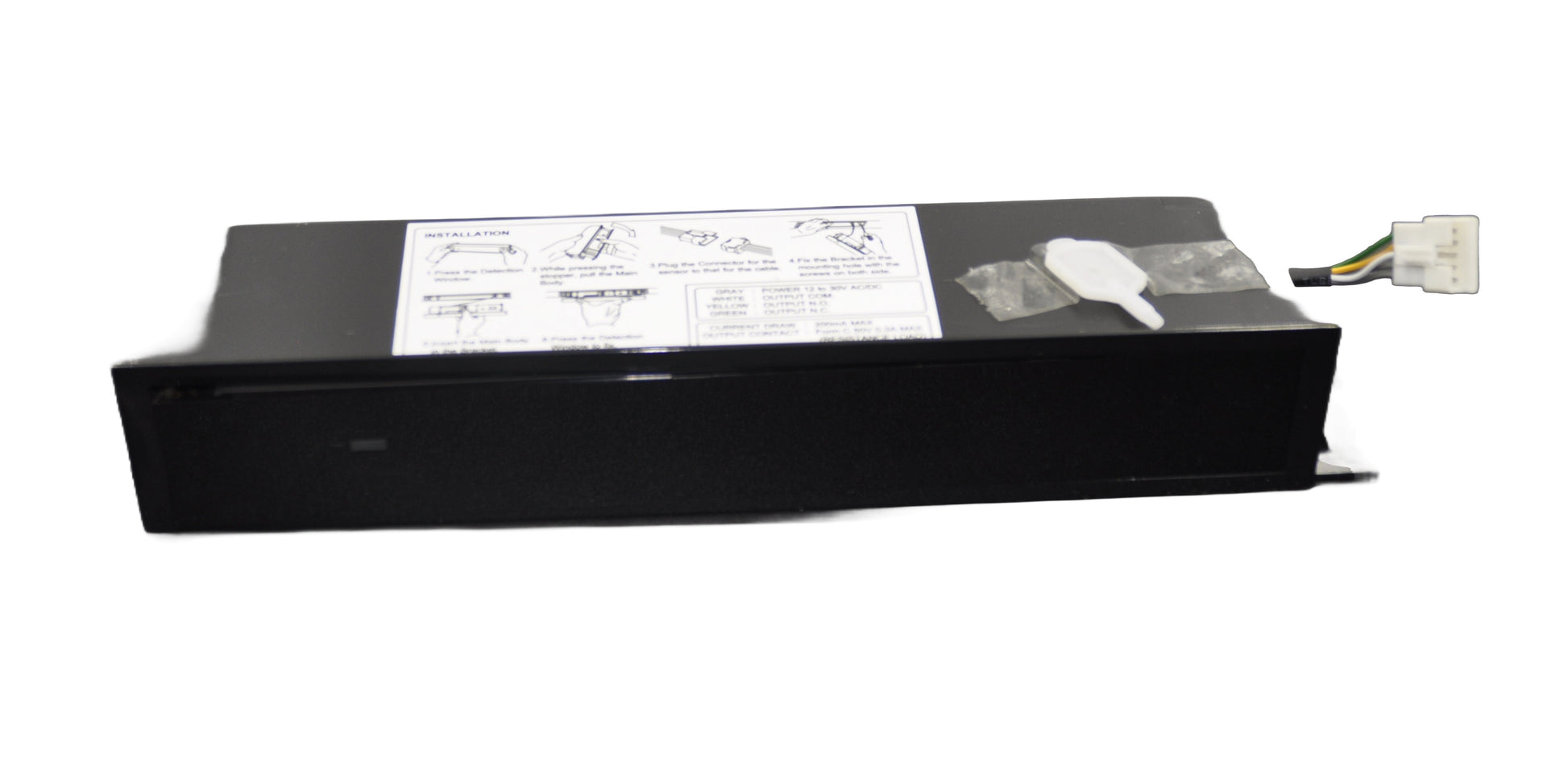

Optex Mirage Activation Sensor – Precision Motion Detection for Automatic Doors
The Optex Mirage Activation Sensor is an advanced door‑activation device designed to deliver reliable presence detection for automatic swing and sliding doors. Featuring a narrow “curtain” sensing pattern, it accurately spots approaching pedestrians while ignoring irrelevant motion, minimising false triggers and enhancing both security and convenience.
Key Features & Benefits
-
Precision Curtain Detection
Creates a thin, focused sensing zone (up to 1 m wide) immediately in front of the door, ensuring activation only when genuinely needed. -
Adjustable Range & Sensitivity
Selectable detection distances from 0.5 m to 5 m and three sensitivity levels to suit varied traffic flows and environmental conditions. -
Dual Technology Sensing
Combines infrared and microwave Doppler radar to cross‑verify movement, dramatically reducing false alarms from rain, leaves or traffic on nearby roads. -
Weather‑Resistant Design
IP54‑rated housing withstands wind‑blown rain and dust, making it ideal for exposed entrances in commercial, retail or healthcare settings. -
Low‑Profile Profile
Slim, unobtrusive casing (only 38 mm depth) mounts discreetly above or beside door frames, preserving architectural aesthetics. -
Energy‑Efficient Operation
Consumes less than 2 W in standby, helping to keep overall system power usage to a minimum.
What’s in the Box
-
Optex Mirage Sensor Unit with pre‑wired cable
-
Mounting Bracket & Hardware for horizontal or vertical installation
-
Adjustable Aiming Jig to simplify precise alignment
-
Quick‑Start Guide with wiring diagram and adjustment instructions
Technical Specifications
| Specification | Details |
|---|---|
| Detection Method | Dual‑technology infrared + microwave |
| Detection Range | 0.5 – 5 m (adjustable) |
| Detection Width | Approx. 1 m “curtain” zone |
| Sensitivity Levels | Three settings |
| Mounting Height | 1.8 – 2.5 m above floor |
| Field of View | Horizontal 7°; vertical 90° |
| Power Supply | 12 – 24 V AC/DC |
| Power Consumption | ≤ 2 W standby; ≤ 3 W active |
| Operating Temperature | –20 °C to +50 °C |
| Ingress Protection | IP54 |
| Housing Colour | White or grey |
| Dimensions (W×H×D) | 60 × 120 × 38 mm |
| Weight | 180 g |
Manufacturer Part Number
123
