Microswitch for Roller Shutter Safety Brake

Microswitch for Roller Shutter Safety Brake

Net: £15.00
Incl. VAT: £18.00
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

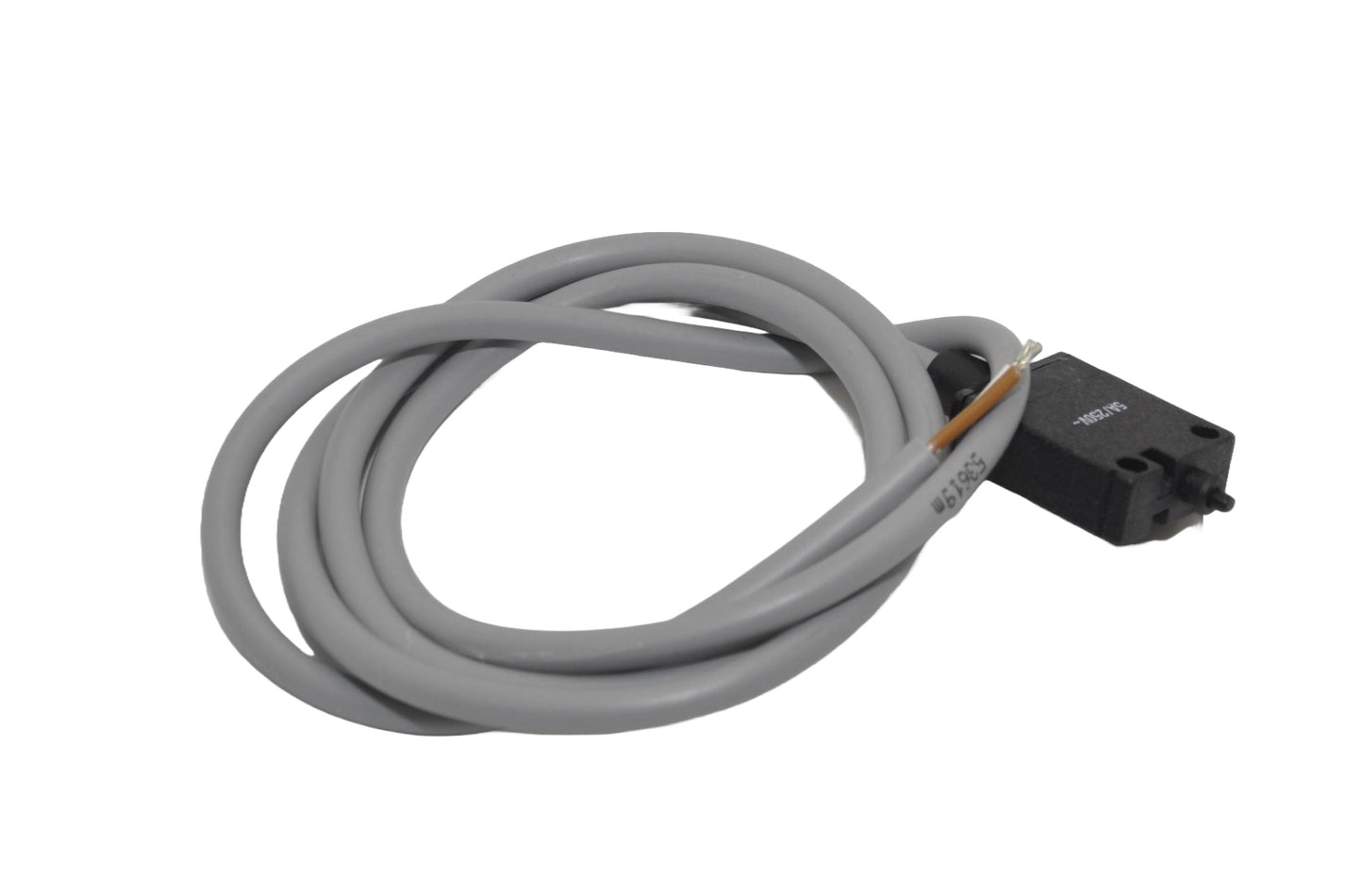

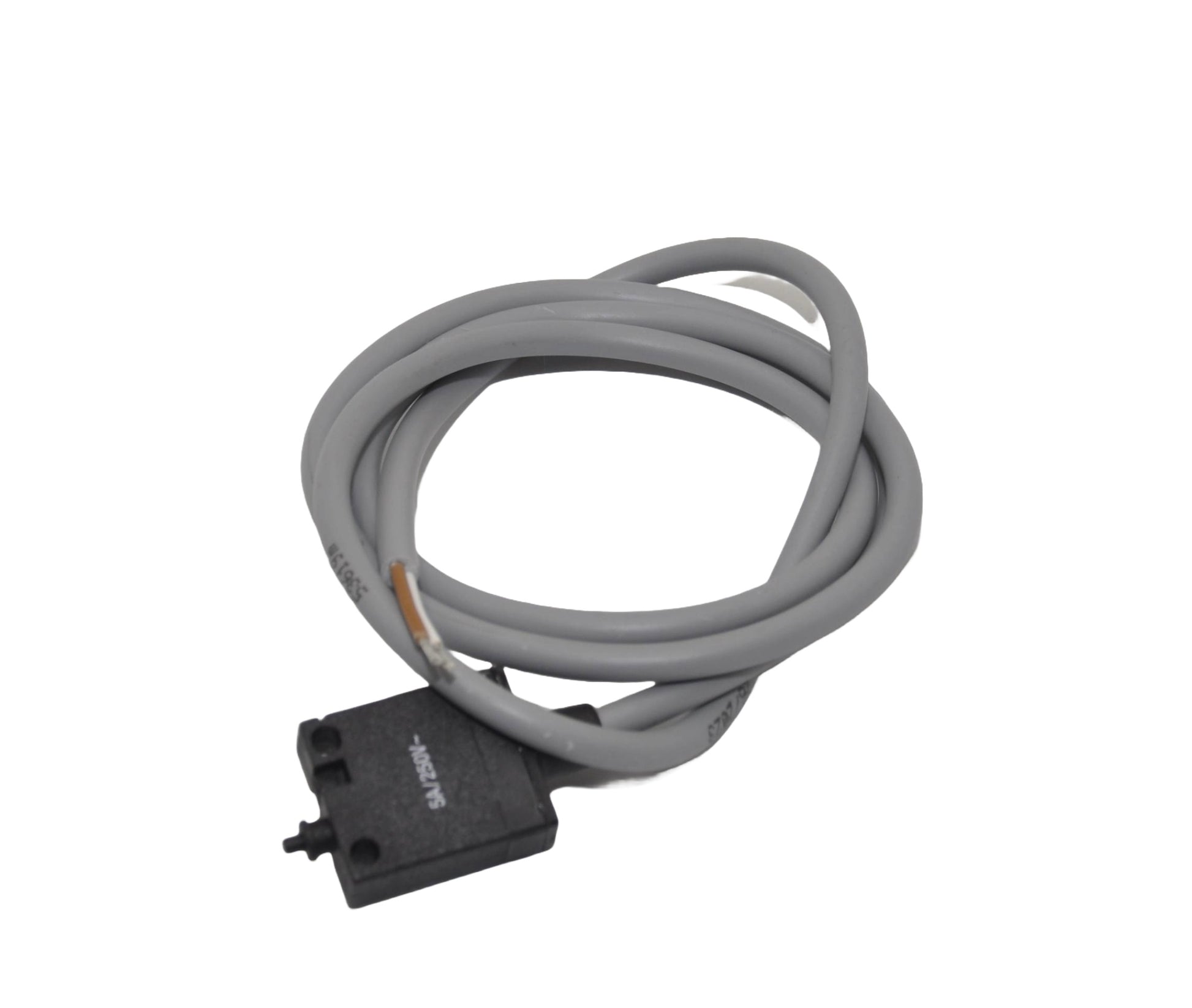

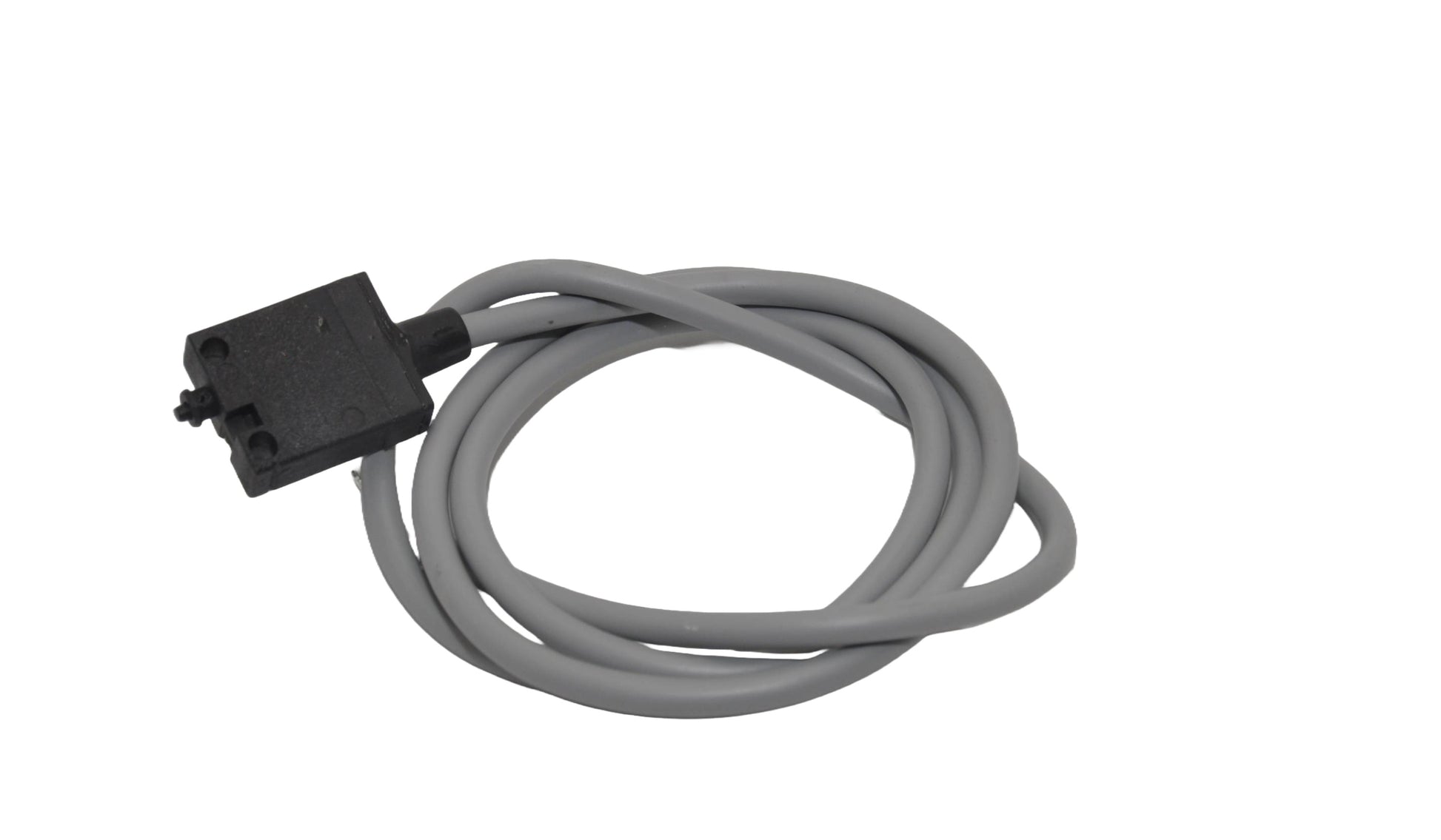

Roller shutter safety brake microswitch

This replacement safety brake microswitch is used with compatible roller shutter inertia brakes. When the brake operates, the switch provides the electrical interlock signal used to interrupt the operator's control circuit.

Replacement details

  • Product: microswitch/limit switch with attached cable.
  • Listed brake applications: TSN0, TA0, TC1/2, TC2/3, TA2/3 and F5.
  • Stock code: 122503.
  • Supplied as the switch component, not a complete safety brake.

Check the exact brake model, switch mounting, actuator position, cable connections and electrical rating against the existing part and manufacturer instructions. The listed brake family alone does not confirm every version or installation.

After a safety brake has operated

The cause of activation and the condition of the brake and shutter must be assessed before the system returns to service. Replacing this switch alone does not establish that the brake is serviceable. Follow the instructions for the exact brake and have the electrical interlock and complete shutter checked by a competent installer.

Send the brake identification and photographs of the old switch if you need help matching the replacement.

View full details

Manufacturer Part Number

FAQ's

What is the roller shutter safety-brake microswitch used for?

It is used to cut power to the compatible roller shutter operator when the inertia safety brake activates.

Which safety brakes are listed as compatible?

The listing identifies TSN0, TA0, TC1/2, TC2/3, TA2/3 and F5 brake types.

What happens when the safety brake activates?

The microswitch is intended to disconnect motor power, helping protect the electrical operator after the brake has engaged.

Is this a complete safety brake?

No. This listing is for the microswitch or limit-switch component used with a compatible safety brake.

Should brake compatibility be checked before ordering?

Yes. Confirm the exact safety-brake model and switch arrangement before ordering a replacement microswitch.
