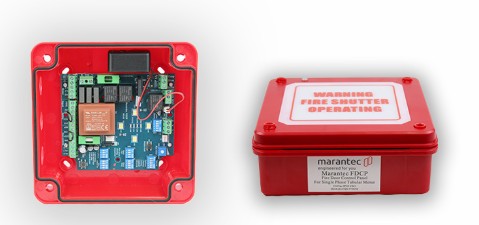

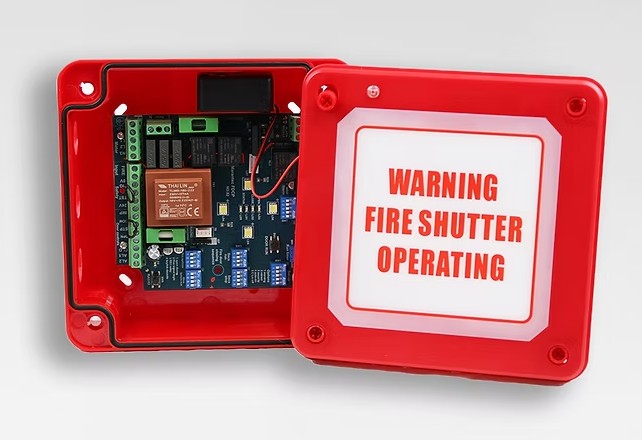

Marantec TM Fire Door Control Panel - 40-FDCP

Marantec 40-FDCP Fire Door Control Panel for Fire-Rated Roller Shutters

The Marantec 40-FDCP Fire Door Control Panel is a dedicated control unit designed for fire-rated roller shutter systems using 230V AC tubular motors. The panel interfaces with fire alarm systems to automatically control shutter operation during emergency conditions, providing reliable and compliant fire shutter management.

Featuring programmable operating modes, audio/visual warning functions, and emergency control features, the 40-FDCP is designed for use in safety-critical fire shutter installations.

Key Features & Benefits

Designed for Fire-Rated Roller Shutters
Suitable for controlling fire shutters fitted with compatible 230V AC tubular motors.

Fire Alarm Interface
Accepts fire alarm inputs to automatically trigger shutter operation during emergency conditions.

Audio & Visual Warning System
Integrated sounder and LED warning indication provide alerts prior to shutter movement.

Programmable Fire Response Functions
Supports delayed closing, staged closing, and selectable opening or closing operation on fire signal activation.

Emergency Re-Open Function
Allows temporary reopening of the shutter during a fire event for emergency escape purposes.

Integrated Safety Inputs
Supports photocells, stop circuits, and external control devices for safe day-to-day operation.

Technical Specifications

Product Type: Fire door control panel

Model: 40-FDCP

Application: Fire-rated roller shutters

Motor Compatibility: 230V AC tubular motors

Power Supply: 230V AC, 50Hz

Maximum Motor Load: 2.4A / 500W

Features: Audio/visual warning, programmable delay timers, emergency re-open function

Installation: Wall-mounted control panel

The Marantec 40-FDCP Fire Door Control Panel provides reliable emergency control and day-to-day management for fire-rated roller shutter systems, ensuring safe and controlled operation during fire alarm activation.
