Larco 115mm (4.5") Wireless Stainless Steel Push Plate Switch

Larco 115mm (4.5") Wireless Stainless Steel Push Plate Switch

Net: £124.70
Incl. VAT: £149.64
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Instruction Manual

View Manual

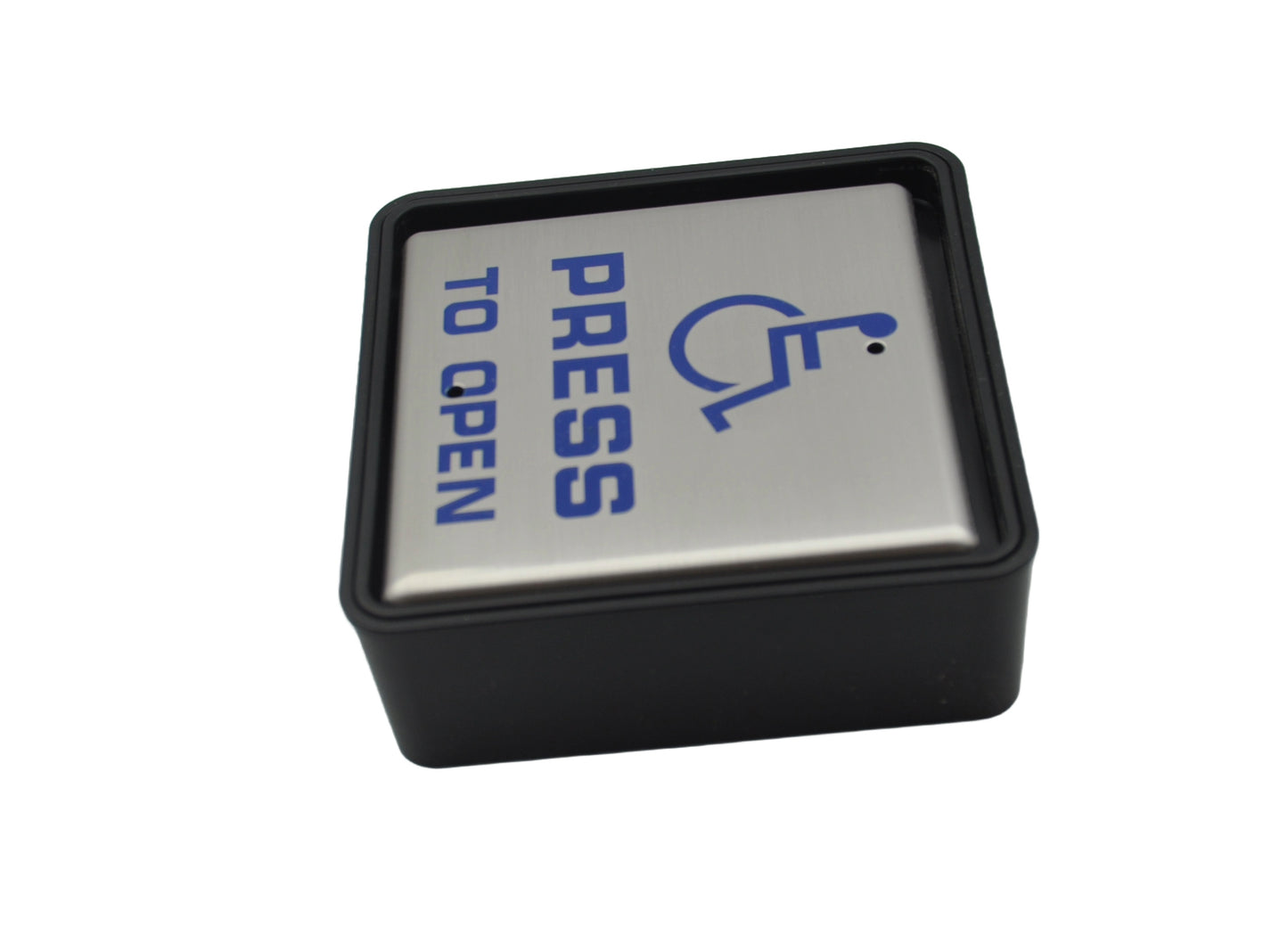

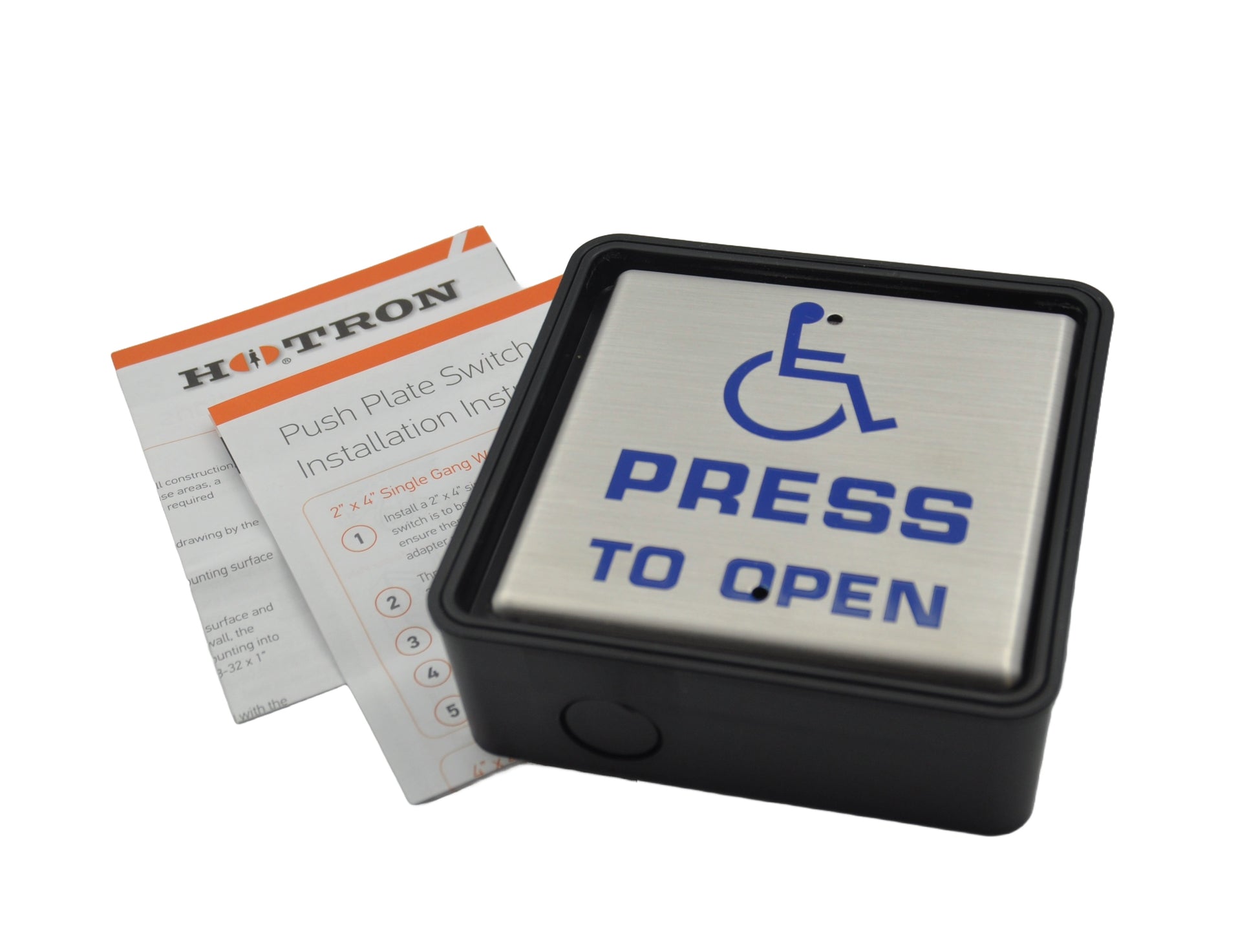

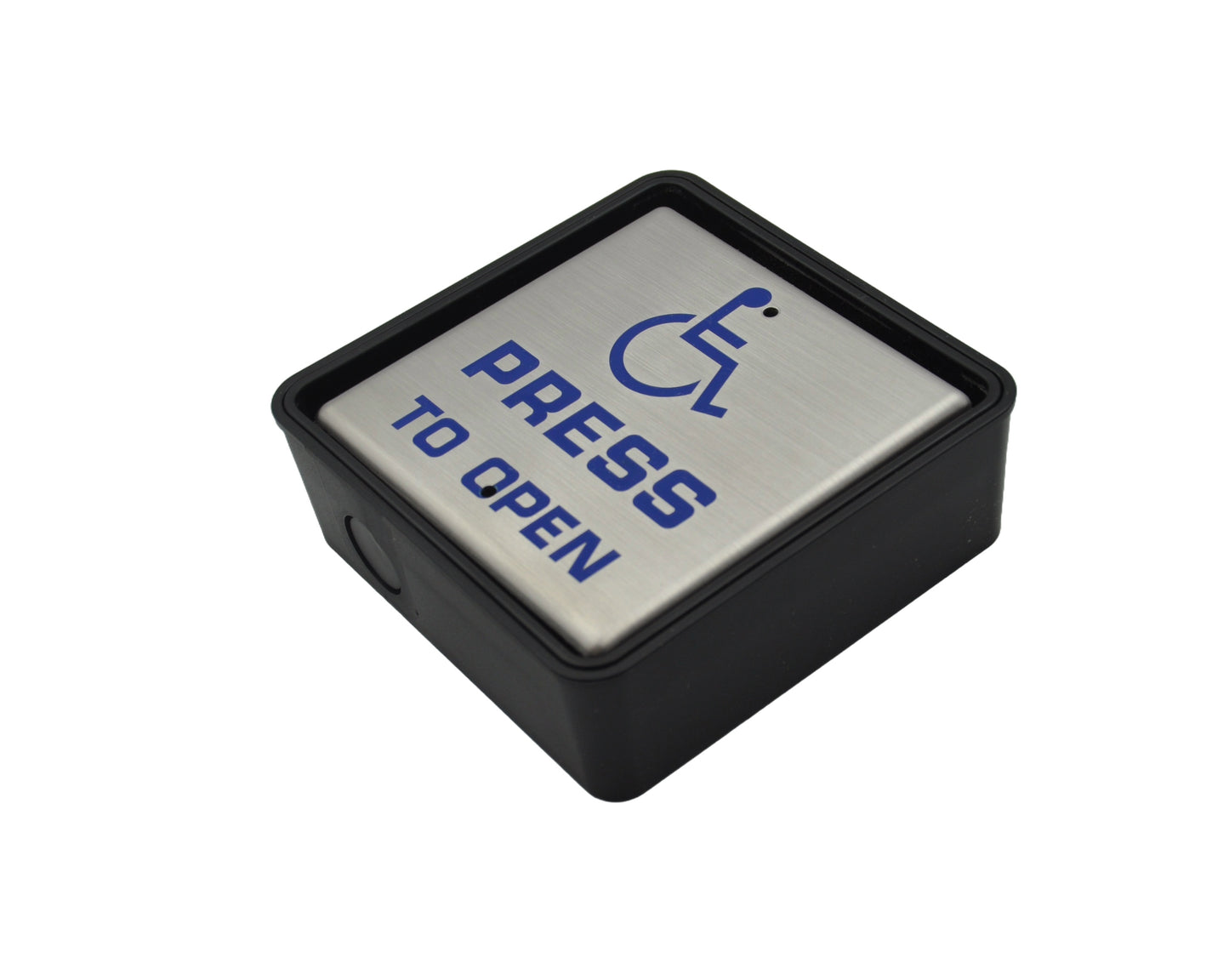

Larco 115mm (4.5") Wireless Stainless Steel Push Plate Switch with ABS Back Box

The Larco 115mm (4.5") Wireless Push Plate Door Switch provides a durable and attractive solution for activating automatic doors. Made from premium brushed stainless steel, featuring etched, enamel-filled engravings and recessed edges, this switch is designed for robust, long-term performance both indoors and outdoors. It includes a universally recognised wheelchair-disabled logo and the clear instruction "PUSH TO OPEN," ensuring accessibility compliance.

Key Features & Benefits:

  • Durable & Attractive Design:
    High-quality brushed stainless steel faceplate offers both aesthetic appeal and exceptional durability in high-traffic environments.

  • Wireless Convenience:
    Comes equipped with Larco’s ultra-small 433MHz wireless transmitter, simplifying installation and eliminating extensive wiring.

  • Versatile Mounting Options:
    Includes a rugged ABS back box (115mm x 115mm x 44mm) suitable for either surface or flush mounting, allowing flexible installation options.

  • Accessibility Compliance:
    Clearly marked with wheelchair disabled logo and "PUSH TO OPEN" text, meeting accessibility standards and enhancing usability.

  • Low-Profile Installation:
    Each switch includes an adapter plate compatible with standard electrical outlet boxes, facilitating neat, low-profile installations.

Technical Specifications:

  • Dimensions: 115mm (W) x 115mm (H) x 44mm (D)

  • Material: Brushed Stainless Steel with ABS back box

  • Transmission Frequency: 433 MHz (Wireless Transmitter included)

  • Mounting: Surface or flush mounting options available

  • Engravings: Etched enamel-filled engravings with recessed edges

  • Electrical: Wireless or optional hardwired versions available

View full details

FAQ's

What is the Larco 115mm wireless push plate used for?

It is a push-to-open activation switch for compatible automatic door installations.

What wireless frequency does the push plate use?

The included Larco wireless transmitter operates at 433 MHz.

What are the push plate and back-box dimensions?

The listing states dimensions of 115mm x 115mm with a 44mm-deep ABS back box.

Can the Larco push plate be surface or flush mounted?

Yes. The supplied ABS back box is described as suitable for compatible surface or flush mounting arrangements.

What markings are shown on the push plate?

The faceplate is described as having a wheelchair accessibility symbol and the instruction 'PUSH TO OPEN'.
