Label Next 75/150 Elbow Sliding Arm 90 PULL Y=250mm (Arm only)

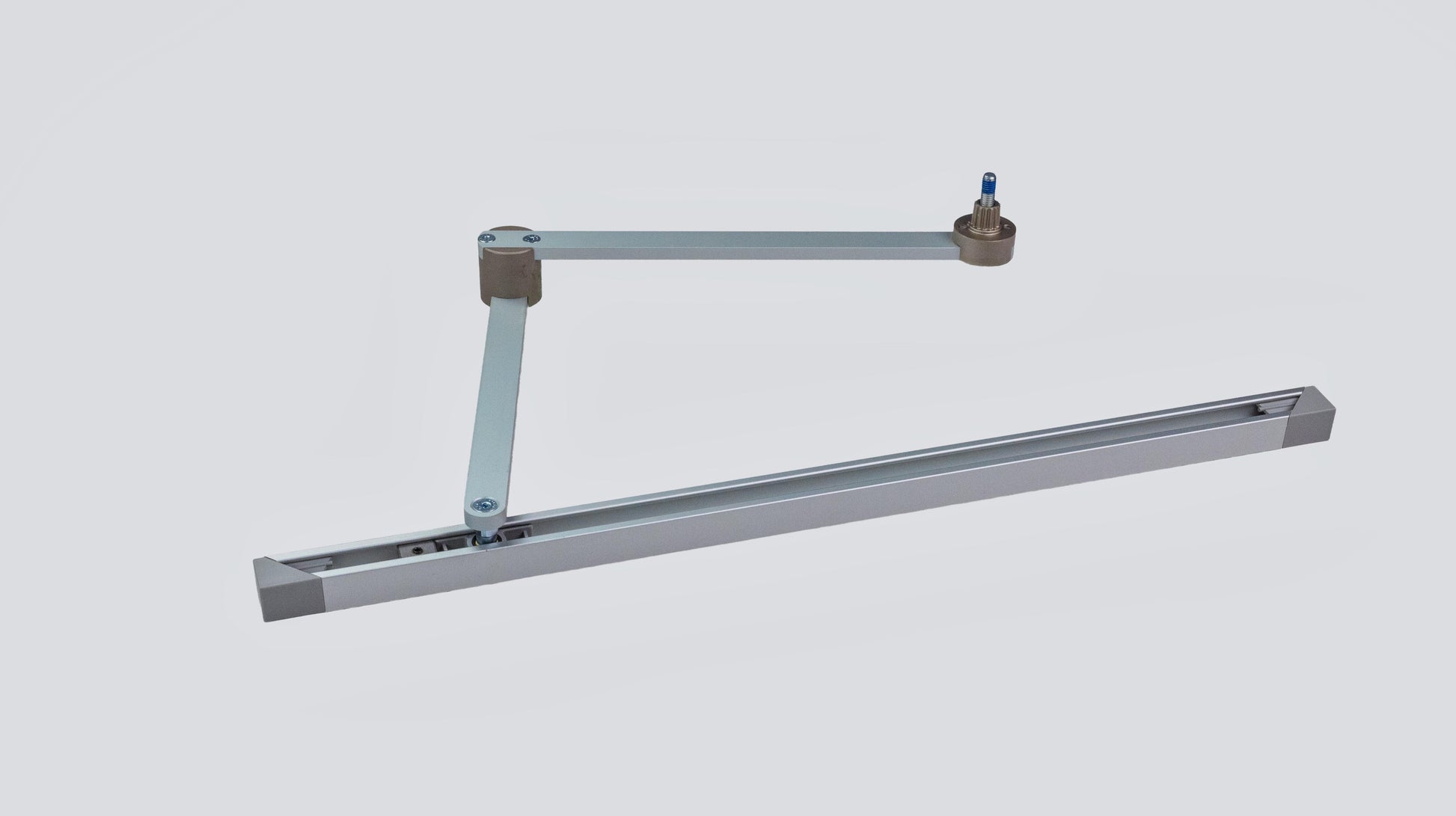

Label Next 75/150 Elbow Sliding Arm 90° Pull (Y = 250mm) – Arm Only for Automatic Swing Doors

The Label Next 75/150 Elbow Sliding Arm 90° Pull (Y = 250mm) is a specialised drive arm designed for pull-side automatic swing door applications requiring a 90-degree elbow configuration. Engineered for use with Label Next 75 and Next 150 operators, this sliding arm provides smooth and controlled door movement while accommodating specific installation geometries and limited space conditions.

Key Features & Benefits

90° Elbow Arm Configuration
Designed for installations requiring a right-angle arm setup, allowing correct operation in restricted or complex mounting conditions.

Pull-Side Application
Configured for inward opening doors, ensuring proper geometry and efficient performance.

Y = 250mm Arm Geometry
Optimised arm length for precise door movement and compatibility with specified installation requirements.

Compatible with Label Next 75 & 150 Operators
Purpose-built for seamless integration with Label Next automatic swing door systems.

Smooth & Controlled Operation
Sliding arm mechanism ensures consistent movement with reduced stress on door and operator components.

Arm Only – Ideal for Replacement
Supplied without operator, making it suitable for maintenance, retrofit, or replacement applications.

Technical Specifications

Product Type: Elbow sliding arm (pull arm)

Application: Automatic swing doors

Compatibility: Label Next 75 / Next 150 operators

Configuration: Pull (inward opening), 90° elbow

Arm Geometry: Y = 250mm

Function: Transfers motor drive to door leaf

Supply: Arm only (no operator included)

The Label Next 75/150 Elbow Sliding Arm 90° Pull (Y = 250mm) provides a reliable and adaptable solution for automatic swing door installations with specific spatial or geometric requirements, ensuring smooth and efficient operation.
