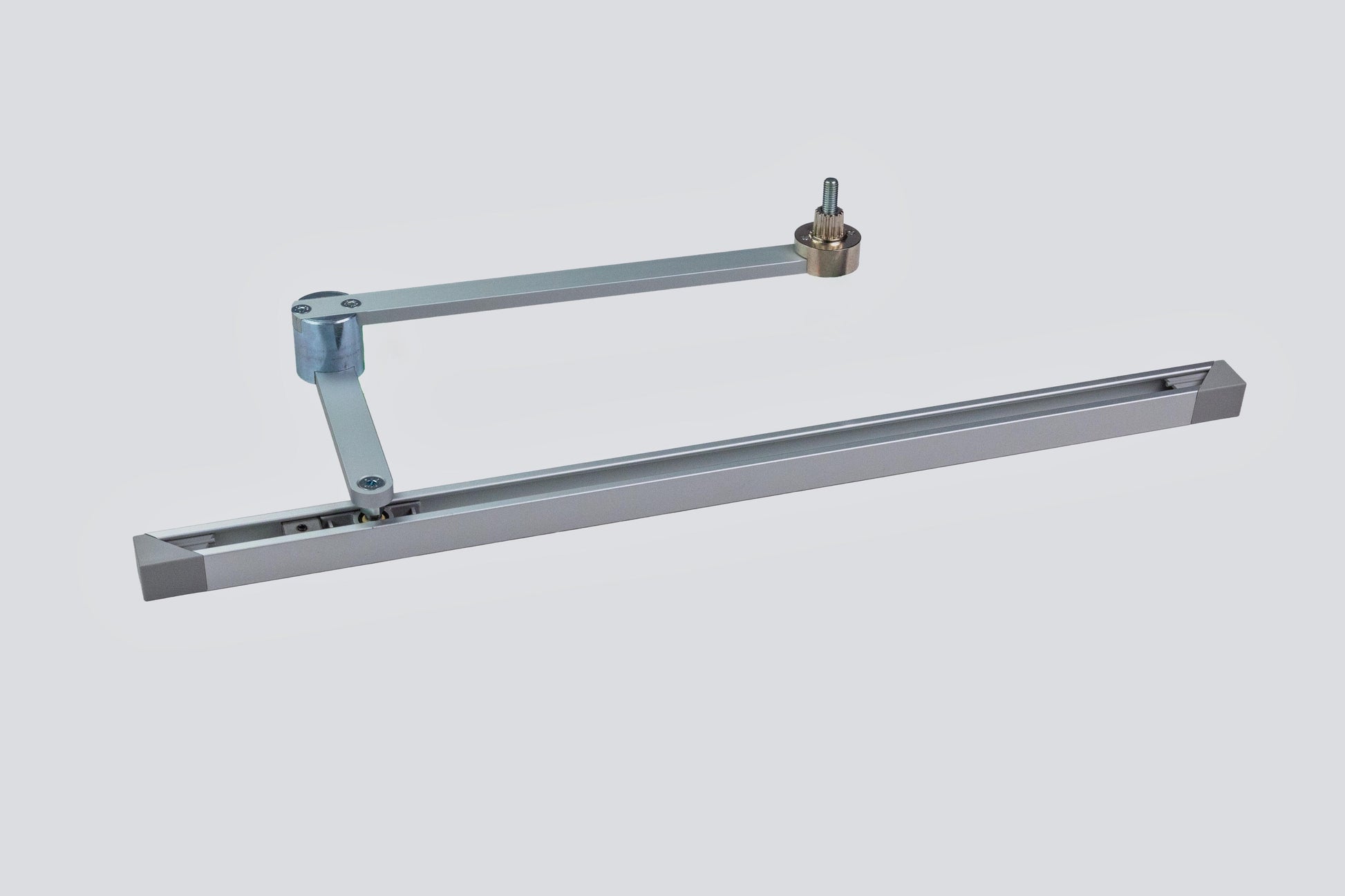

Label Next 75/150 Elbow Sliding Arm 90 PULL Y=150mm (Arm Only)

Label Next 75/150 Elbow Sliding Arm 90° Pull (Y = 150mm) – Arm Only for Automatic Swing Doors

The Label Next 75/150 Elbow Sliding Arm 90° Pull (Y = 150mm) is a specialised drive arm designed for pull-side automatic swing door applications requiring a compact 90-degree elbow configuration. Engineered for use with Label Next 75 and Next 150 operators, this sliding arm is ideal for installations with tighter space constraints, delivering smooth and controlled door movement in commercial and public environments.

Key Features & Benefits

90° Elbow Arm Configuration
Designed for installations requiring a right-angle arm setup, enabling correct operation in restricted or complex mounting conditions.

Pull-Side Application
Configured for inward opening doors, ensuring proper geometry and efficient door performance.

Compact Y = 150mm Arm Geometry
Shorter arm length ideal for tighter installation spaces while maintaining reliable movement and control.

Compatible with Label Next 75 & 150 Operators
Purpose-built for seamless integration with Label Next automatic swing door systems.

Smooth & Controlled Operation
Sliding arm mechanism provides consistent movement with reduced strain on operator and door components.

Arm Only – Ideal for Replacement
Supplied without operator, making it suitable for servicing, retrofit, or replacement applications.

Technical Specifications

Product Type: Elbow sliding arm (pull arm)

Application: Automatic swing doors

Compatibility: Label Next 75 / Next 150 operators

Configuration: Pull (inward opening), 90° elbow

Arm Geometry: Y = 150mm

Function: Transfers motor drive to door leaf

Supply: Arm only (no operator included)

The Label Next 75/150 Elbow Sliding Arm 90° Pull (Y = 150mm) offers a compact and reliable solution for automatic swing door installations where space is limited, ensuring smooth and efficient operation.
