View ManualNEXT 120S Automatic Swing Door Operator – Fire Rated, Slimline & Energy Efficient

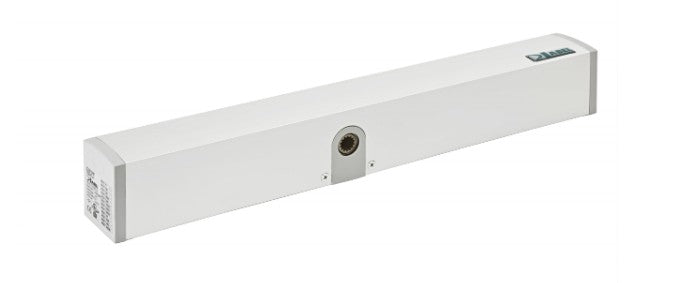

The NEXT 120S by Label UK is a compact, fire-rated automatic swing door operator designed for internal doors up to 120kg. Featuring a slimline profile, advanced brushless motor, and clockwork spring closure, it delivers safe, reliable, and energy-efficient automation for a wide range of applications.
🔑 Key Features & Benefits
-
Fire Rated Performance:
Successfully tested at Warringtonfire in 2021 to EN 1634-1, achieving up to 120 minutes integrity and insulation. -
Brushless Motor Technology:
Provides higher durability, reduced wear, and lower energy consumption both during operation and in standby. -
Spring-Assisted Safety:
Integrated clockwork spring ensures the door closes safely in the event of power failure. Optional battery pack available for additional backup. -
Compact Slimline Design:
Suitable for discreet internal installations, with a sleek modern profile that blends into any environment. -
Flexible Operation:
Can be triggered by activation sensors, push pads, key fobs, or full access control systems. Doors can also be used manually with automatic re-closing. -
Programming & Setup Options:
-
NEXT ET-DSELB programmer – for full parameter setup and adjustment.
-
T-NFC Switch/Programmer – allows smartphone configuration via the Label Tools app.
-
-
Customisable Arm Options:

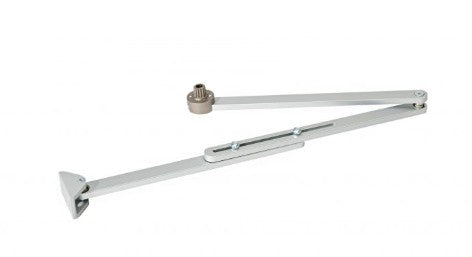

Multiple arm choices available for different door setups, such as the NEXT120-BAS outswing push articulated arm.
📐 Technical Specifications
| Feature | Detail |
|---|---|
| Model | NEXT 120S |
| Door Weight Capacity | Up to 120kg |
| Fire Rating | Up to 120 minutes (EN 1634-1) |
| Motor Type | Brushless (green technology) |
| Backup Safety | Clockwork spring + optional battery pack |
| Control Options | Sensors, push pads, fobs, access control |
| Mounting | Slimline internal applications |
💡 Ideal Applications
-
Internal fire-rated doors in offices, schools, and hospitals
-
Retail and commercial buildings
-
Public buildings and high-traffic areas requiring safe, compliant automation
-
Projects prioritising slimline design, energy efficiency, and fire safety
The NEXT 120S by Label UK combines compact design, fire certification, and advanced brushless motor technology – delivering reliable, compliant, and efficient swing door automation.
