Hotron SSS-5 Automatic Swing Door Safety Sensor

Hotron SSS-5 Automatic Swing Door Safety Sensor – Monitored EN16005 Compliance

The Hotron SSS-5 Swing Door Safety Sensor provides advanced pedestrian safety for automatic swing doors, ensuring compliance with EN16005 standards through its innovative static presence detection technology. Featuring a single PCB unit capable of delivering comprehensive safety coverage, this sensor significantly reduces installation complexity, time, and costs.

Key Features & Benefits:

• Superior Pedestrian Safety:

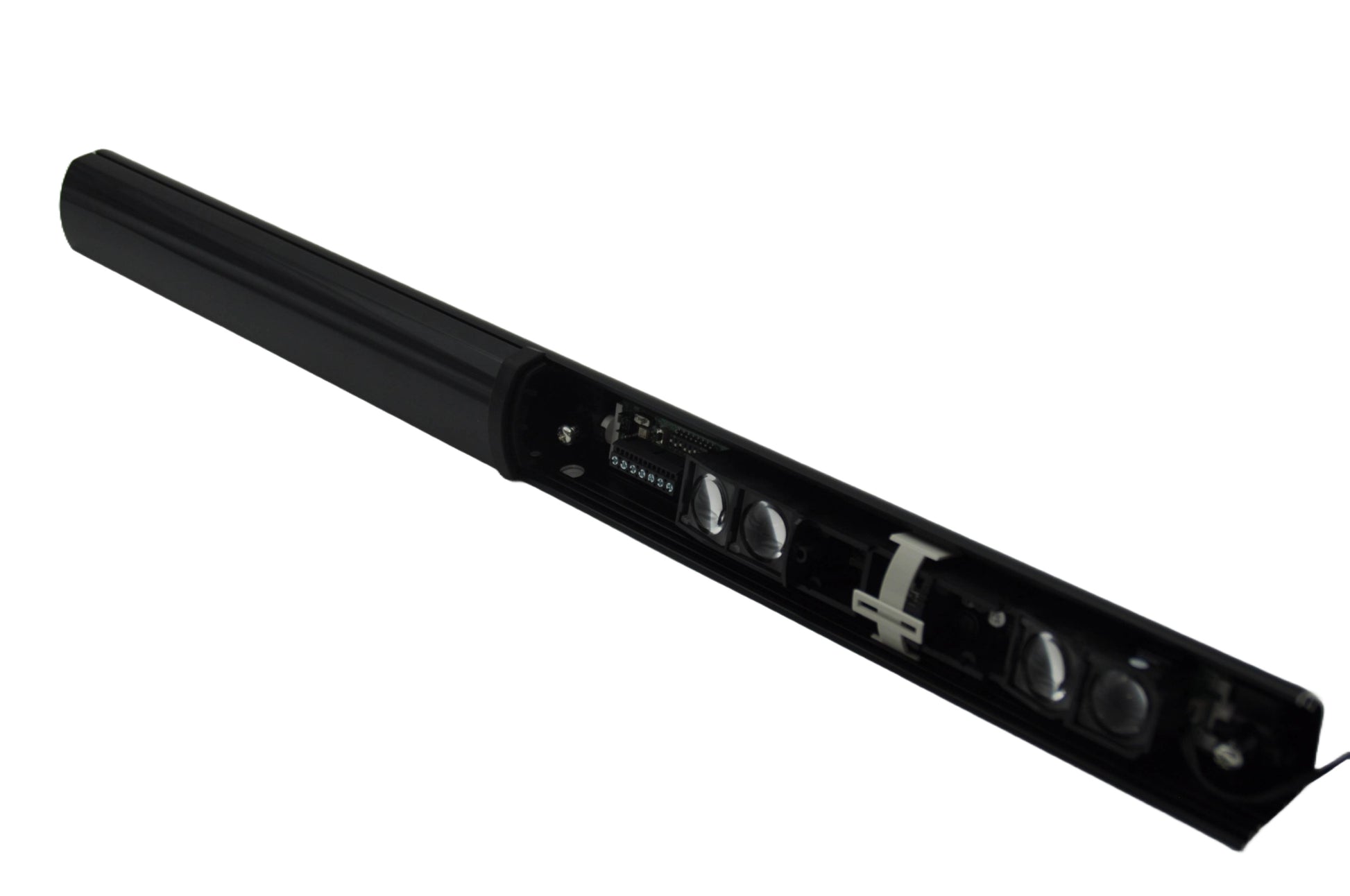

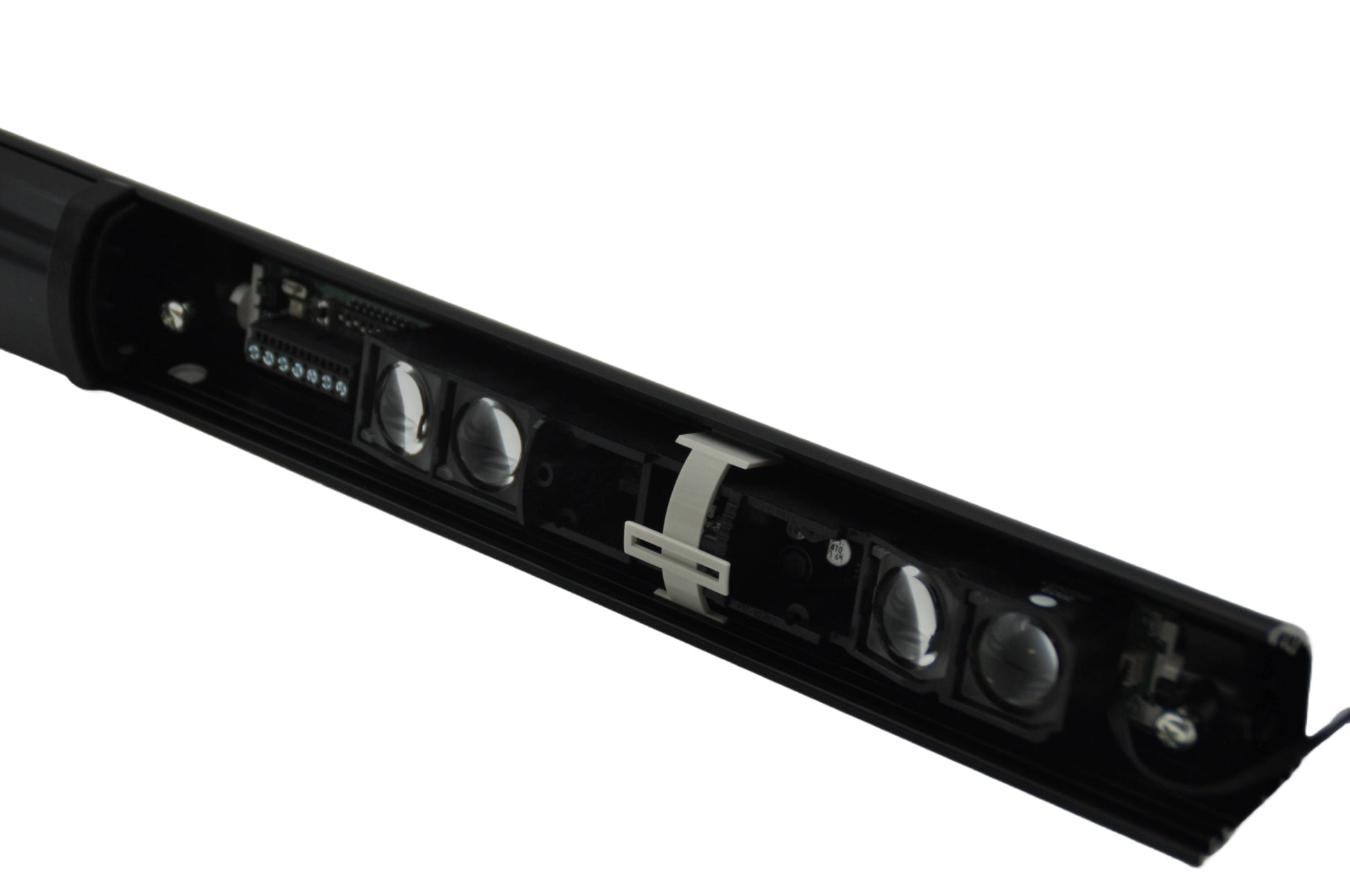

  Uses PSD distance measurement with 6 detection spots per PCB unit, creating a reliable safety curtain up to 900mm wide, effectively covering swing door pathways.

• Single PCB Unit Efficiency:
  Achieve complete safety coverage (800mm–1,000mm) across the door width with just one PCB unit, simplifying installations and reducing overall equipment costs.

• Easy Installation & Wiring:

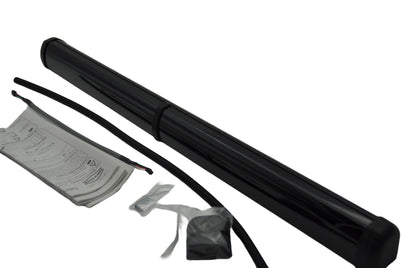

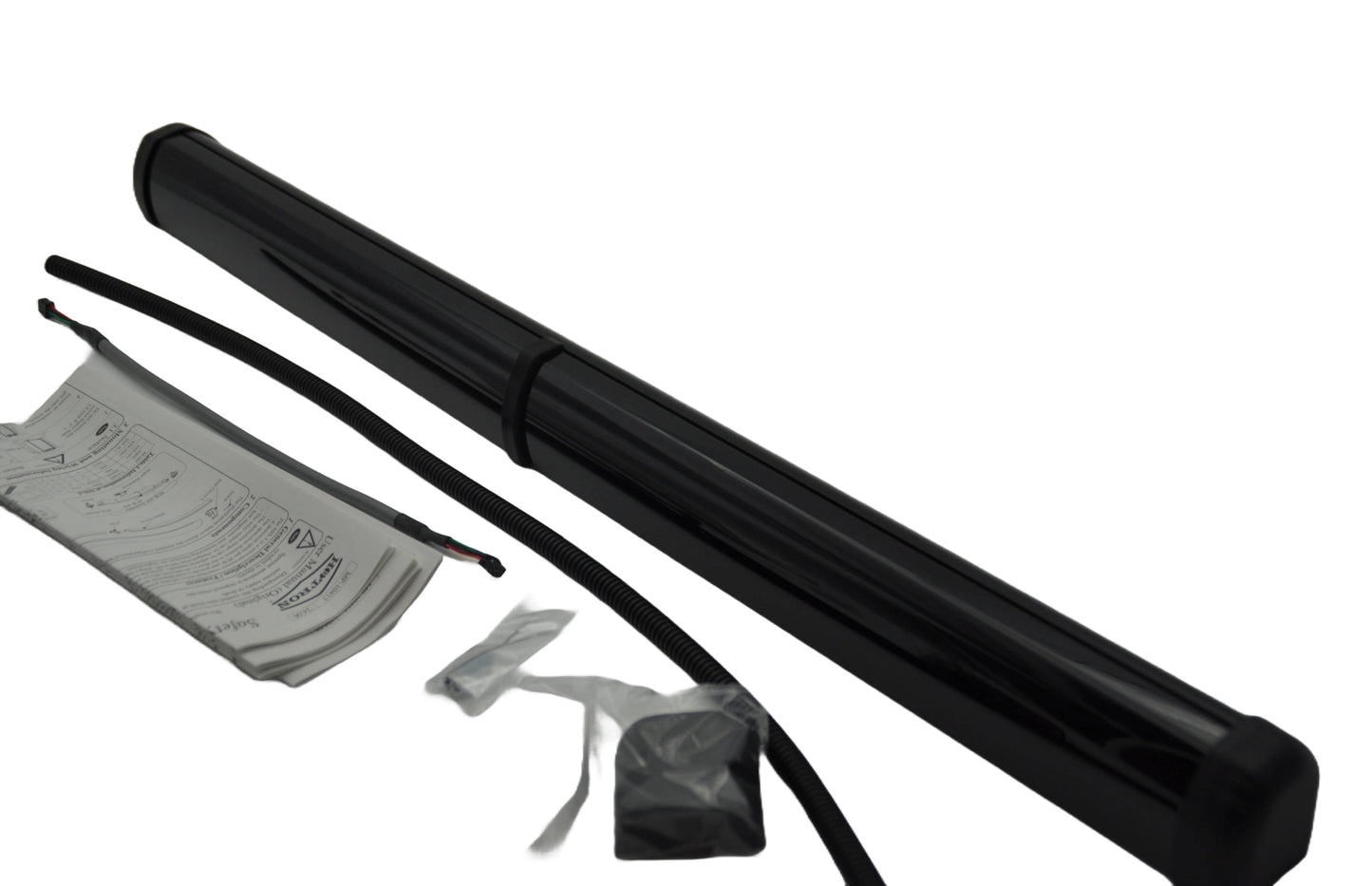

  Push-button adjustable detection distances and removable terminal block wiring streamline installation. Includes communication cable for connecting sensors on opposite sides of the door.

• Robust & Maintenance-Free:

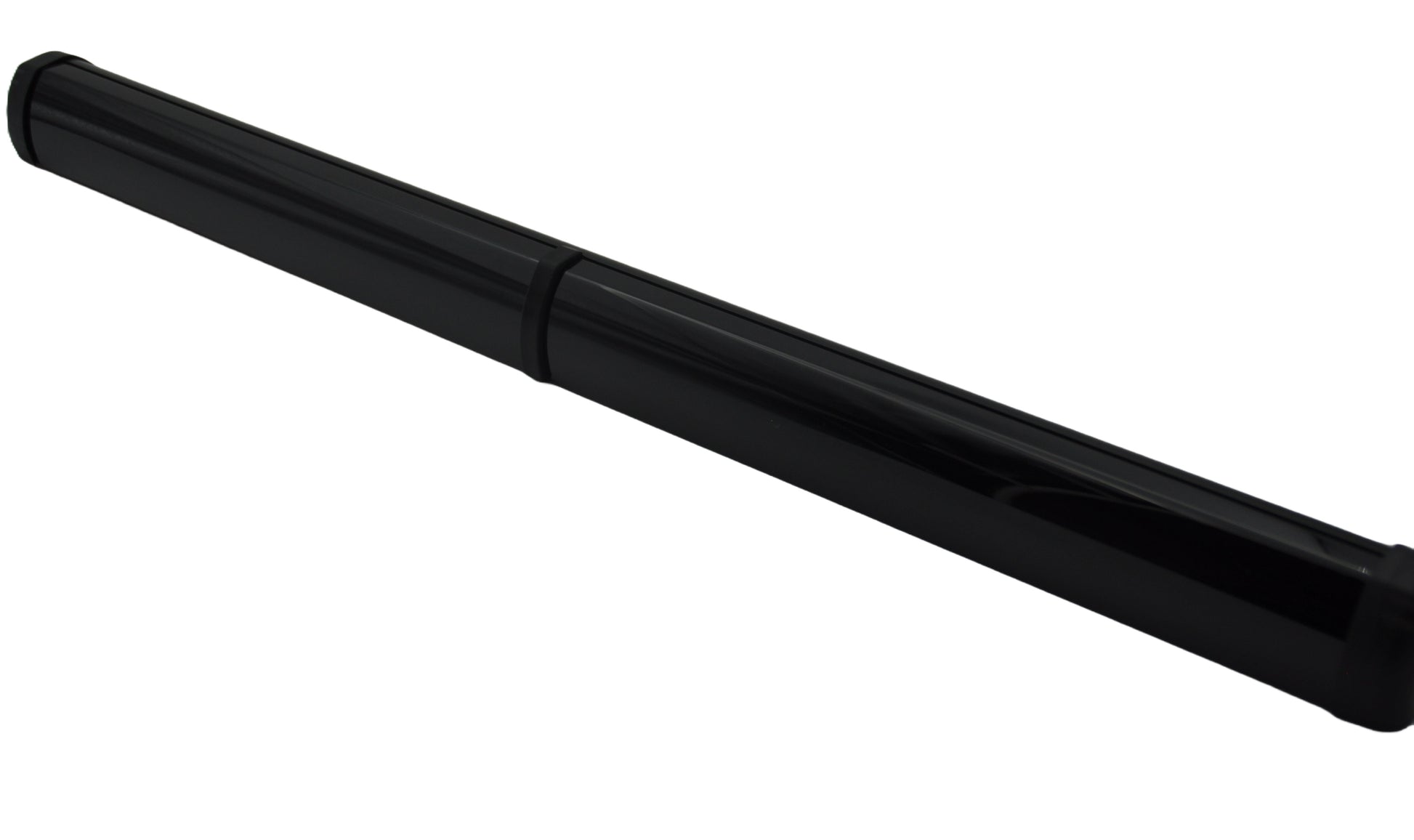

  Durable, vandal-resistant sensor housing protects components during installation and daily operation, ensuring reliability even in demanding environments.

• Real-Time Performance:
  Automatically adjusts to changing environmental conditions, maintaining reliable detection on all floor types, including highly reflective surfaces.

Technical Specifications:

• Detection Method: Static Presence Detection (PSD)

• Detection Range: 0–2.55m (adjustable)

• Installation Height: Up to 2.6m (8.5ft)

• Available Lengths:

  • SSS-5S: 360mm (350g)

  • SSS-5M: 692mm (540g)

  • SSS-5L: 1,023mm (760g)

• Presence Timer: Infinite

• IP Rating: IP54

• Power Supply: 12–24V AC/DC ±10%

• Operating Temperature: -20°C to +60°C (-4°F to 140°F)

• Available Colours: Black
