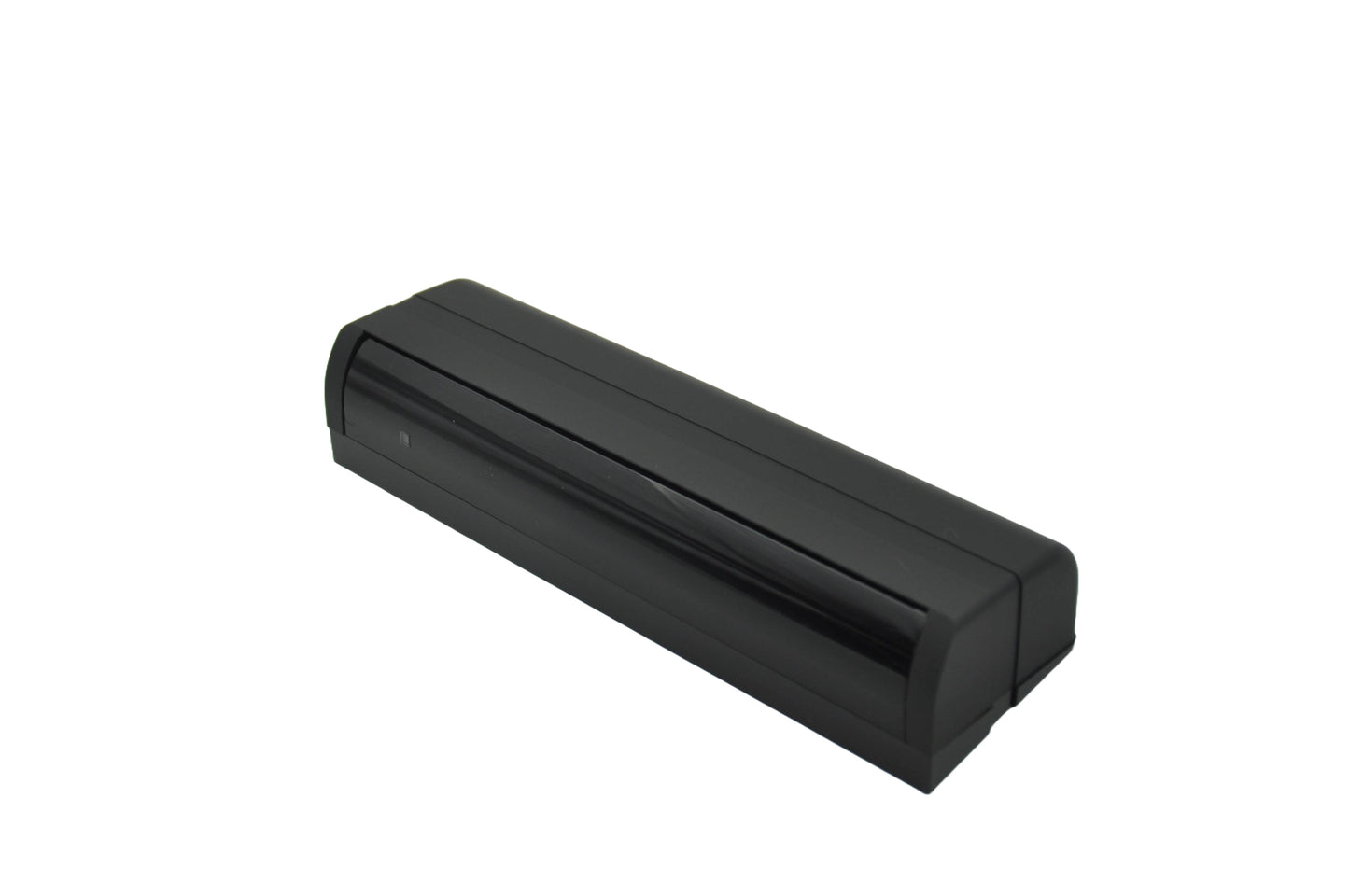

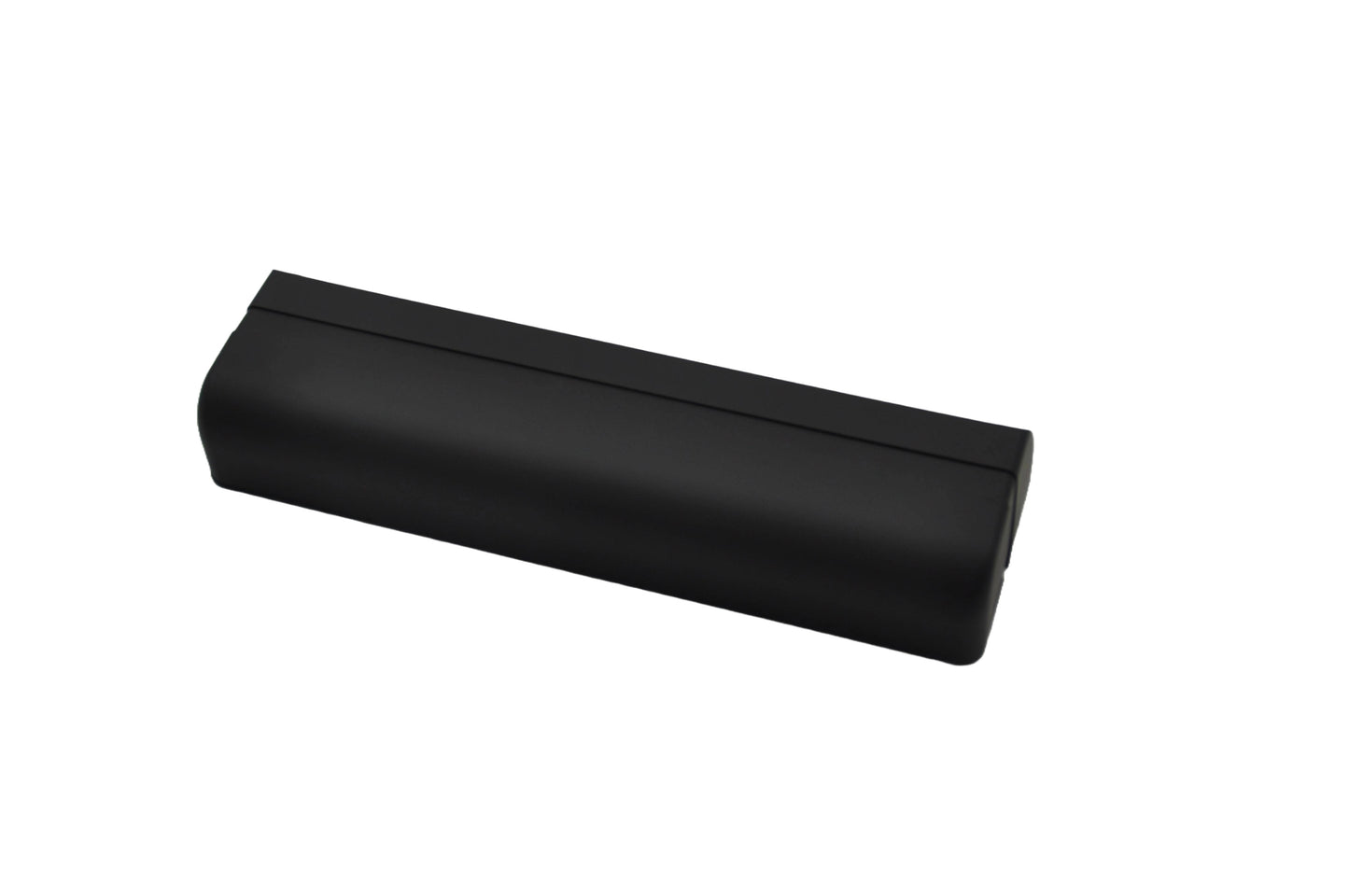

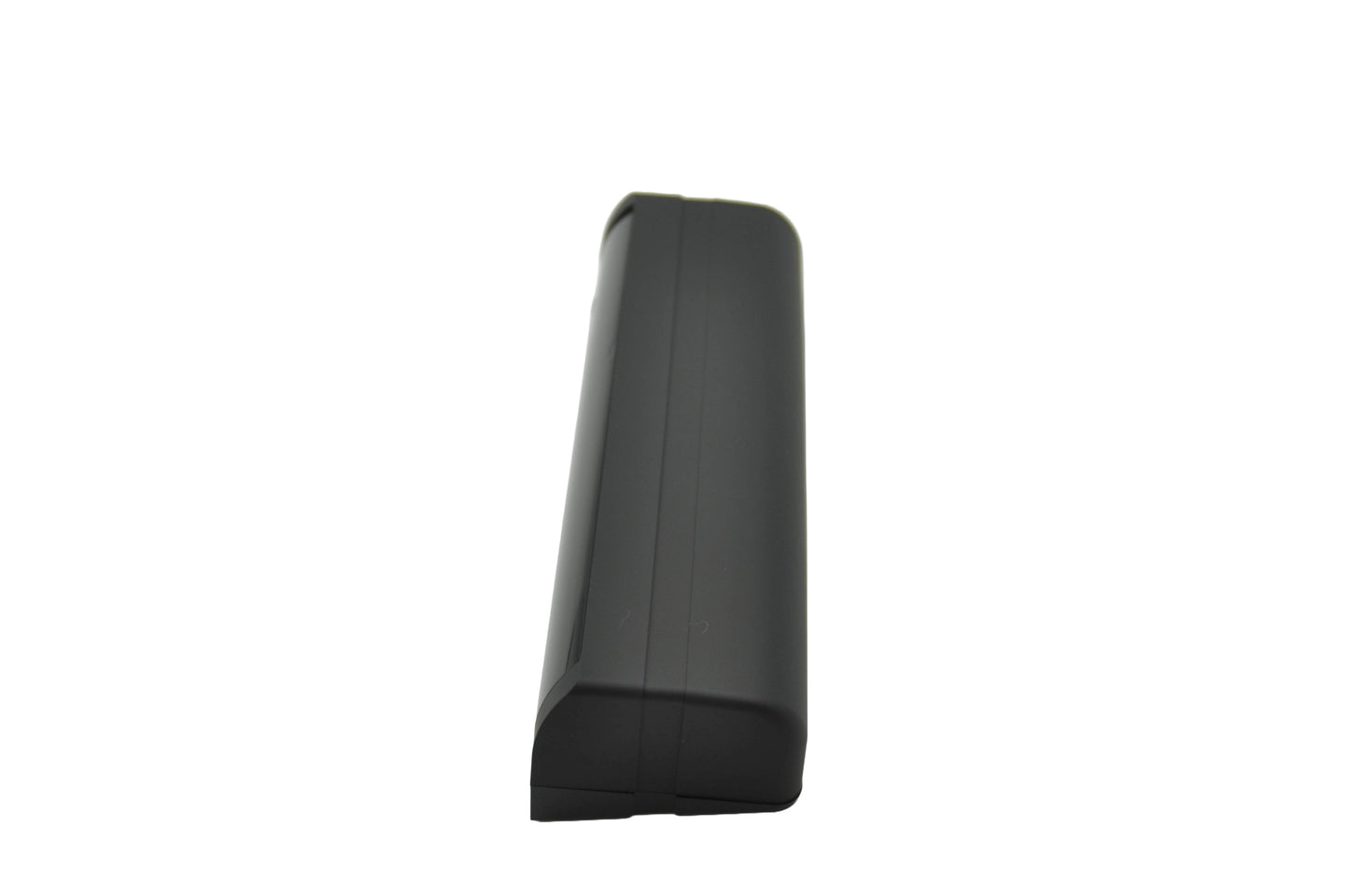

Hotron HR100-CT Infrared Activation & Safety Sensor for Automatic Sliding Doors

Hotron HR100-CT Infrared Activation & Safety Sensor for Automatic Sliding Doors

The Hotron HR100-CT combines advanced infrared activation and monitored pedestrian safety specifically designed for automatic sliding doors. This EN16005-compliant sensor features precise, adjustable detection zones and innovative "Door Learn" technology, significantly reducing false activations and enhancing pedestrian protection.

Key Features & Benefits:

• Advanced Infrared Technology:
  Uses active infrared sensing with a precise, adjustable detection range of up to 2 metres, ensuring reliable and timely door openings.

• Energy-Saving Uni-directional Detection:
  Reduces unnecessary door activations by detecting approaching pedestrians only, potentially cutting building energy losses by up to 15%.

• Door Learn Technology:
  Intelligent software automatically adjusts and refines the detection area, providing unmatched pedestrian safety around the door close zone.

• Integrated 3-Row Safety Curtain:
  Three infrared safety curtains continuously monitor and protect pedestrians near door thresholds during closure, fully compliant with EN16005 standards.

• Compact Internal Mounting:
  Requires minimal vertical clearance (57mm), ideal for discreet installation inside door covers or false ceilings using the HA-121 internal mounting bracket.

• Simplified Installation & Maintenance:

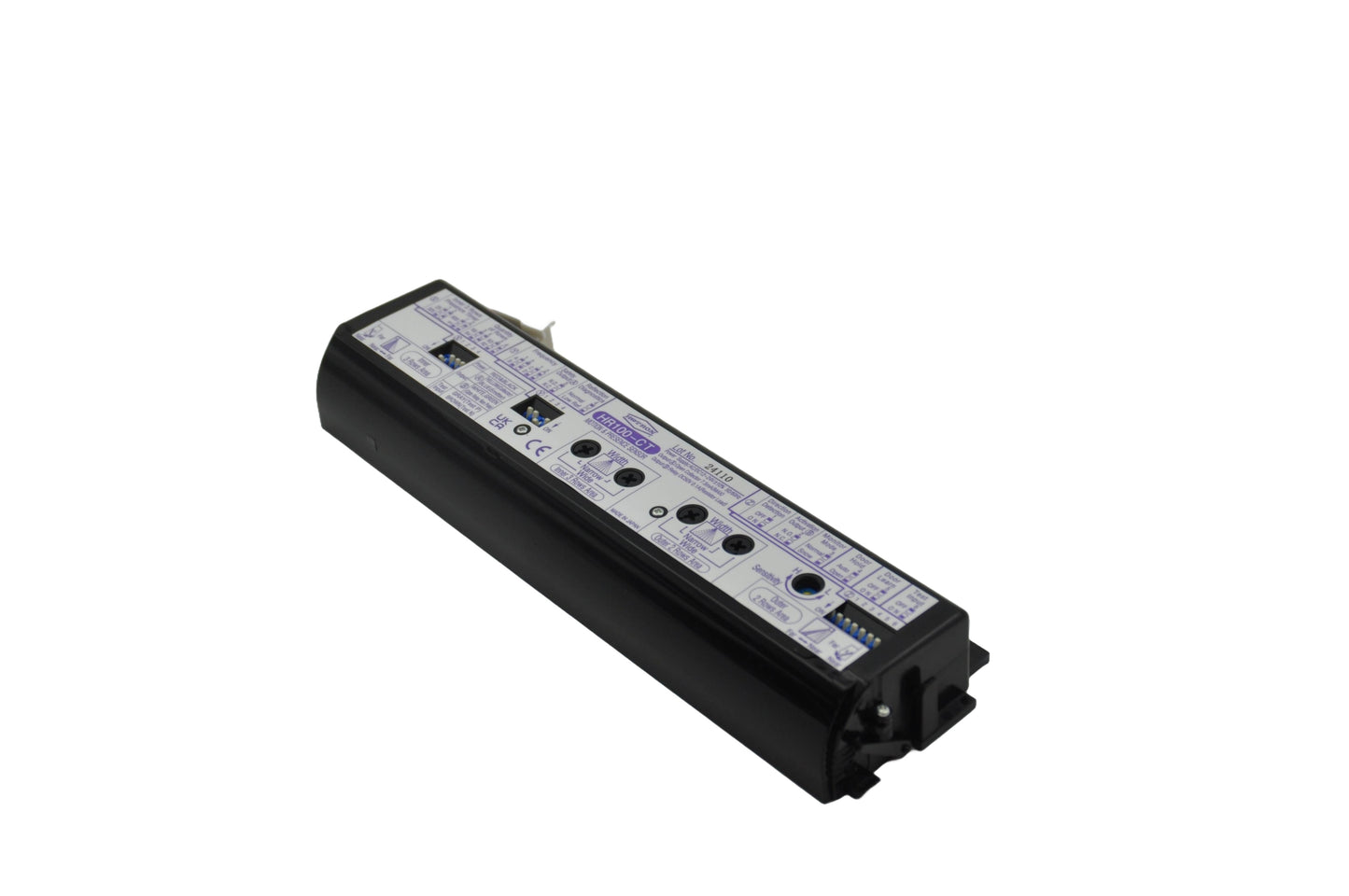

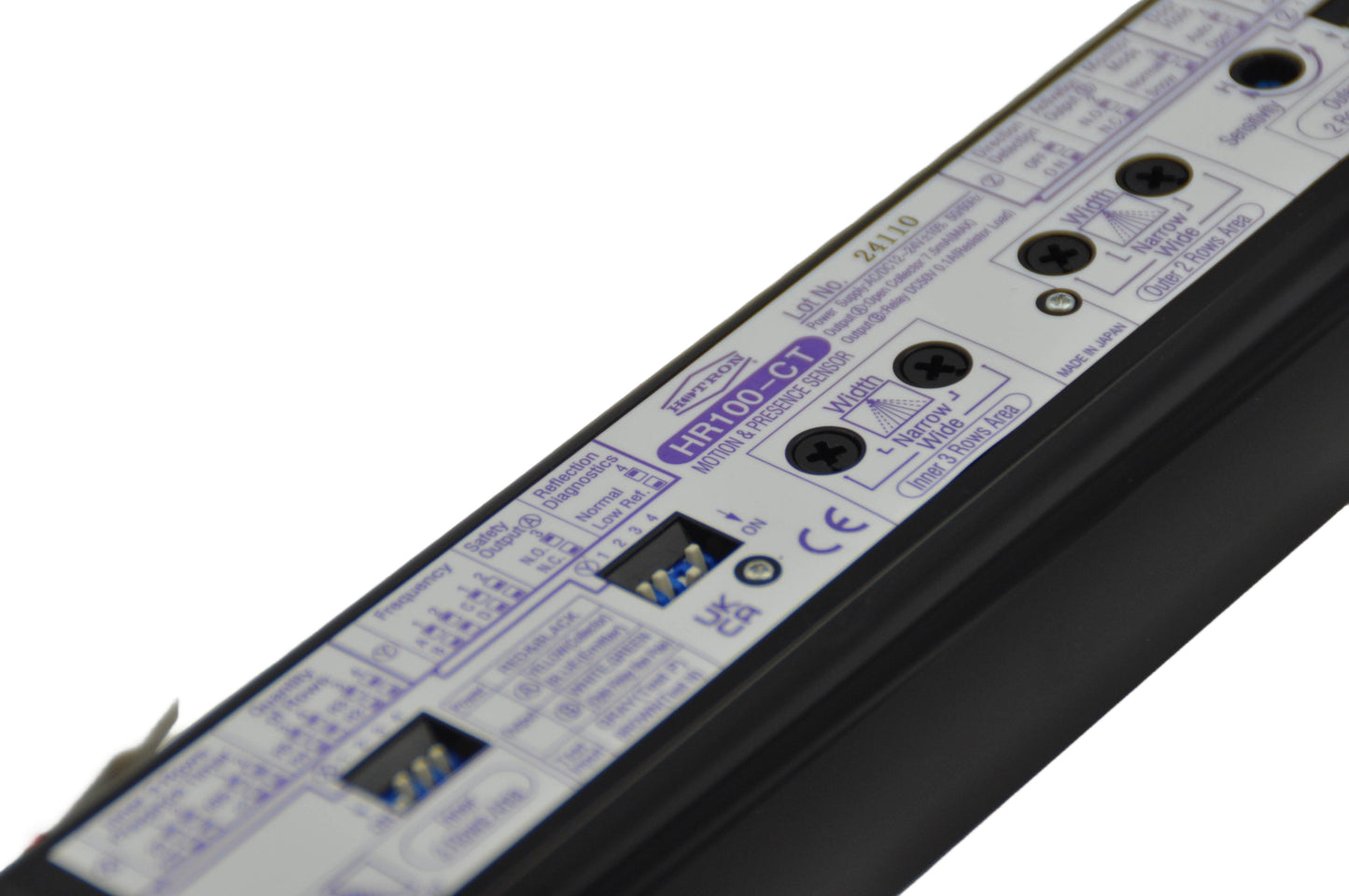

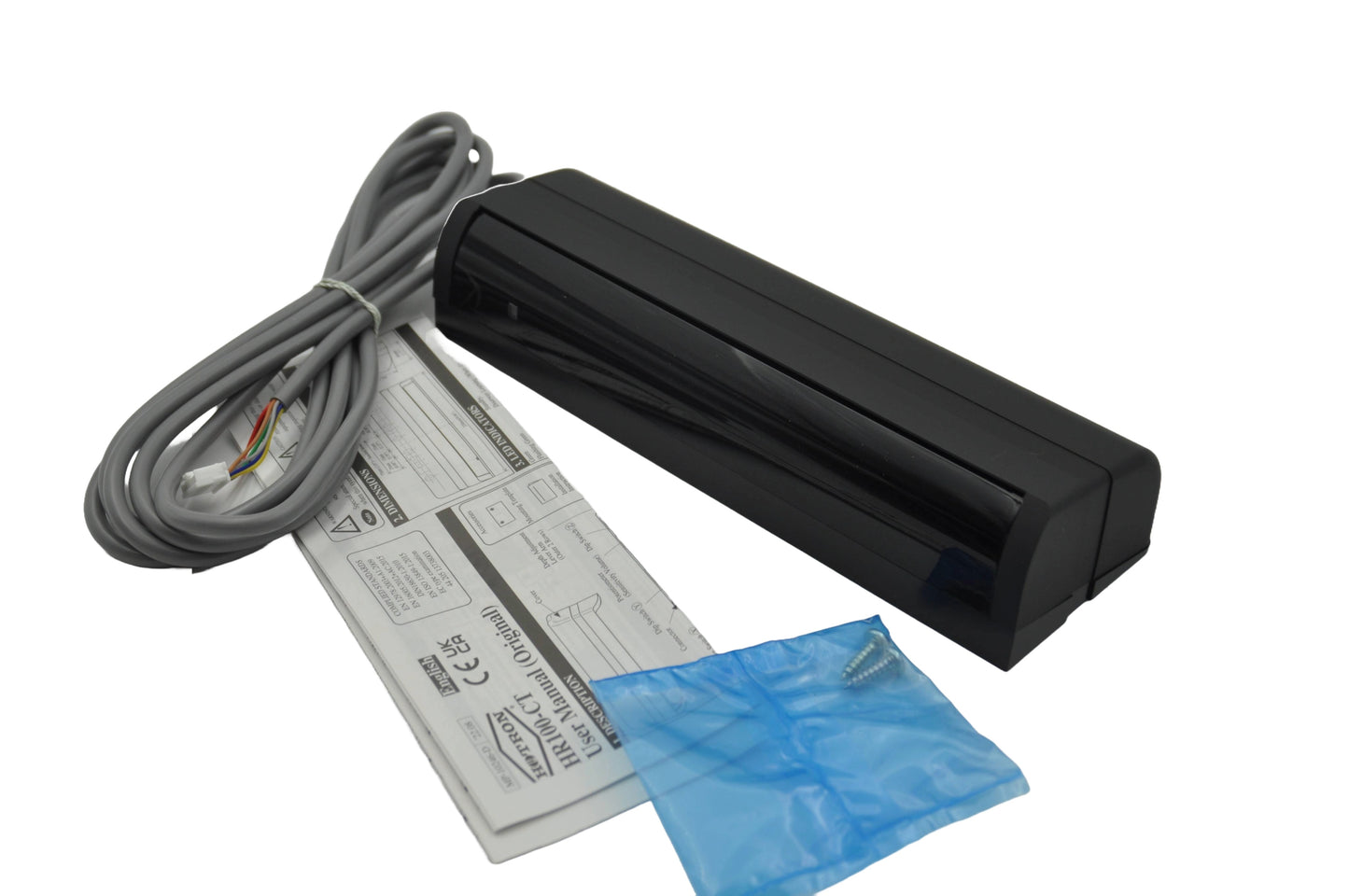

  Sensor features clear, printed instructions, factory pre-set dipswitches to EN16005 standards, and a robust single-piece design for quick, error-free installation.

Technical Specifications:

• Detection Method: Active Infrared (AIR) Technology

• Detection Area: Up to 2.8m (W) x 2.6m (D), adjustable up to 2m

• Dimensions: 230mm (W) x 66mm (H) x 34mm (D)

• Mounting Height Clearance: 57mm vertical clearance required (with HA-121 bracket)

• Output: Dual relay outputs (monitored safety)

• Power Supply: 12–24V AC/DC

• Compliance: EN16005 standard for automatic door safety

• IP Rating: IP54 (suitable for indoor and outdoor use)
