View ManualClearGuard – Wireless Accessible Toilet Door Control System
The ClearGuard system is a complete wireless access control solution designed to enhance accessibility to public and disabled toilet facilities. Featuring intuitive, colour-coded push-button panels and a wireless receiver, ClearGuard enables users to open, close, and lock toilet doors with ease and confidence. Its large, illuminated buttons, audio feedback, and waterproof design make it an ideal solution for inclusive public environments.
✅ Key Features & Benefits:
Accessible Design:
-
Large surface-area push buttons with soft-touch operation
-
Visual and audio cues for door movement (e.g. “Door Opening”, “Door Closing”)
-
Colour-coded buttons for enhanced visibility—suitable for the visually impaired
-
External indicator lights up when cubicle is occupied
Wireless & Easy to Install:
-
Supplied with a 433MHz wireless receiver for simple setup
-
Push-button registration links internal and external switches to receiver—no cabling required
-
Hardwired version also available for permanent installations
User Safety First:
-
External emergency override allows door opening in case of user distress
-
Illuminated lock symbol alerts others if access is attempted while in use
-
Battery replacement alert via visual signal and audio prompt
Water & Dust Resistant:
-
IP54-rated waterproof external and internal panels ensure safe operation in public washrooms

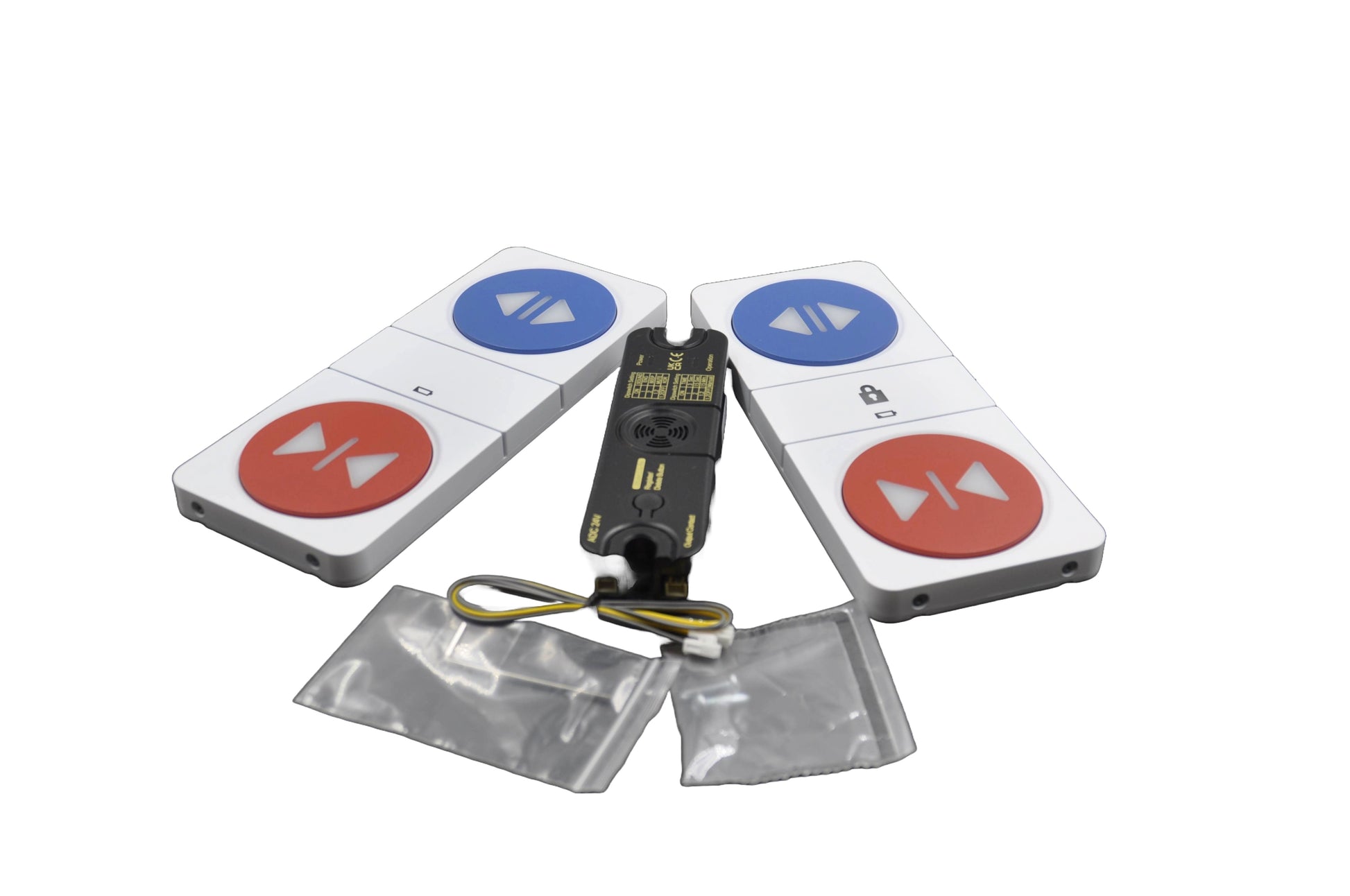

📦 What's Included in the Set:
| Component | Quantity |
|---|---|
| Wireless Receiver (CG-Rx) | 1 |
| Internal Switch (CGI-Tx) | 1 |
| External Switch (CGE-Tx) | 1 |
| Power Connector (Grey) | 1 |
| Output Contact Connector (Green) | 1 |
| 3M Mounting Stickers | 4 |
| AA 1.5V Batteries | 8 |
| User Manual | 1 |
📐 Technical Specifications:
Receiver (CG-Rx):
-
Power: 12–30V DC / 12–24V AC
-
Relay Capacity: 1A @ 30VDC or 0.5A @ 125VAC
-
Current Draw: 20mA (standby) / 80mA (active @ 24V DC)
-
Operating Temp: -20°C to +50°C
-
Size: 150 x 43 x 25mm

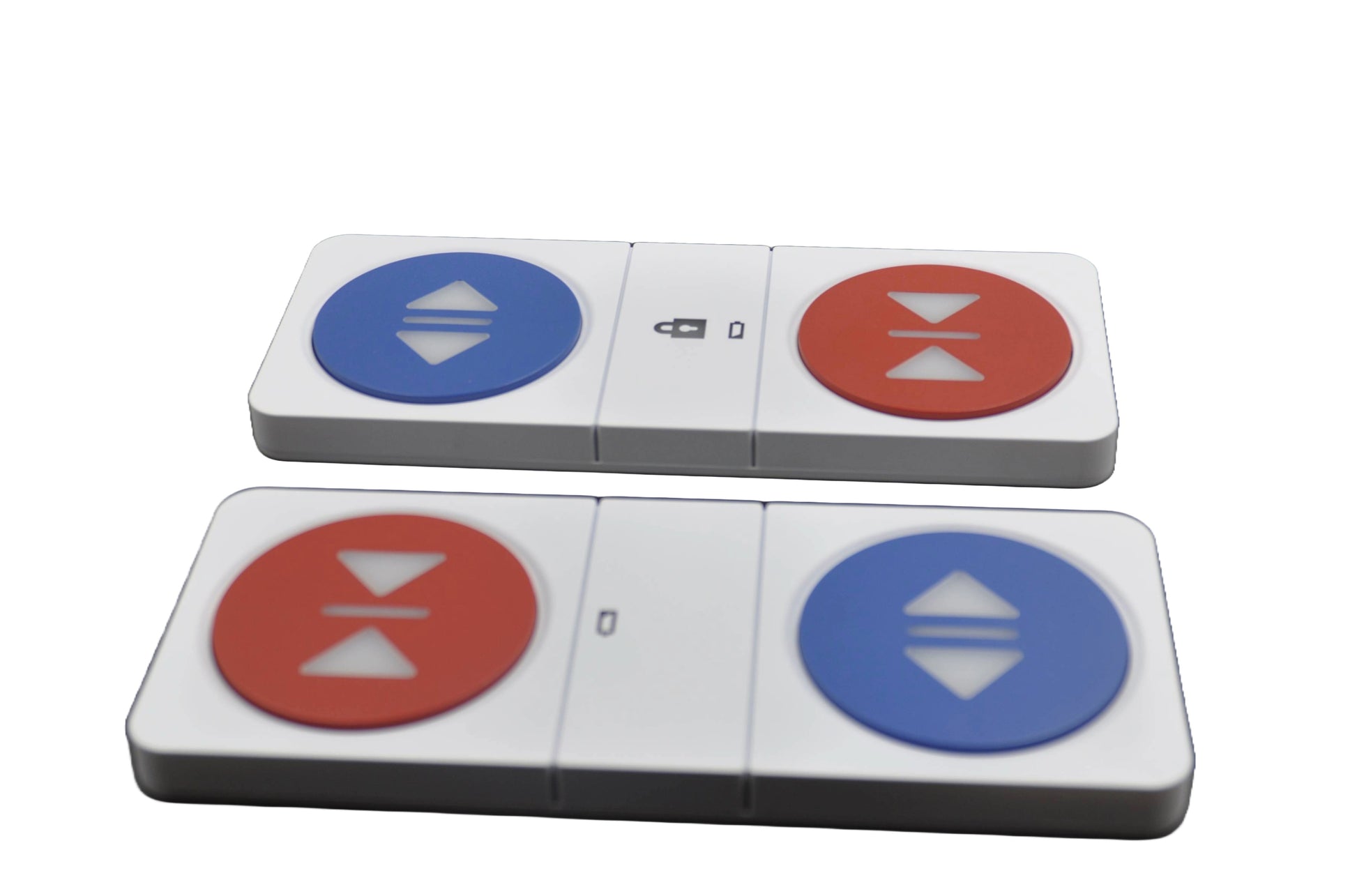

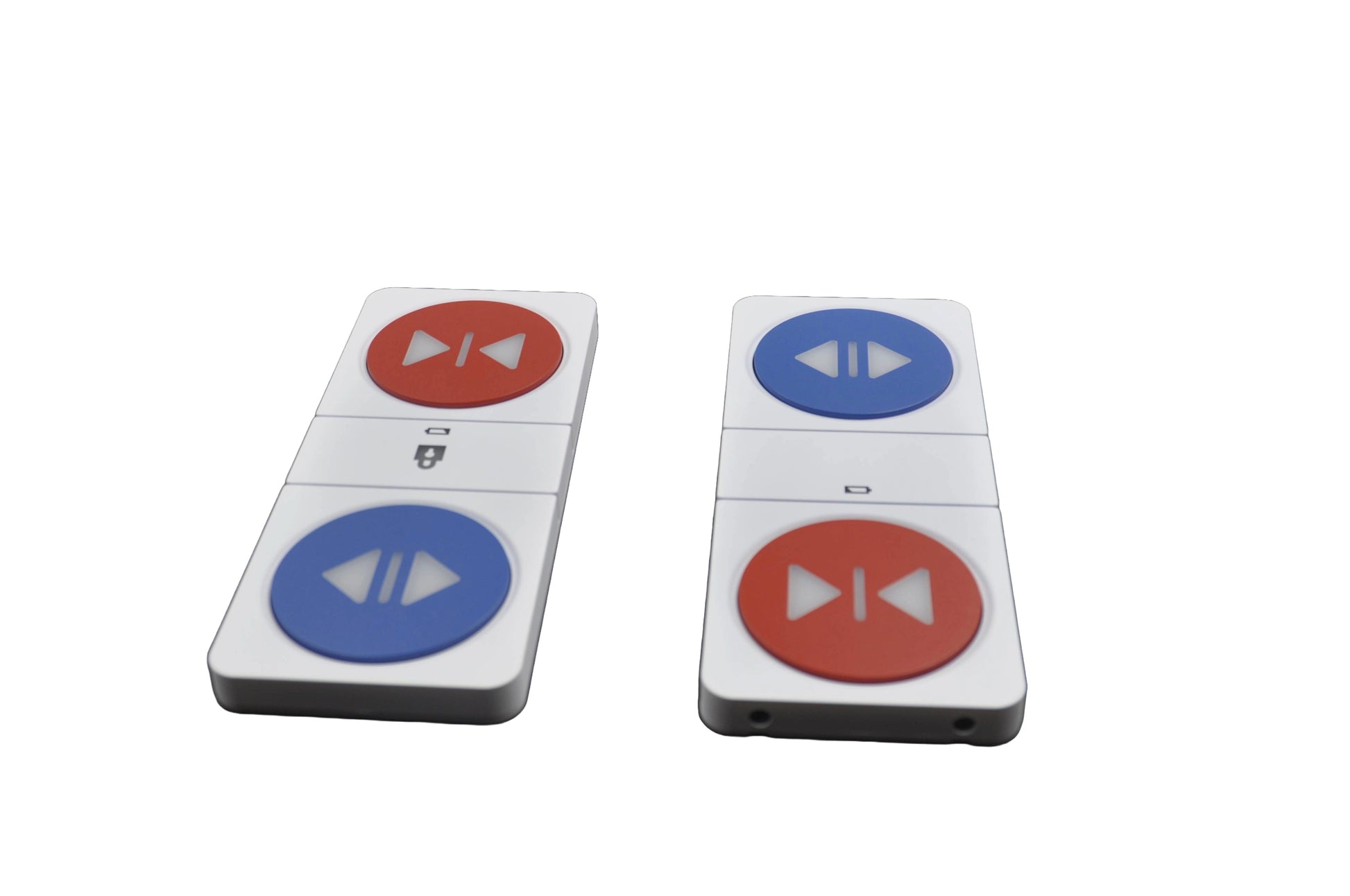

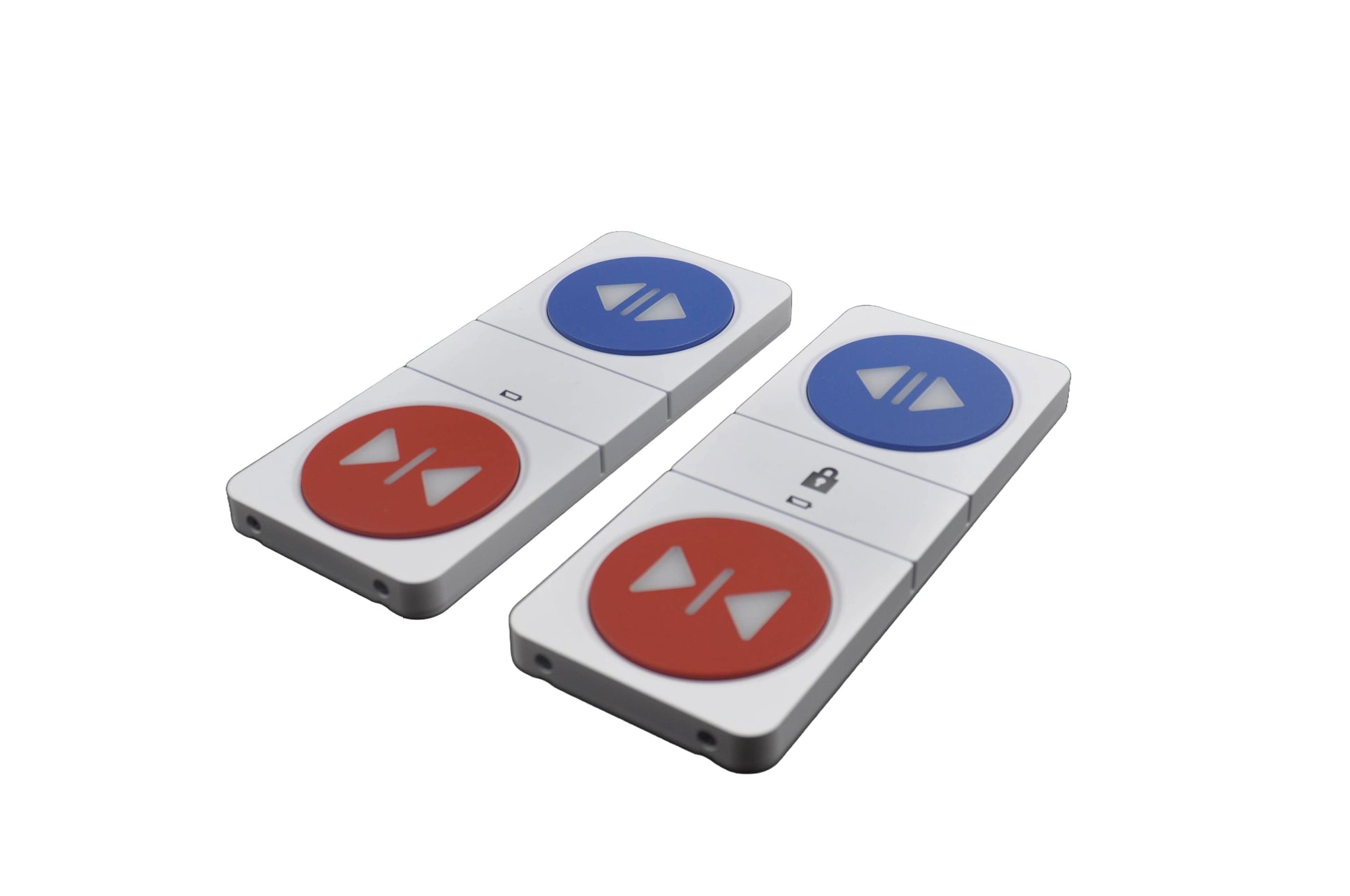

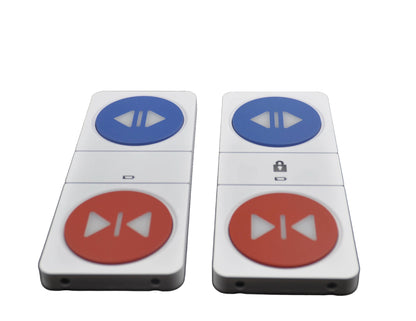

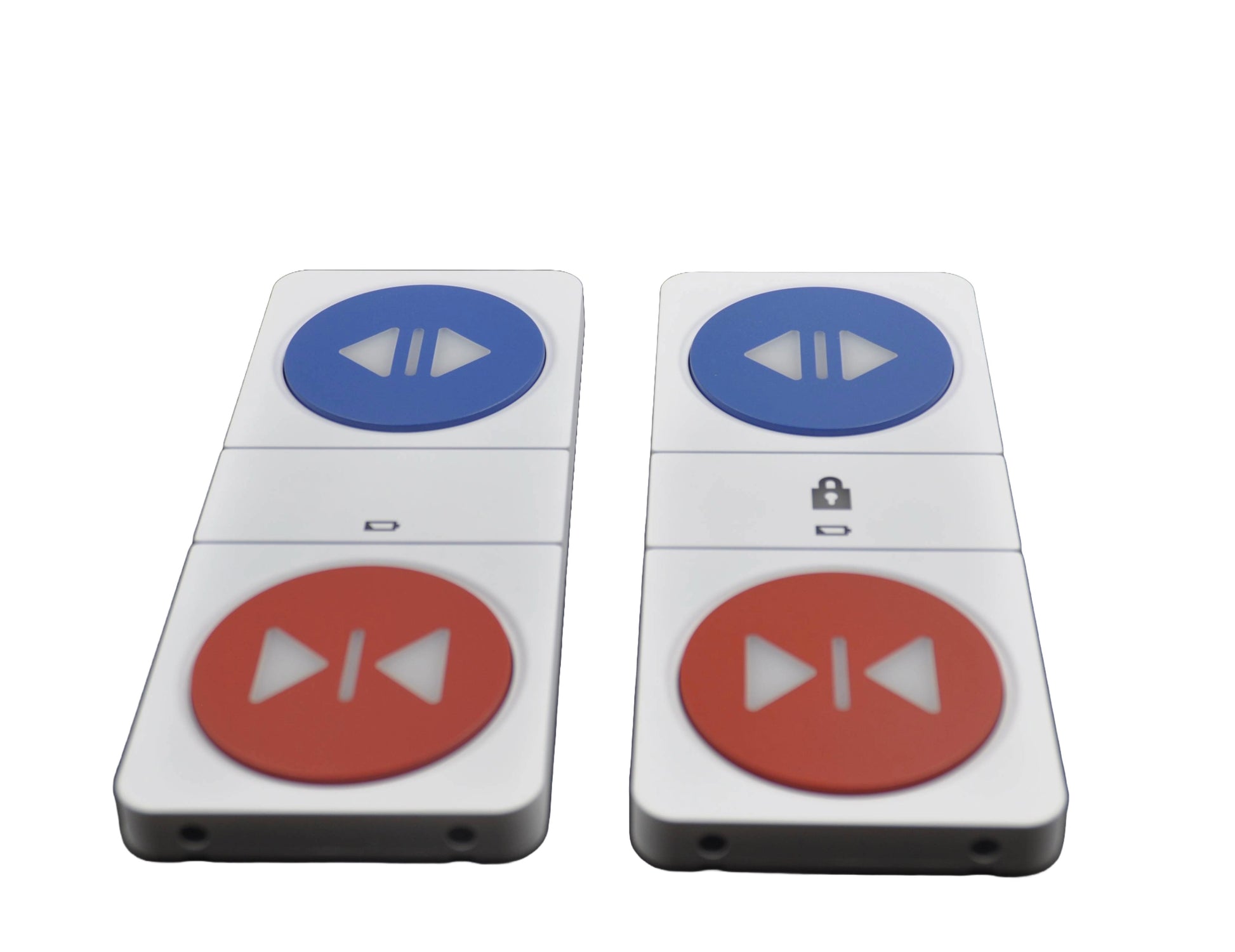

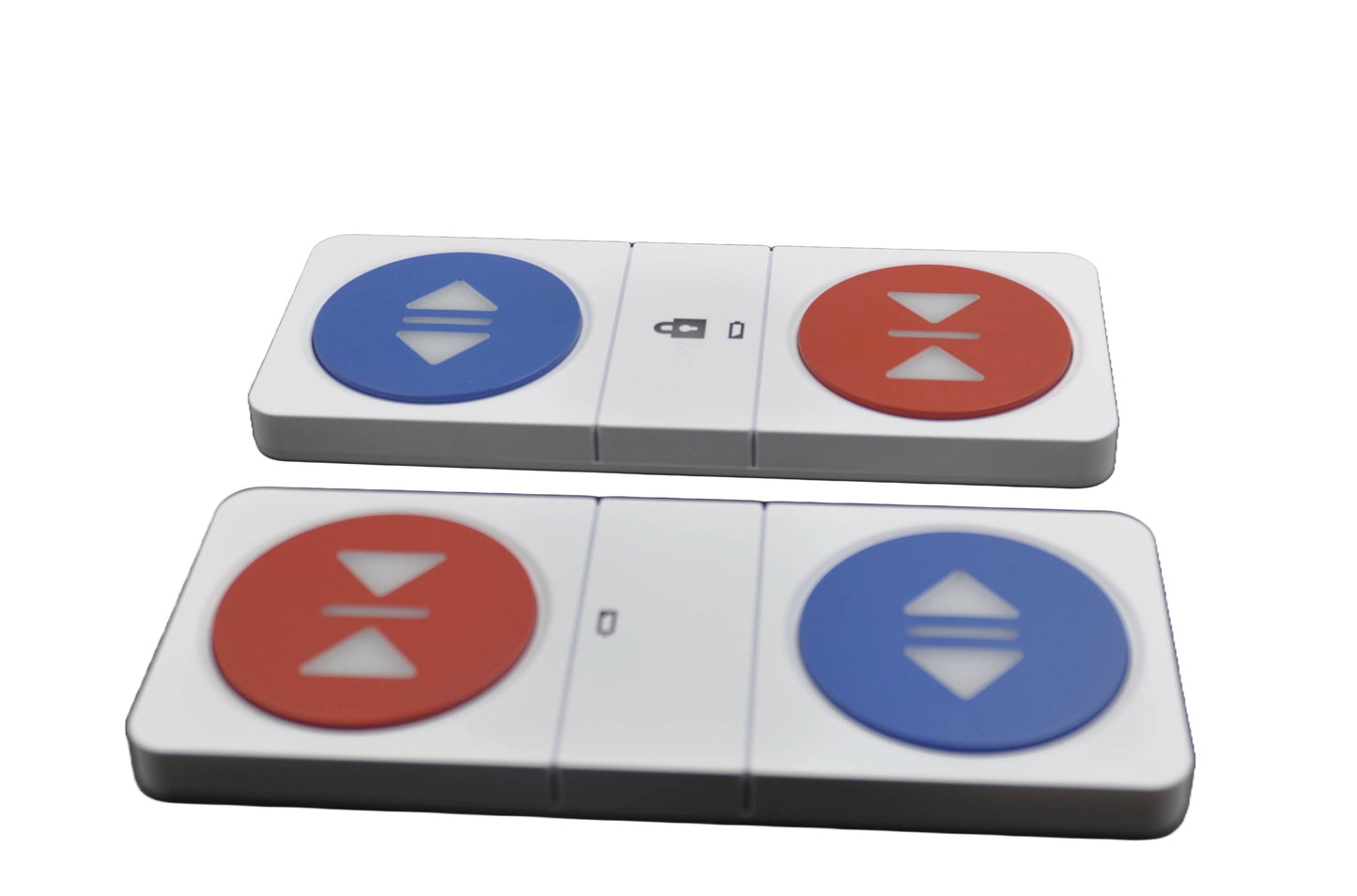

Switches (CGI-Tx & CGE-Tx):
-
Frequency: 433.92 MHz
-
Power: 4 x AA batteries (each switch)
-
IP Rating: IP54 (dust and splash resistant)
-
Size: 135 x 135 x 19mm
-
Operating Temp: -20°C to +50°C
