Hotron 3H-IR14C I Safety Sensor for Automatic Sliding Doors

Hotron 3H-IR14C Infrared Activation & Safety Sensor for Automatic Sliding Doors

The Hotron 3H-IR14C sensor provides advanced infrared activation combined with robust pedestrian safety for automatic sliding doors. Engineered with a compact design, these sensors offer precisely adjustable detection zones, significantly reducing false door activations in busy urban environments. The 3H-IR14C model is fully EN16005 compliant, featuring dual relay outputs and monitored safety.

Key Features & Benefits:

• Compact & Discreet Design:

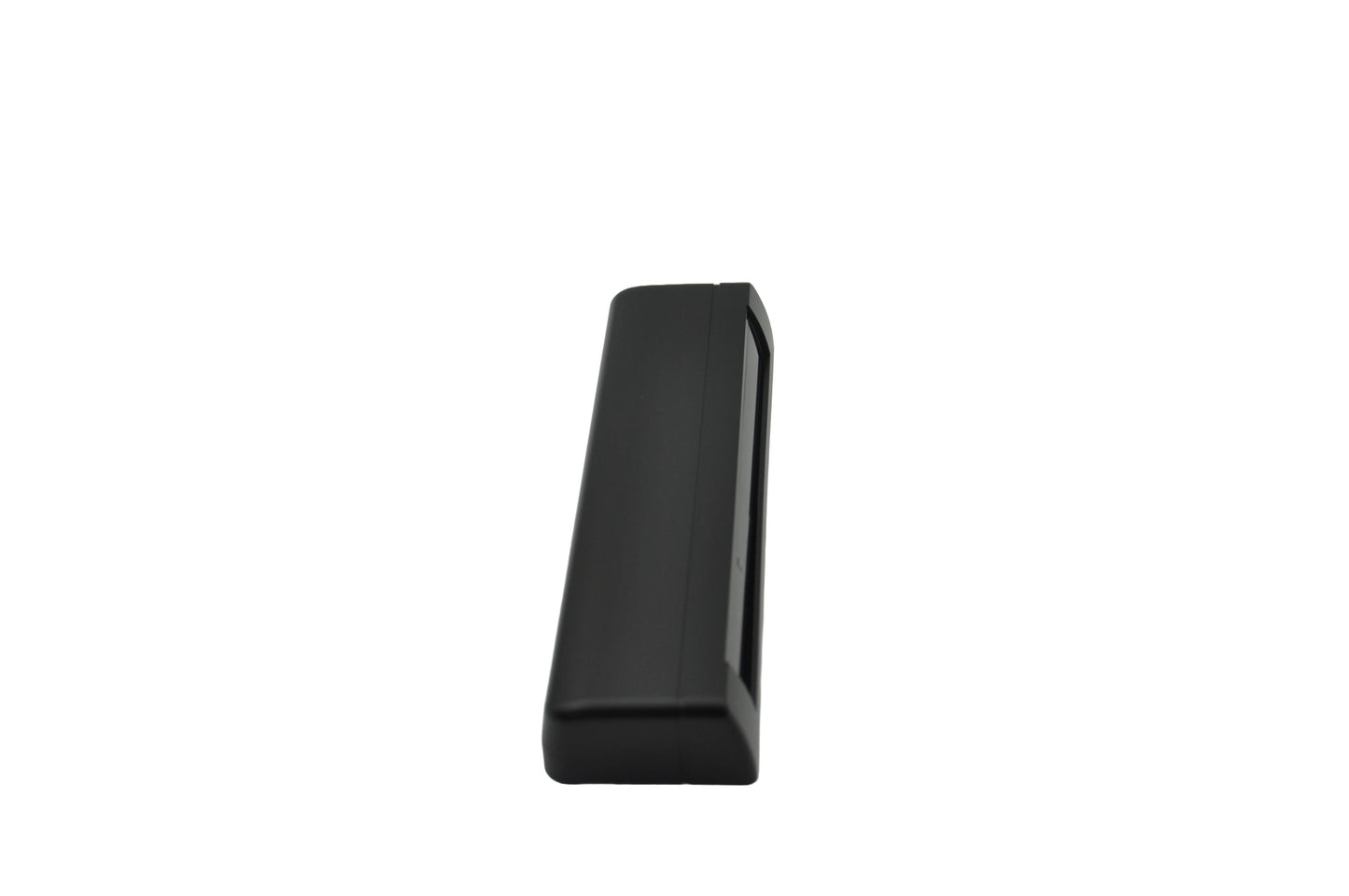

  The smallest combined activation and safety infrared sensor available, suitable for stylish urban storefronts and commercial entrances.

• Adjustable Detection Area:
  Highly accurate detection zones with adjustable distances (up to 2m), minimising unnecessary door activations and enhancing pedestrian safety.

• Enhanced Safety Curtain:
  Incorporates a 3-row infrared safety curtain, effectively protecting pedestrians near closing doors.

• Dual Relay (3H-IR14C) for Compliance:
  The dual-relay model (3H-IR14C) provides monitored safety output compliant with EN16005 standards, ideal for buildings requiring maximum safety certification.

Technical Specifications:

• Detection Method: Active Infrared

• Mounting Height: 2.0m to 3.0m (6.5ft to 10ft)

• Dimensions: 210mm (W) x 59mm (H) x 28.5mm (D)

• Presence Timer:

  • 3H-IR14C: Fixed 30s

• IP Rating: IP54 (dust and moisture resistant)

• Power Supply: 12–24V AC/DC ±10%

• Operating Temperature: -20°C to +60°C (-4°F to 140°F)

• Colours Available: Black (3H-IR14/BL),

• Warranty: 5-year manufacturer's warranty
