Groom GRL821 Universal Bottom Pivot

Groom GRL821 Universal Bottom Pivot

Net: £14.51
Incl. VAT: £17.41
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

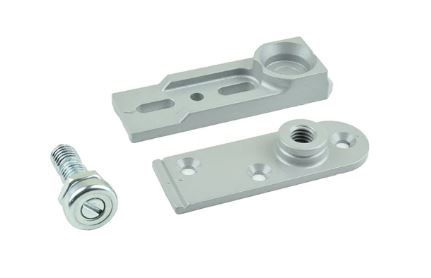

Groom GRL821 Universal Heavy Duty Top Load Bottom Pivot – Fully Adjustable & Versatile Fixing
The Groom GRL821 is a universal heavy duty bottom pivot, designed for reliable and precise door alignment on aluminium, timber, or glass doors using transom concealed closers. Offering fully adjustable height and flexible fixing options, it is ideal for both new installations and retrofit applications across commercial and public buildings.

Key Features & Benefits:

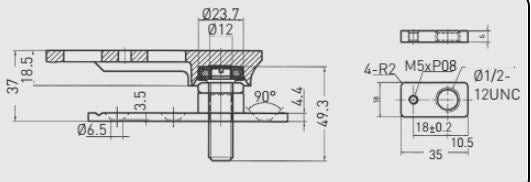

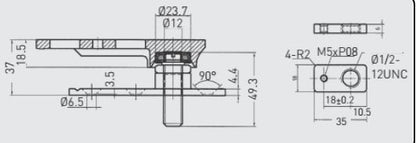

  • Adjustable Height Range: 31.5mm to 58.5mm for precise on-site alignment

  • Standard Pivot Point: 70mm for typical aluminium and timber doors

  • Glass Door Pivot Point: 65mm, cut on a 5mm ‘V’ groove line for clean installation

  • Fine Height Adjustment: 1 full turn equals 2mm – simple and precise adjustments

  • Flexible Fixing Options: Components included for both floor fixing and threshold fixing

  • Durable Heavy Duty Design: Built to withstand high-traffic use in commercial environments

Ideal For:

  • Aluminium and timber doors with concealed transom closers

  • Frameless glass doors requiring ‘V’ groove pivot location

  • Commercial, retail, and public building entrances

  • Installers requiring flexibility for uneven floor levels or threshold obstructions

View full details

FAQ's

What is the Groom GRL821 Universal Bottom Pivot and what is it used for?

Groom GRL821 Universal Heavy Duty Top Load Bottom Pivot – Fully Adjustable & Versatile Fixing The Groom GRL821 is a universal heavy duty bottom pivot , designed for reliable and precise door alignment on aluminium, timber, or glass doors using transom.

Where is this typically used?

It is ideal for both new installations and retrofit applications across commercial and public buildings. That makes it well suited to commercial and high-traffic automatic door installations.

Does the Groom GRL821 Universal Bottom Pivot provide groom grl821 universal heavy duty top load bottom pivot?

Groom GRL821 Universal Heavy Duty Top Load Bottom Pivot – Fully Adjustable & Versatile Fixing The Groom GRL821 is a universal heavy duty bottom pivot , designed for reliable and precise door alignment on aluminium, timber, or glass doors using transom concealed closers. Offering fully adjustable height and flexible fixing options, it is ideal for both new installations and retrofit applications across commercial and public buildings.

Does the Groom GRL821 Universal Bottom Pivot provide adjustable height range?

31.5mm to 58.5mm for precise on-site alignment.

Does the Groom GRL821 Universal Bottom Pivot provide standard pivot point?

70mm for typical aluminium and timber doors.
