Green Break Glass

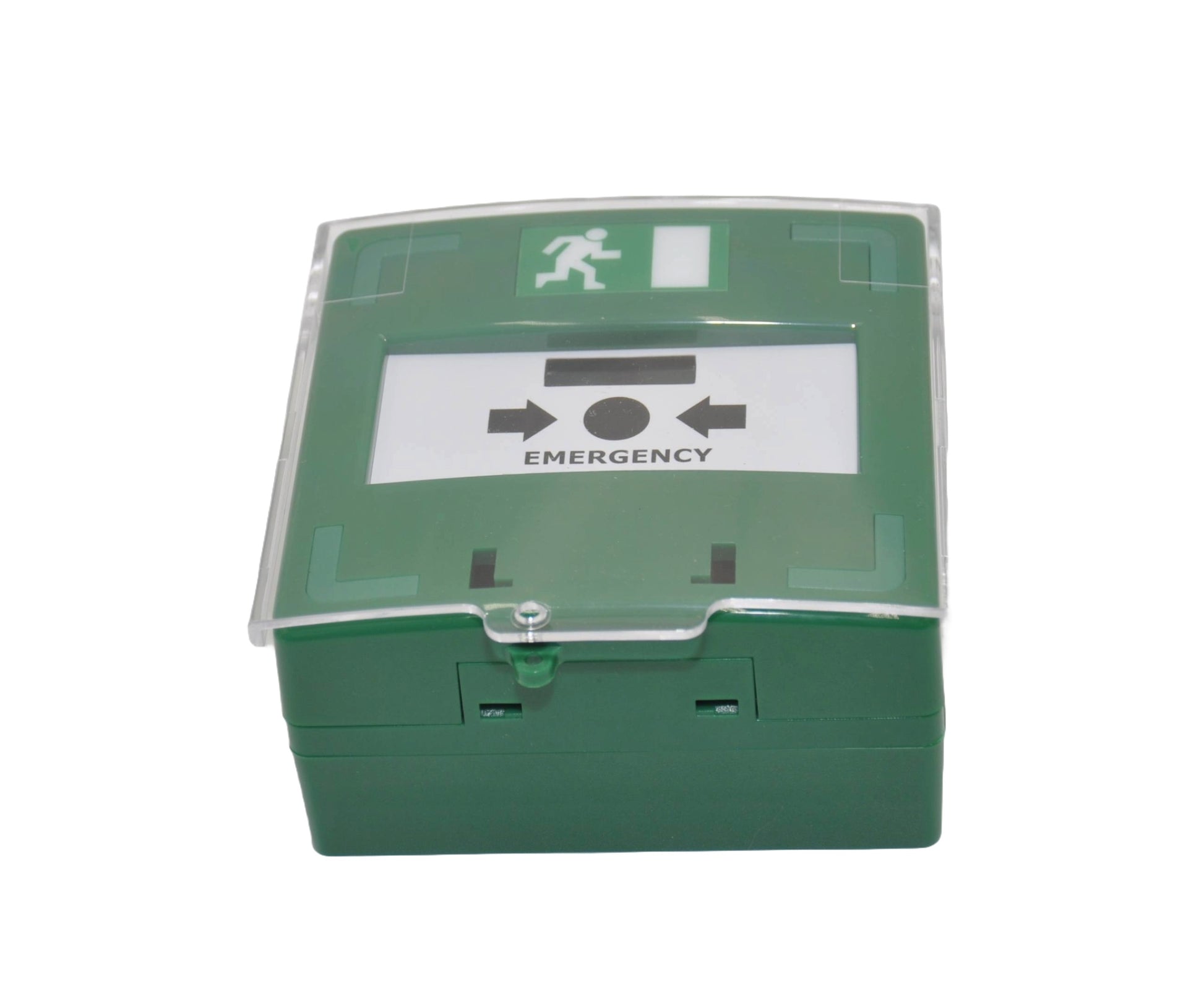

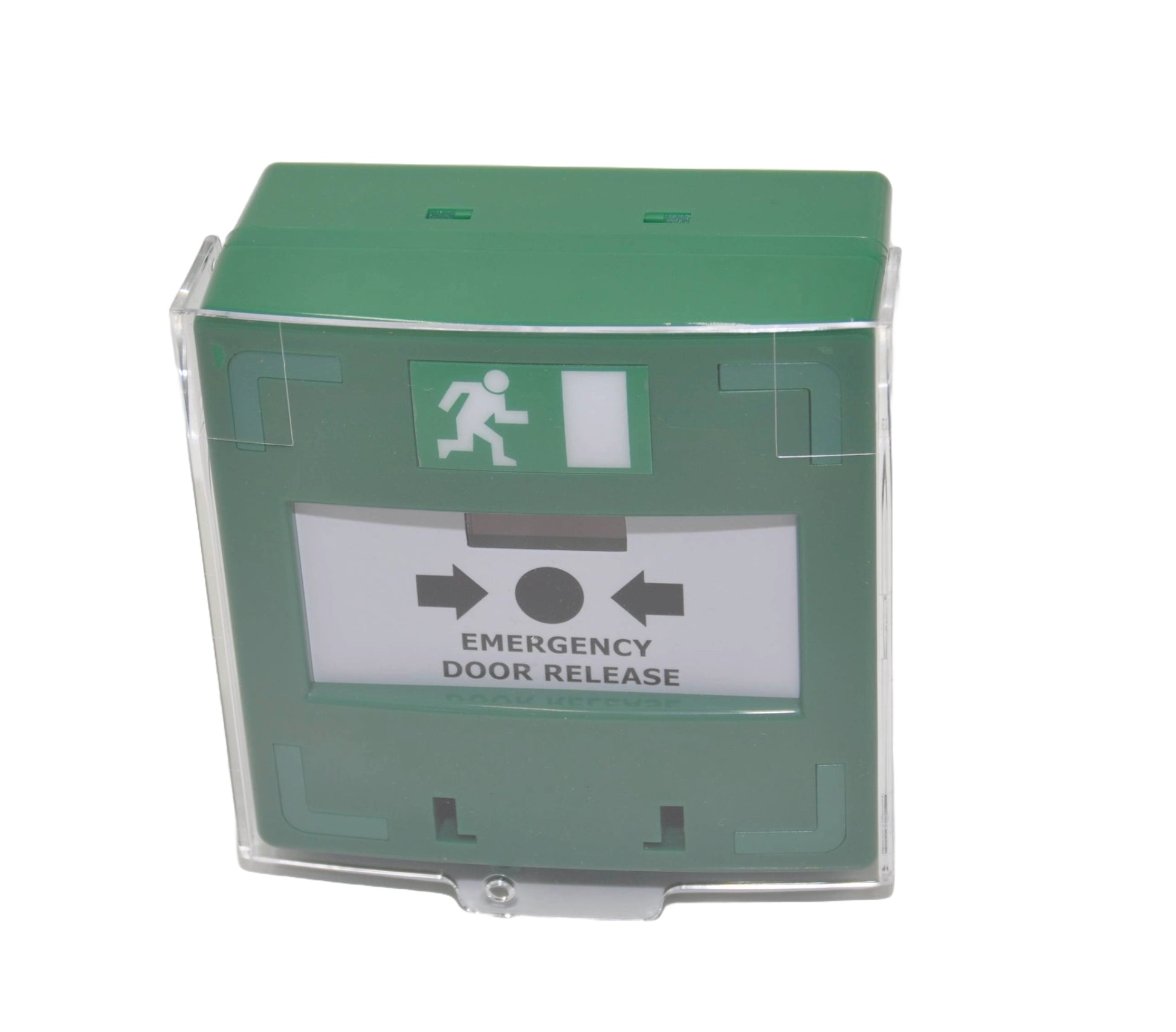

Resettable Emergency Door Release (EDR) – Double Pole, UK Format

The  Resettable Emergency Door Release provides essential emergency unlocking for electronically secured doors. Designed with a double-pole mechanism, this UK-format emergency unit safely cuts power to fail-safe locks when activated. Pressing the front faceplate releases the lock, which remains unlocked until reset using a key.

Key Features & Benefits:

• Emergency Unlock Function:
  Allows immediate release of electronically locked doors during emergencies.

• Double-Pole Micro-Switch:
  Reliable, secure disconnection of power from locks to ensure safe emergency egress.

• Resettable Design:

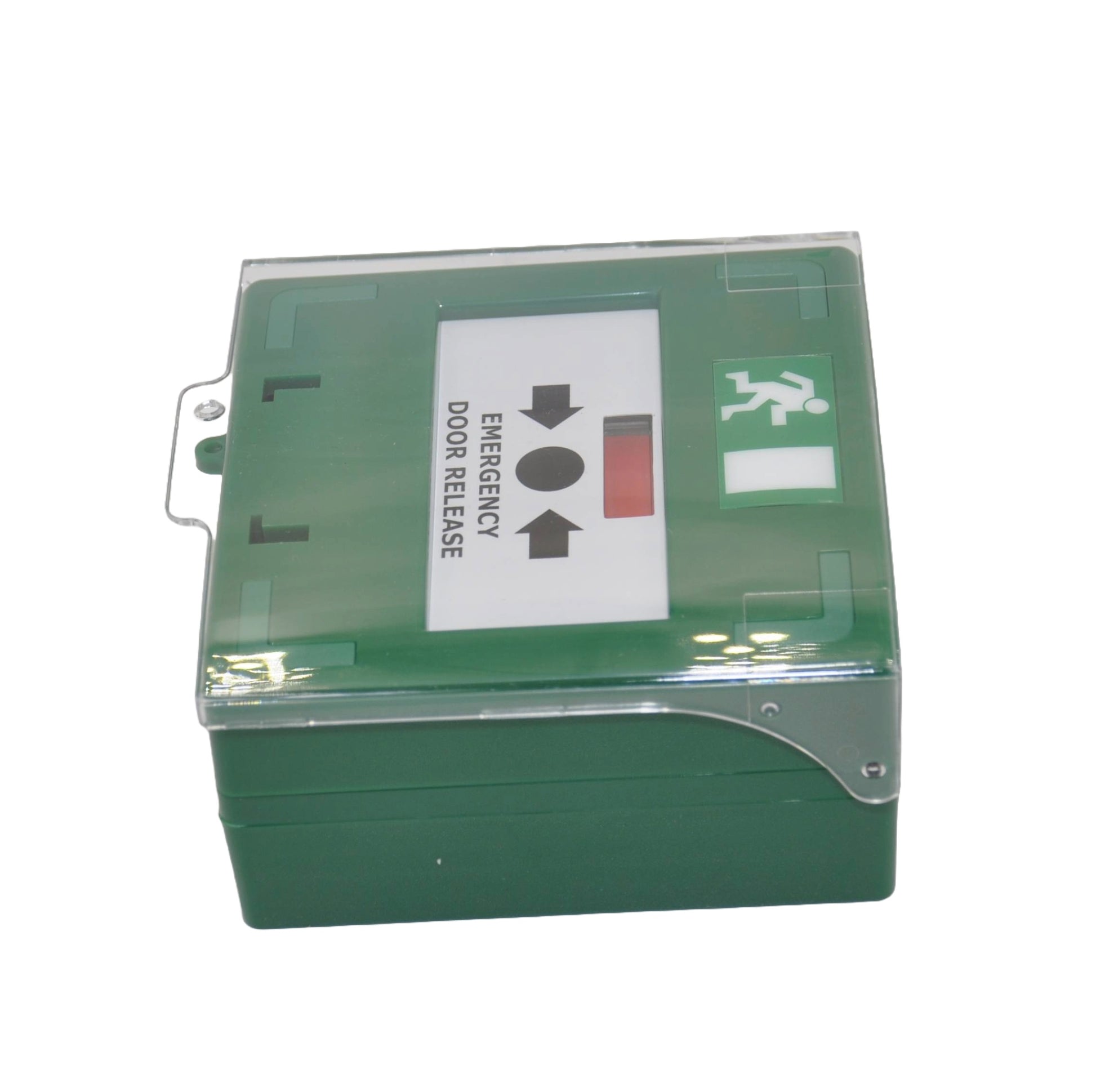

  Activated by pressing the faceplate, which drops to indicate use; easily reset using a key, avoiding the need for glass replacement.

• UK Back-Box Format:
  Compatible with standard UK back-boxes for straightforward installation.

• Robust & Reliable:
  Designed for internal use, offering long-term reliability in commercial, industrial, and public settings.

Technical Specifications:

• Voltage Rating: 30 Vdc

• Current Rating: 2A

• Dimensions: 86mm x 86mm x 50mm

• IP Rating: IP24 (Internal use)

• Operating Temperature: -30°C to +70°C

• Activation Method: Push plate (resettable with key)

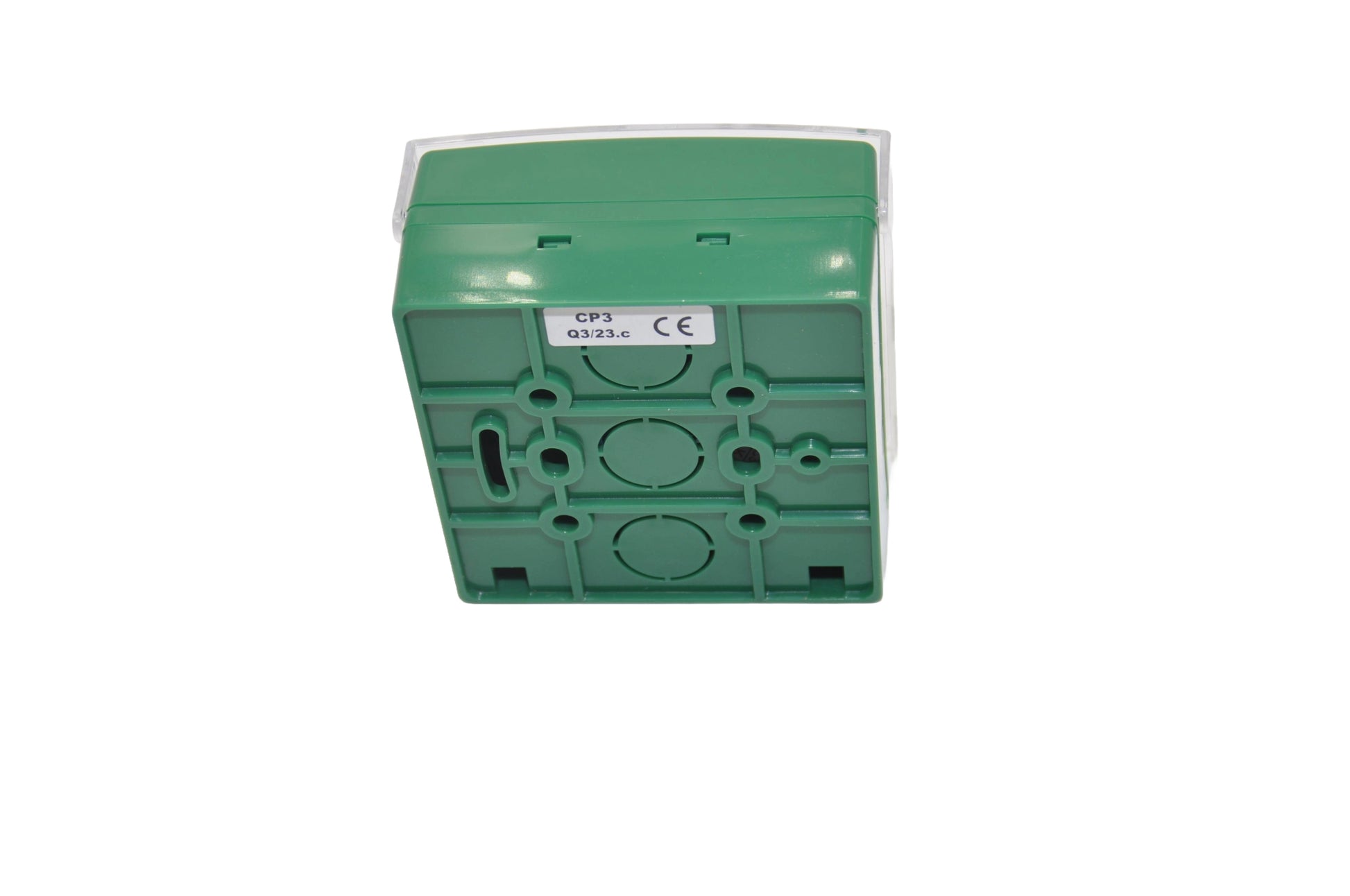

• Mounting: Standard UK back-box
