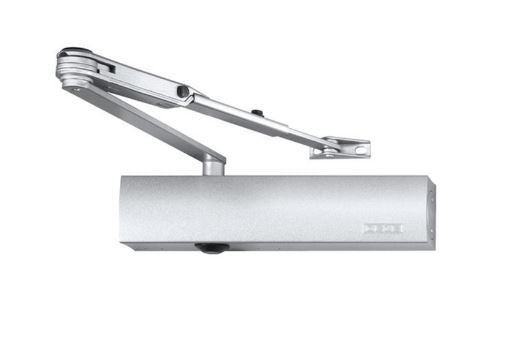

Geze TS4000 EN 1-6 Universal Overhead Door Closer Complete With Armset

GEZE TS4000S Door Closer – Heavy Duty, Fire Rated & Fully Adjustable
The GEZE TS4000S is a high-performance overhead door closer designed for demanding environments where reliability, flexibility, and safety compliance are essential. With adjustable power sizes up to EN 7 and FD120 fire rating, this closer is ideal for a wide variety of interior and exterior doors in commercial, educational, and public buildings.

Key Features & Benefits:

Adjustable Power Size Options:

• EN 1–6: For doors up to 1400mm wide / 120kg

• EN 5–7: For doors up to 1600mm wide / 160kg
  Includes a visual power indicator to assist with accurate onsite adjustment.

Universal Installation:
Compatible with:

• Fig. 1: Pull side mounting

• Fig. 66: Push side mounting

• Fig. 61: Transom mounting
  Non-handed design suits both right and left opening doors.

Fire Door Compliant:

• FD120 certified for doors requiring 120 minutes of fire resistance

• Fully tested to BS EN 1154

• CE marked and Certifire Approved
  Note: Mechanical hold-open arms are not fire door compliant. For fire-rated applications with hold-open, consider the GEZE TS4000E or TS4000EFS.

Advanced Hydraulic Control:
Front-facing valves for easy adjustment of:

• Closing speed

• Latching action

• Backcheck

• Delayed action

Delayed Closing for Safe Passage:
The delayed action feature allows extended opening time, giving users or trolleys more time to pass through safely – ideal for accessible routes, care homes, and high-traffic corridors.

Integrated Backcheck for Door Protection:
Prevents door damage from sudden or forceful openings by cushioning the swing. Recommended for doors near walls or where wind may cause slamming.

Compact, Durable Design:

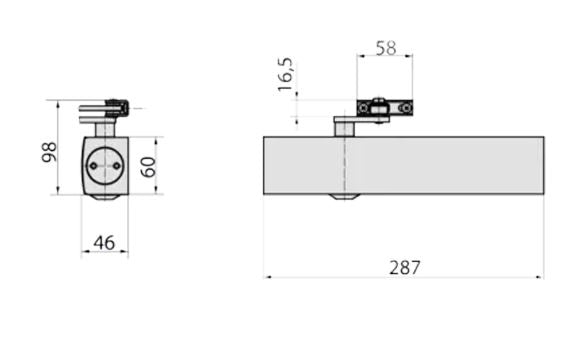

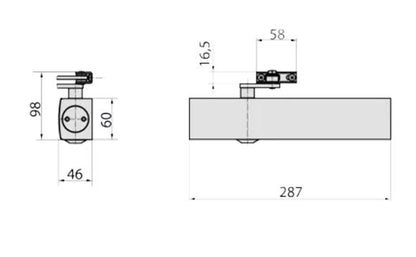

• Body dimensions: 287mm x 60mm x 46mm

• For internal or sheltered external use (see GEZE TS4000 Wetroom for exposed settings)

• Easy to maintain – requires only annual lubrication and setting checks

Ideal Applications:

• Office buildings and commercial premises

• Educational institutions and public sector sites

• Interior and protected exterior entrance doors

• High-use fire doors requiring EN 1–7 adjustment range

• Projects where user safety and adjustable performance are essential

Compatibility:

• Single-action doors

• Timber, metal, and composite door types

• Fire doors up to 120 minutes (FD120 rated)

• Not suitable for unprotected external installations (see Wetroom version)

Automagic Door Parts recommends professional installation using the included visual guide and adjustment indicators. For projects needing fire-rated hold-open or swing-free functionality, see the GEZE TS4000EFS range for enhanced compliance and accessibility.
