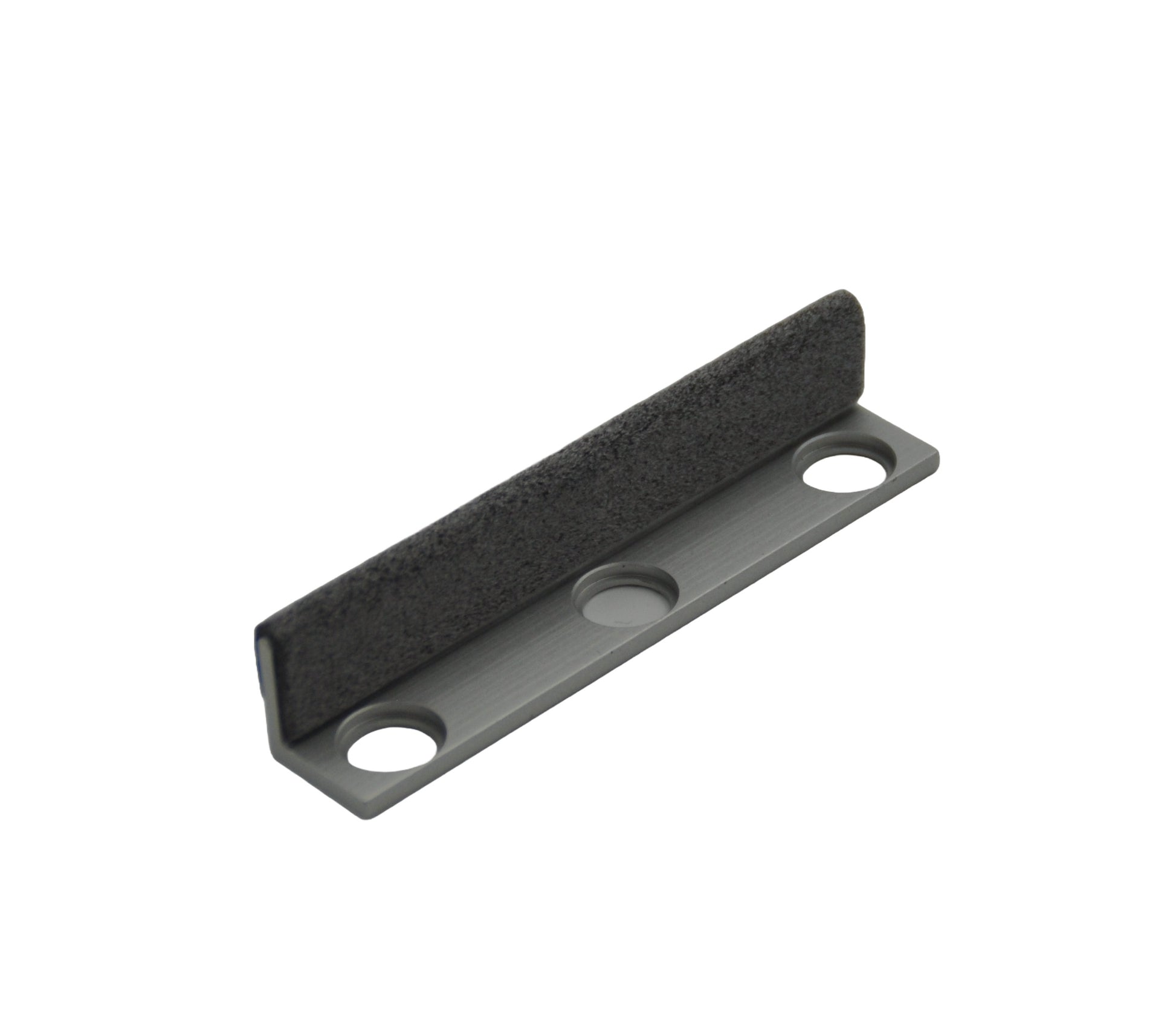

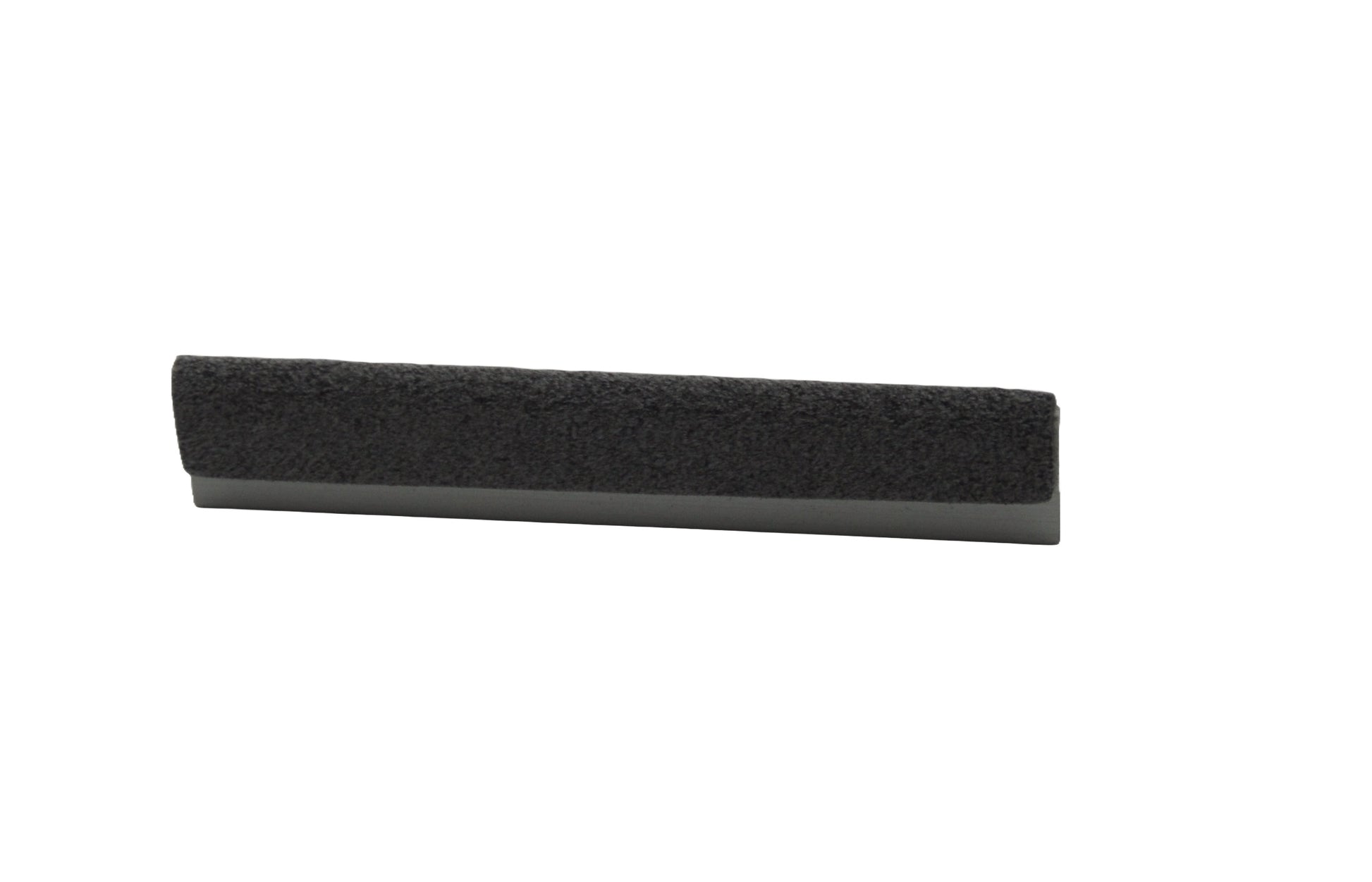

GEZE Fixed Floor Guide for ISO Automatic Sliding Doors

GEZE Fixed Floor Guide for ISO Automatic Sliding Doors (Aluminium Body)

The GEZE Fixed Floor Guide is specifically designed for ISO automatic sliding door systems, providing secure guidance and stability. Featuring a robust aluminium body and precise dimensions (95mm length x 17mm width x 20mm height), this floor guide ensures smooth, accurate door alignment, reliable operation, and straightforward installation.

Key Features & Benefits:

• Durable Aluminium Construction:
  Robust aluminium body ensures long-term durability and resistance to wear, suitable for high-traffic commercial and public installations.

• Precision Alignment & Smooth Operation:
  Ensures accurate alignment and stable sliding door operation, significantly enhancing door functionality and operational reliability.

• Simple Installation:

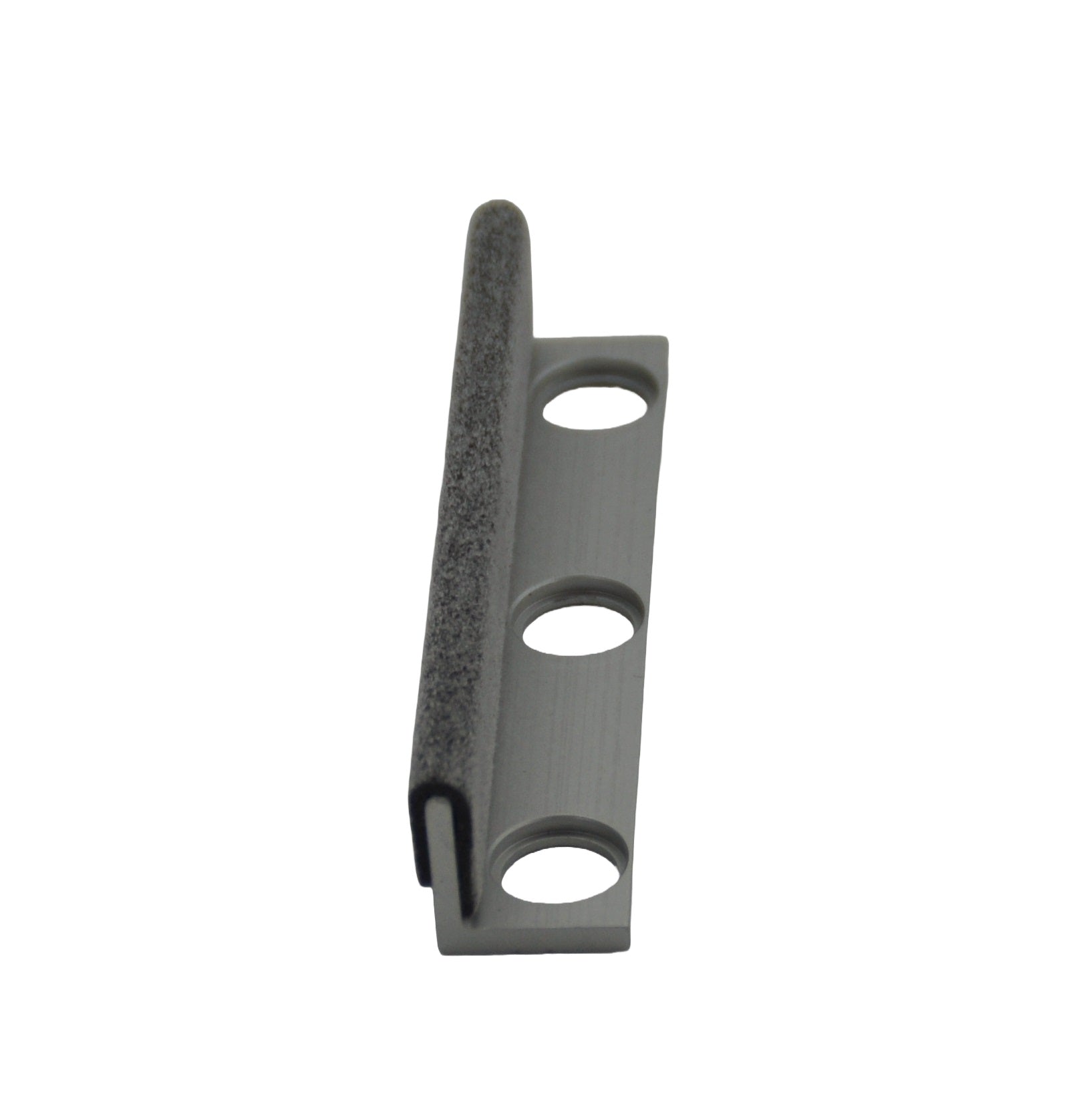

  Features three pre-drilled and countersunk fixing holes, facilitating quick, easy, and secure installation onto floor surfaces.

• Compact & Low-profile Design:
  With its compact dimensions, the floor guide remains discreet and integrates neatly into any floor surface without affecting aesthetics.

Technical Specifications:

• Compatibility: Specifically designed for GEZE ISO sliding door systems

• Material: Aluminium body

• Dimensions: 95mm (L) x 17mm (W) x 20mm (H)

• Mounting: Floor-mounted with 3 pre-drilled, countersunk fixing holes
