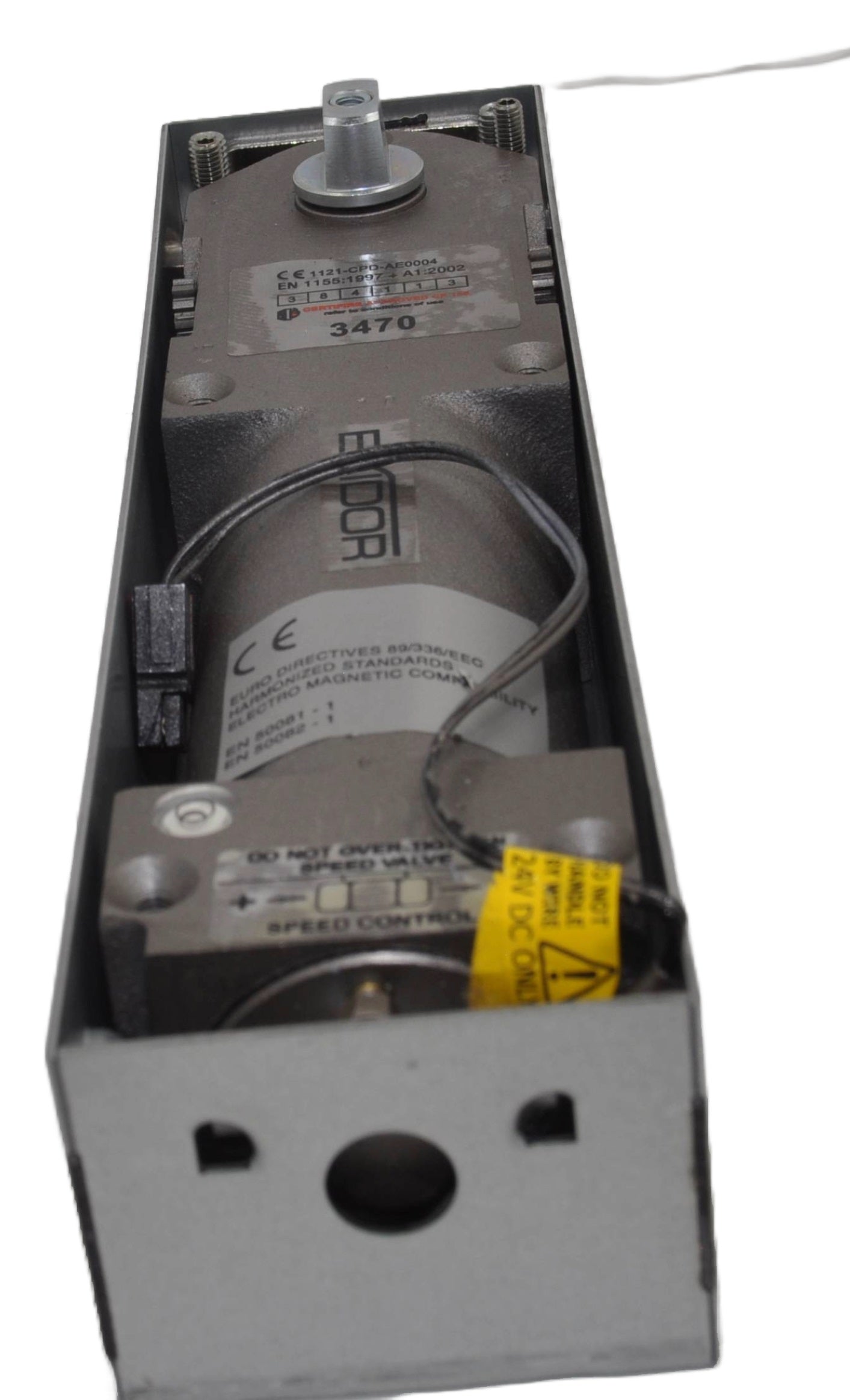

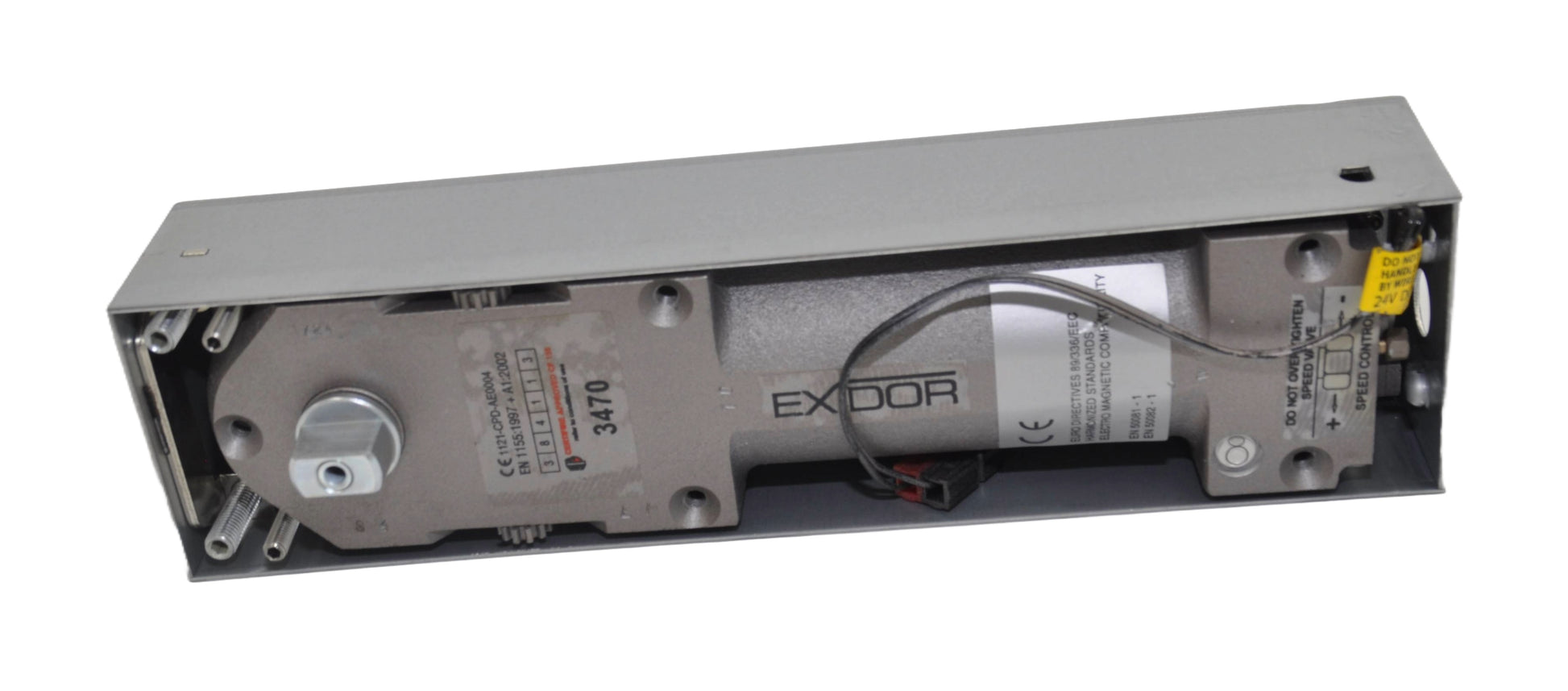

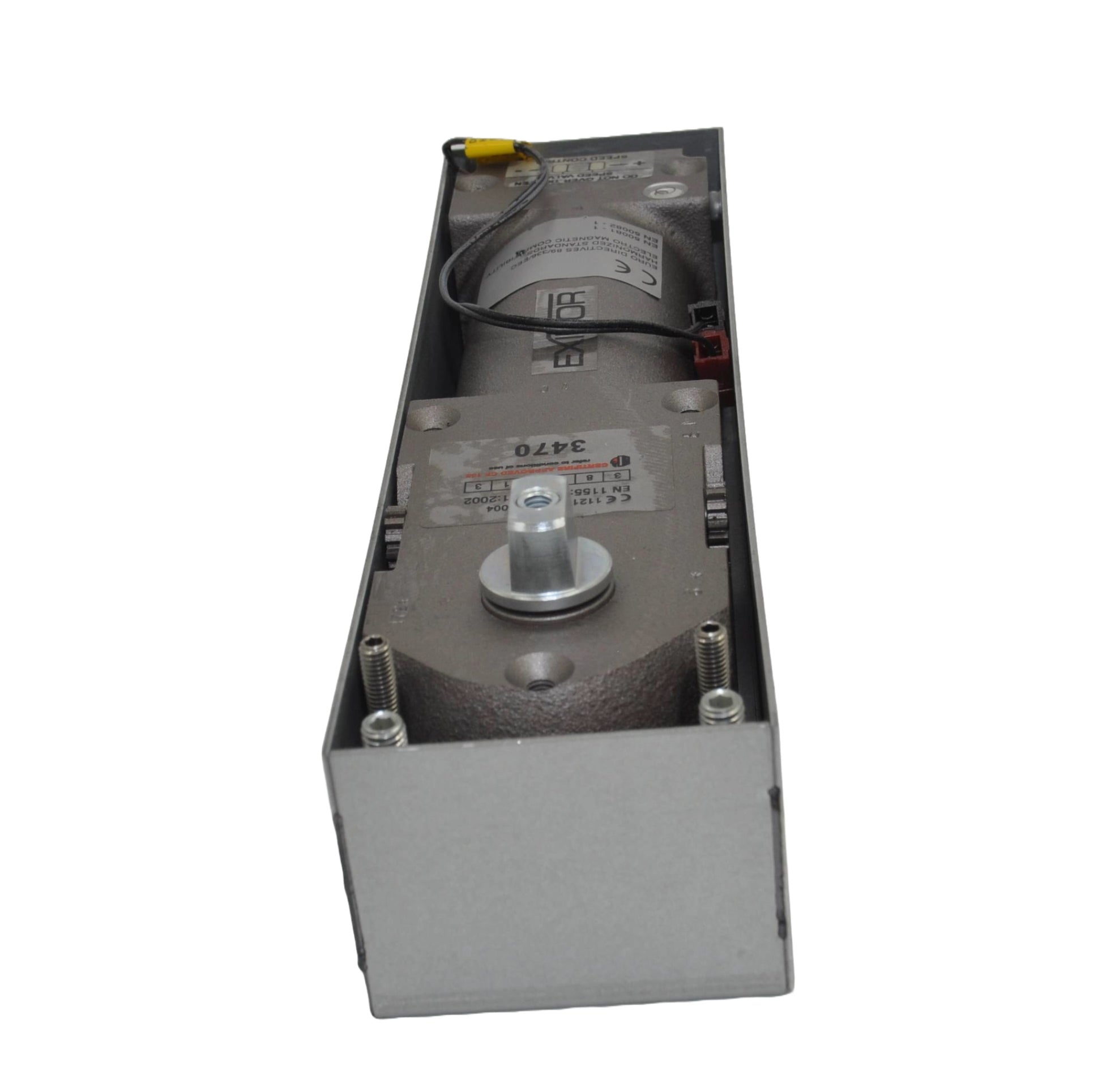

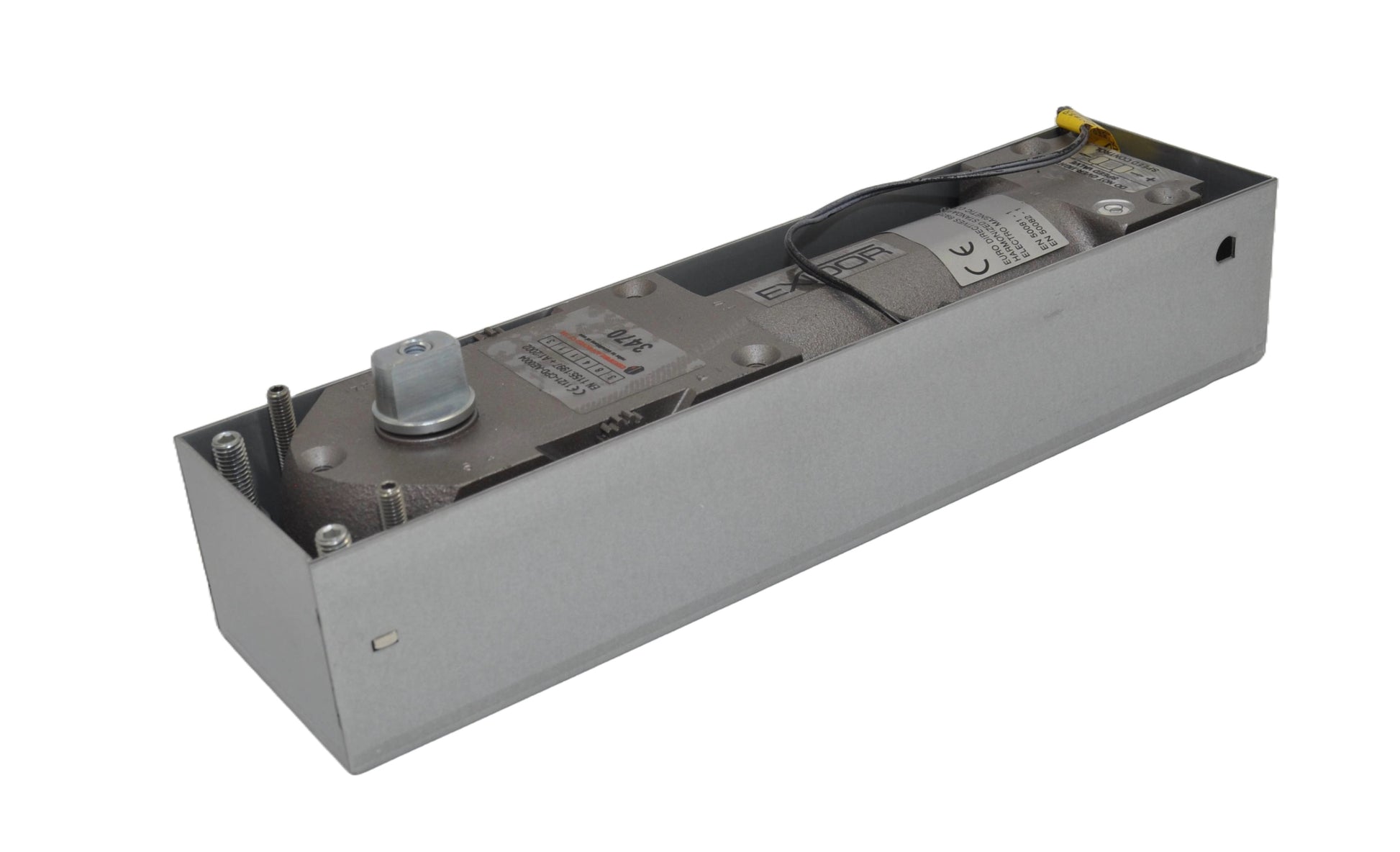

Exidor 3470 EMAG Floor Spring

Exidor 3470 Series E-Mag EN 4 Floor Spring – Electromagnetic Hold-Open Floor Closer

The Exidor 3470 Series E-Mag EN 4 Floor Spring delivers exceptional durability and precision control for heavy-duty doors, offering an ideal solution for high-traffic environments. This versatile floor spring closer is available in both single-action and double-action configurations, ensuring seamless integration into various door installations. It features an electromagnetic hold-open function, an innovative double-cam mechanism, and intuitive three-dimensional in-box adjustment, providing smooth, secure operation.

Product Overview:

The Exidor 3470 E-Mag Floor Spring is expertly engineered to reliably control doors weighing up to 400kg. Its electromagnetic hold-open functionality allows doors to be held securely open at adjustable angles between 65° and 175°, making it perfect for areas that require doors to remain open temporarily, such as corridors and high-footfall entrances.

Key Features & Benefits:

• Electromagnetic Hold-Open: Provides controlled hold-open functionality from 65° to 175°, ideal for enhancing accessibility and traffic flow.

• Double-Cam Mechanism: Ensures highly efficient and smooth operation with minimal resistance, suitable for demanding door usage environments.

• 3° Leading Edge Adjustment: Offers precise alignment adjustment of the door leaf for a perfect fit, reducing wear and optimising functionality.

• Three-Dimensional In-Box Adjustment: Convenient in-situ adjustment capability allows easy fine-tuning for perfect alignment, aided by a built-in visual spirit level.

• Heavy-Duty Capability: Specifically designed for doors up to 400kg, offering reliable performance even under heavy usage conditions.

• Integrated Backcheck Function: Protects doors and walls by dampening excessive opening force, enhancing safety and durability.

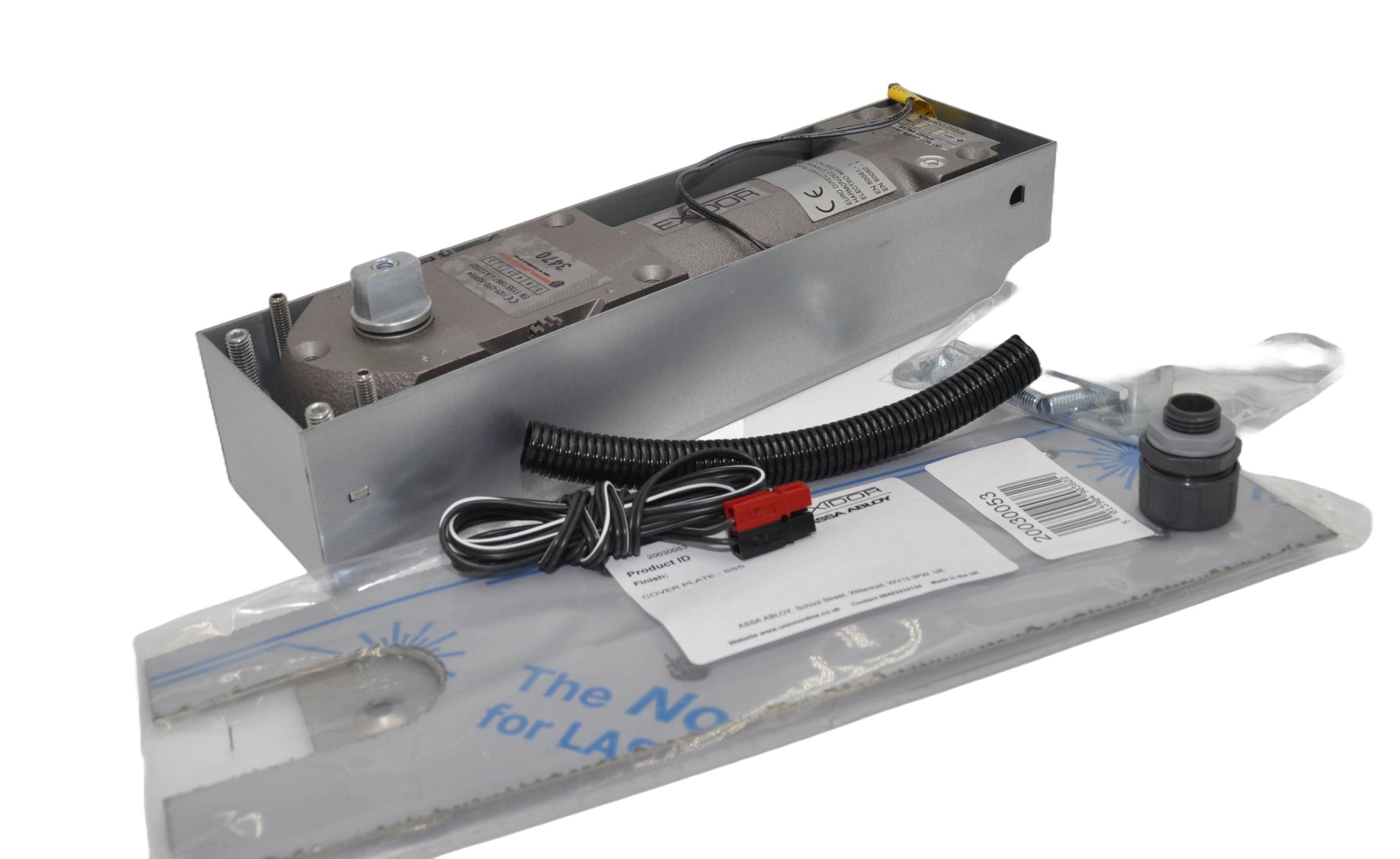

• Flexible Configuration Options: Available as a single-action or double-action unit, supplied as either mechanism and box only, or as a complete set including fittings and cover plate.

Technical Specifications:
