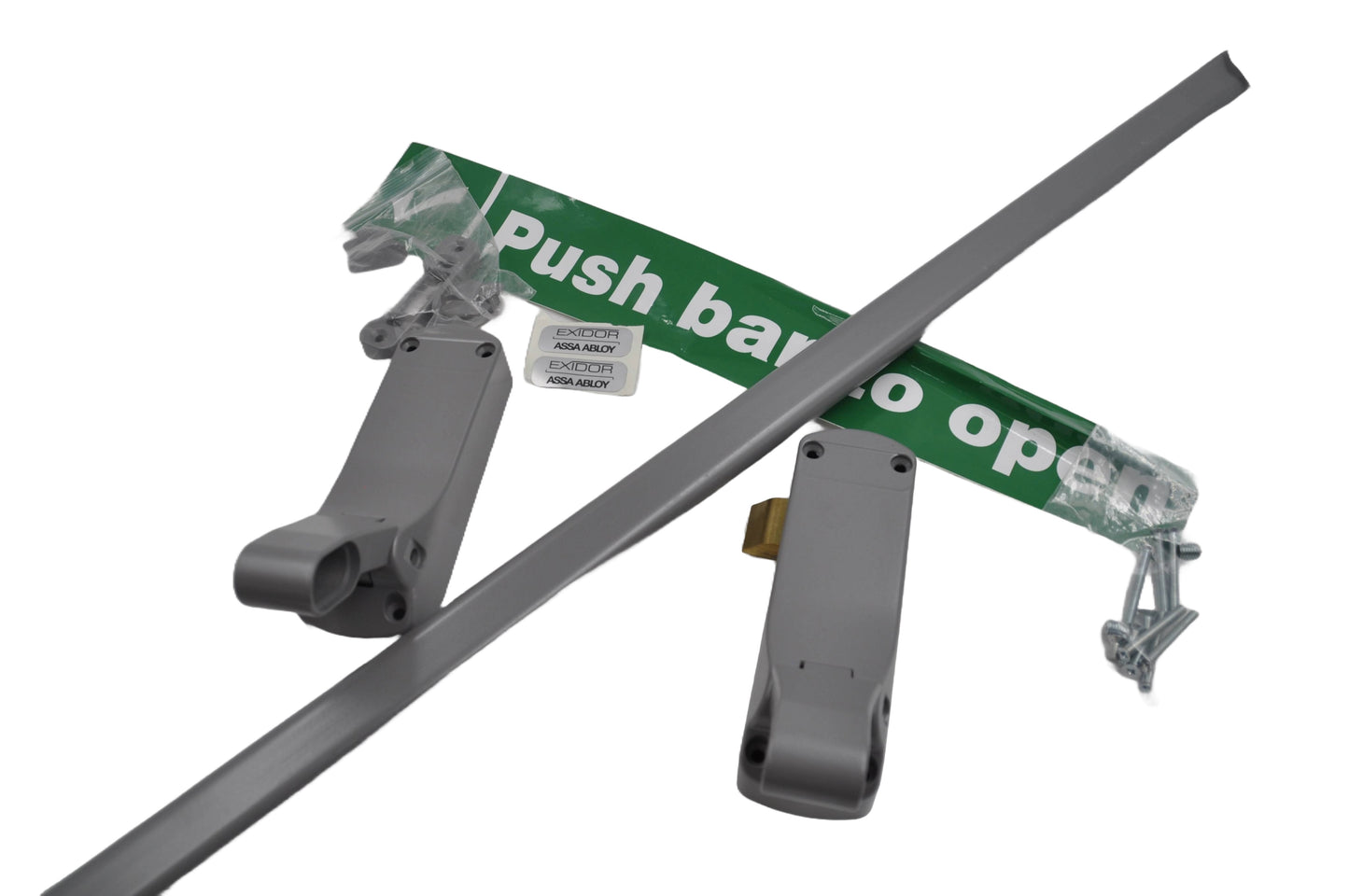

  • A silver Exidor single panic latch with a push bar, fixings in a plastic with a green sign with white lettering that reads Push bar to open, designed for emergency exit applications in buildings. On a white background.

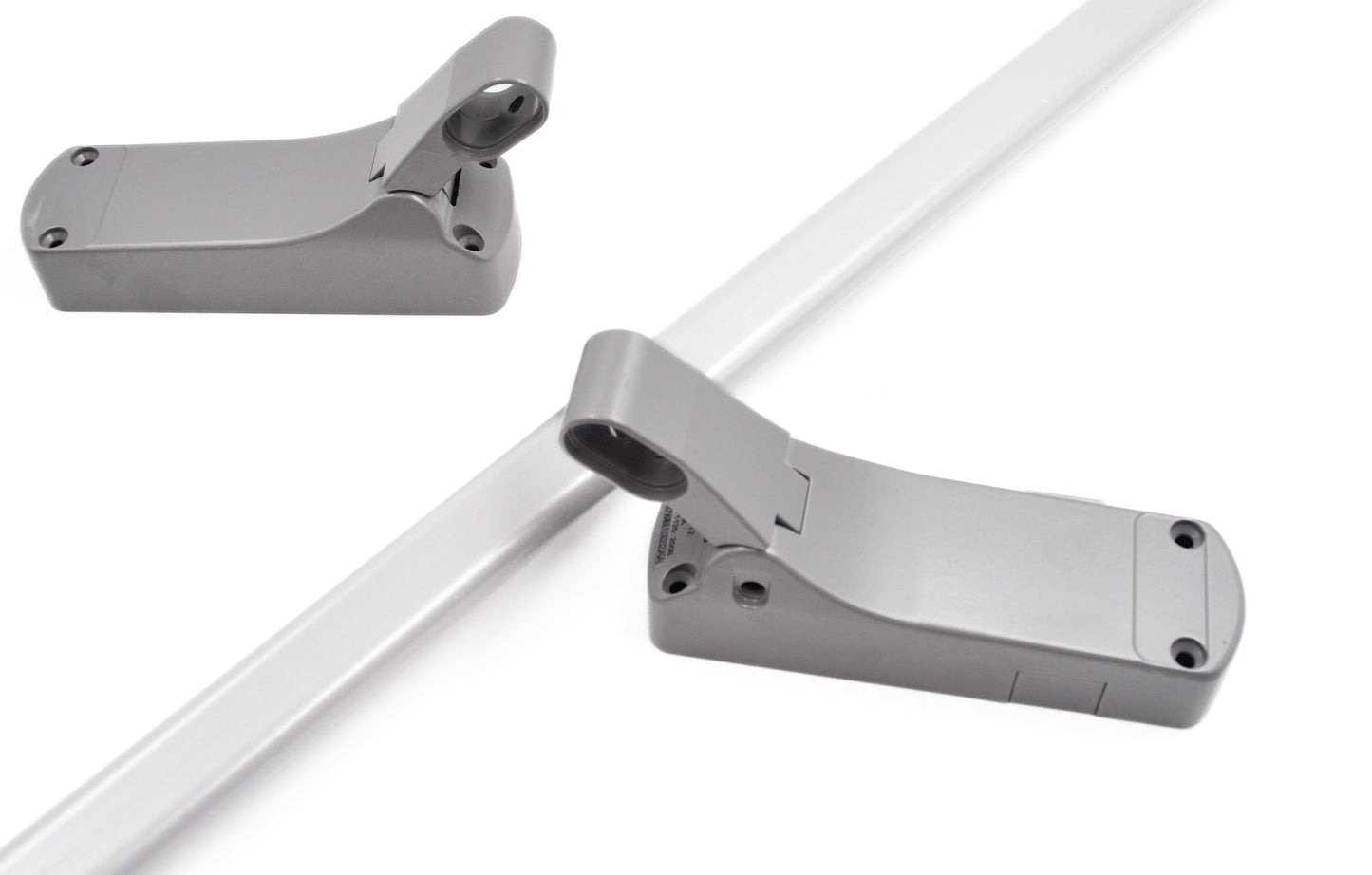

  • A silver Exidor single panic latch with a push bar, designed for emergency exit applications in buildings. On a white background.

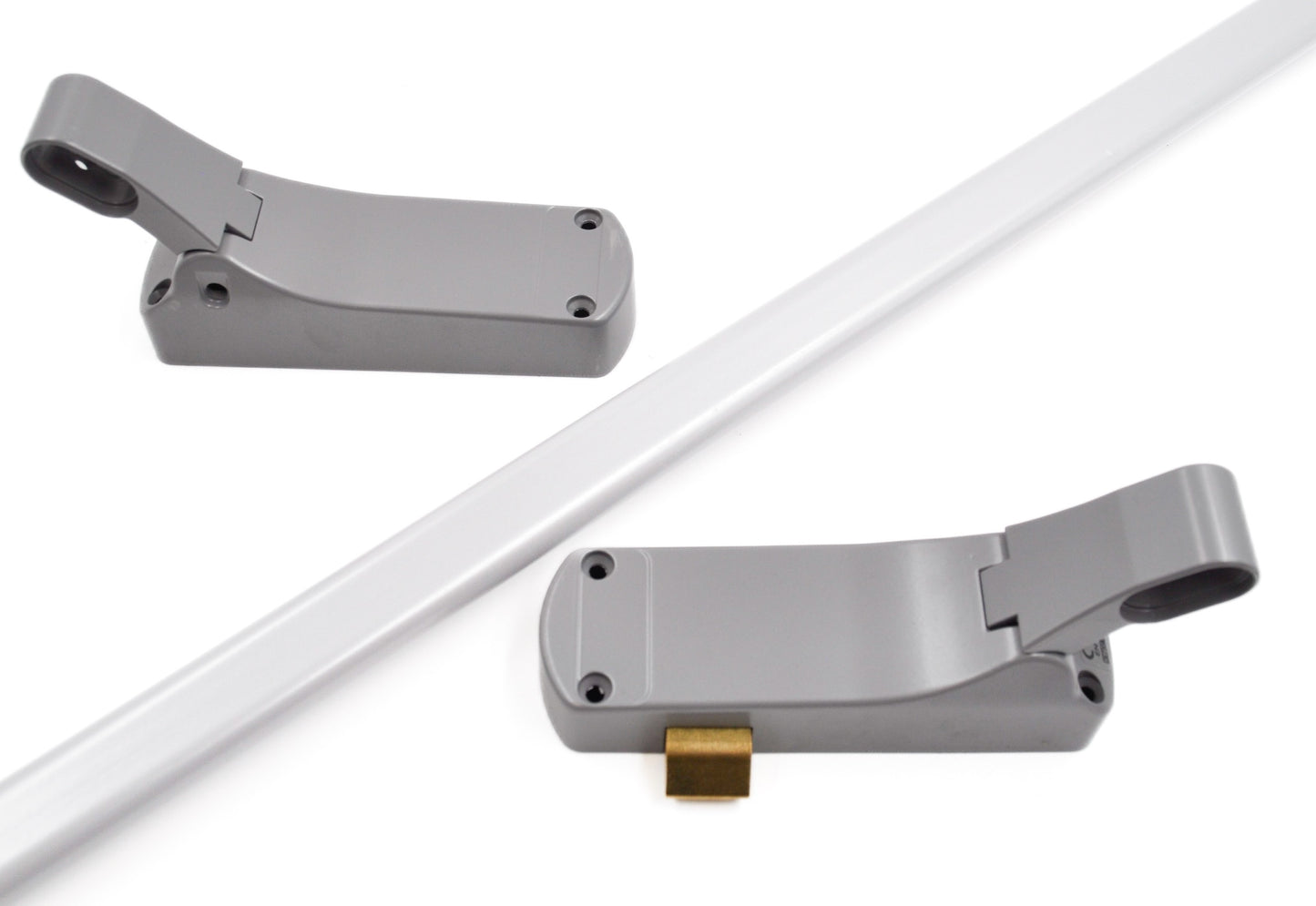

  • A silver Exidor single panic latch with a push bar, designed for emergency exit applications in buildings. On a white background.
  • A silver Exidor single panic latch with a push bar, designed for emergency exit applications in buildings. On a white background.
1 5

Exidor 296 Single Panic Latch Silver

Exidor 296 Single Panic Latch Silver

Net: £118.71
Incl. VAT: £142.45
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Exidor Single Point Locking Panic Latch – Push Bar Emergency Exit Device

The Exidor Single Point Locking Panic Latch provides a reliable and efficient emergency exit solution for commercial and public buildings. Featuring a robust push-bar design, this panic latch meets stringent safety standards, ensuring quick and easy escape during emergency situations. With a minimalistic appearance and universal handing, this product seamlessly integrates into various door types and widths.

Features and Benefits

Minimalist Appearance:

  • Compact design with minimal hardware visible, offering a neat and professional look.

Adjustable Push Bar:

  • Easily cut-to-size push bar, adaptable for door widths up to 1220mm, providing flexible installation.

Compatible Access Devices:

  • Works seamlessly with external access devices such as the 302EC and 322EC (available separately through our website).

Universal Fit:

  • Supplied complete with fixings suitable for either timber or steel doors, ensuring straightforward installation and compatibility.

Easy Installation & Adjustment:

  • Quick installation and simple adjustments, ideal for general-purpose emergency exit applications.

Technical Specifications

  • Activation: Push bar

  • Suitable Door Types:

    • Single doorset

    • Rebated double doorset (active leaf)

  • Projection: 98mm from door face

  • Locking Points: Single point

  • Bolt Style: Latch type

  • Durability: Tested to 200,000 cycles

  • Max Door Width: Up to 1220mm (cut-to-size bar)

  • Max Door Height: 2440mm

  • Max Door Mass: Up to 200kg

  • Handing: Universal

  • Finish: Silver

Certification & Compliance

  • UKCA & CE Marked: Compliant with relevant UK and European safety standards.

  • EN1125 Certified: Tested to meet requirements for panic exit devices.

  • Fire Door Suitability: Suitable for timber fire doors rated FD30, FD60, FD90, FD120 and metal doors rated FD120, FD240.

  • Certifire Approved: Guaranteed performance and reliability.

  • Manufacturer's Warranty: 10-year manufacturer’s guarantee for peace of mind.

View full details

FAQ's

What type of emergency exit device is the Exidor 296?

The Exidor 296 is a single-point panic latch operated by a push bar for compatible emergency exit doors.

What maximum door width is stated for the Exidor 296?

The listing states suitability for doors up to 1220mm wide, with the push bar cut to the required length.

What maximum door height and mass are listed?

The product information states up to 2440mm door height and 200kg door mass.

Is the Exidor 296 handed?

No specific handing is required; the listing describes the device as universally handed.

Which certification is stated for the panic latch?

The listing states UKCA and CE marking, EN1125 certification and Certifire approval.
