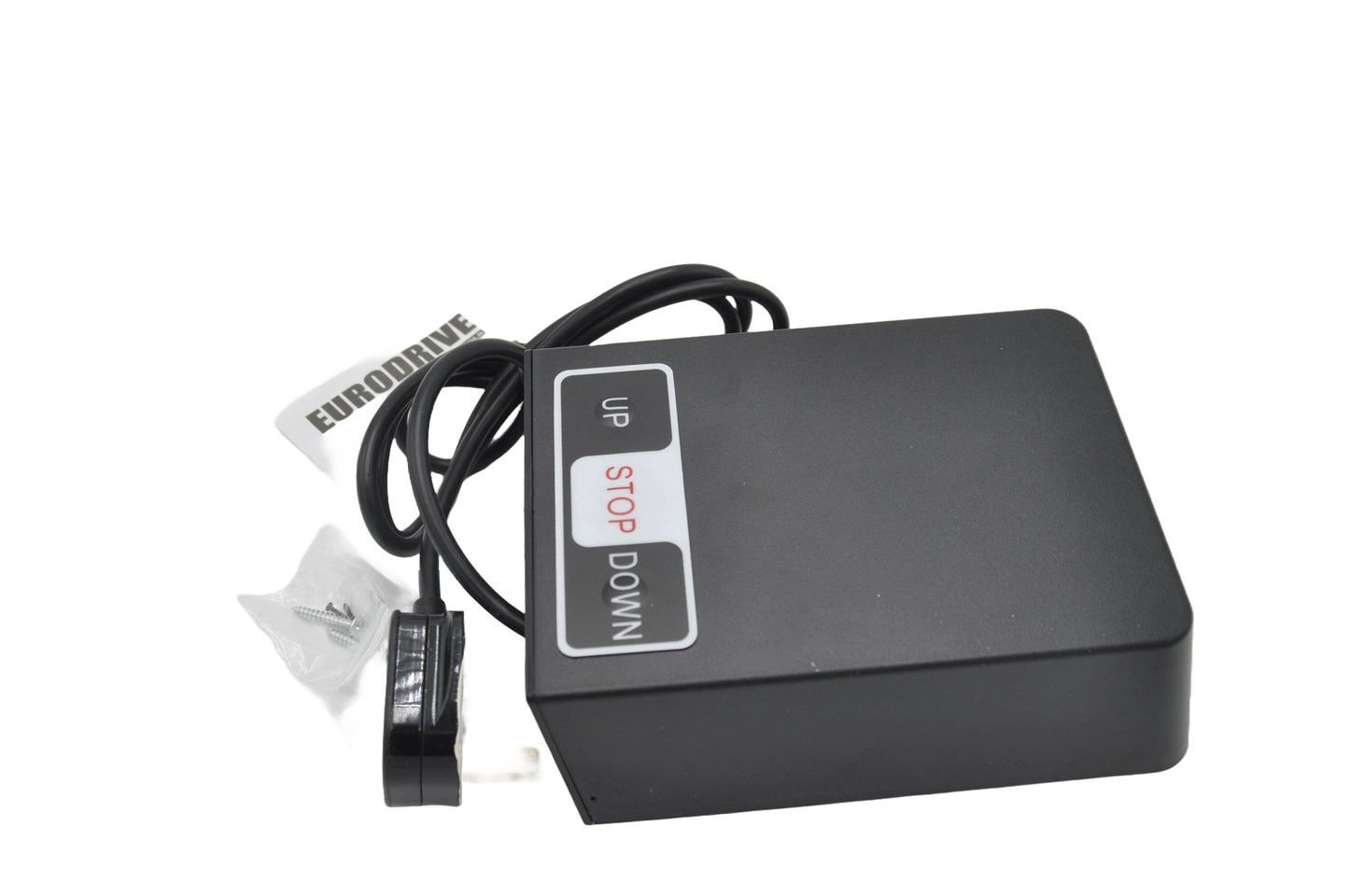

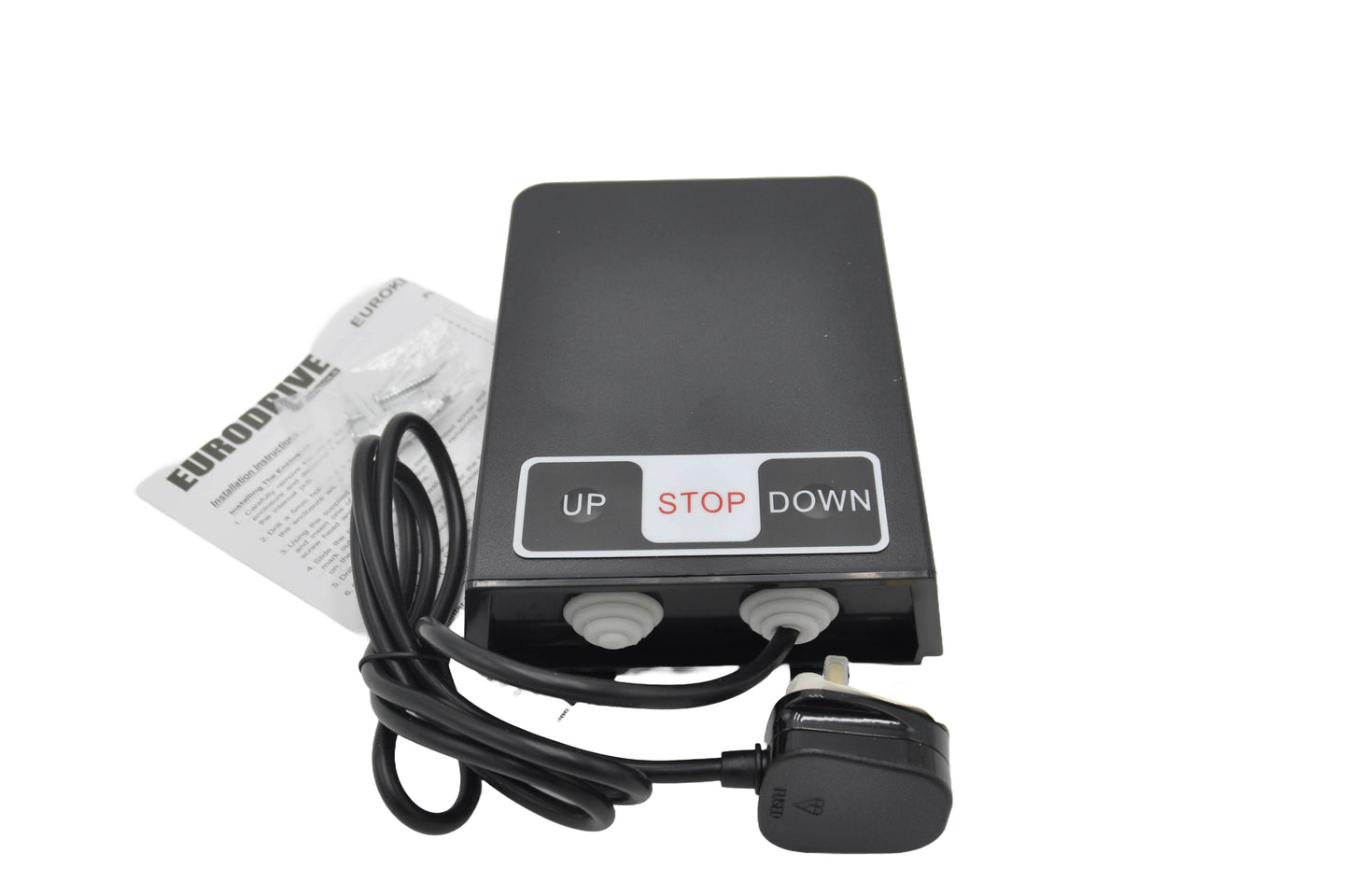

Eurodrive EURO KIT 3 Roller Shutter Control unit

Eurodrive EURO KIT 3 Roller Shutter Garage Door Radio Control Unit – Complete with Photocell & Eurofob Transmitters

The Eurodrive EURO KIT 3 is a versatile and advanced radio control receiver kit for roller shutter garage doors. Offering seamless compatibility and enhanced safety, this genuine Eurodrive product includes a stop & return feature triggered by safety inputs, photocell and reflector kit, and two Eurofob single-channel hand transmitters.

Key Features & Benefits:

• Advanced Radio Control:
  Operates at a reliable frequency of 433.92MHz, providing secure and efficient wireless control.

• Complete Kit with Safety Features:
  Supplied with photocell and reflector safety kit to ensure compliance with EU safety standards, including a "deadman close" safety option.

• Flexible Control Options:
  Features impulse open/close or impulse open/deadman close operation, with additional low-voltage inputs for connecting key switches, rocker switches, and other accessories.

• Integrated Light Output Relay:
  Includes a programmable 230v relay output for garage lighting, with a three-minute run-time feature.

• Easy Installation:
  Comes pre-wired with a 1.5m power cable and a moulded UK plug, alongside easy-to-follow installation instructions and fixing screws.

Technical Specifications:

• Operating Frequency: 433.92MHz

• Voltage Compatibility: 230v motors up to 360Nm

• Power Supply: Pre-wired 1.5m cable with UK plug

• Relay Output: 230v, programmable three-minute lighting run-time

• CE Compliance: Fully compliant with EU regulations

• Safety Inputs: Photocell safety kit included (stop & return function)

• Input Types: Low-voltage for switches (key, rocker etc.)

Eurofob Hand Transmitter Specifications:

• Transmitter Quantity: 2 handsets supplied

• Frequency: 433.92MHz

• Single Channel: Open, close, and stop functions

• Design Features: 4-button handset with sliding protective cover

• Compatibility: Specifically designed for use with the EURO KIT 3 control unit

• Ease of Use: Supplied with simple programming instructions
