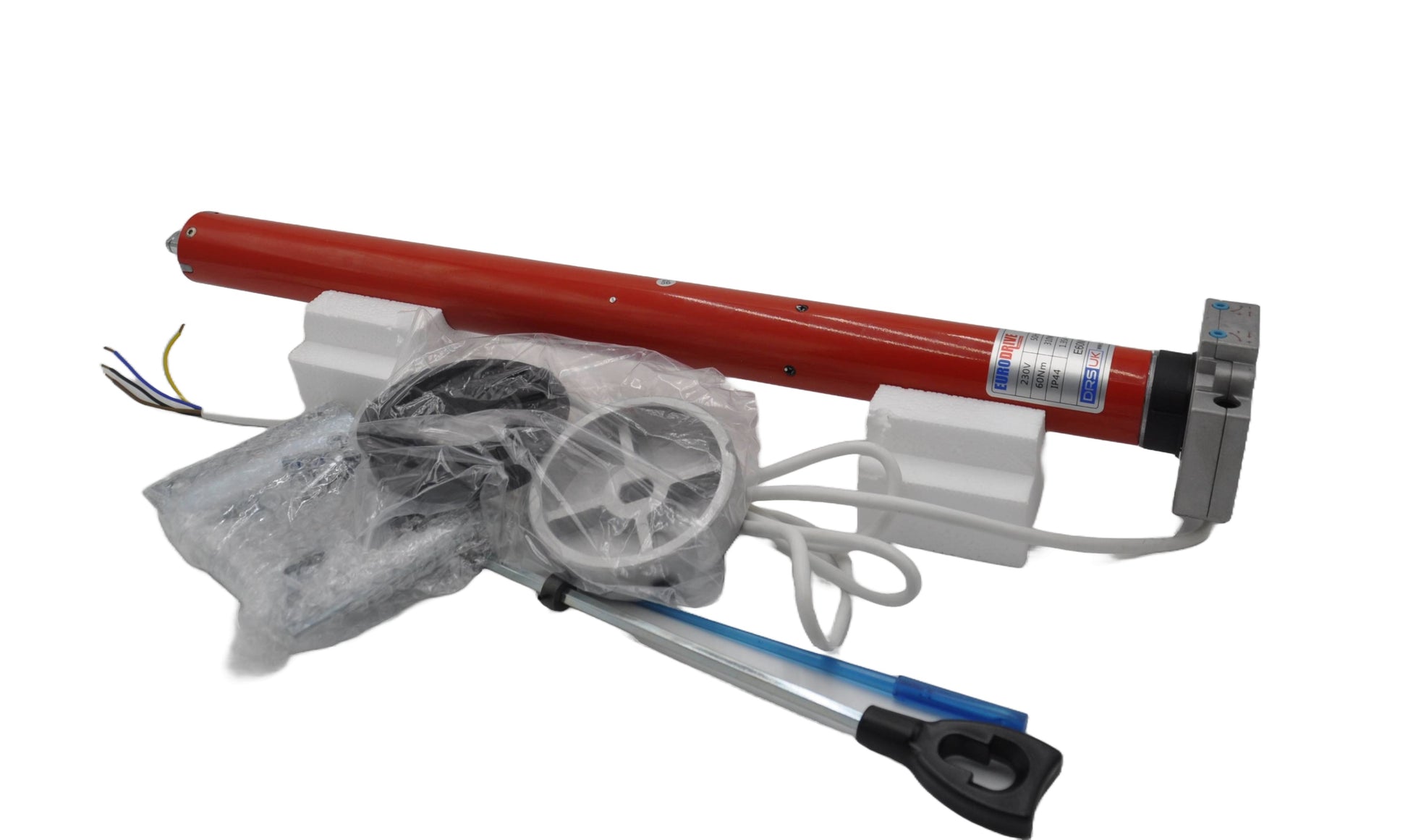

• A Eurodrive/DRS 60Nm tubular motor , including components and manual override mechanism. on a white background.
  • A white box with E60M/O in blue text printed on it, on a white background.

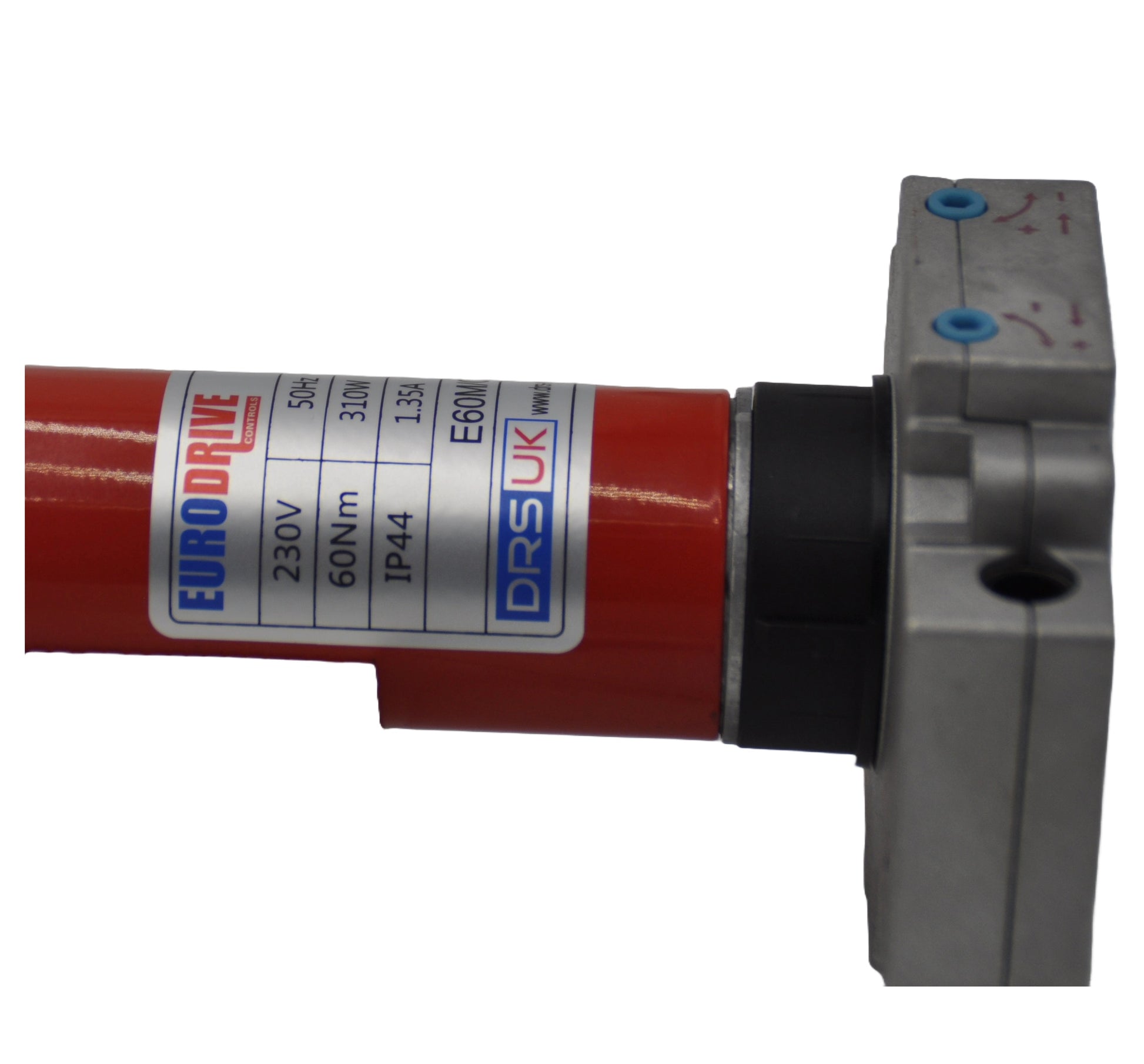

  • A red tubular motor for roller shutters, with wires and a grey label with blue, black and red text. On a white background
1 3

Eurodrive/DRS 60Nm (E60M/O) Tubular Motor

Eurodrive/DRS 60Nm (E60M/O) Tubular Motor

Net: £75.00
Incl. VAT: £90.00
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Eurodrive/DRS 60Nm (E60M/O) Tubular Motor – Manual Override for Single-Width Roller Shutter Garage Doors

The Eurodrive/DRS E60M/O is a genuine Eurodrive tubular motor specifically designed for single-width domestic roller shutter garage doors, including compact and mini variants. Featuring a convenient manual override, this motor ensures smooth and quiet door operation. It is available with multiple adaptors for compatibility with 60mm, 70mm octagonal, and standard SWS 4" barrels.

Key Features & Benefits:

  • Quiet & Efficient Operation:
    Provides reliable, low-noise opening and closing, ideal for residential environments.

  • Manual Override Feature:
    Allows manual door operation during power outages, providing continuous access and peace of mind.

  • Easy Installation:
    Supplied complete with clear fitting instructions and a limit adjustment tool, ensuring quick and hassle-free installation.

  • Flexible Adaptor Options:
    Available with adaptors for 60mm, 70mm octagonal, and SWS 4" barrels. Additional adaptor sizes available upon request.

Technical Specifications:

  • Torque: 60Nm

  • Lift Capacity: Approx. 90kg

  • Power Consumption: 310 Watts

  • Current Draw: 1.40 Amps

  • Rotation Speed: 12 RPM

  • Limit Turns: 15

  • Barrel Diameter: 45mm

  • Barrel Length: 625mm

  • Suitable Barrel Adaptors: 60mm, 70mm octagonal, SWS 4" (others available on request)

  • Compatible Door Slats: Suitable for mini or compact doors with 55mm lath/slats

View full details

FAQ's

What type of roller shutter is the Eurodrive E60M/O intended for?

It is listed for compatible single-width domestic roller shutter garage doors, including mini and compact doors.

What torque is the E60M/O motor rated at?

The motor is specified at 60Nm torque.

Does the E60M/O include a manual override?

Yes. The listing states that a manual override is included for use during power failure.

Which barrel adaptors are listed for the E60M/O?

The listing mentions 60mm and 70mm octagonal barrels and SWS 4-inch barrels.

What should be checked before ordering an E60M/O motor?

Confirm the shutter weight, torque requirement, barrel adaptor and 55mm lath configuration before ordering.
