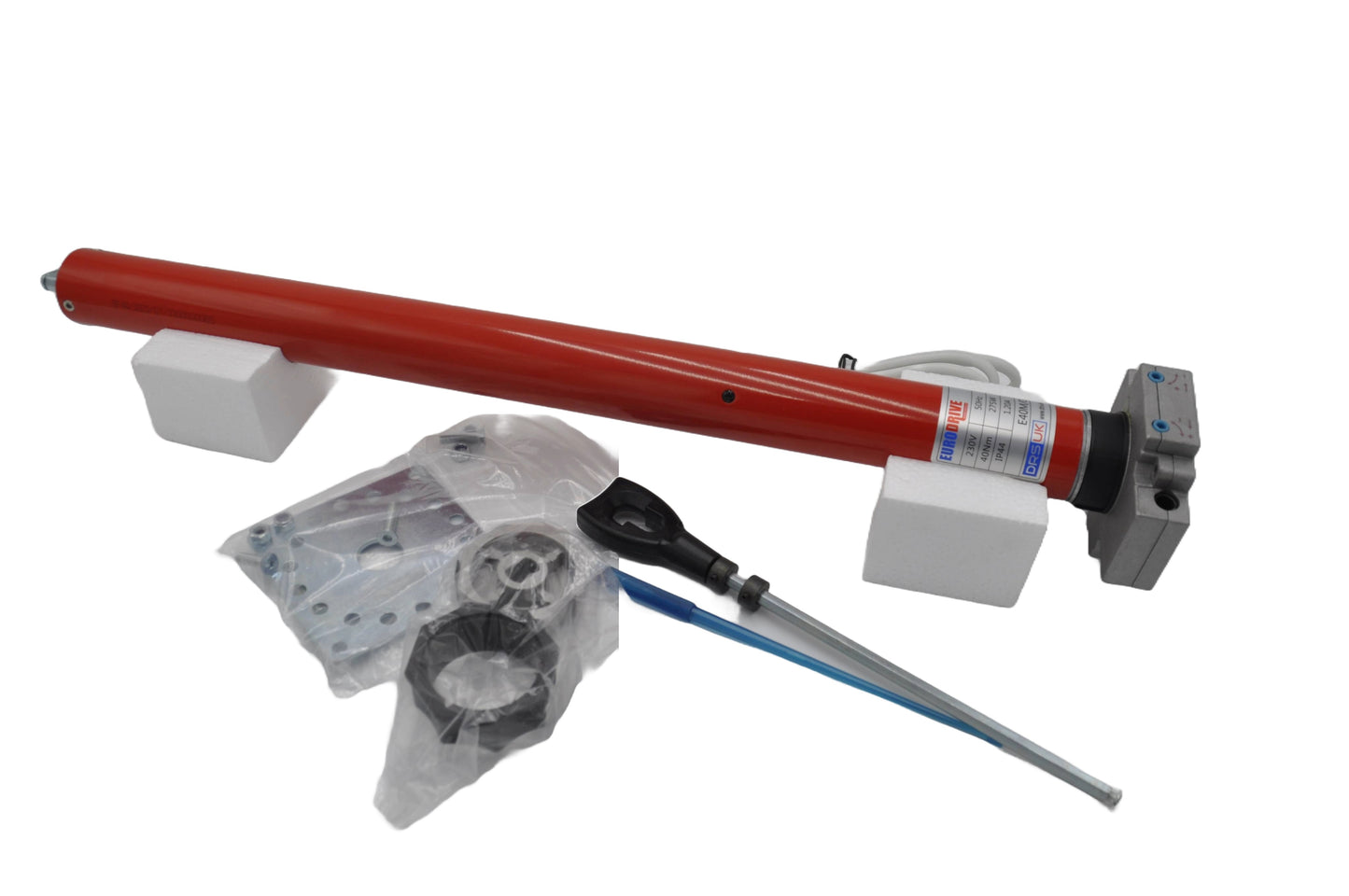

• A Eurodrive/DRS 40Nm Roller Shutter Tubular Motor with manual override components, including the motor unit, slat support, and installation tools. On a white background.

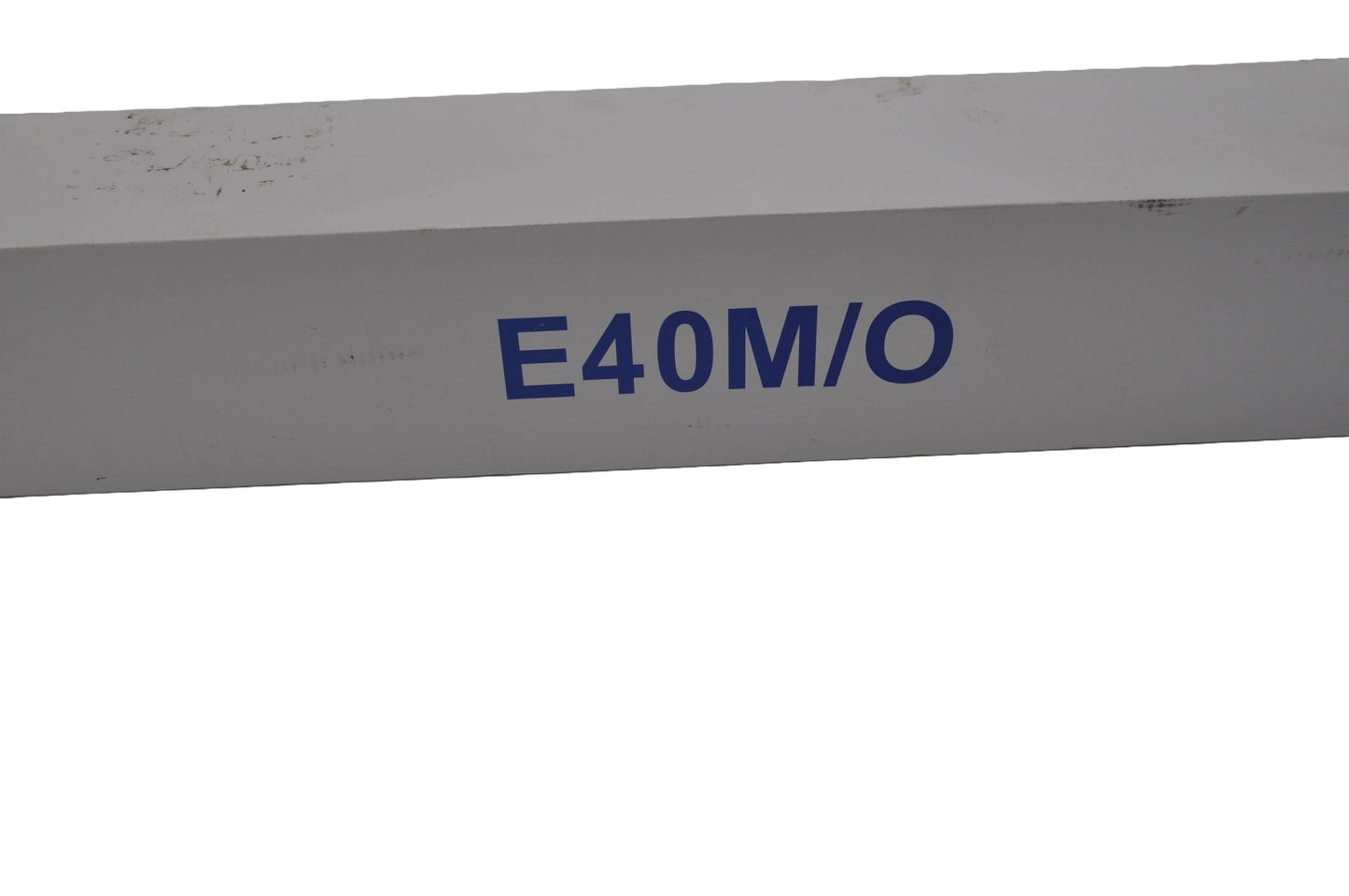

  • A white box with E40M/O in blue text, on a white background.

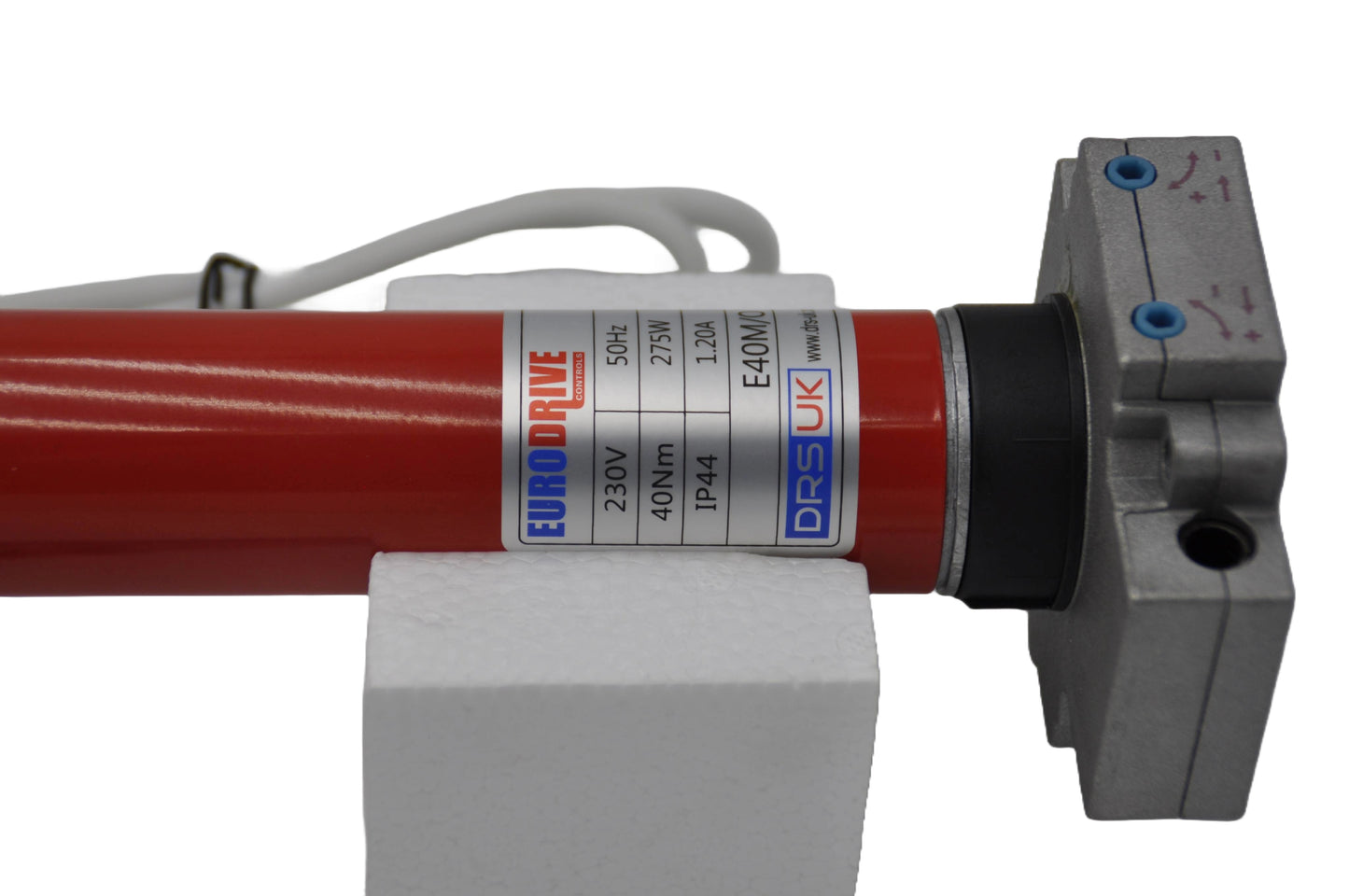

  • A red tubular motor for roller shutters, with wires and a grey label with blue, black and red text. On a white background
1 3

Eurodrive/DRS 40Nm (E40M/O) Roller Shutter Tubular Motor

Eurodrive/DRS 40Nm (E40M/O) Roller Shutter Tubular Motor

Net: £75.00
Incl. VAT: £90.00
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Eurodrive/DRS 40Nm (E40M/O) Roller Shutter Tubular Motor – Manual Override for Single-Width Garage Doors

The Eurodrive/DRS E40M/O is a genuine Eurodrive tubular motor specially engineered for single-width domestic roller shutter garage doors, including mini and compact varieties with 55mm slats. Featuring a manual override function and multiple adaptor sizes, this motor delivers reliable, quiet, and efficient operation.

Key Features & Benefits:

  • Quiet and Smooth Operation:
    Ensures low-noise opening and closing cycles, ideal for domestic applications.

  • Manual Override Capability:
    Provides continuous access even during power outages, enhancing convenience and reliability.

  • Simple Installation:
    Supplied with detailed fitting instructions and a limit adjuster tool, facilitating straightforward installation and setup.

  • Flexible Barrel Adaptors:
    Compatible with 60mm and 70mm octagonal barrels, and the popular SWS 4" barrel. Additional adaptors available on request.

Technical Specifications:

  • Torque: 40Nm

  • Lift Capacity: Approx. 60kg

  • Power Consumption: 275 Watts

  • Current Draw: 1.20 Amps

  • Rotation Speed: 15 RPM

  • Limit Turns: 15

  • Barrel Diameter: 45mm

  • Barrel Length: 625mm

  • Suitable Barrel Adaptors: 60mm, 70mm octagonal, SWS 4" (others available on request)

  • Compatible Door Slats: Suitable for mini or compact doors with 55mm lath/slats

View full details

FAQ's

What type of roller shutter is the Eurodrive E40M/O intended for?

It is listed for compatible single-width domestic roller shutter garage doors, including mini and compact doors.

What torque is the E40M/O motor rated at?

The motor is specified at 40Nm torque.

Does the E40M/O include a manual override?

Yes. The listing states that the motor includes a manual override for use during power failure.

Which barrel adaptors are listed for the E40M/O?

The listing mentions 60mm and 70mm octagonal barrels and SWS 4-inch barrels.

What should be checked before ordering an E40M/O motor?

Confirm the shutter weight, torque requirement, barrel adaptor and 55mm lath configuration before ordering.
