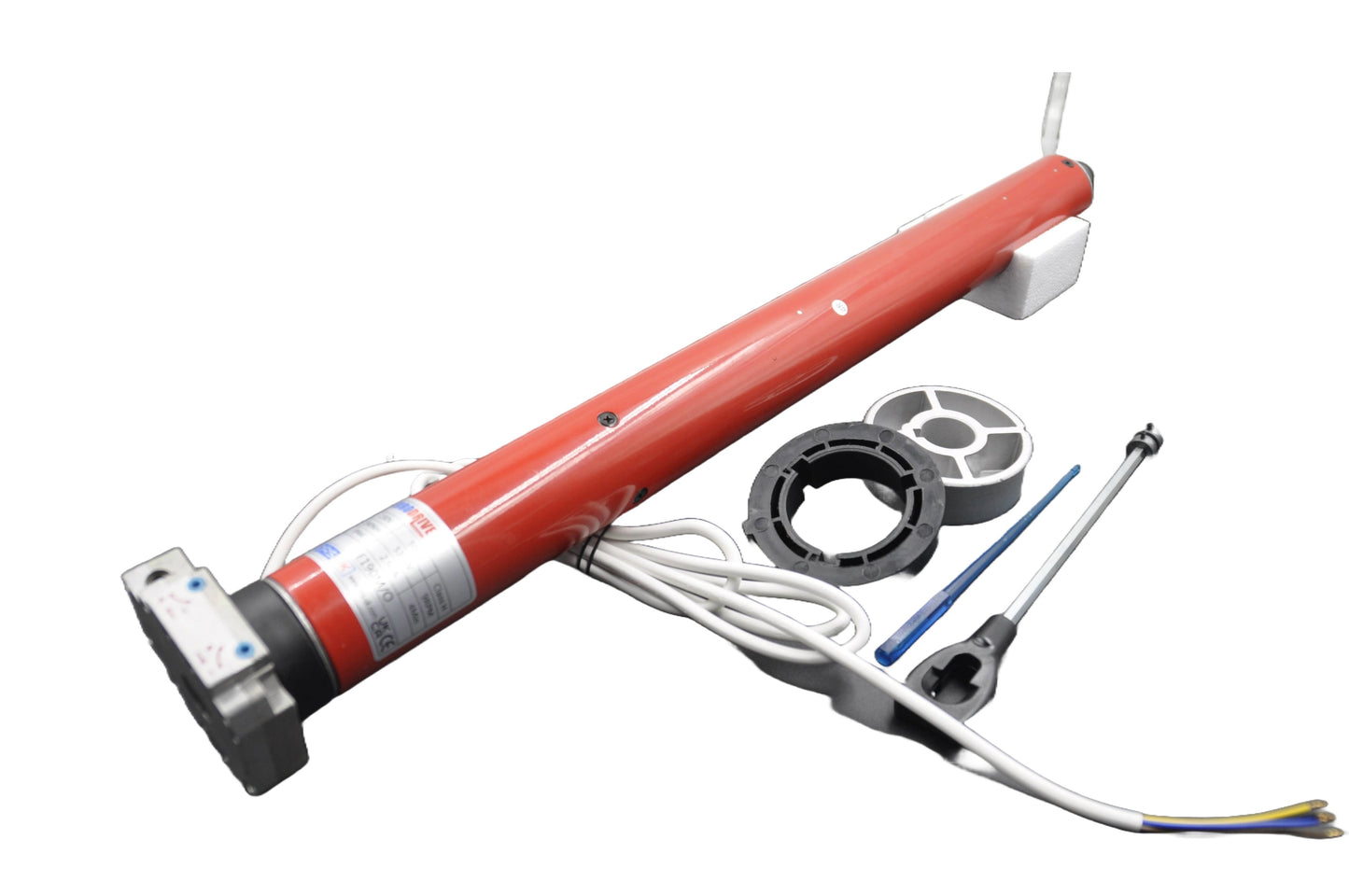

Eurodrive/DRS 190Nm Industrial Roller Shutter Tube Motor (E190M/O)

Eurodrive/DRS 190Nm Industrial Roller Shutter Tube Motor (E190M/O)

Net: £187.06
Incl. VAT: £224.47
Taxes included.

Eurodrive/DRS 190Nm (E190M/O) Tubular Motor – Manual Override for Industrial Roller Shutters

The Eurodrive/DRS E190M/O is a genuine Eurodrive high-torque tubular motor, purpose-built for large commercial and industrial roller shutters, warehouse doors, and heavy-duty applications. With a powerful 190Nm torque rating, it delivers smooth, consistent operation and includes a manual override, providing continued functionality during power outages.

This motor is ideal for full-height shutters, wide-span openings, or high-wind load environments and can be supplied with adaptors to suit various barrel profiles, including 70mm, 102mm octagonal, and SWS 4" barrels.

Key Features & Benefits:

Heavy-Duty Performance:
Designed to drive large, heavy shutters reliably in high-use commercial or industrial settings.

Manual Override Feature:
Integrated manual override system allows safe and convenient door operation during power failures.

Smooth & Consistent Operation:
Delivers strong drive performance while maintaining quiet and controlled movement.

Wide Barrel Compatibility:
Available with adaptors for 70mm, 102mm octagonal, and SWS 4" barrels. Other sizes available on request.

Robust Build Quality:
Built for long service life under demanding conditions with minimal maintenance.

Technical Specifications:

  • Torque: 190Nm

  • Lift Capacity: Approx. 240–270kg (depending on door and barrel type)

  • Power Consumption: 420 Watts

  • Current Draw: 1.90 Amps

  • Rotation Speed: 9 RPM

  • Limit Turns: 15

  • Barrel Diameter: 63mm (core shaft)

  • Barrel Length: 725mm (excluding drive components)

  • Suitable Barrel Adaptors: 70mm, 102mm octagonal, SWS 4" (others available on request)

  • Compatible Door Slats: Suitable for industrial doors with 77mm or larger lath/slats

The Eurodrive/DRS E190M/O tubular motor is the ideal choice for industrial roller shutters requiring reliable power, high lifting capacity, and a dependable manual override. Built for demanding environments, it ensures strong, long-lasting performance.

Let me know if you'd like versions for different torque ratings, full kit bundles (with safety brake and control panel), or wiring schematics.

View full details

FAQ's

What is the Eurodrive/DRS 190Nm Industrial Roller Shutter Tube Motor and what is it used for?

Eurodrive/DRS 190Nm (E190M/O) Tubular Motor – Manual Override for Industrial Roller Shutters The Eurodrive/DRS E190M/O is a genuine Eurodrive high-torque tubular motor, purpose-built for large commercial and industrial roller shutters , warehouse doors

Where is this typically used?

It is ideal for full-height shutters, wide-span openings, or high-wind load environments and can be supplied with adaptors to suit vario. That makes it well suited to commercial and high-traffic automatic door installations.

Where is this typically used?

Replace the Eurodrive/DRS 190Nm Industrial Roller Shutter Tube Motor when you notice signs of wear such as noisy or uneven door movement, visible damage or play, or reduced performance. Fitting a fresh part also helps protect the surrounding components from further wear.

Does the Eurodrive/DRS 190Nm Industrial Roller Shutter Tube Motor provide eurodrive/drs 190nm (e190m/o) tubular motor – manual override?

Eurodrive/DRS 190Nm (E190M/O) Tubular Motor – Manual Override for Industrial Roller Shutters.

Does the Eurodrive/DRS 190Nm Industrial Roller Shutter Tube Motor provide heavy-duty performance?

Designed to drive large, heavy shutters reliably in high-use commercial or industrial settings.
