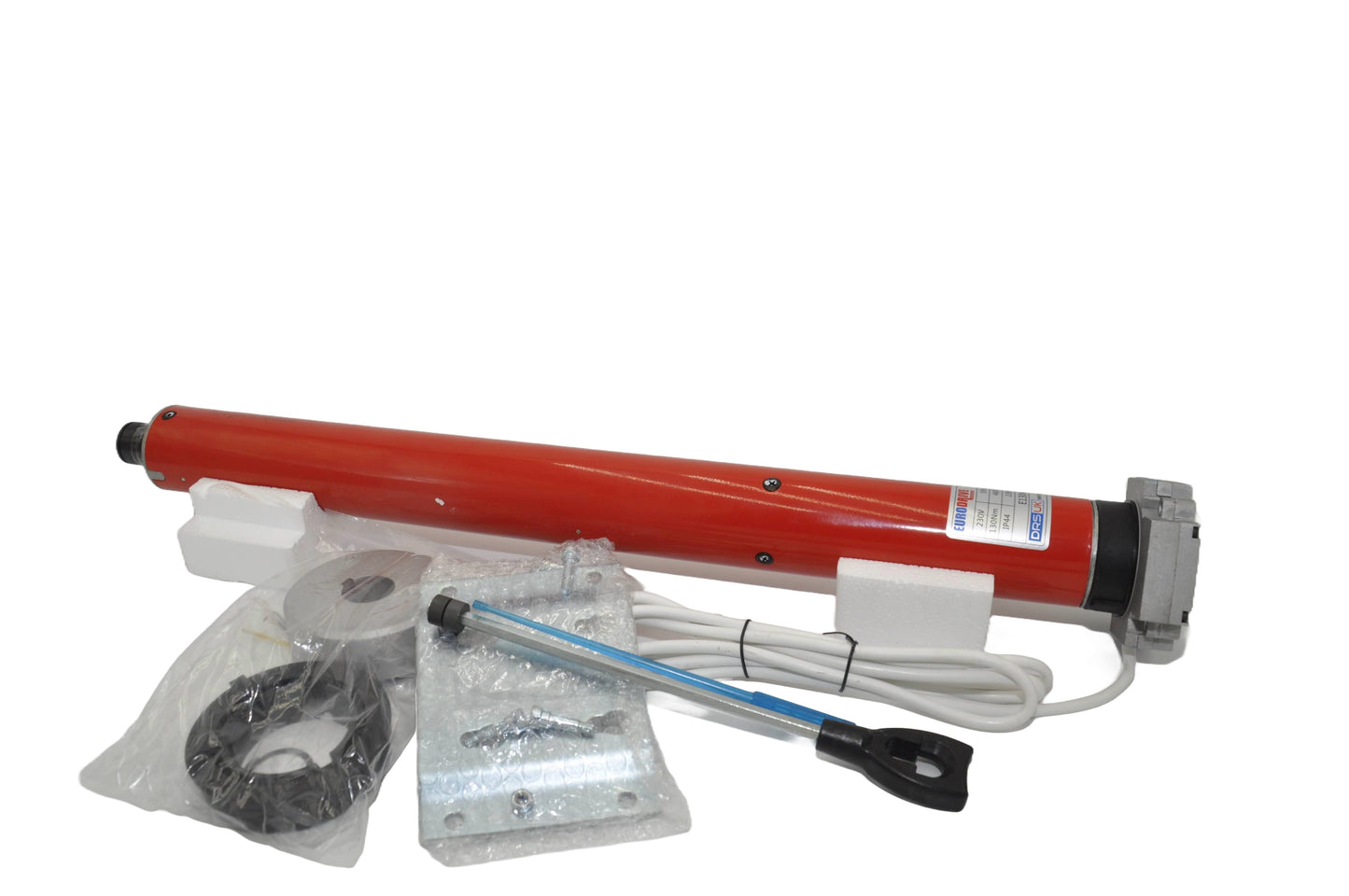

• A Eurodrive/DRS 130Nm Roller Shutter Tubular Motor with manual override, displayed alongside its installation accessories and components, such as cables and adaptors. On a white background.
  • A white box with E130M/O in blue lettering in the middle, on a white background.

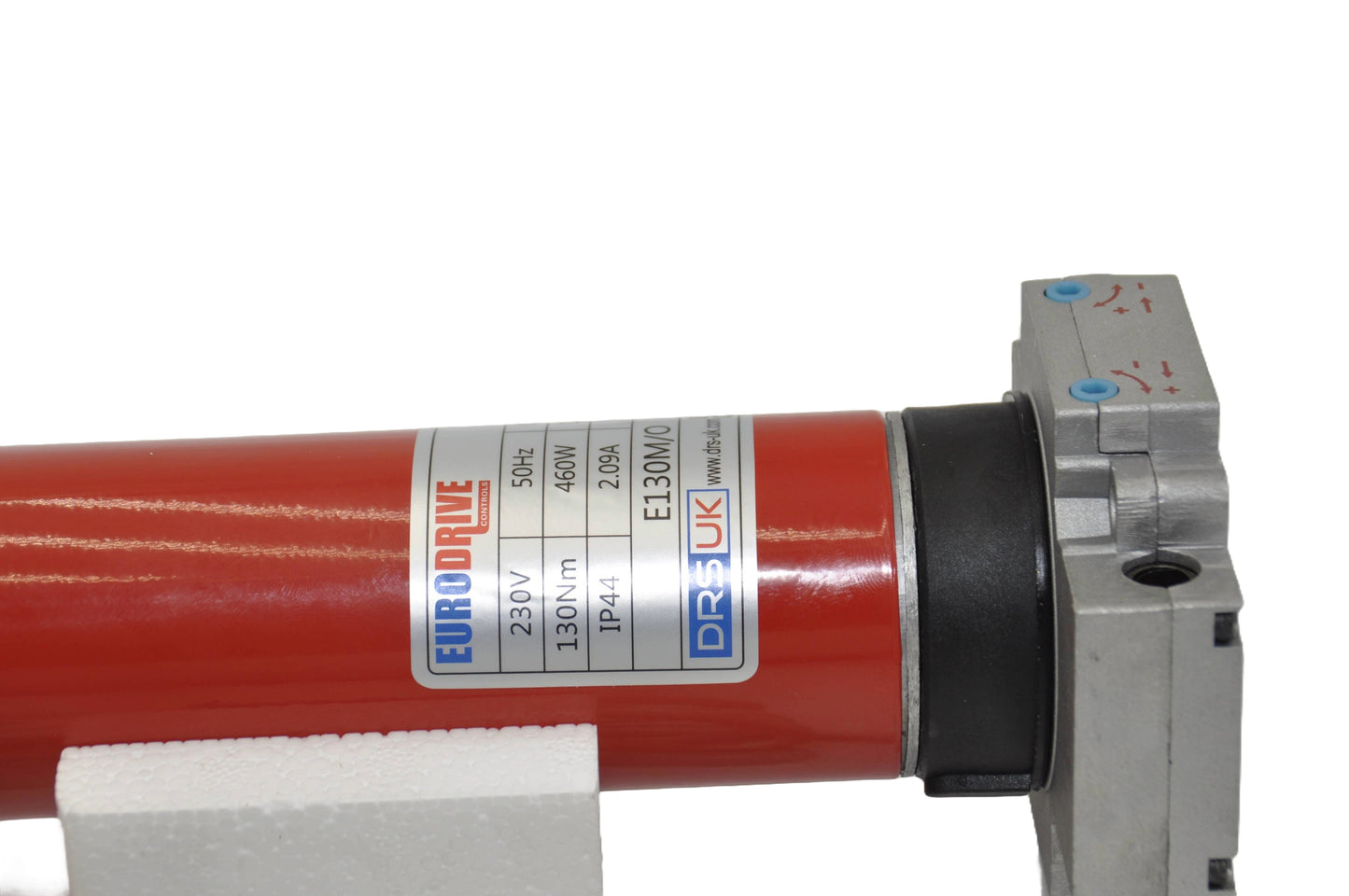

  • Part of a E130nm Motor in red with a label in grey, blue and red. On a white background.
1 3

Eurodrive/DRS 130Nm (E130M/O) Roller Shutter Tubular Motor

Eurodrive/DRS 130Nm (E130M/O) Roller Shutter Tubular Motor

Net: £100.50
Incl. VAT: £120.60
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Eurodrive/DRS 130Nm (E130M/O) Roller Shutter Tubular Motor with Manual Override

The Eurodrive/DRS 130Nm (E130M/O) is a powerful and reliable tubular motor, designed specifically for double-width domestic roller shutter garage doors. Featuring a convenient manual override function and compatibility with various barrel sizes (including 60mm or 70mm octagonal barrels and SWS 4" barrels), this motor delivers quiet, efficient, and secure operation for domestic garage door applications.

Key Features & Benefits:

  • Quiet and Reliable Operation:
    Engineered for smooth, quiet performance during opening and closing cycles, ideal for domestic settings.

  • Manual Override Capability:
    Integrated manual override provides essential backup in case of power failure, ensuring access and peace of mind.

  • Simple Installation:
    Supplied complete with clear fitting instructions and a limit adjuster tool, facilitating straightforward installation and setup.

  • Versatile Compatibility:
    Includes adaptors for common barrel sizes such as 70mm octagonal and SWS 4". Additional adaptors available upon request, providing flexible installation options.

Technical Specifications:

  • Torque: 130Nm

  • Lift Capacity: Approx. 195kg

  • Power Consumption: 460 Watts

  • Current: 2.09 Amps

  • Speed: 12 RPM

  • Limit Turns: 26

  • Barrel Diameter: 59mm

  • Barrel Length: 675mm

  • Suitable Barrel Adaptors: 60mm or 70mm octagonal, SWS 4" (additional sizes on request)

  • Compatible Door Slats: 77mm lath/slats

View full details

FAQ's

What type of roller shutter is the Eurodrive E130M/O motor intended for?

It is listed for compatible double-width domestic roller shutter garage doors.

What torque is the E130M/O motor rated at?

The motor is specified at 130Nm torque.

Does the E130M/O include a manual override?

Yes. The model is listed with an integrated manual override for operation during a power failure.

Which barrel adaptors are listed for the E130M/O?

The listing mentions 60mm or 70mm octagonal barrels and SWS 4-inch barrels, with other adaptors available separately.

What should be checked before selecting the E130M/O motor?

Confirm the required torque, shutter weight, barrel size, adaptor and 77mm lath compatibility before ordering.
