Eurodrive (97mm) adaptor set to suit EURO 20-60

Eurodrive (97mm) adaptor set to suit EURO 20-60

Net: £10.39
Incl. VAT: £12.47
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

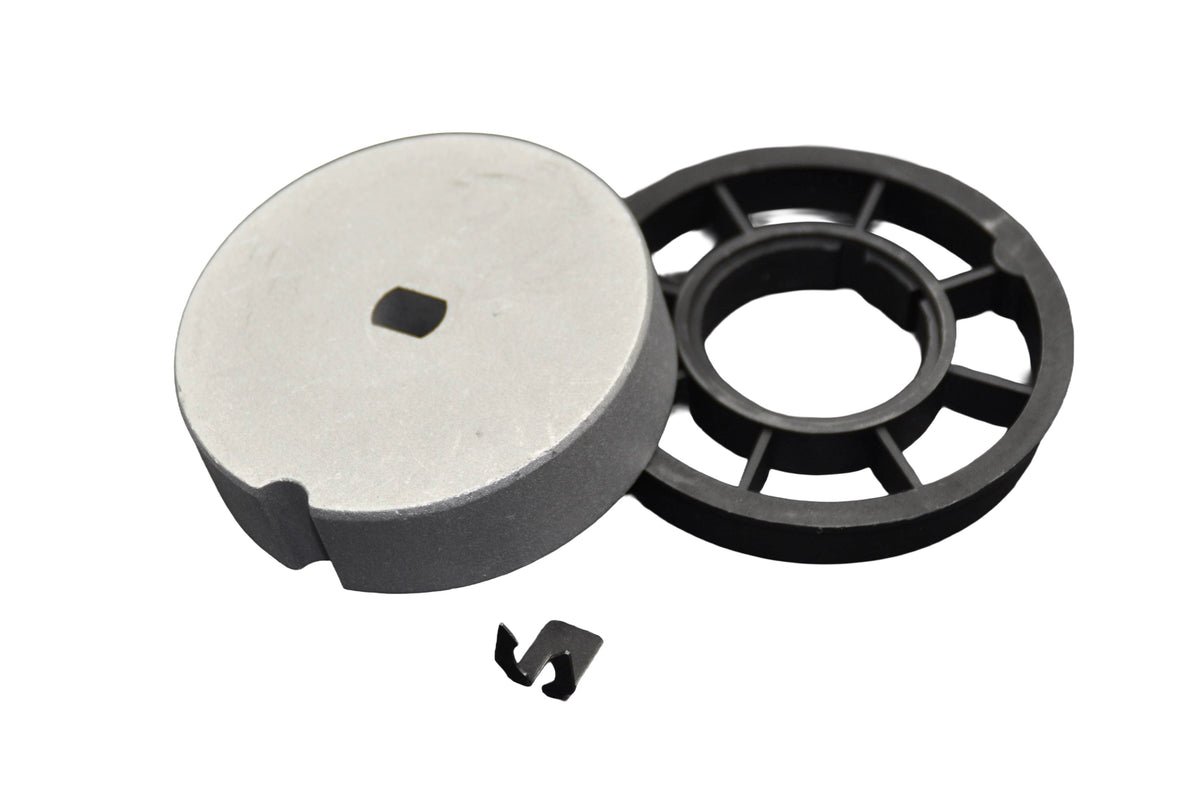

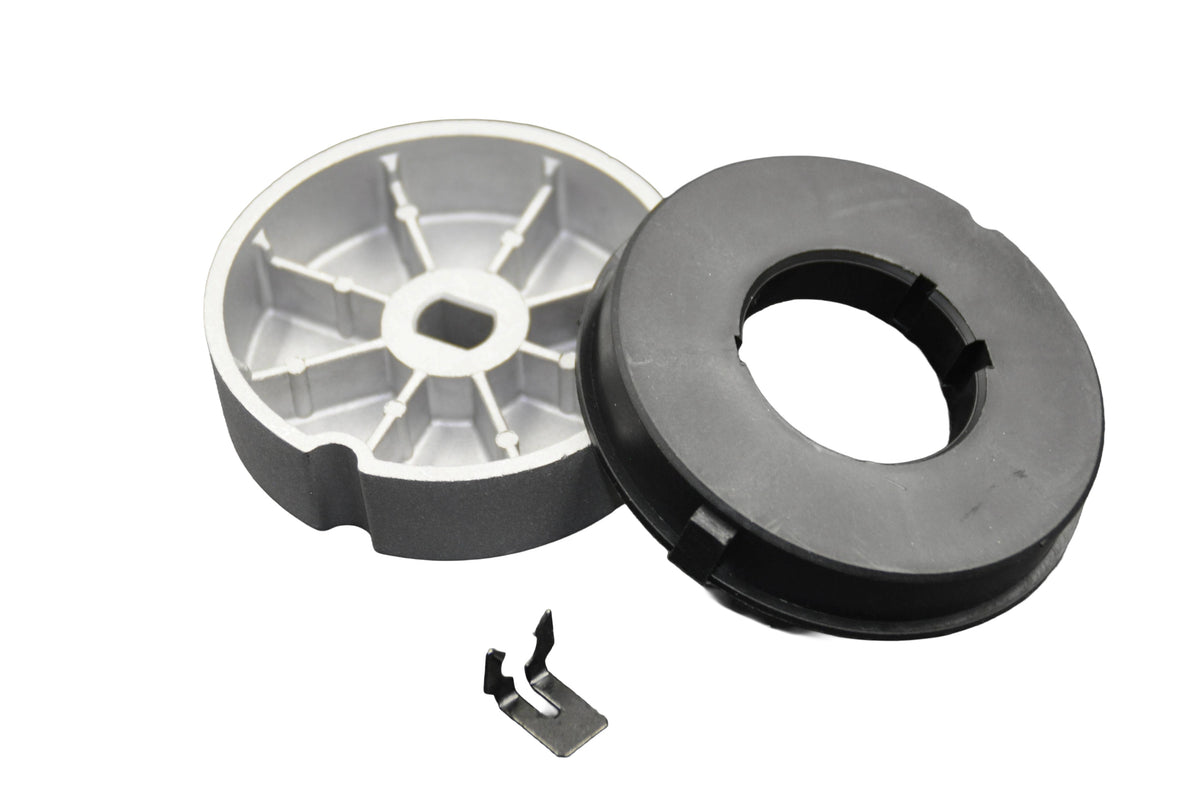

Eurodrive 97mm Tube Adaptor Set for EURO 20–60 Tubular Roller Shutter Motors

The Eurodrive 97mm Adaptor Set is a motor-to-barrel fitting accessory listed for compatible EURO 20–60 tubular roller shutter motors. It provides the specified 97mm outside adaptor size for use with a correctly matched roller shutter barrel profile.

Eurodrive adaptor tables include 97mm fittings for particular 4-inch steel tube configurations, but tube shape and wall thickness vary between barrels. For a reliable replacement, match the existing motor, adaptor profile and barrel dimensions rather than relying on the nominal tube diameter alone.

Key Features & Benefits

97mm Adaptor Size
Specified with a nominal 97mm outside adaptor dimension.

Listed for EURO 20–60 Motors
Intended for compatible Eurodrive 20–60 tubular motor installations.

Motor-to-Barrel Adaptation
Provides the fitting interface required when installing the motor within the matching barrel.

Suitable for 4-Inch Barrel Applications
97mm Eurodrive adaptor profiles are used with specified 4-inch steel tube configurations, subject to checking the exact tube type.

Ideal for Motor Replacement
Useful when original adaptor components are missing, worn or unsuitable for the replacement barrel.

Profile Compatibility Matters
Round and other specialist tube profiles may require different adaptor designs even where their nominal sizes are similar.

Technical Specifications

Product Type: Tubular motor adaptor set

Manufacturer / Range: Eurodrive

Adaptor Size: 97mm nominal outside profile

Motor Compatibility: Compatible EURO 20–60 tubular motor arrangements

Application: Roller shutter motor-to-barrel fitting

Barrel Compatibility: Check tube shape, internal dimension and wall thickness

Supply: Adaptor set only

Motor Included: No

The Eurodrive 97mm Adaptor Set provides a replacement barrel-fitting option for compatible EURO 20–60 tubular motor systems where the corresponding 97mm adaptor profile is required.

View full details

Manufacturer Part Number

ED0930

FAQ's

What does the 97mm measurement refer to?

It identifies the nominal outside size of the adaptor profile, rather than the motor length or the roller shutter opening width.

Which Eurodrive motors does this set suit?

The product is listed for the EURO 20–60 tubular motor range. Check the exact motor drive connection before installation.

Will it fit any 4-inch roller shutter barrel?

Not automatically. Four-inch barrels are available in different profiles and wall thicknesses, so the exact internal shape and dimension must match the adaptor.

Is this the same item as the Eurodrive 97mm collar?

No. This listing is for a 97mm adaptor set; the separately listed 97mm collar should not be assumed to include the complete set.

Does the product include a tubular motor?

No. The adaptor components are supplied separately from the motor.
