EMC-3C Fire Door Interface Panel (With Audio / Visual Warning)

EMC-3C Fire Door Interface Panel (With Audio / Visual Warning)

Net: £495.00
Incl. VAT: £594.00
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Instruction Manual

View Manual

EMC-3C Fire Door Interface Panel for Specialized Door Operators

The EMC-3C Fire Door Interface Panel provides interface and warning functions for compatible specialised door operators. It combines audible and visual indication with voltage-free outputs; the complete system must be specified and commissioned for the site's fire strategy.

Key Features & Benefits:

  • Easy Installation:
    Straightforward setup and integration, designed to simplify the commissioning process, reducing installation time and complexity.

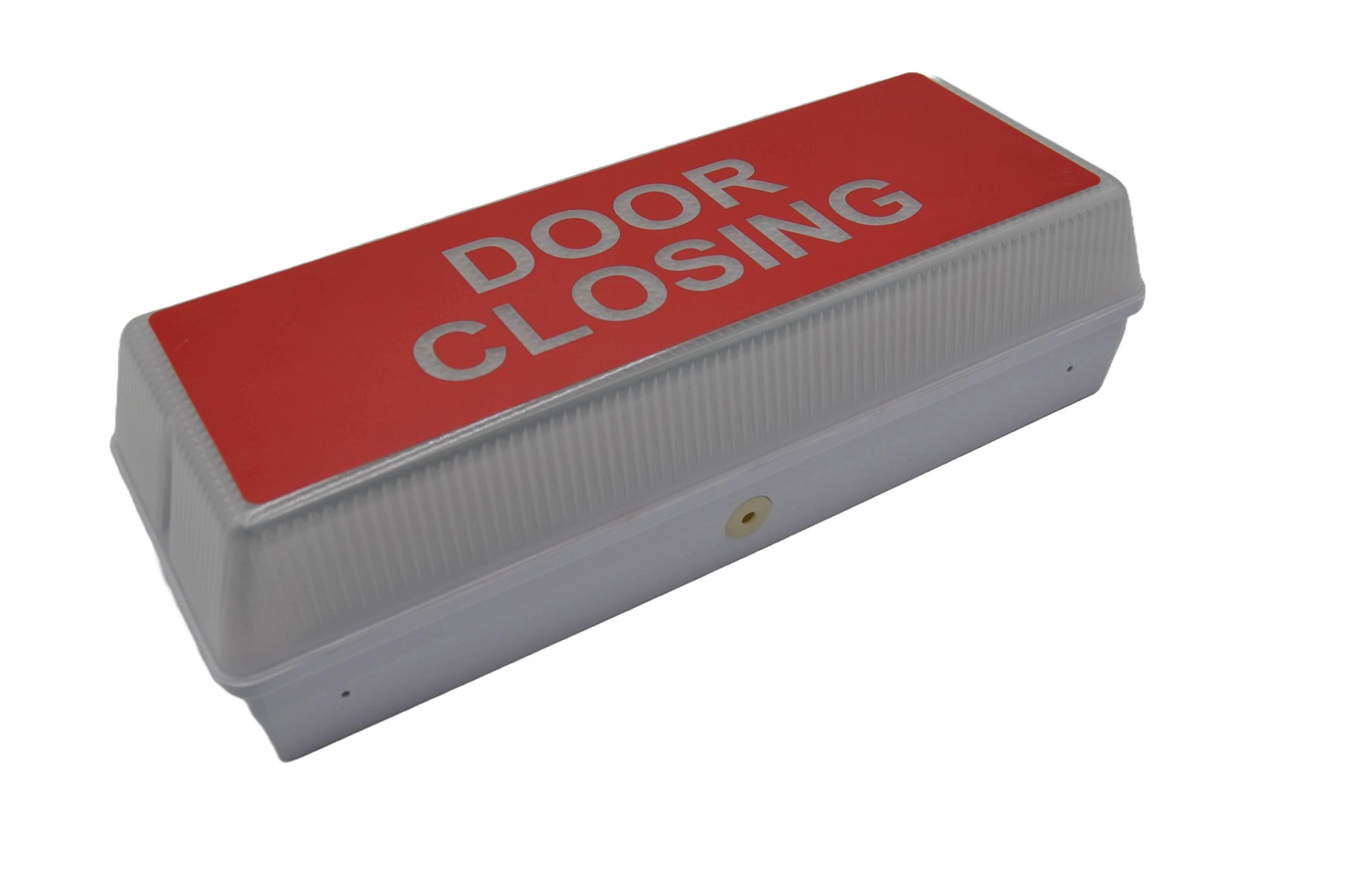

  • Ultra-Bright LED Illumination:
    Provides clear, visual indication of system status, ensuring immediate recognition of door condition, even from a distance.

  • Combined Audio/Visual Warning:
    Dual alerts ensure maximum awareness during emergencies, significantly enhancing building safety.

  • Battery Backup as Standard:
    Integrated batteries support the panel's backup operation. Runtime depends on battery condition and connected loads; this does not by itself guarantee continued motor operation.

  • Audible Low Battery Warning:
    Alerts maintenance teams proactively when batteries require replacement, ensuring continuous reliability.

  • Adjustable Volume Control:
    Allows customisation of audible warning levels to suit specific environments and safety requirements.

  • Startup Warning:
    Provides a warning at the start of the operating sequence, according to the panel configuration.

  • Voltage-Free Outputs:
    Enables integration with a wide range of door operators and building management systems, offering greater versatility.

Technical Specifications:

Specification Details
Operating Voltage: 230V AC
Protection Rating: IP65 enclosure rating, subject to correct installation and cable entries
Enclosure Dimensions: 370 x 140 x 101mm
Battery Backup: 2x 1.3 Ah 12V DC Batteries
Audible Alert: Combined audio/visual warnings
Volume Adjustment: Yes, fully adjustable
Outputs: Voltage-free contacts

Note: Product specifications are subject to change without prior notice.

Check the operator and panel version

Stock code 222531. Before ordering, confirm the operator model, fire-alarm interface, required response and backup arrangements with the installer. Match the installation instructions to the model and revision marked on the panel; EMC-3C and later EMC variants should not be assumed to have identical wiring or settings.

View full details

Manufacturer Part Number

FAQ's

What is the EMC-3C Fire Door Interface Panel used for?

It is an interface panel for compatible specialised door operators, providing control and warning functions for automatic fire-door systems.

What supply voltage is specified for the EMC-3C?

The panel is specified for a 230V AC supply.

What IP rating is stated for the EMC-3C?

The listing states an IP65 protection rating.

Is battery backup included with the panel?

Yes. The product information states that two 1.3Ah 12V DC batteries are included for backup operation.

What warning and output functions are listed?

The listing includes combined audible and visual warnings, adjustable volume, low-battery indication, startup warning and voltage-free output contacts.
