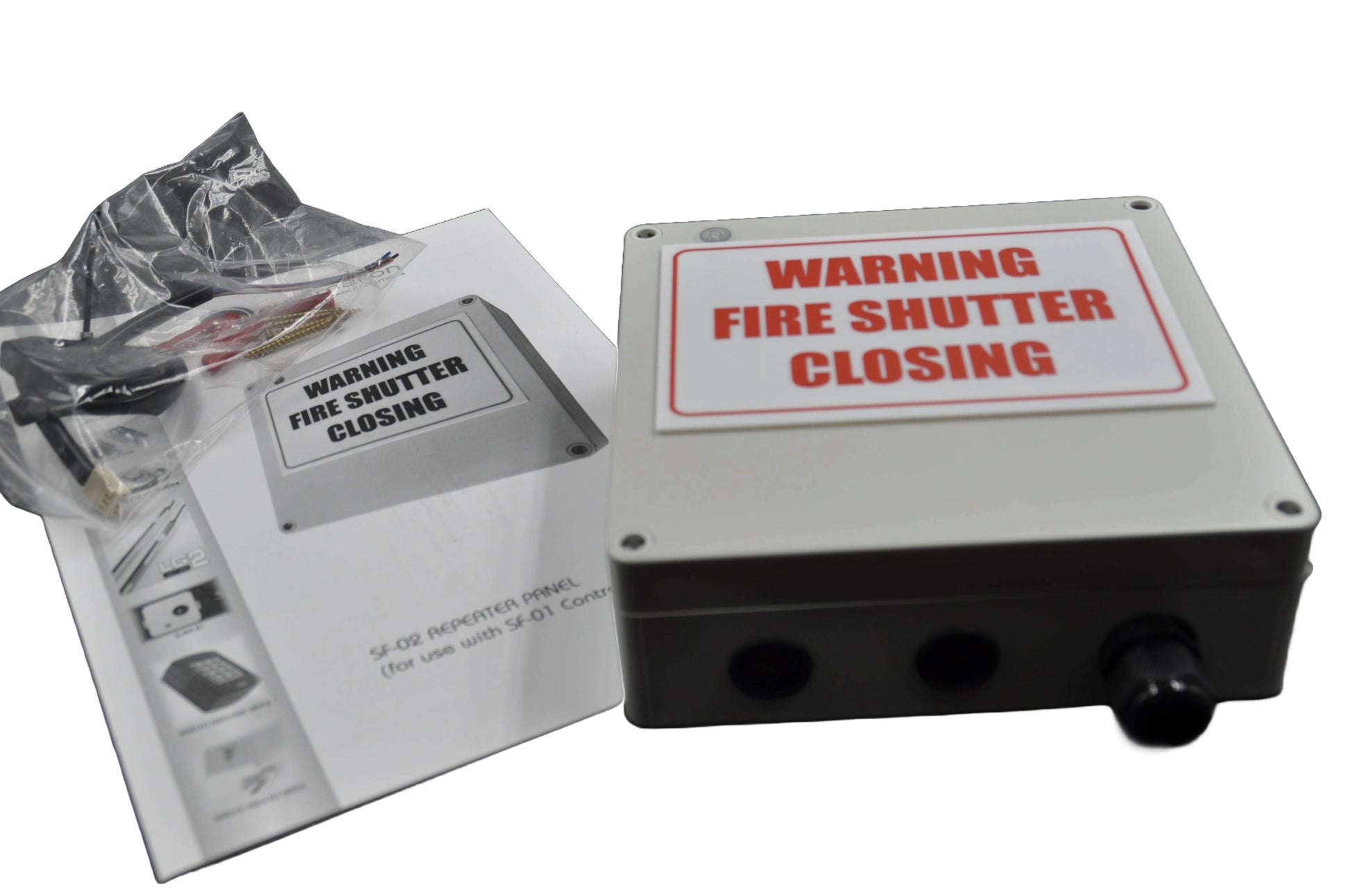

• Fire shutter control box with white label with "warning fire shutter closing"in red with manual and packaging on a white background
  • Cardboard box with a label on a white background

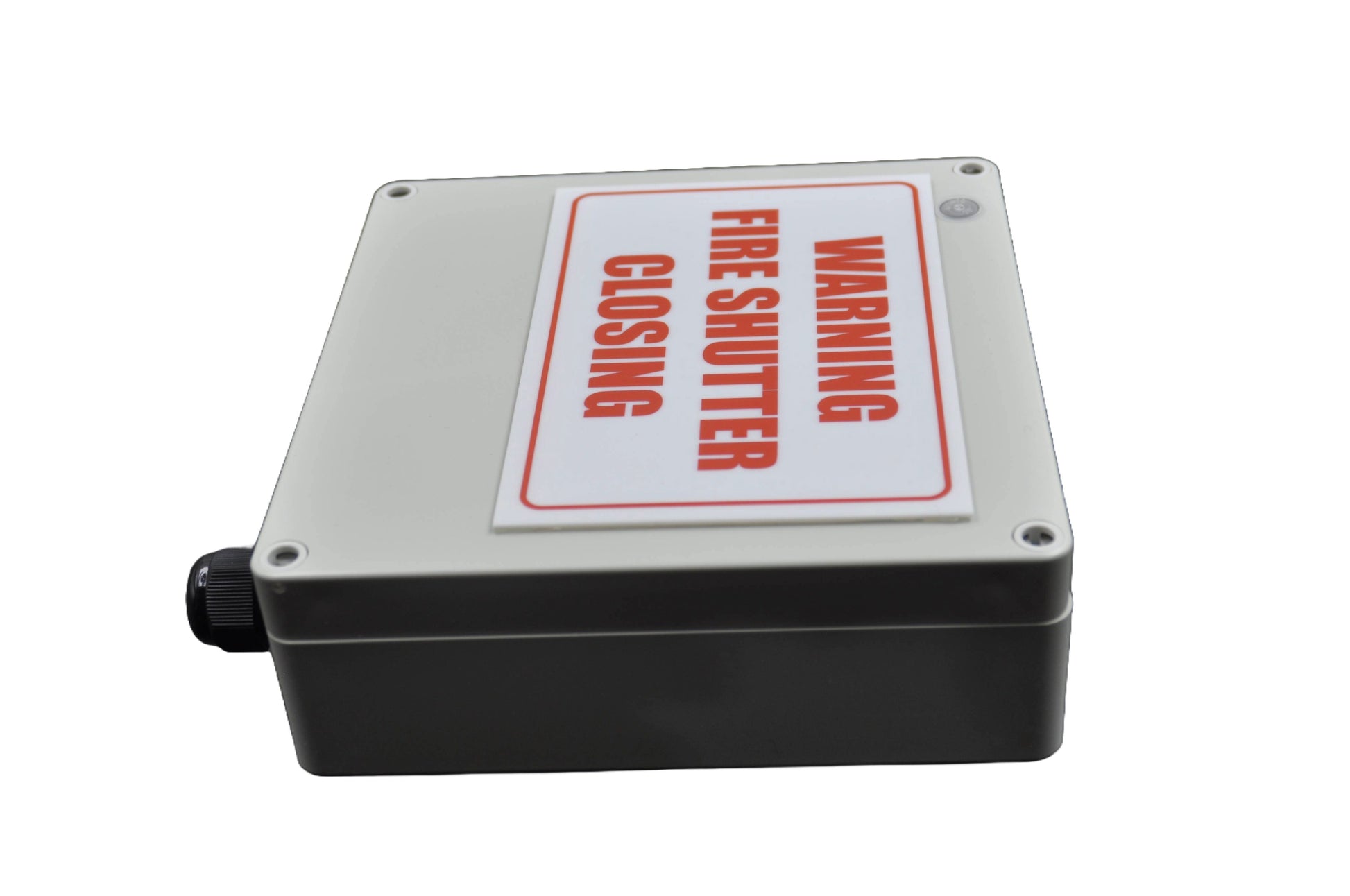

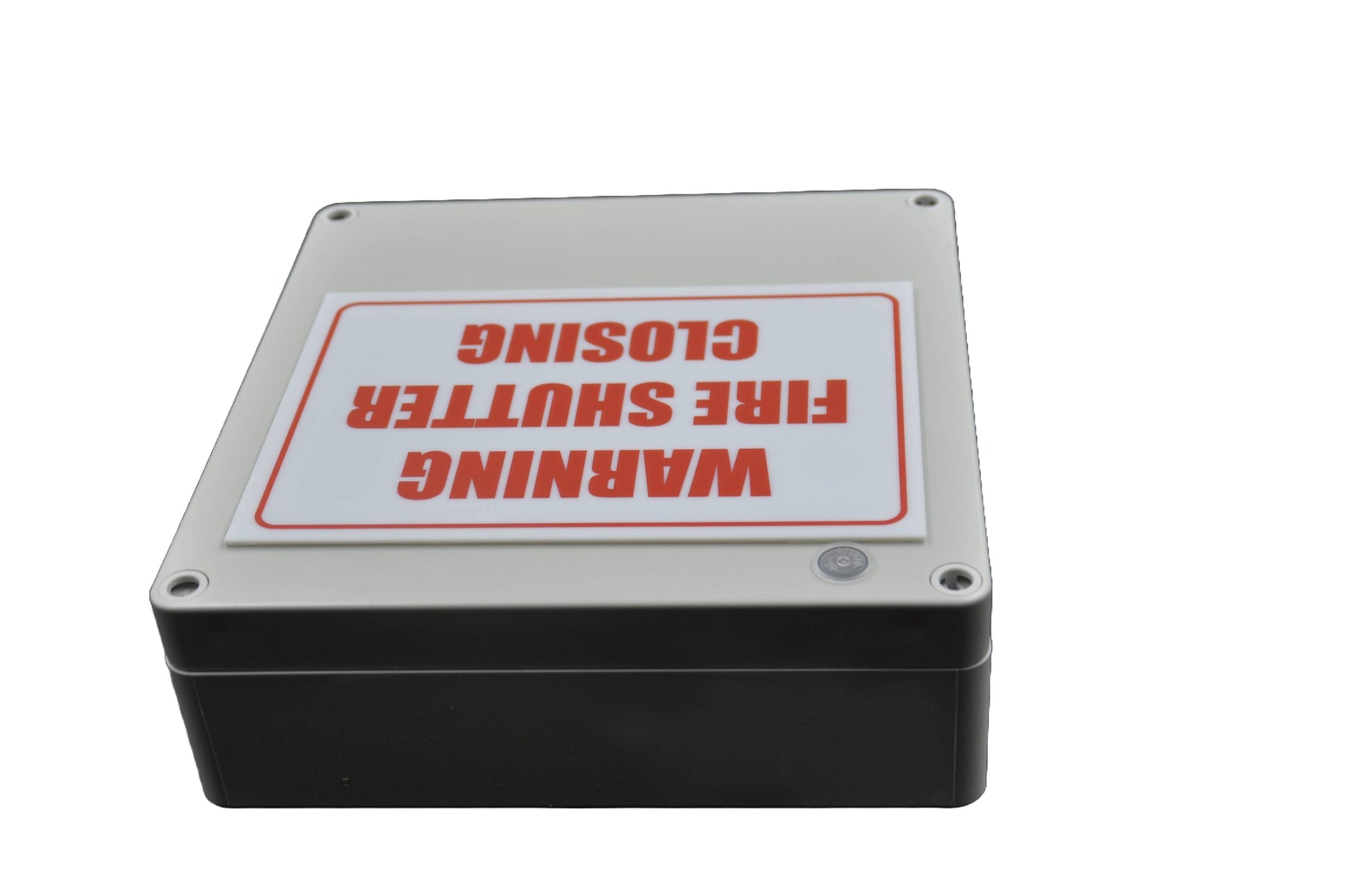

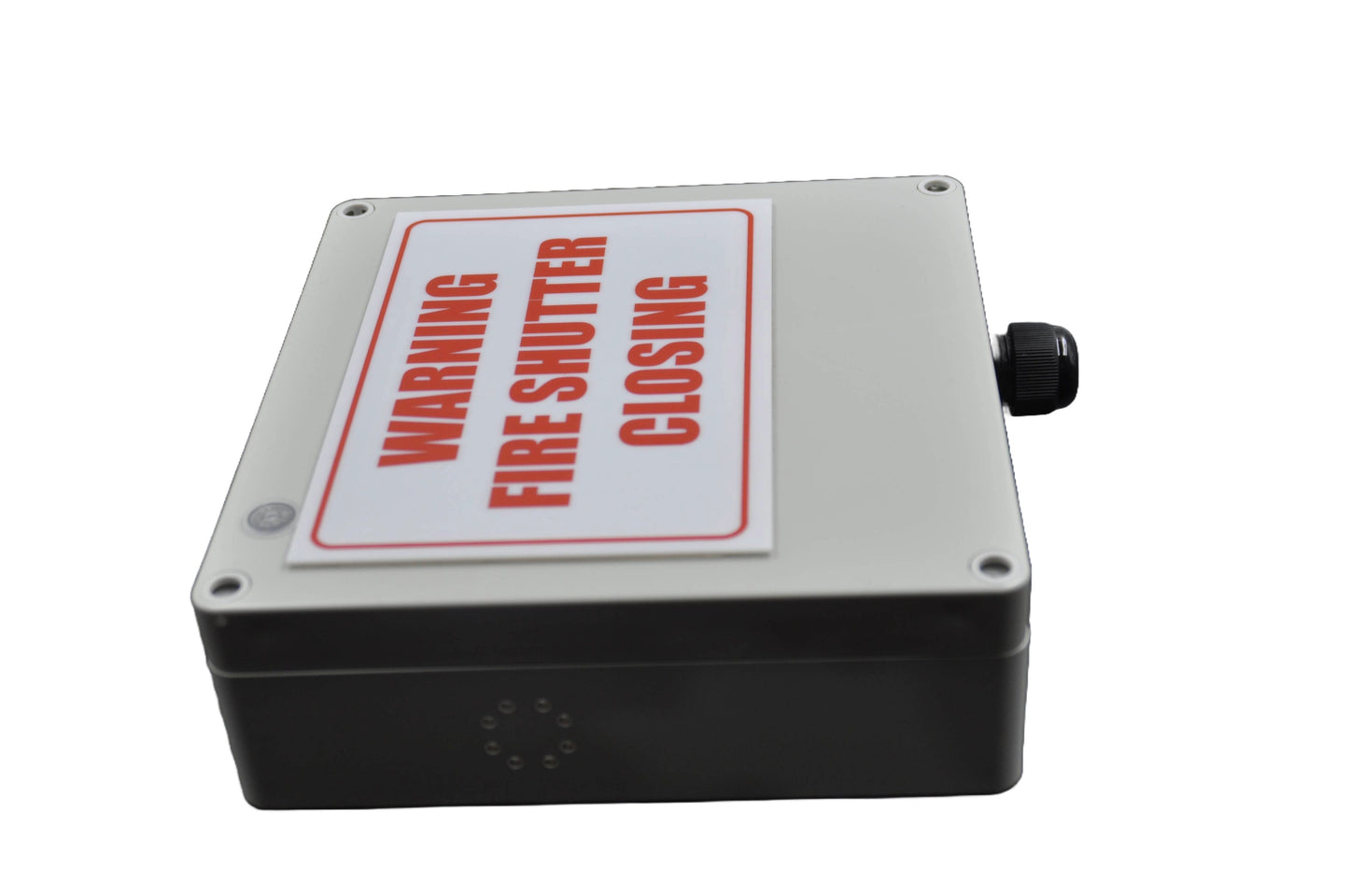

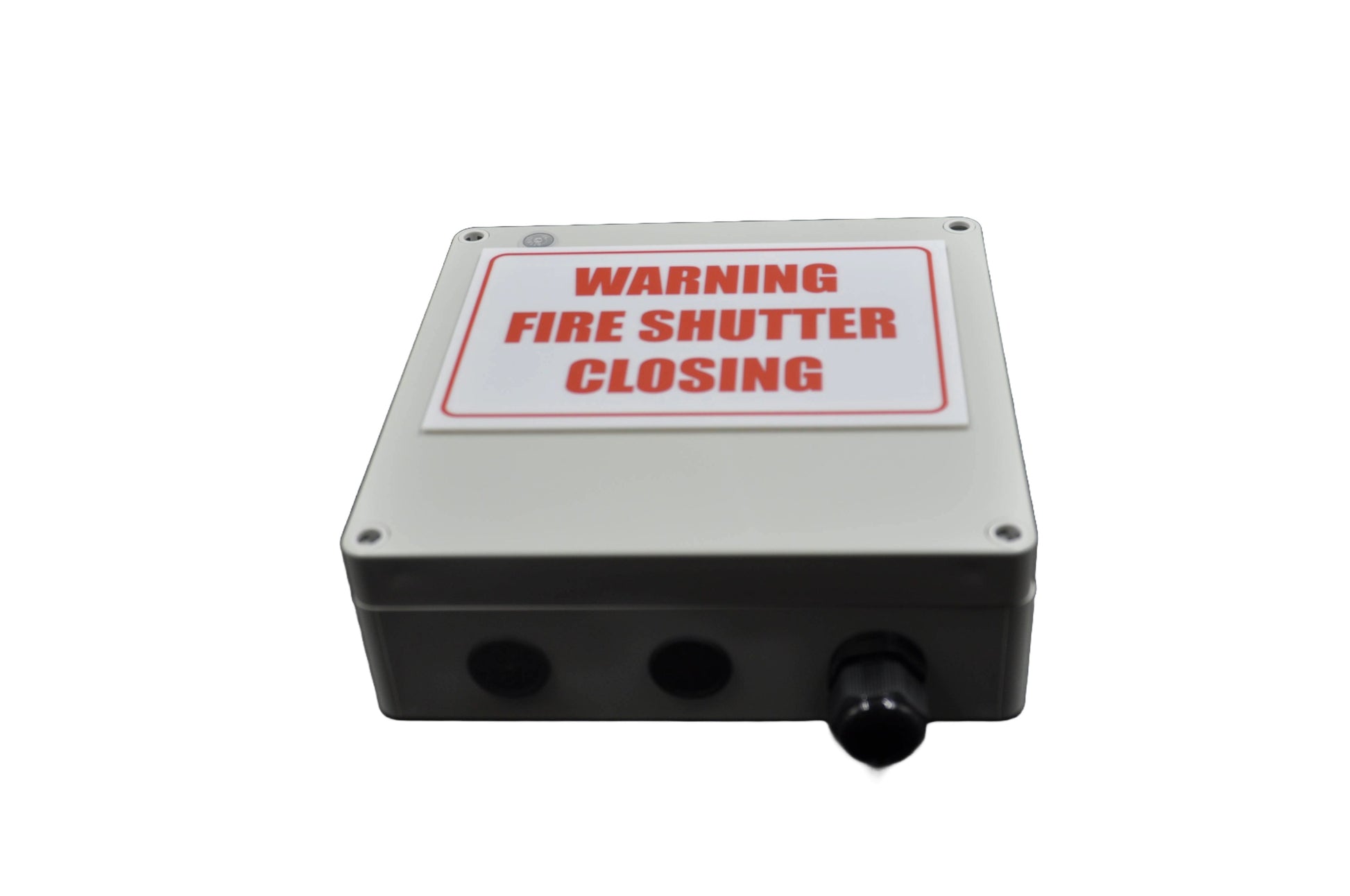

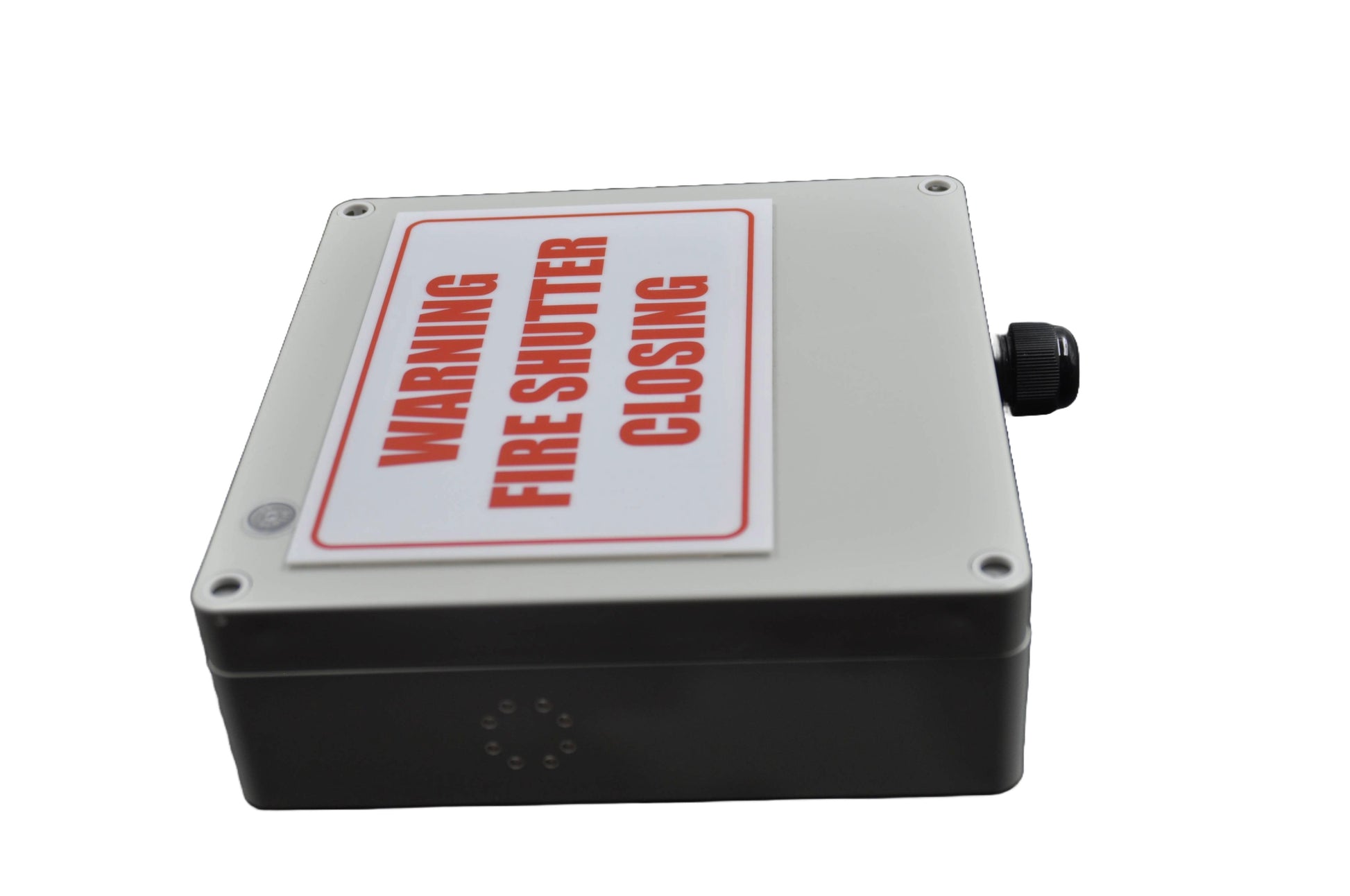

  • Fire shutter control box with white label with "warning fire shutter closing"in red on a white background

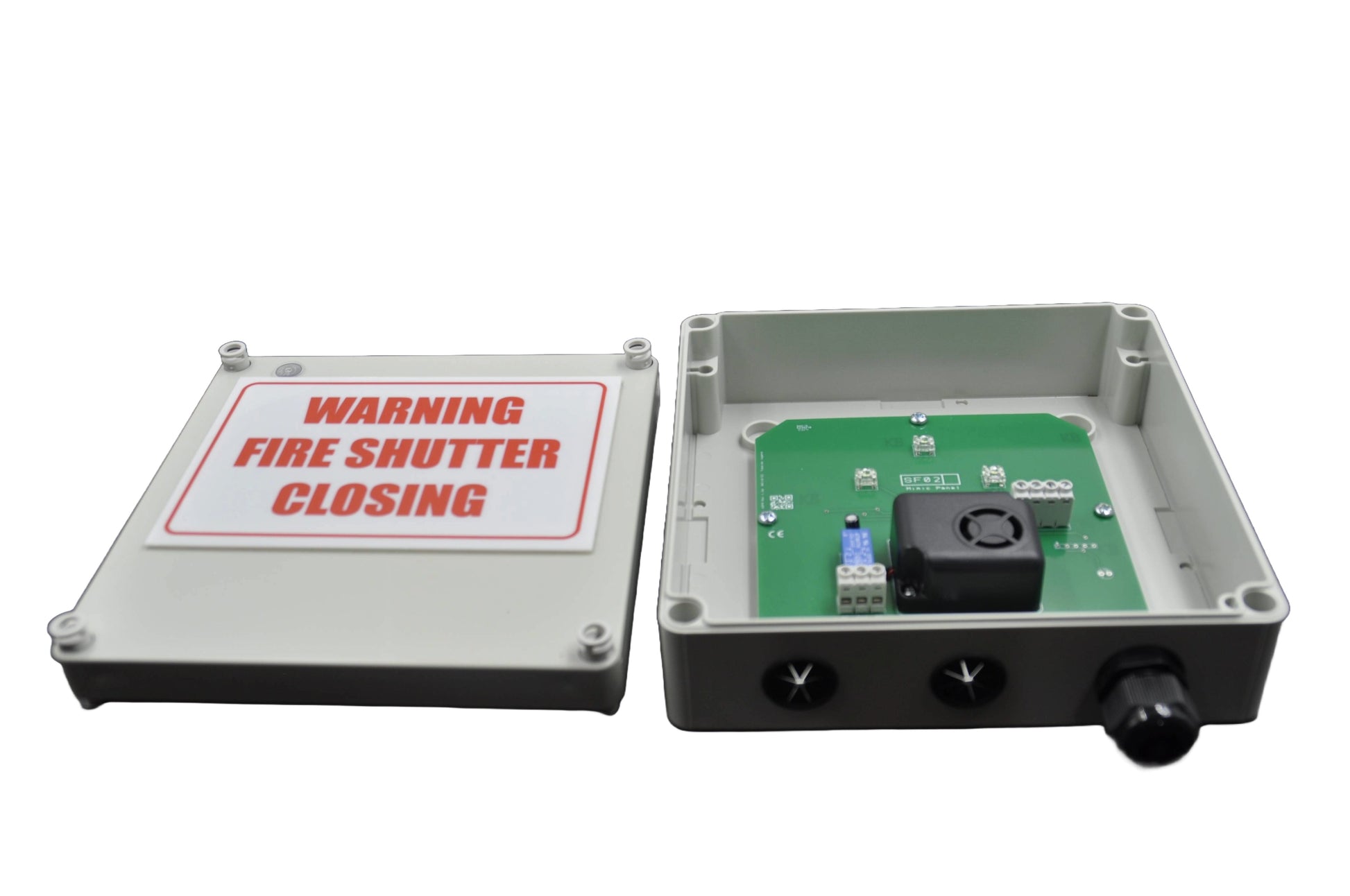

  • Fire shutter control box open with white label with "warning fire shutter closing" on one half and components showing in the inside of the other half on a white background
  • Fire shutter control box with white label with "warning fire shutter closing"in red on a white background
  • Fire shutter control box with white label with "warning fire shutter closing"in red on a white background
  • Fire shutter control box with white label with "warning fire shutter closing"in red on a white background
1 7

Ellard SF-02 Repeater Panel

Ellard SF-02 Repeater Panel

Net: £221.15
Incl. VAT: £265.38
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

FCP-02 Repeater Panel – Remote Fire Door Status Indication for FCP-01 Control Panel
The FCP-02 repeater panel is a compact, wall-mountable remote indicator for use with the FCP-01 fire door control system. It provides clear audio and visual alerts in secondary or remote locations, making it ideal for buildings requiring extended fire door status notification coverage beyond the main control panel.

Key Features & Benefits:

  • Designed for Use with FCP-01 Fire Door Control Panel
    Ensures synchronised remote monitoring and alarm activation across wider building layouts.

  • Remote Visual & Audio Alert:
    Mirrors the “FIRE SHUTTER CLOSING” warning from the FCP-01 using high-visibility LED indication and built-in alarm.

  • Clear Terminal Labelling for Simple Installation:
    Terminal layout: U D G V U S

    • U: Photocell N/C or Open trigger

    • D: Close trigger

    • V: +24V DC

    • G: 0V / Common Ground

    • S: Stop input

  • Flexible Wiring & Compatibility:

    • Accepts manual switch, photocell, and external safety inputs

    • Supports 24V DC reflective photocells

    • Includes pre-configured link options for systems without external stop switches or with a safety brake

  • Quick Configuration:

    • Link G to S when no stop button is used

    • Link U to S when using a safety brake or N/C safety switch

    • Basic operation available with link combinations for U, D, and S

Ideal Applications:

  • Warehouses, industrial units, and commercial premises using the FCP-01 fire control panel

  • Locations where multiple personnel zones need clear notification of door activation

  • Installations with extended fire safety protocols, safety brakes, or advanced photocell systems

Automagic Door Parts recommends the FCP-02 repeater panel for extended fire door visibility and safety coverage.

View full details

FAQ's

Which system is the Ellard SF-02 Repeater Panel compatible with?

The Ellard SF-02 Repeater Panel is designed for use with FCP-01 fire door control system. Confirm your operator or door model matches before ordering to ensure a correct fit.

What is the Ellard SF-02 Repeater Panel and what is it used for?

FCP-02 Repeater Panel – Remote Fire Door Status Indication for FCP-01 Control Panel The FCP-02 repeater panel is a compact, wall-mountable remote indicator for use with the FCP-01 fire door control system .

Where is this typically used?

It is ideal for buildings requiring extended fire door status notification coverage beyond the main control panel. That makes it well suited to commercial and high-traffic automatic door installations.

Does the Ellard SF-02 Repeater Panel provide fcp-02 repeater panel – remote fire door status indication?

FCP-02 Repeater Panel – Remote Fire Door Status Indication for FCP-01 Control Panel The FCP-02 repeater panel is a compact, wall-mountable remote indicator for use with the FCP-01 fire door control system . It provides clear audio and visual alerts in secondary or remote locations, making it ideal for buildings requiring extended fire door status notification coverage beyond the main control panel.

Is the Ellard SF-02 Repeater Panel designed for Use with FCP-01 Fire Door Control Panel?

Ensures synchronised remote monitoring and alarm activation across wider building layouts.
