Ellard FDCP-01 Fire Panel

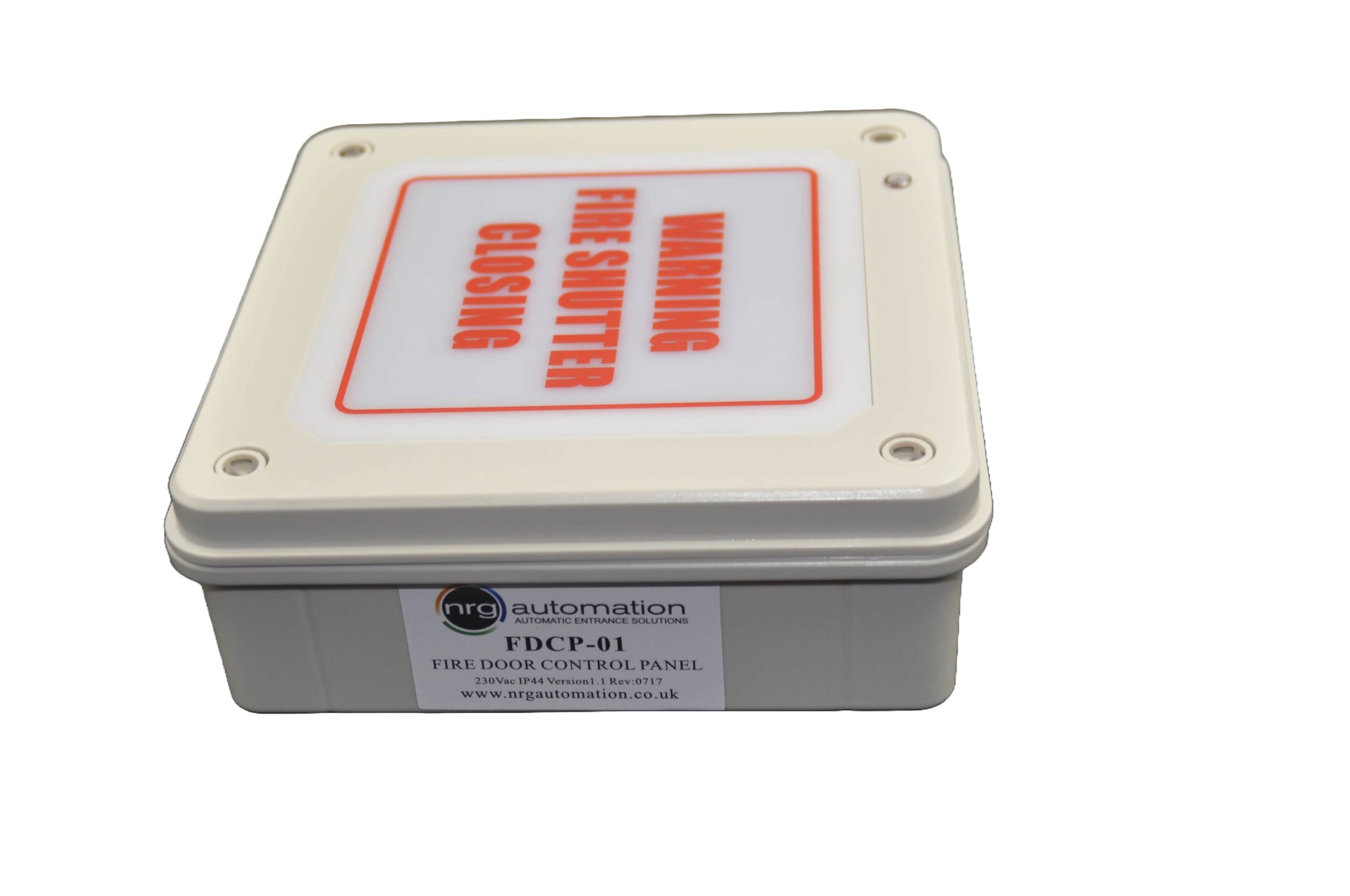

FCP-01 Fire Door Control Panel – Advanced Control for 230V Tubular Motors
The FCP-01 is a dedicated fire door control panel designed for use with roller shutter doors powered by 230V tubular motors. When connected to a fire alarm system, the panel triggers the automatic opening or closing of the door with advanced safety warnings, delay timers, and programmable features to meet diverse site needs.

Key Features & Benefits:

• Fire Alarm Integration: Automatically opens or closes the door upon receiving a fire signal using either Normally Open (N/O) or Normally Closed (N/C) volt-free contact.

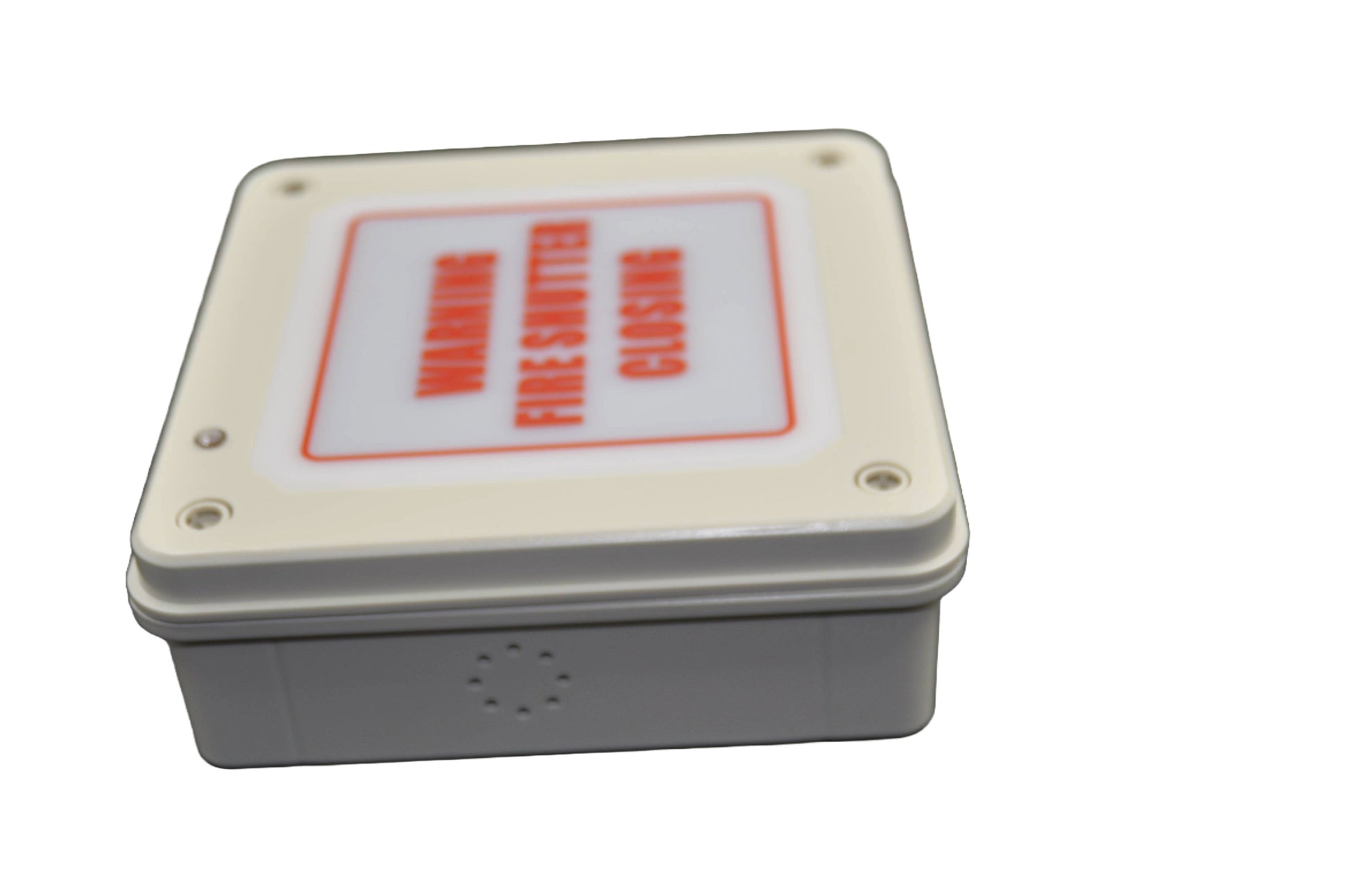

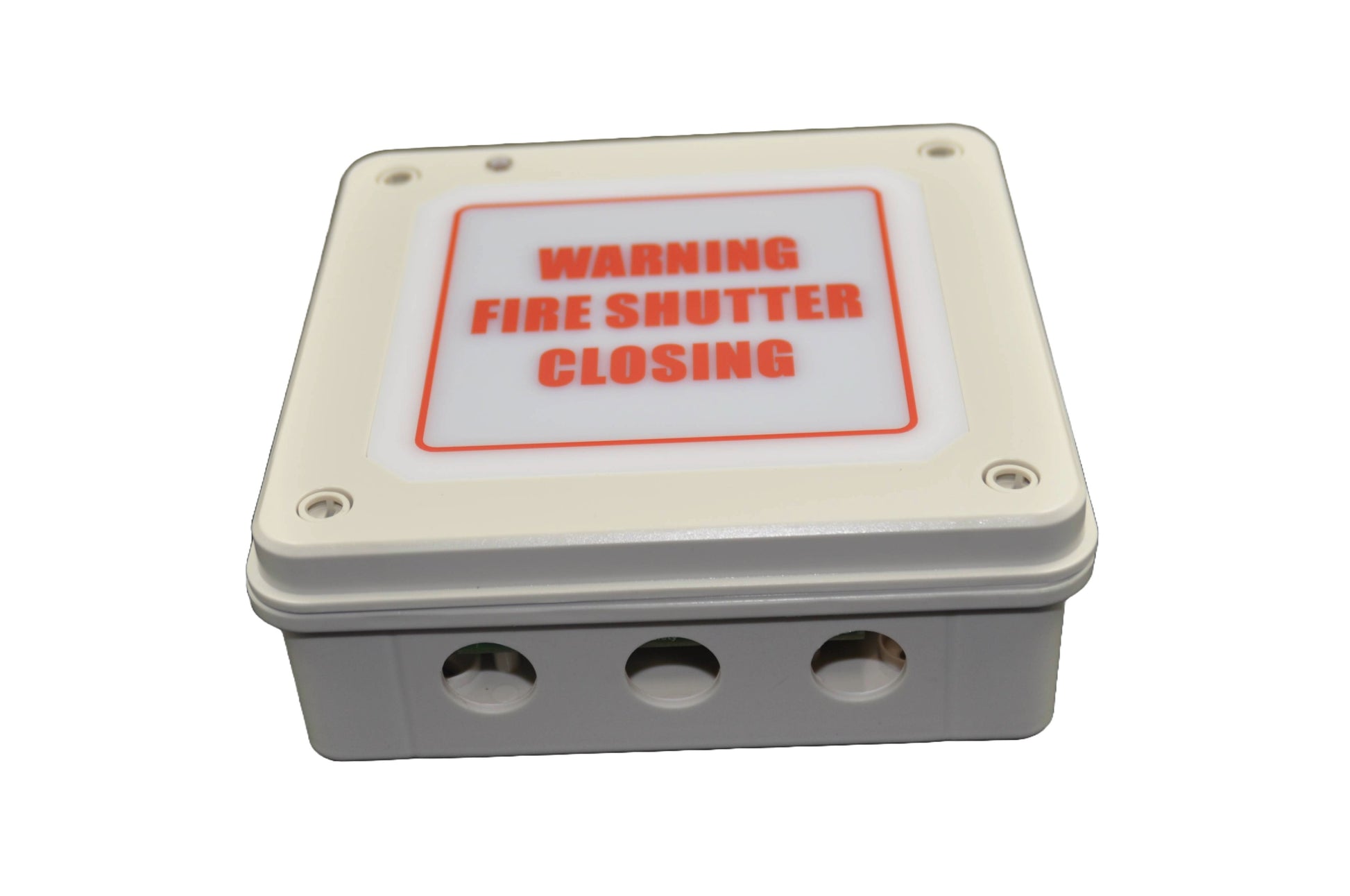

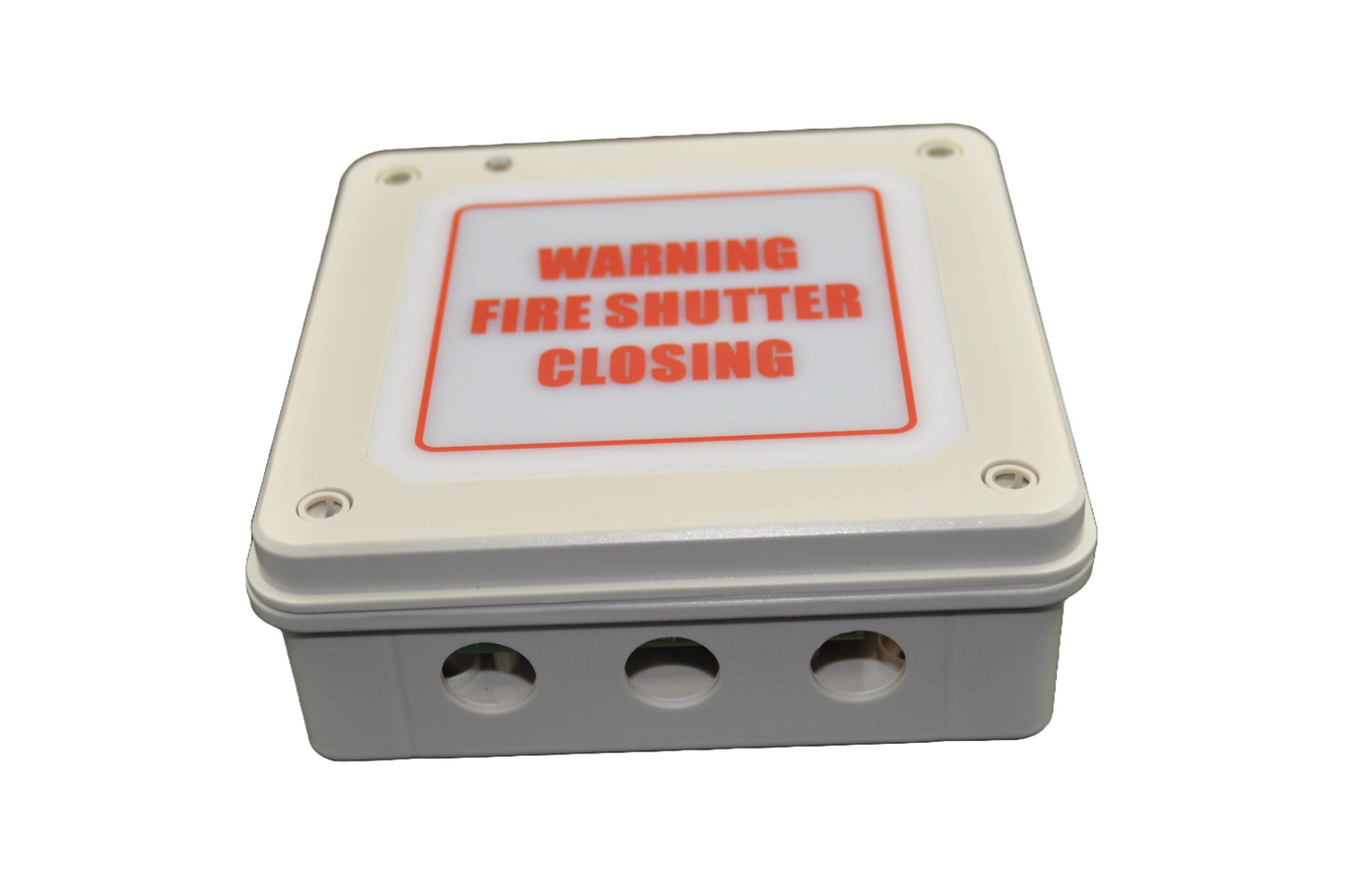

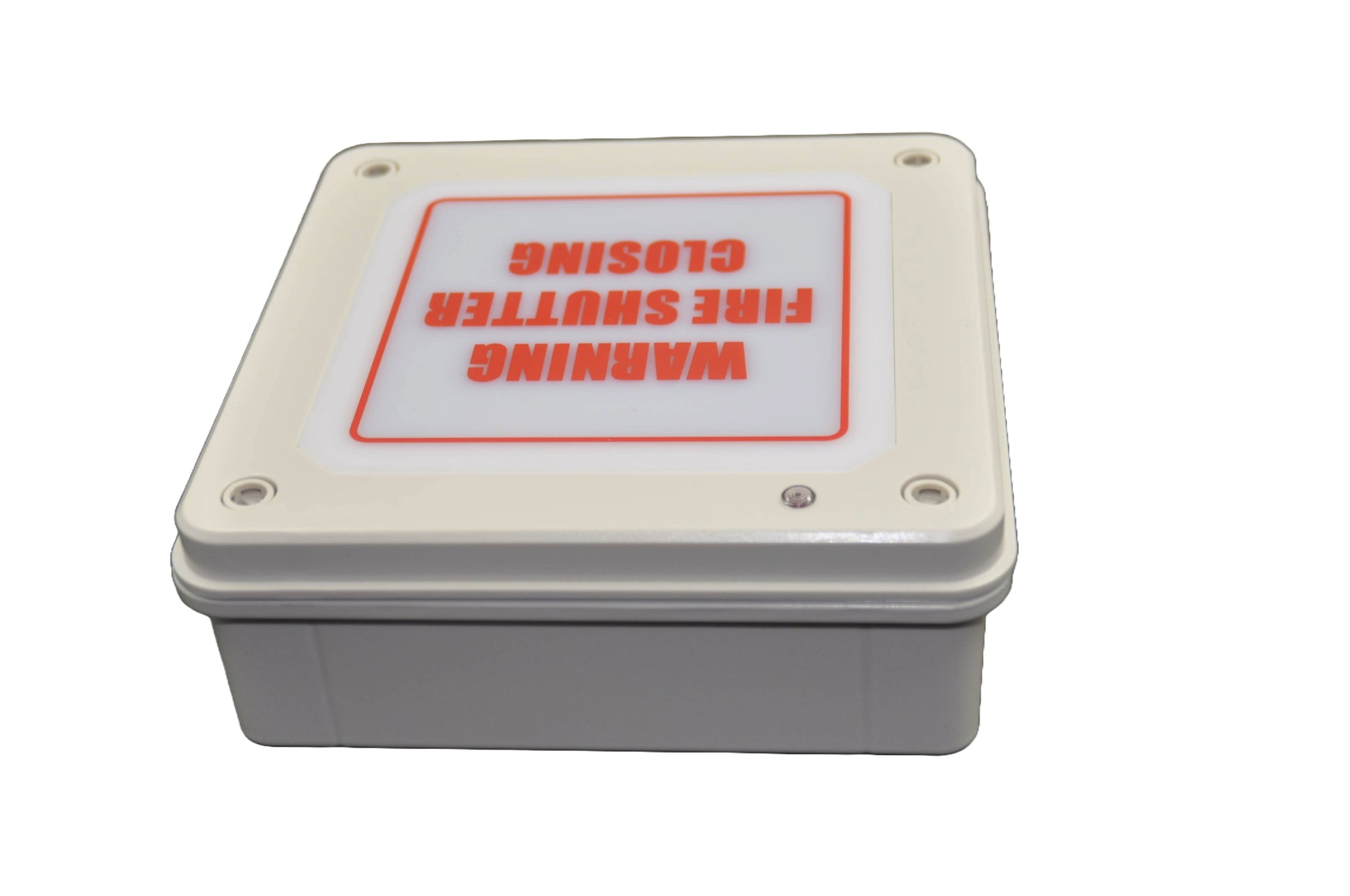

• Visual & Audio Alerts: Bright LED backlight and 98dB integrated sounder give clear “FIRE SHUTTER CLOSING” warnings before activation.

• User-Defined Delay Timers:

  • Audio/Visual Delay Timer: 0–5 minutes

  • Cyclic Pulse & Pause Timer: 0–15 seconds

• LED Diagnostics & Fault Indication: Built-in fault display and programmable auxiliary relay for enhanced control feedback.

• Safety Features:

  • Motor stop/reverse function when used with optional photocell connection

  • Stop circuit for safe manual override

• External Control Compatibility:

  • Low voltage key switch or push button operation

  • Supports normal daily operation via external switching devices

Technical Specifications:

• Operating Voltage: 230Vac (for use with tubular motor range)

• Alarm Output: 98dB integrated sounder

• Indicators: LED backlit warning, fault display, red status LED

• Programming: Internal DIP switches

• Mounting: Wall-mounted with front panel controls

Ideal Applications:

• Roller shutters and fire-rated doors in warehouses, factories, commercial units, and retail premises

• Environments where automatic fire response and daily manual use are both required

• Sites requiring advanced safety and user notification before door activation

Optional Accessories Available:

• Photocell safety sensor

• Repeater extension panel for remote status indication

Automagic Door Parts recommends the FCP-01 Fire Door Control Panel for any facility needing fire safety compliance with flexible day-to-day operation. For help selecting the right control system or accessories, contact our team for expert advice.
