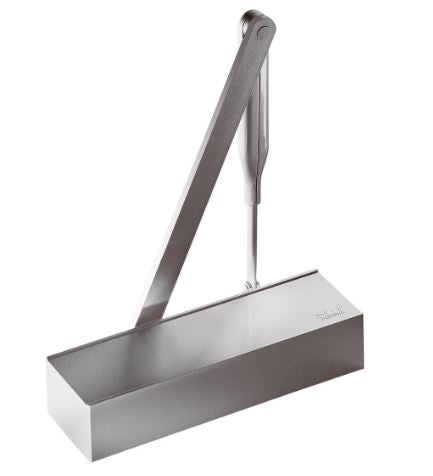

Dorma TS71 EN 3/4 Silver Overhead Door Closer

Dorma TS71 Door Closer – Medium Duty, Certifire Approved & Easy to Install
The dormakaba TS71 door closer delivers reliable medium duty performance in a compact and cost-effective unit. Designed for ease of installation with a scissor arm and adjustable power size, this overhead closer is ideal for internal doors in commercial and public buildings. It is Certifire Approved for fire doors up to 120 minutes when installed Fig. 1 or Fig. 66.

Key Features & Benefits:

Template Adjustable Power Size (EN 3–4):

• EN 3: For doors up to 950mm wide

• EN 4: For doors up to 1100mm wide
  Power setting is determined by installation position – no additional adjustment tools required.

Certified Fire Door Compatibility:
Certifire Approved (CF268) for use on timber doors with up to 120 minutes fire resistance when installed in Fig. 1 or Fig. 66 configurations.
Note: Fig. 61 (transom mount) is not suitable for fire doors.

Universal Mounting Options:

• Fig. 1 – Pull side (fire door approved)

• Fig. 66 – Push side (fire door approved)

• Fig. 61 – Transom mount (non-fire door only)

Adjustable Closing Performance:
Two independent valves control closing speed and ensure a smooth, safe door return.
Latching action is adjustable via the arm to ensure positive engagement with the door frame.

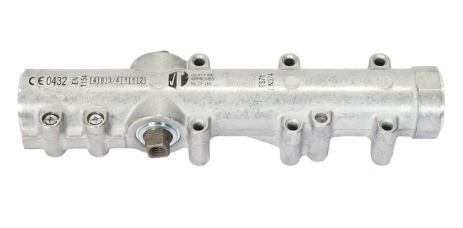

Rack & Pinion Mechanism:
Trusted and widely used technology provides consistent door control with low maintenance.

Compact & Lightweight Design:

• Size: 232mm x 45mm x 68mm

• Weight: 1.2kg

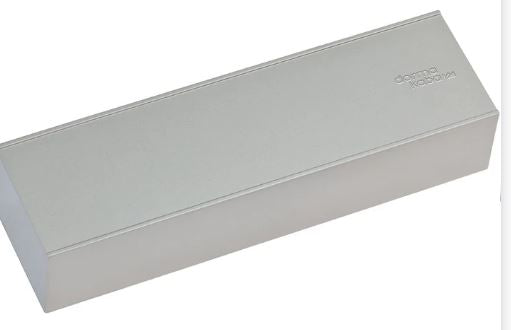

  Sleek silver finish for a discreet appearance on most internal doors.

Additional Compliance & Quality Standards:

• BS EN 1154 Tested

• UKCA Marked

• CE Marked

• ISO 9001 Certified manufacturing

• Supplied with full fitting templates and instructions

Ideal Applications:

• Internal timber doors in offices, schools, and commercial spaces

• Medium-duty environments requiring basic fire door compliance

• Refurbishment and maintenance projects

• Budget-conscious installations where performance can’t be compromised

Compatibility:

• Suitable for single or double-leaf doors

• Non-handed (fits left or right opening doors)

• Not suitable for external doors or high-traffic entrances

Automagic Door Parts recommends professional installation using the provided template for compliance with EN1154 and Certifire standards. For applications needing backcheck, cam action, or concealed aesthetics, explore alternative dormakaba models such as TS72VBC, TS90, or ITS96.
