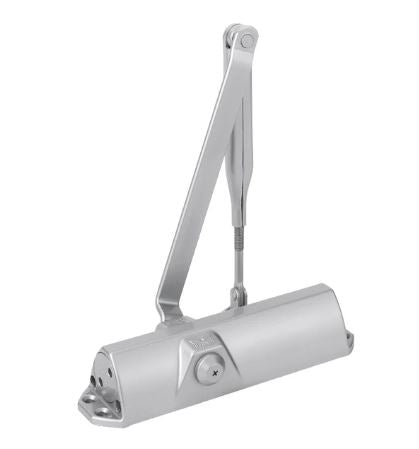

Dorma TS68 Overhead Door Closer EN 2/4 Silver

Dorma TS68 Door Closer – Certifire Approved, Affordable & Easy to Install
The Dorma TS68 from dormakaba is a cost-effective, light duty overhead door closer designed for straightforward installation and reliable performance. Ideal for interior timber doors in commercial settings, the TS68 offers versatility, compliance, and peace of mind. Certifire Approved for use on FD120 fire-rated doors (when installed Fig. 1 pull side), it is perfect for offices, schools, and multi-door facilities where safety and simplicity matter.

Key Features & Benefits:

Universal Installation Flexibility:
Supports Fig. 1 (pull side), Fig. 61 (transom mounting), and Fig. 66 (push side) configurations for a wide range of installation scenarios. Supplied with parallel arm bracket for added convenience.

Adjustable Power Size EN 2–4:
Set power strength via mounting position and arm adjustment:

• EN 2 – up to 850mm wide doors

• EN 3 – up to 950mm wide doors

• EN 4 – up to 1100mm wide doors

Fire Door Safety Certified:
Certifire Approved (CF 268) and compliant with BS EN 1154 standards when fitted Fig. 1 on FD120 timber fire doors. CE and UKCA marked.

Precision Closing Control:
Adjustable closing speed and latching action ensure a smooth, safe door cycle. Mechanism remains reliable even under varying temperature conditions.

Compact & Lightweight:
Discreet silver finish in a compact body (220mm x 45mm x 53.5mm), weighing just 1.4kg, ideal for unobtrusive installation on interior doors.

Additional Options:
Hold-open arm available by special order (not fire door compliant). Contact our team for details.

Compatibility:

• Suitable for internal timber doors in light duty commercial and public environments

• Fire door compliant in Fig. 1 mounting only (minimum EN 3 setting)

• Not handed – suitable for left or right opening doors

Ideal Applications:

• Office interiors and corridor doors

• Commercial buildings and shared workspaces

• Educational institutions and public facilities

• Light traffic areas with occasional use

• Fire safety compliant environments (when installed as specified)

Automagic Door Parts recommends using the included fitting template and instructions to ensure correct placement. For optimal results and compliance with EN1154 and Certifire standards, professional installation is advised.
