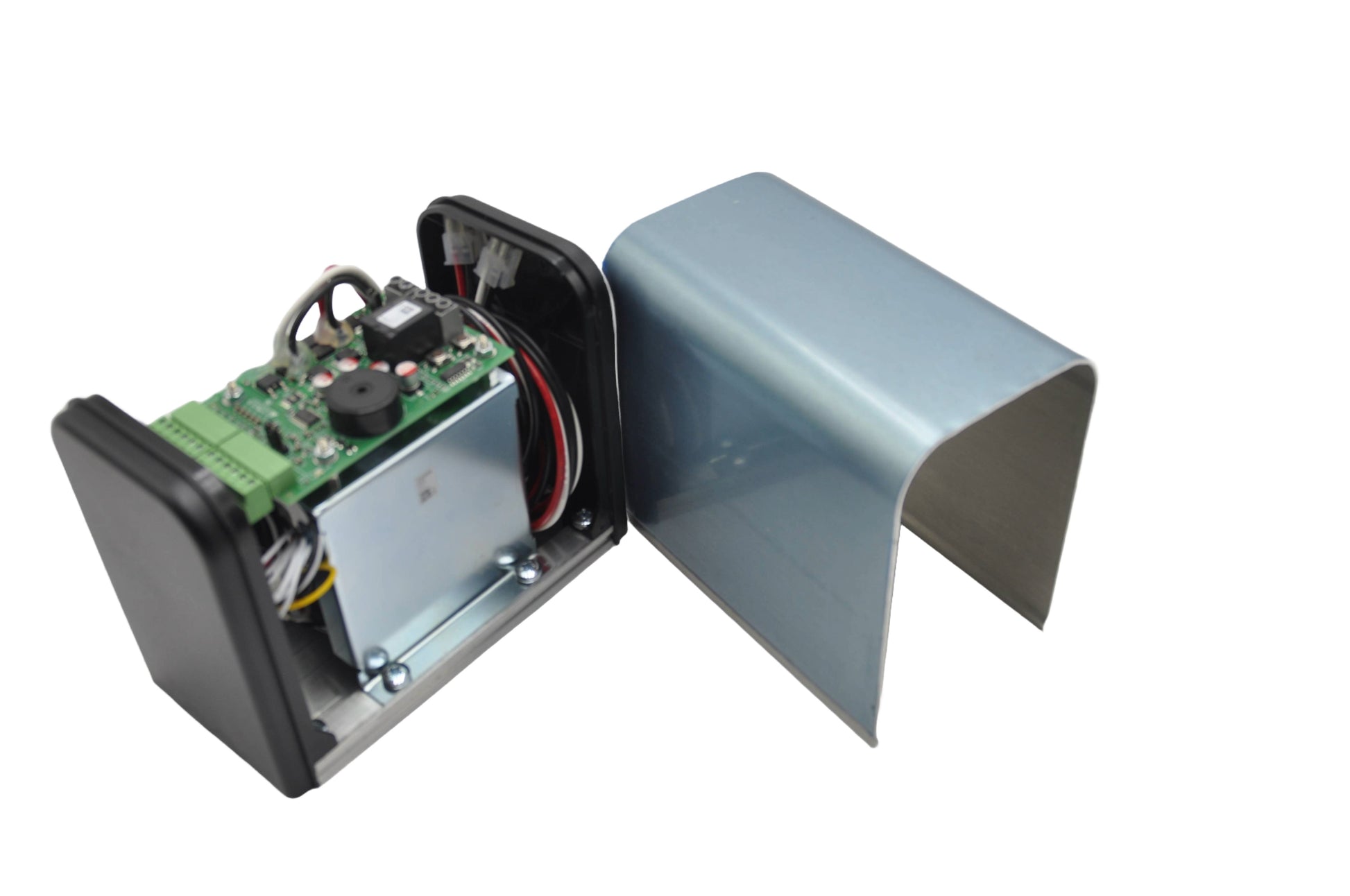

• A view of a silver and black battery backup unit for an automatic door operator, showing the battery pack and wiring inside and a metal case on a white background.

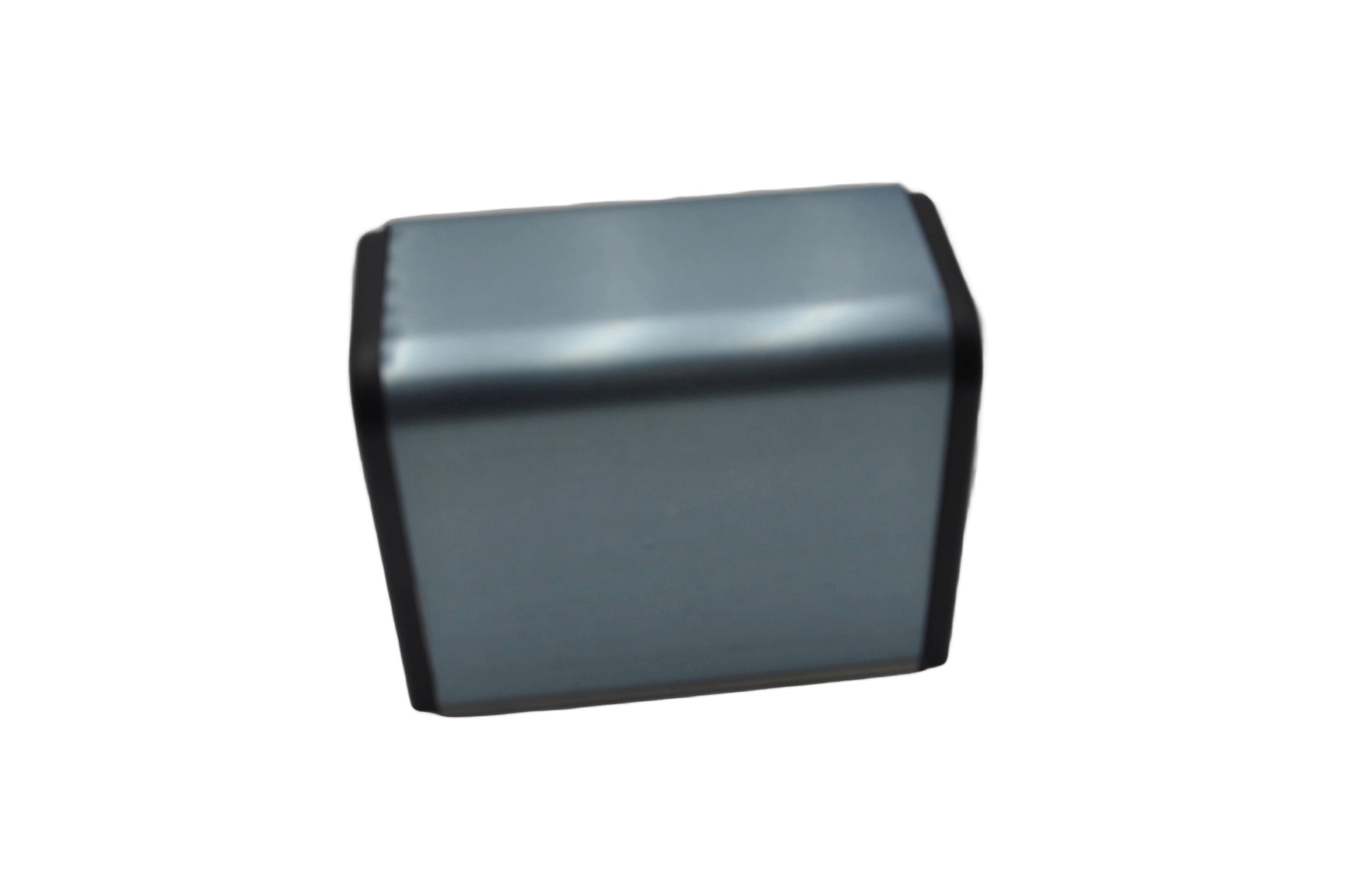

  • A side view of a silver and black rectangular battery backup unit for an automatic door operator, on a white background.

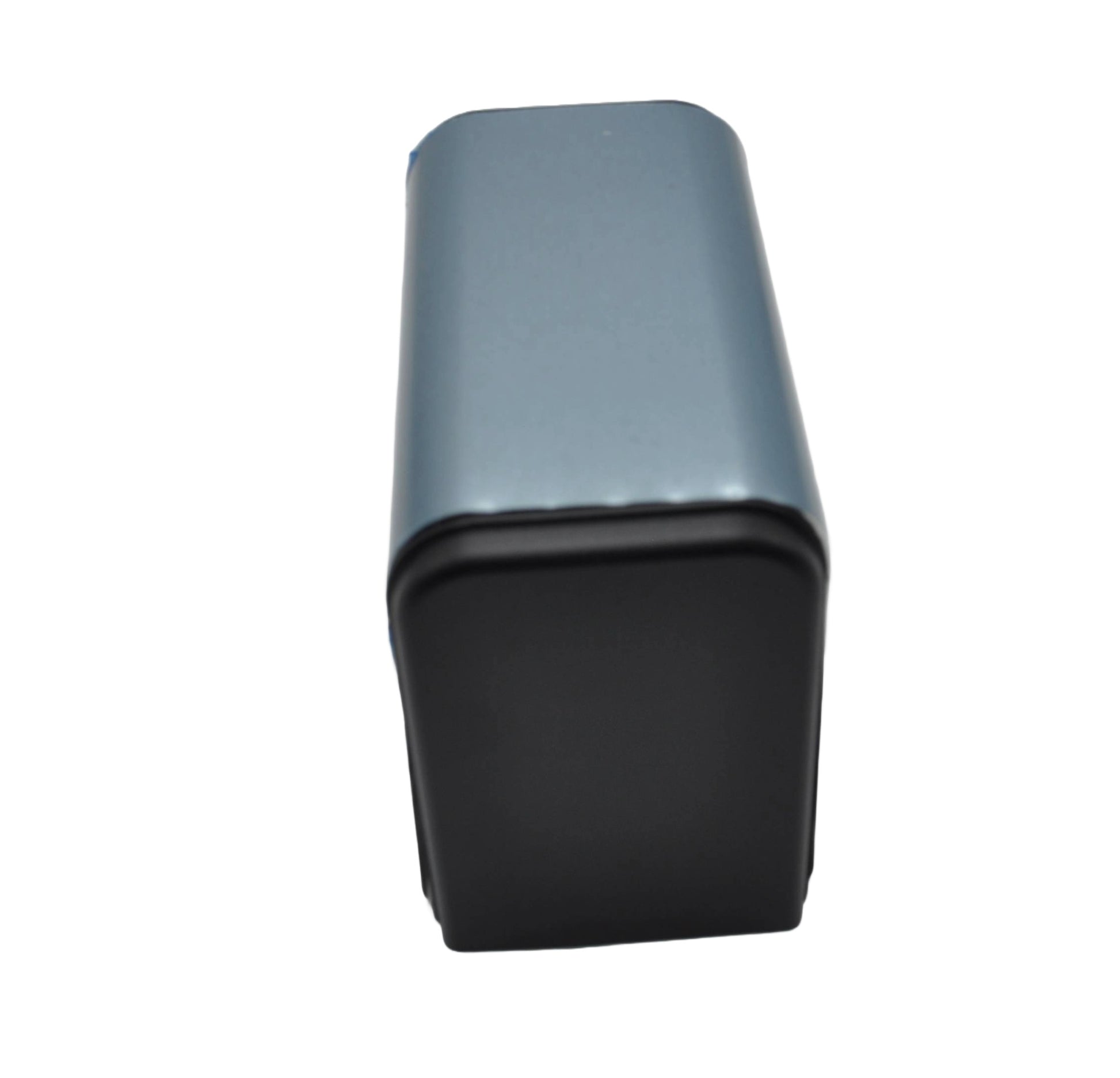

  • A side view of a silver and black rectangular battery backup unit for an automatic door operator, on a white background.

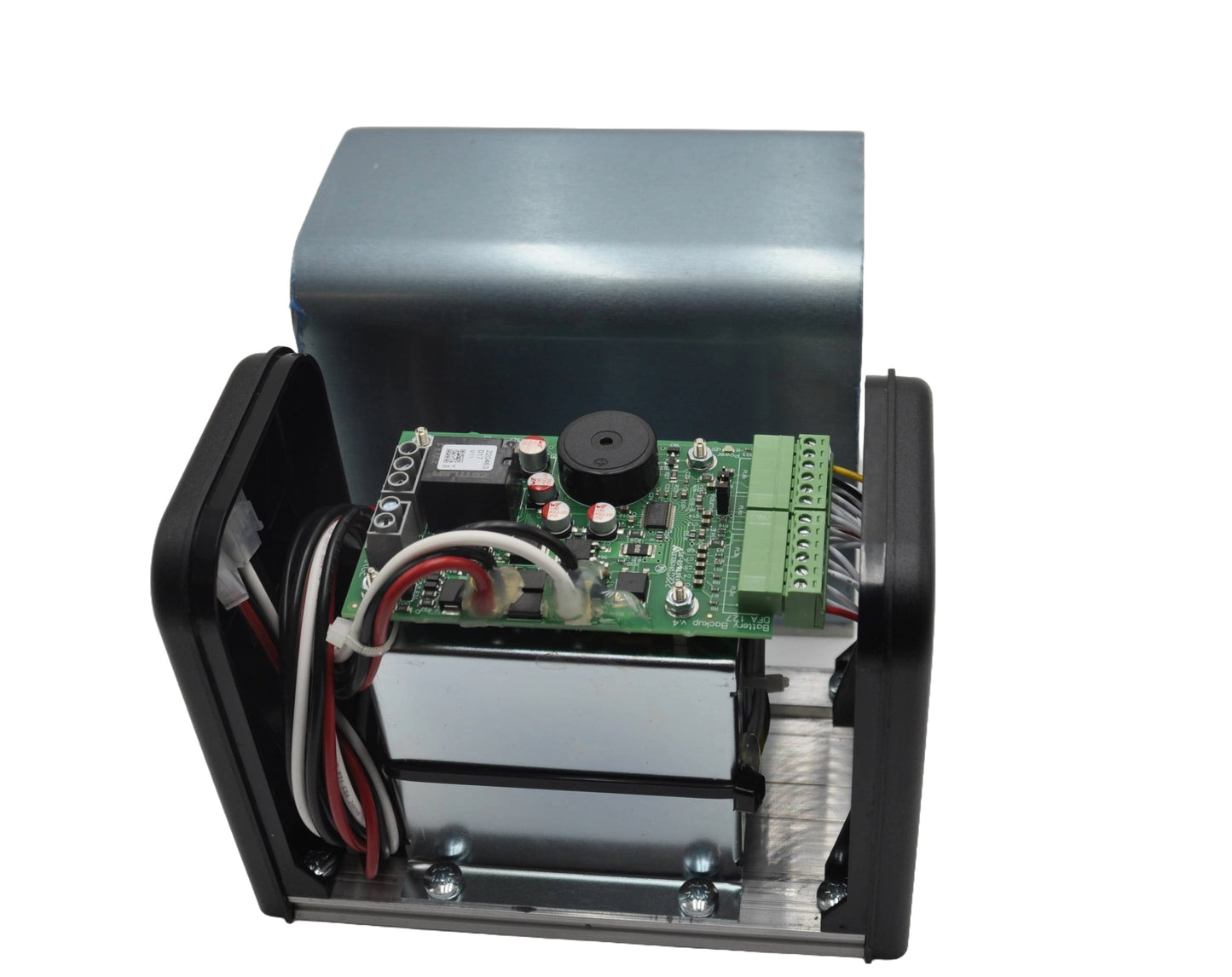

  • A view of a silver and black battery backup unit for an automatic door operator, showing the battery pack with components and wiring inside with a metal case on a white background.

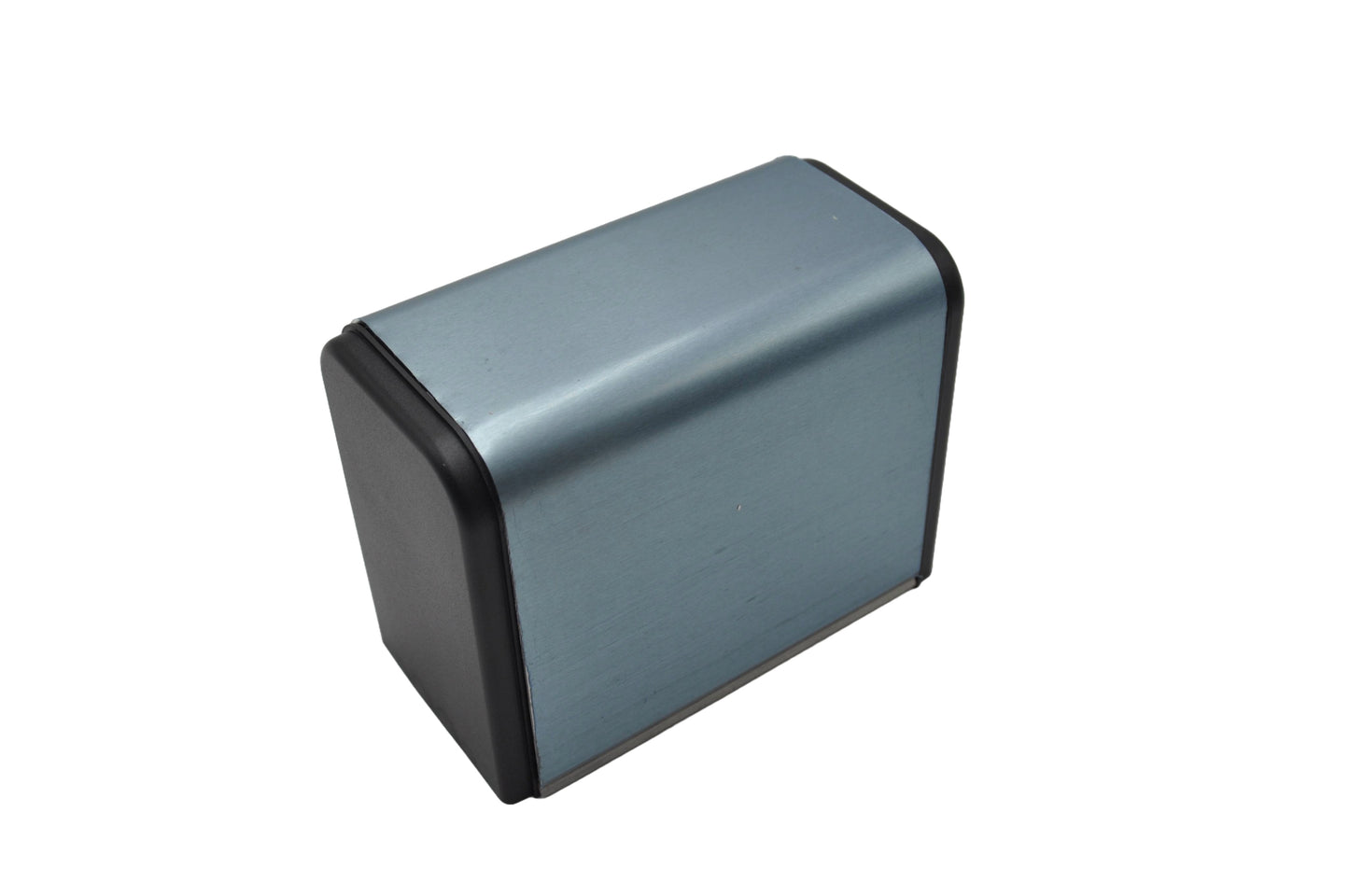

  • A side view of a silver and black rectangular battery backup unit for an automatic door operator, on a white background.
1 5

DFA 127 Battery Back Up Unit

DFA 127 Battery Back Up Unit

Net: £355.06
Incl. VAT: £426.07
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Instruction Manual

View Manual

Product Overview:

The Record DFA127 Battery Backup Unit integrates seamlessly with your existing or new DFA127 swing door operator, conveniently housed in a matching aluminium extrusion. Designed for simple installation and reliable performance, this unit guarantees continued operation for up to 800 cycles or a continuous 24-hour hold-open period on a single charge (depending on door size and programmed settings).

Key Features & Benefits:

  • Reliable Emergency Operation:
    Provides automatic backup power, ensuring continued door operation during power outages.

  • High Capacity Battery Pack:
    2.6 Ah battery at 37 VDC output offers up to 800 door openings or 24-hour continuous hold-open.

  • Discreet Integration:
    Compact unit housed in the same extrusion type as the DFA127, ensuring a neat, unobtrusive installation.

  • Audible Power-Failure Alert:
    Emits adjustable audible signals every 5 seconds in the event of mains power failure (volume adjustable, including mute).

  • Easy, Plug-and-Play Installation:
    Quick to install without complicated rewiring or additional components, making it ideal for retrofitting.

  • Enhanced Versatility:
    Relay output available to trigger third-party devices during mains failure, enhancing the unit's functionality.

  • Battery Conditioning Feature:
    Optimises battery lifespan through intelligent conditioning charging.

  • Stand-Alone Operation:
    Can be used to configure or test a DFA127 operator without the need for mains power, ideal during installations or troubleshooting.

  • Cost-Effective:
    Offers a significant cost-saving alternative compared to traditional UPS solutions.

Technical Specifications:

Feature Specification
Compatibility Record DFA127 swing door operator
Battery Type 2.6 Ah, 37 VDC
Operation Cycles Up to 800 openings per full charge
Continuous Operation Up to 24-hour hold-open
Power Failure Indication Audible alert every 5 seconds
Volume Adjustment Yes (including mute)
Installation Plug-and-Play, housed in matching extrusion
Relay Output Yes, to trigger external devices
Charge Management Conditioning charge included
View full details

FAQ's

Which operator is the DFA127 Battery Backup Unit designed for?

It is specifically designed for compatible Record DFA127 automatic swing door operators.

What battery capacity and output voltage are stated?

The listing specifies a 2.6Ah battery pack with a 37V DC output.

How much backup operation is stated per full charge?

The product information states up to 800 door openings or up to 24 hours of continuous hold-open, depending on door size and programmed settings.

Does the unit provide a mains-failure warning?

Yes. The listing states that an adjustable audible alert can sound every five seconds during mains failure, with the volume adjustable or muteable.

Can the battery unit provide a relay output during mains failure?

Yes. A relay output is listed for triggering compatible third-party devices during mains failure.
