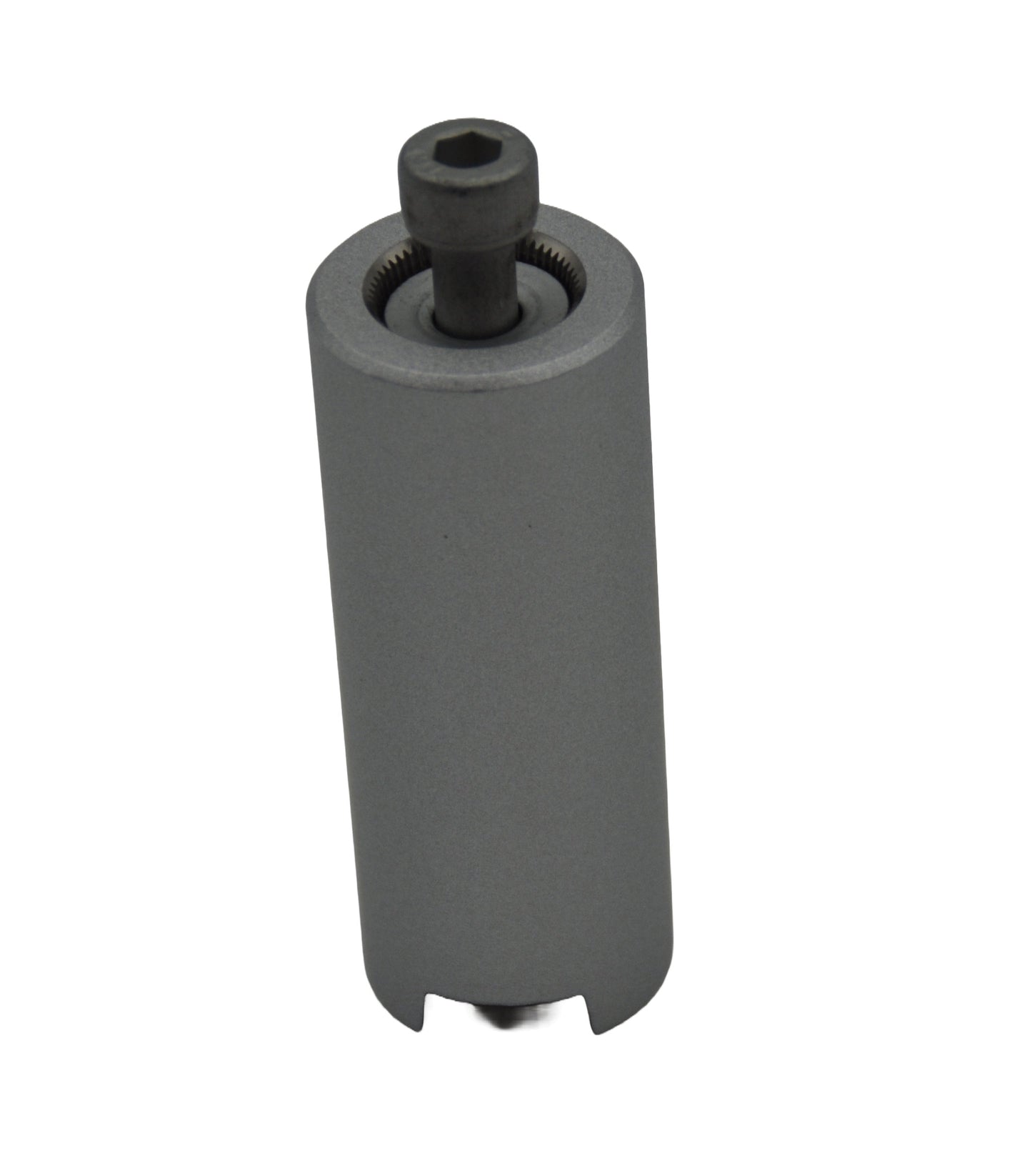

• A view of A DFA 127 Extension Spindle Lever Adaptor for a swing door operator in clear packaging with a white label. On a white background.

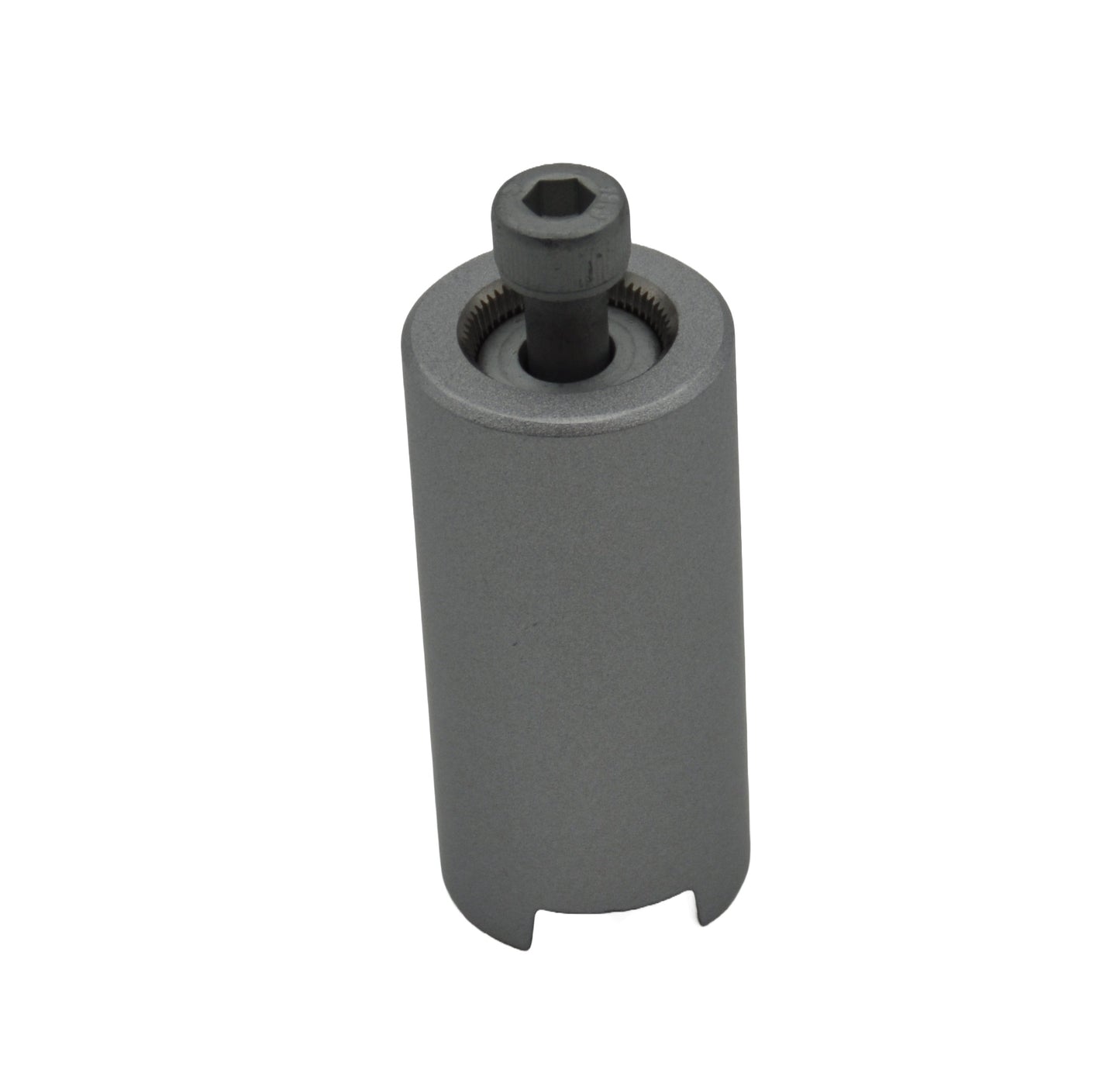

  • A view of A DFA 127 Extension Spindle Lever Adaptor for a swing door operator, On a white background.
  • A view of A DFA 127 Extension Spindle Lever Adaptor for a swing door operator, On a white background.
  • A view of A DFA 127 Extension Spindle Lever Adaptor for a swing door operator, On a white background.
1 4

DFA 127 Extension Spindle Lever Adaptor

DFA 127 Extension Spindle Lever Adaptor

Net: £46.76
Incl. VAT: £56.11
Taxes included.
Delivery info
  • In-stock items: same-day dispatch when ordered before 1 pm, Monday–Friday, excluding bank holidays.
  • Other standard items: next working day dispatch.
  • Customised and bespoke items: individual lead times apply. Confirmation will be sent after ordering.
  • Free delivery on eligible orders over £300. Exclusions apply.
  • View delivery and collection details

Record DFA127 Extension Spindle Lever Adaptor – Multiple Length Options

The Record Extension Spindle Lever Adaptor is specifically designed to extend the drive arm shaft of the Record DFA127 swing door operator when mounted at greater heights. Made from durable cast aluminium with a precise adjustment spline, this adaptor ensures reliable, secure, and accurate connection between the drive shaft and arm lever.

Key Features & Benefits:

  • Height Adjustment:
    Allows DFA127 operators to be mounted higher than standard, with adaptors available in 20mm, 35mm, 50mm, 65mm, and 80mm lengths to accommodate various installation requirements.

  • Durable Construction:
    Manufactured from robust cast aluminium, ensuring strength and long-term reliability.

  • Secure & Accurate Connection:
    Precision spline and fin design provides secure and stable linkage between the operator’s drive shaft and the arm lever.

  • Exclusive DFA127 Compatibility:
    Specifically engineered for use exclusively with Record DFA127 swing door operators, guaranteeing seamless integration and performance.

Technical Specifications:

  • Material: Cast Aluminium

  • Available Lengths: 20mm, 35mm, 50mm, 65mm, 80mm

  • Compatibility: Exclusive for Record DFA127 operators

  • Purpose: Extension of drive arm shaft for higher installation points

  • Connection Method: Precision adjustment spline with fins

View full details

Manufacturer Part Number

REC-127808211

FAQ's

What is the DFA127 Extension Spindle Lever Adaptor used for?

It extends the drive-arm shaft where a compatible Record DFA127 operator is mounted higher than the standard arm position.

Which extension lengths are listed?

The available lengths listed are 20mm, 35mm, 50mm, 65mm and 80mm.

Which operator is the extension adaptor compatible with?

The listing specifies exclusive compatibility with the Record DFA127 automatic swing door operator.

What material is the adaptor made from?

The product information states that the adaptor is manufactured from cast aluminium.

What should be checked before selecting an extension length?

Measure the required shaft extension and confirm the DFA127 arm and mounting geometry before selecting the adaptor length.
