CDVI C3S11 C Series Entry Level 300kg Surface Mount Magnetic Lock, Monitored

CDVI C3S11 Entry-Level 300kg Surface Magnetic Lock - Monitored, Secure & Reliable

The CDVI C3S11 is a cost-effective, entry-level monitored magnetic lock providing robust access control, suitable for a variety of commercial and public buildings. This surface-mounted maglock delivers a holding force of up to 300kg, ensuring doors remain securely locked, even in busy areas. The lock is fully compatible with the extensive range of CDVI brackets, housings, and accessories, making it adaptable for almost any installation scenario.

Product Overview:

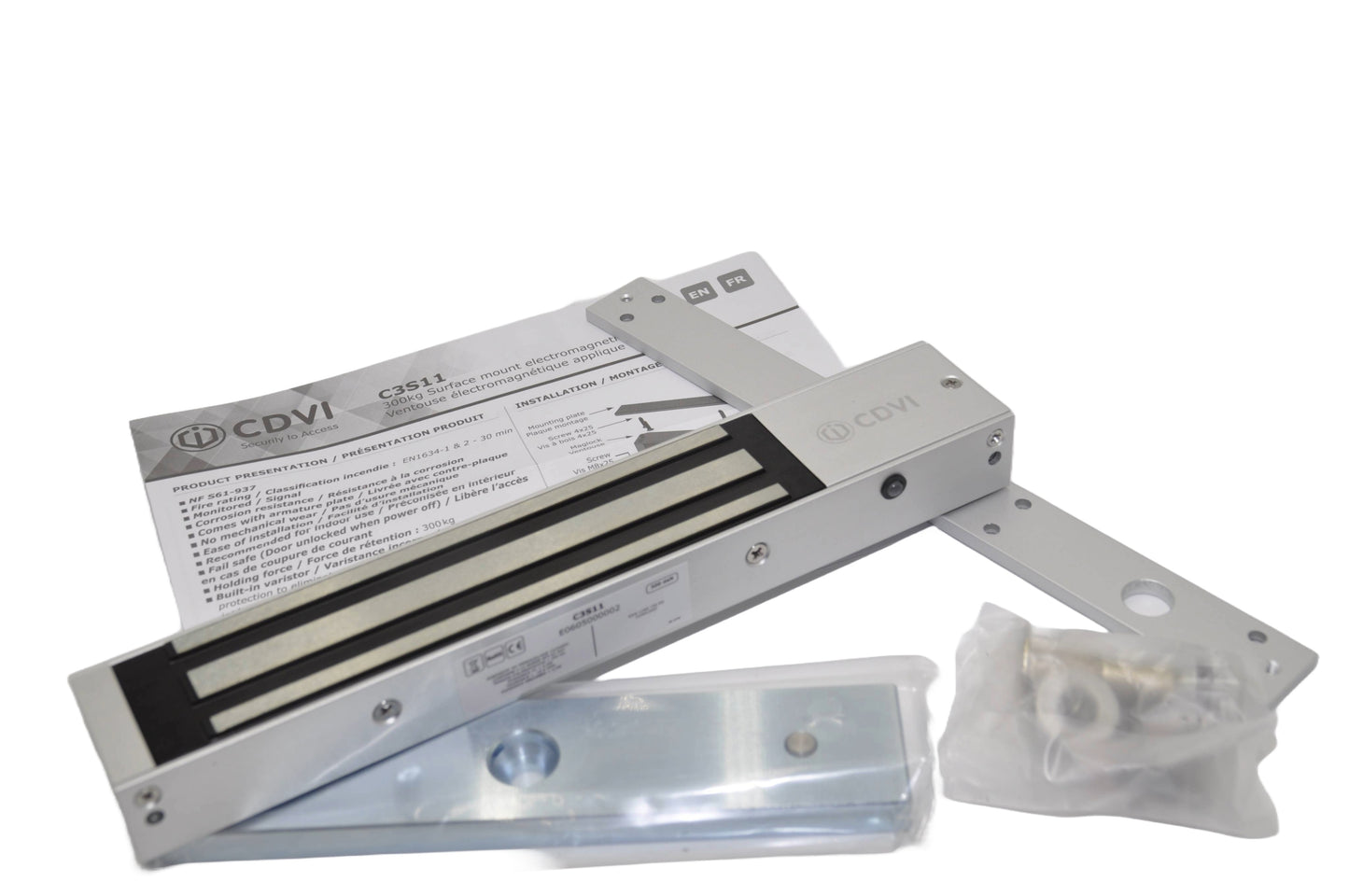

The CDVI C3S11 combines high performance and affordability, making it ideal for securing entry points in offices, schools, healthcare facilities, and retail spaces. Each lock is supplied complete with an armature plate, a comprehensive fixing kit, and clear fitting instructions, simplifying installation.

Key Features & Benefits:

• 300kg Strong Holding Force: Ensures reliable locking for medium-duty applications.

• Monitored Status: Includes a relay for lock status monitoring, providing enhanced security control.

• Fire Safety Rated: Compliant with EN1634-1 and EN1634-2 standards (30-minute fire rating), ensuring safety compliance.

• Maintenance-Free Operation: No moving mechanical parts for increased reliability and reduced ongoing maintenance costs.

• Flexible Compatibility: Easily integrates with CDVI accessories, brackets, and housings.

• Surface Mount: Quick and straightforward installation directly onto the door frame.

• Double Lock Option Available: Also available in a double version (C3S12) for increased security.

Technical Specifications:

• Holding Force: Up to 300kg

• Operation Type: Fail safe

• Relay: 1 relay for lock status monitoring

• Voltage: 12-24V dc

• Power Consumption: 480mA @12Vdc / 240mA @24Vdc

• Operating Temperature: -20°C to +60°C

• IP Rating: IP42

• IK Rating: IK10

• Fire Rating: EN1634-1 and EN1634-2 (30 minutes)

Dimensions:

• Maglock: 250mm (H) x 43mm (W) x 27mm (D)

• Armature Plate: 185mm (L) x 38mm (W) x 11mm (H)
