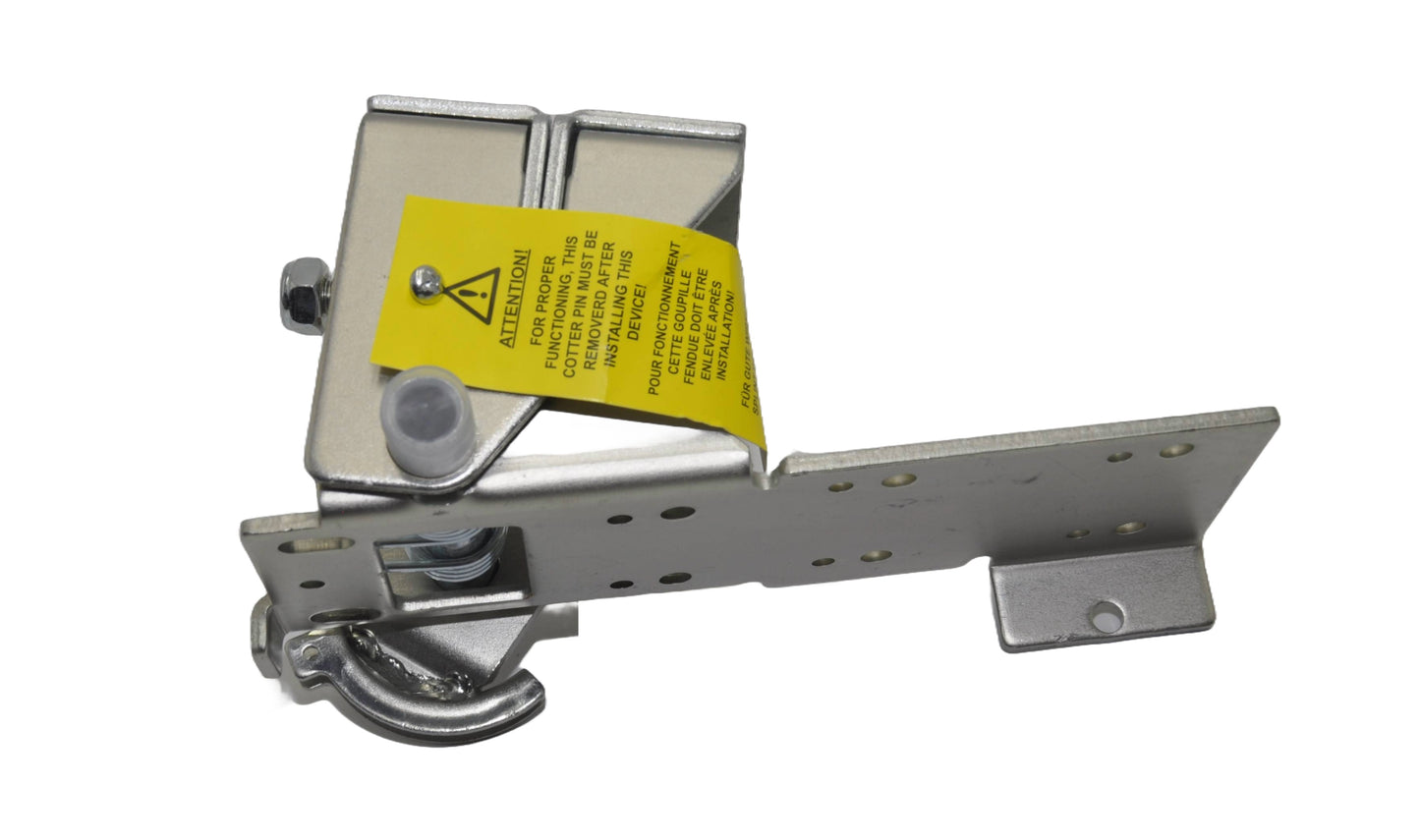

  • A view of a silver galvanised steel bottom safety brake device for sectional doors, with a yellow label, on a white background.
1 8

Cable Brake Safety Device for Sectional Doors

Cable Brake Safety Device for Sectional Doors

Net: £142.50
Incl. VAT: £171.00
Taxes included.

Cable Brake Safety Device for Sectional Doors – Galvanised Steel, Max. Door Weight 750kg

Comes as a pair.

The Cable Brake Safety Device for Sectional Doors provides essential protection for sectional overhead doors, preventing sudden falls in the event of cable failure. Manufactured from robust 3mm galvanised steel, this TÜV/BG-approved safety corner bracket accommodates cables up to 6mm in diameter and suits 2" track systems with 11mm rollers. Supplied in pairs, this device ensures reliable, certified protection and compliance for sectional doors up to 750kg.

Key Features & Benefits:

  • Reliable Cable Brake Protection:
    Immediately arrests door descent upon cable breakage, safeguarding personnel and property.

  • Durable Galvanised Steel Construction:
    Built from 3mm galvanised steel for long-lasting durability, corrosion resistance, and reliable strength.

  • Certified Safety (TÜV/BG Approved):
    Tested and approved (TÜV/BG No. 94072) for superior safety and compliance assurance.

  • Non-Adjustable Cable Fixing:
    Securely fixes the cable in place, offering straightforward installation and reliable performance.

  • Suited for Heavy Doors (up to 750kg):
    Ideal for heavy-duty sectional door installations in commercial, industrial, or high-traffic areas.

Technical Specifications:

  • Material: 3mm Galvanised Steel

  • Max Door Weight: 750kg

  • Max Cable Diameter: 6mm

  • Track Size: 2"

  • Roller Compatibility: 11mm rollers

  • Certification: TÜV/BG Approval No. 94072

  • Dimensions: 143 x 128 x 90 mm

  • Unit: Supplied as a Pair (2 pieces)

  • Weight: 2.7kg (per pair)





Comes as a pair.

View full details

FAQ's

What does the sectional door cable brake protect against?

It is designed to arrest a compatible sectional door if a lifting cable fails, helping prevent an uncontrolled fall.

What maximum door weight is stated for the cable brake?

The listing states suitability for sectional doors up to 750kg.

What maximum cable diameter is specified?

The maximum stated cable diameter is 6mm.

Which track and roller sizes are listed?

The product information states compatibility with 2-inch track systems and 11mm rollers.

How many cable brake units are supplied?

The listing states that the cable brakes are supplied as a pair.
